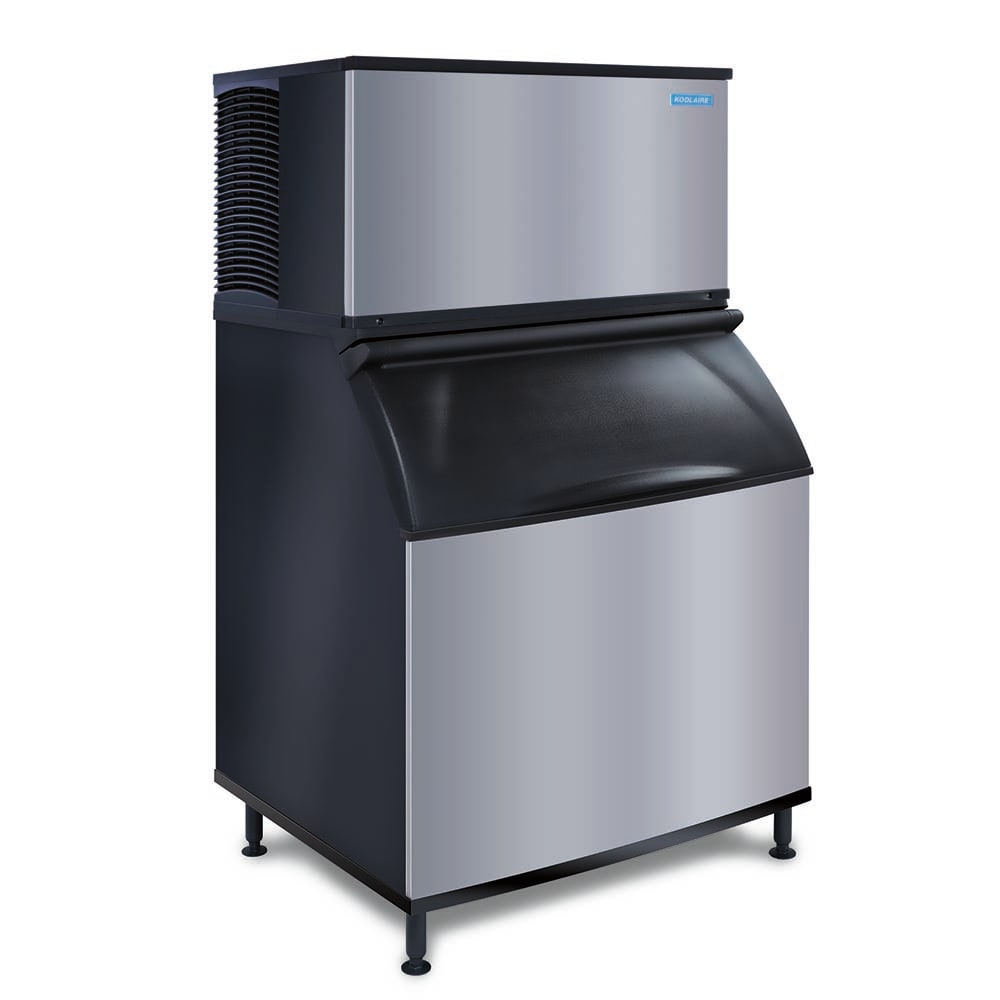

Koolaire KYT1700W/K970 1555 lb KYT Series Half Cube Ice Machine w/ Bin - 882 lb Storage, Water Cooled, 208-230v

The Koolaire KYT1700W/K970 ice machine with bin can produce 1,815 pounds of ice when water flow is 50 degrees Fahrenheit and surrounding air is 70 degrees Fahrenheit. It has a water-cooled condenser that is chilled by a constant stream of cool water around the condenser coil. Because it regularly touches ice and water, the food zone can be accessed for cleaning by removing two screws and a lift-off door. Its white plastic surfaces show which areas need to be cleaned.

The Koolaire KYT1700W/K970 ice machine with bin has an exterior that looks like stainless steel and resists smudges and corrosion. To protect the bin from water damage, it is made of polyethylene. It can accommodate 882 pounds of half-cube ice and comes with an internal scoop holder and ice scoop. Insulated with foam to keep in cold air, the door remains open when it is propped up for comfortable scooping.

Ice Maker Details

• 1,815-lb. capacity
• 1,550-lb. AHRI-certified capacity
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Exterior has a finish that looks like stainless steel and does not show fingerprints or smudges
• Food zone is accessed by removing two screws and a lift-off door
• White plastic in the food zone helps highlight areas for cleaning
• Water-cooled unit with a self-contained condenser supports service
• Uses R410A refrigerant
• Water shield, distribution tube, pump, floats, and trough can be removed by hand
• Water pressure: 20-80 PSI
• Water temperature: 40-90 degrees F
• Ambient air temperature: 40-110 degrees F

Bin Details

• 882-lb. ice capacity
• 29.7-cu.-ft. AHRI-certified interior space
• Exterior is like stainless steel, providing corrosion resistance
• 6-in. legs are adjustable
• Polyethylene interior
• Foam-insulated door retains cold air for long-lasting ice
• Door remains open when flipped up
• Internal scoop holder and ice scoop included

Dimensions & Utilities

• Bin: 48 in. W x 34 in. D x 50 in. H
• Ice maker: 48 in. W x 24 in. D x 29.5 in. H
• 12.2-16.8 A, 3.4 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Koolaire KYT1700W/K970 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, water-cooled, self-contained condenser, 48" W, production capacity up to 1555 lb/24 hours at 70°/50° (1421 lb AHRI certified at 90°70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KY-1350W)

Ice Storage Bin, with top-hinged front opening door, 882 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor

Koolaire KYT1700W/K970 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
