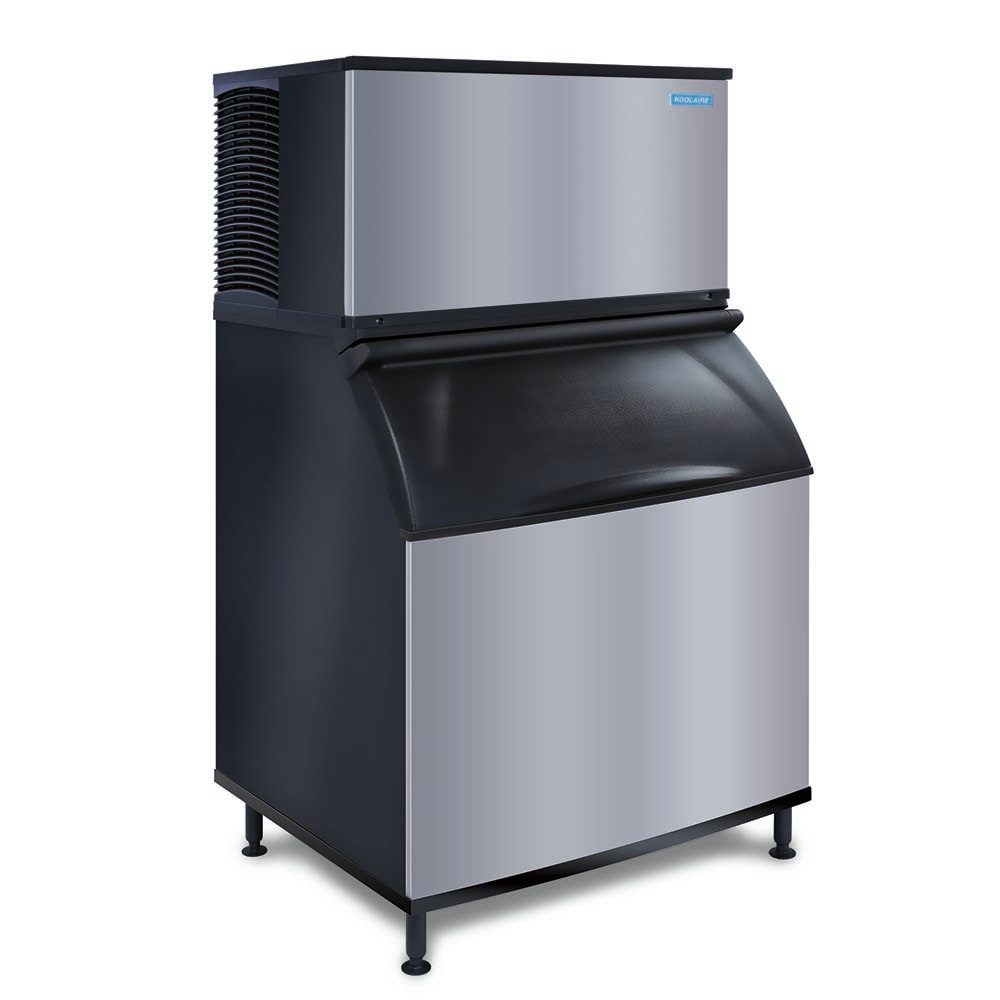

Koolaire KDT1700W/K970 1600 lb KDT Series Full Cube Ice Machine w/ Bin - 882 lb Storage, Water Cooled, 208-230v

In the proper conditions, the Koolaire KDT1700W/K970 full-cube ice machine with bin can produce 1,765 pounds of full-cube ice daily. Full-cube ice is great for alcoholic drinks since it melts slowly, measuring 0.875 inch by 0.875 inch by 0.875 inch. This ice maker has a water-cooled condensing unit that pumps water to the condenser coils to chill the refrigerant. Looking and and feeling like stainless steel, the unit's exterior protects against rust and fingerprints.

Known as the food zone, all areas that come into contact with ice and water are sealed to prevent bacteria from growing in the crevices. This area has white plastic parts, so dirt and slime can be quickly spotted. By taking out two screws and lifting off the door, the food zone can be taken apart for cleaning. Most other internal components can be removed without tools, and the cleaning cycle is initiated with the push of a button.

The Koolaire KDT1700W/K970 ice maker with bin can store 882 pounds of ice and has an insulated door to keep the contents frozen while reducing condensation buildup. Since this door has a stay-open design, it will not fall on the user when scooping. Its exterior mimics stainless steel and resists smudges, and its side panels are black to match the ice machine. An 82-ounce scoop is included with a built-in holder that provides a separate space to store the scoop. To suit various heights and uneven floors, the bin's legs can be adjusted.

Ice Maker Details

• Water-cooled condensing unit
• Uses R410A refrigerant
• 1,765-lb. production capacity
• 1,460-lb. AHRI-certified production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Exterior is similar to stainless steel and resists smudges
• Cleaning cycle runs with the push of a button
• Pump, trough, distribution tube, floats, and water shield can be removed by hand
• Dirt and debris do not get trapped in the sealed food zone
• Slimy areas can be spotted due to the white plastic components in the food zone
• Food zone can be taken apart by removing 2 screws and the lift-off door
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Ice Bin Details

• 882-lb. application capacity
• 29.7-cu.-ft. AHRI-certified interior space
• 82-oz. scoop included
• Scoop is kept in a built-in holder to prevent ice contamination
• Exterior looks like stainless steel and resists fingerprints
• Side panels are black to match the ice machine
• Adjustable legs offer stability
• Insulated door keeps ice frozen for hours
• Door stays open to facilitate scooping

Dimensions & Utilities

• Ice Maker
  • 48 in. W x 24 in. D x 29.5 in. H
  • 16.8 A, 3.5 kW
  • 208-230 V/60 Hz/1 ph
• Bin
  • 48 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KDT1700W/K970 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, water-cooled, self-contained condenser, 48" W, production capacity up to 1600 lb/24 hours at 70°/50° (1400 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, full dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KD-1350W)

Ice Storage Bin, with top-hinged front opening door, 882 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
