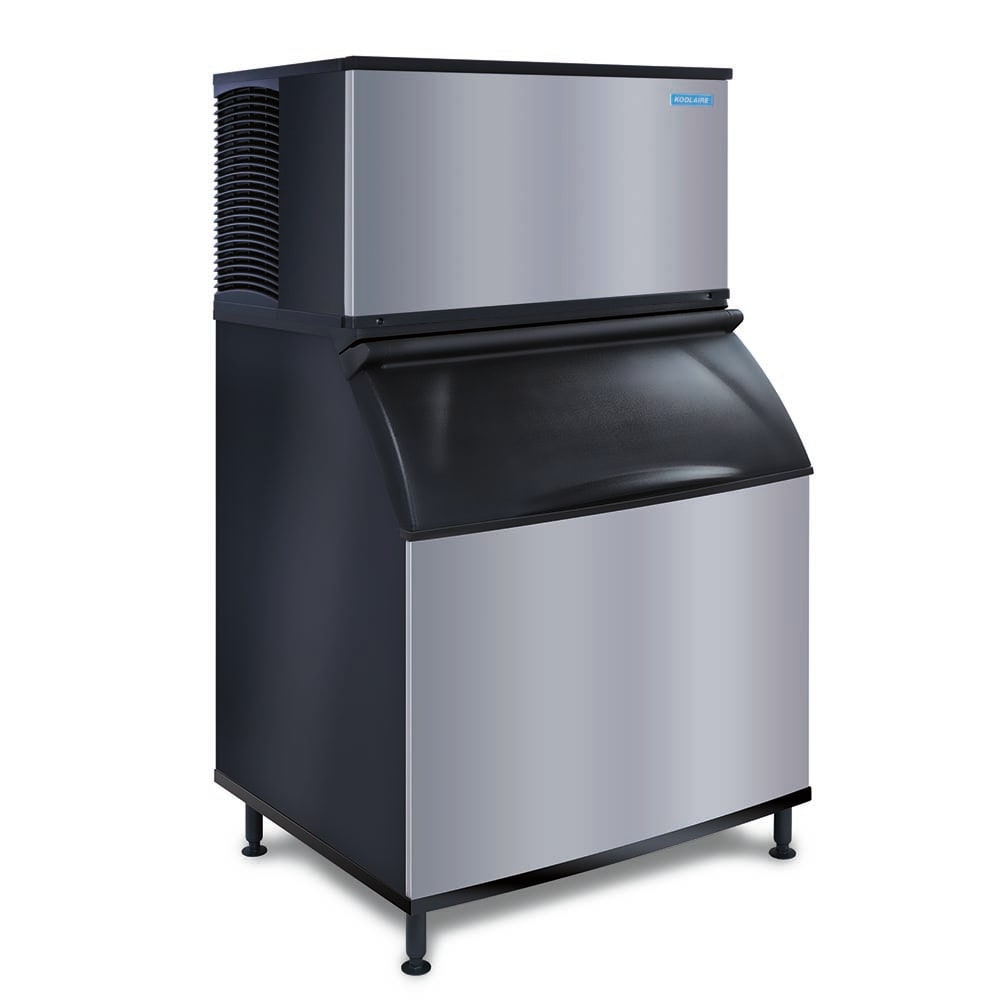

Koolaire KDT1700A/K970 1652 lb KDT Series Full Cube Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

The Koolaire KDT1700A/K970 full-cube ice maker with bin can hold 882 pounds of ice and keep it frozen for hours with an insulated door. This door can be propped open when scooping so that it cannot fall on the user. Like stainless steel, its exterior is resistant to fingerprints, and its black side panels color coordinate with the ice machine. An 82-ounce scoop with a built-in holder is included to keep the ice from becoming contaminated. Each of its four legs can be adjusted to various heights.

The Koolaire KDT1700A/K970 ice machine with bin can make 1,800 pounds of full-cube ice daily, depending on the ambient air and incoming water temperatures. Full-cube ice does not cool drinks quickly, but it melts slowly and is great for alcoholic beverages. Its condensing unit is air cooled, so it uses fans to pull in air and then blow it across the condenser.

Ice Maker Details

• 1,800-lb. production capacity
• 1,350-lb. AHRI-certified production capacity
• Air-cooled condensing unit
• Uses R410A refrigerant
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Exterior resembles stainless steel and resists fingerprints and rust
• Distribution tube, pump, water shield, trough, and floats are removable without tools
• Button controls the cleaning cycle
• White plastic parts in the food zone enable users to quickly spot dirty areas
• 2 screws and a lift-off door must be removed to access the food zone
• Food zone does not trap debris since it is sealed
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• Ambient air temperature: 40-110 degrees F

Ice Bin Details

• 882-lb. application capacity
• 29.7-cu.-ft. AHRI-certified interior space
• 82-oz. scoop included
• Holder creates a space to store the scoop
• Ice stays frozen longer with the insulated door
• Stay-open door design aids in scooping
• Exterior finish resists smudges and looks like stainless steel
• Black side panels complement the ice machine
• Legs can be adjusted to accommodate different heights

Dimensions & Utilities

• Ice Maker
  • 48 in. W x 24 in. D x 29.5 in. H
  • 18.2 A, 4.6 kW
  • 208-230 V/60 Hz/1 ph
• Bin
• 48 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KDT1700A/K970 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 48" W, production capacity up to 1652 lb/24 hours at 70°/50° (1326 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, full dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KD-1350A & KD-1800A)

Ice Storage Bin, with top-hinged front opening door, 882 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
