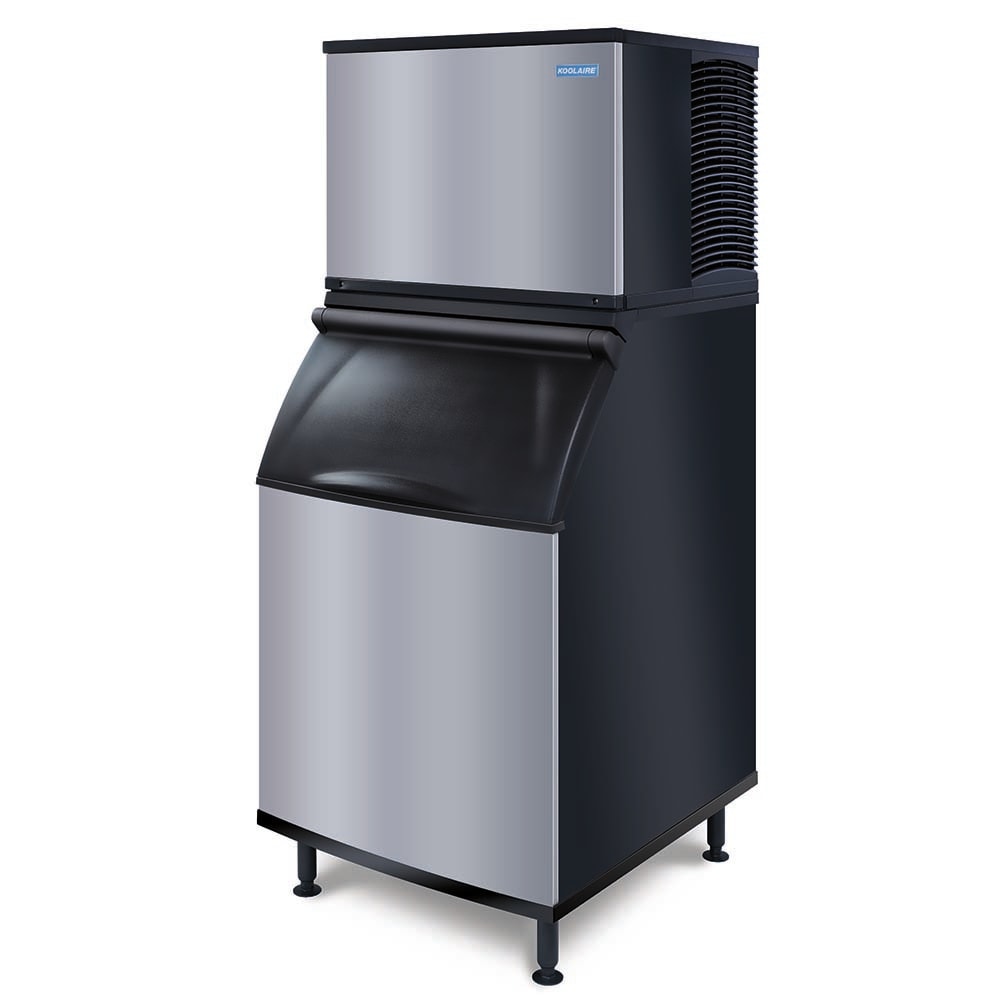

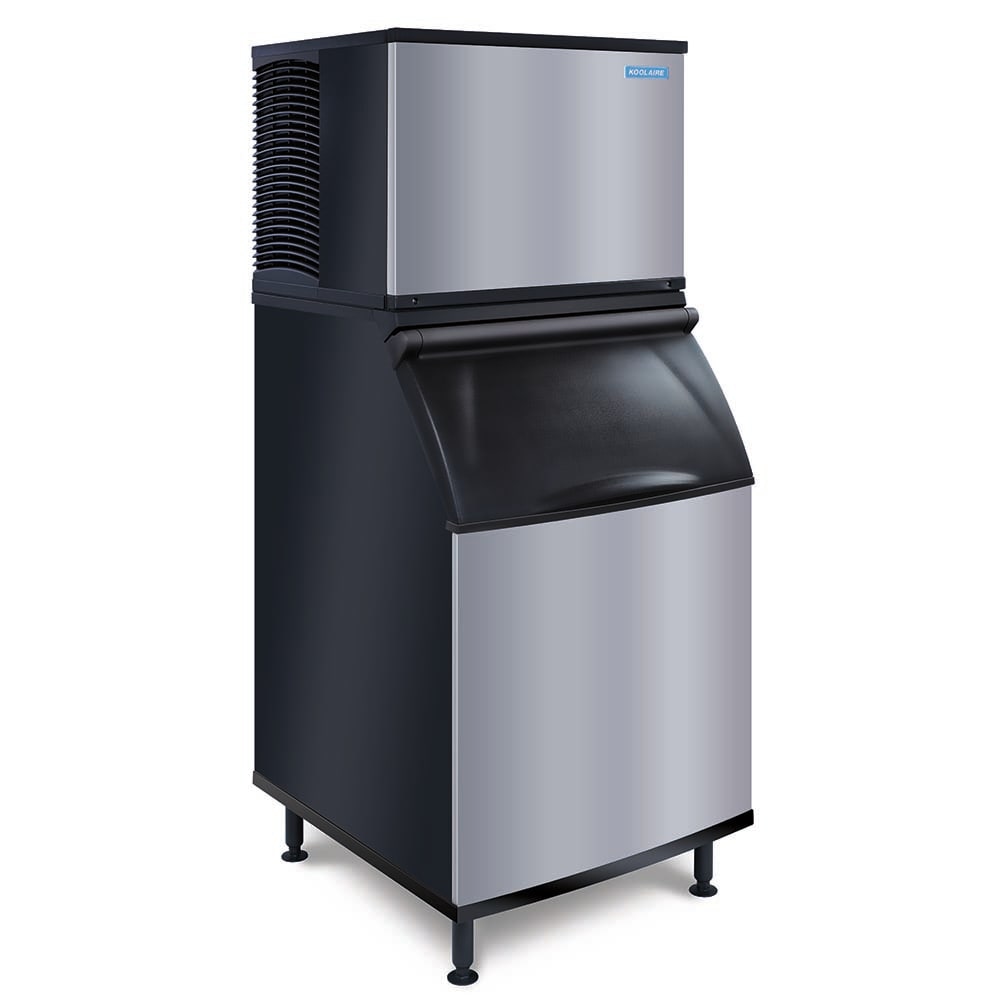

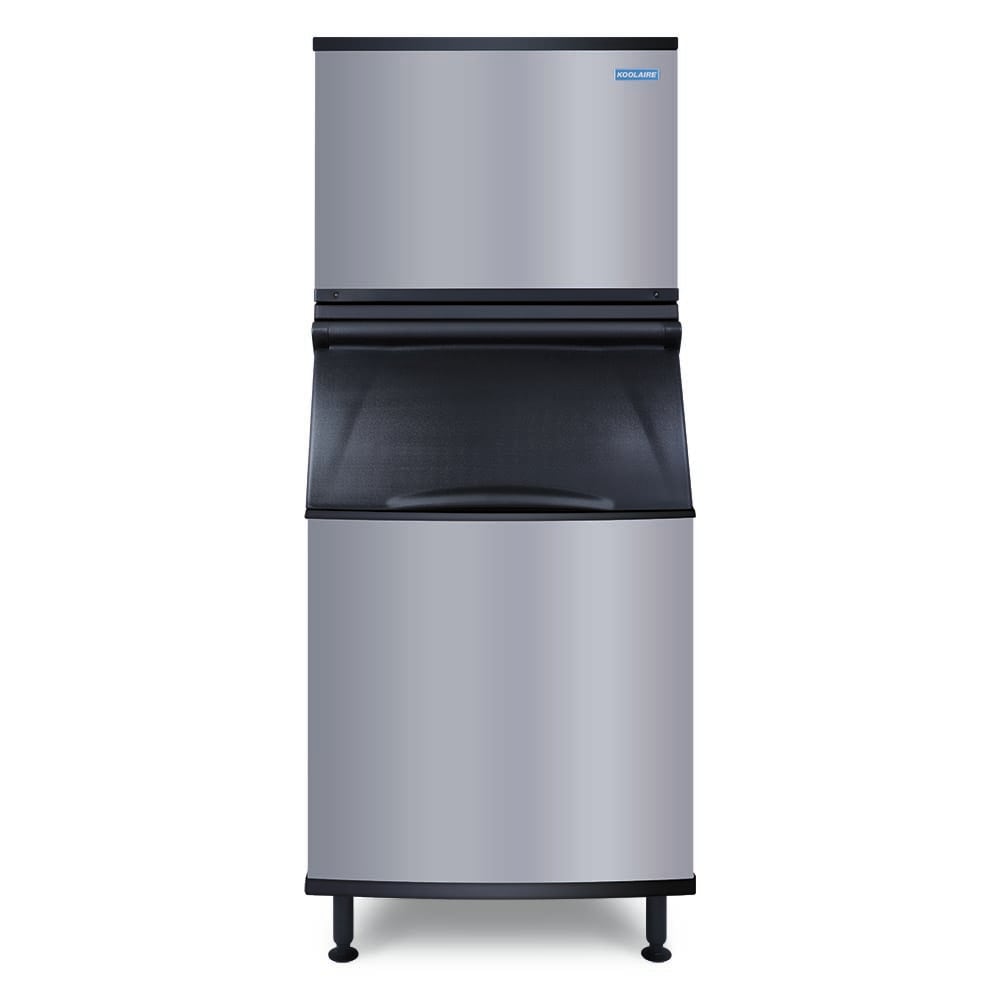

Koolaire KYP0700A/K570 641 lb KYT Series Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,573.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Koolaire KYP0700A/K570 Description
The Koolaire KYP0700A-261/K570 ice maker with bin can produce 641 pounds of ice with an ambient air temperature of 70 degrees Fahrenheit and a water temperature of 50 degrees Fahrenheit. It produces half-size ice that measures 0.375 inch by 1.125 inches by 0.875 inch and cools down beverages faster than full-size ice. To aid in maintenance, its air-cooled condenser is self-contained and uses R290 refrigerant. Since the system is air-cooled, fans take in and blow out cool air across the condenser to chill the equipment.
The Koolaire KYP0700A-261/K570 ice maker with bin has a 17.9-cubic-foot interior space that can accommodate 532 pounds of ice. An ice scoop is included, and an internal scoop holder keeps it from touching the ice. With an appearance like stainless steel, the exterior of the ice maker and bin resists smudges and corrosion, and its door is insulated with foam to lock in cold air and prevent ice from melting quickly. For quick scooping, the door remains open when propped up.
- 641-lb. capacity
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Stainless steel-like finish protects against smudges and fingerprints
- Air-cooled, self-contained condenser for quick maintenance
- Uses R290 refrigerant
- Water shield, tube, pump, distribution tube, floats, and trough can be removed by hand for cleaning
- Required ambient air temperature: 40-110 degrees F
- Required water temperature: 40-90 degrees F
- Required water pressure: 20-80 PSI
- 532-lb. ice capacity
- 17.9-cu.-ft. AHRI-certified interior space
- Exterior looks like stainless steel and provides corrosion resistance
- Interior is constructed of water-resistant polyethylene
- Foam-insulated door slows down melting ice

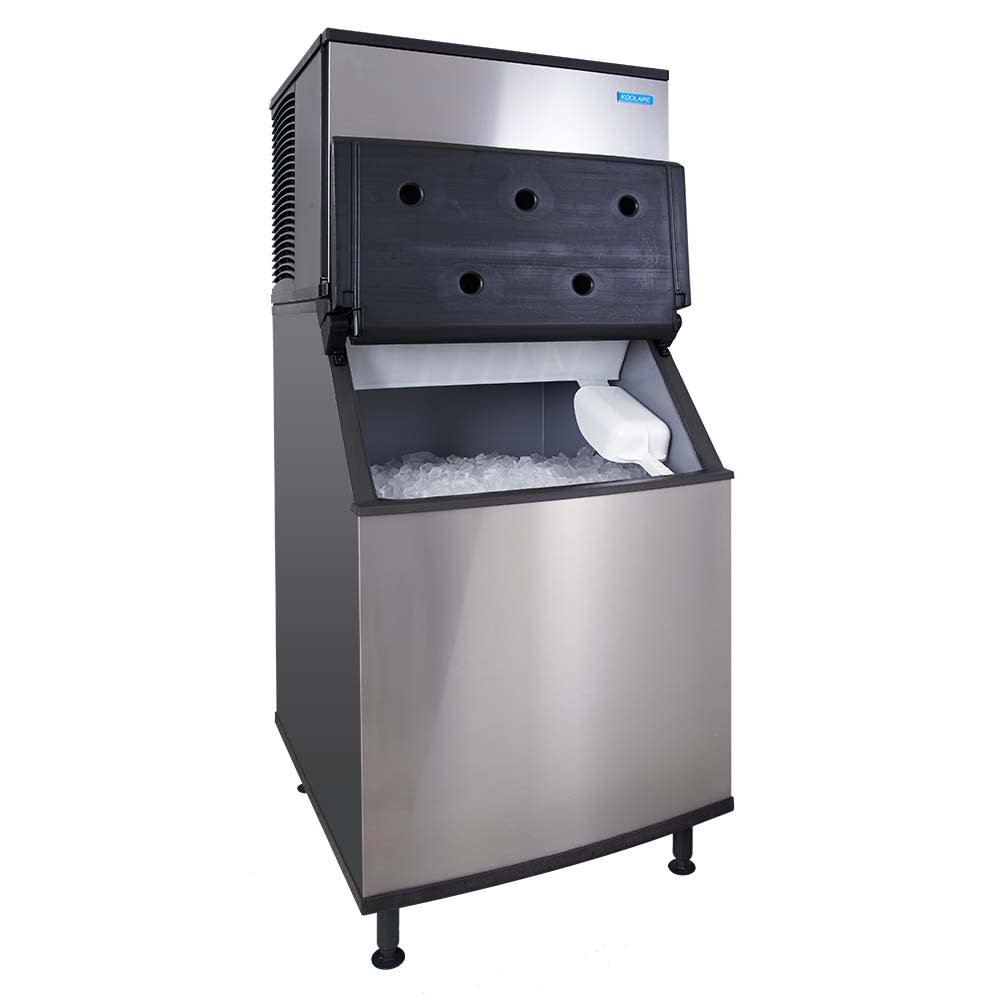

- Door stays open while scooping
- Internal scoop holder and ice scoop included
- 4 adjustable legs
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice maker: 30 in. W x 24 in. D x 21.5 in. H
- 8.5 A, 5.35 kW
- 230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP0700A/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30"W, production capacity up to 641 lb/24 hours at 70°/50° (580 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR® (replaces KY-0600A)
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KYP0700A/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 641 |
| Access | Lift Up Door |
| Also Known As | KYT0700A/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KYT Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 282.00 |
