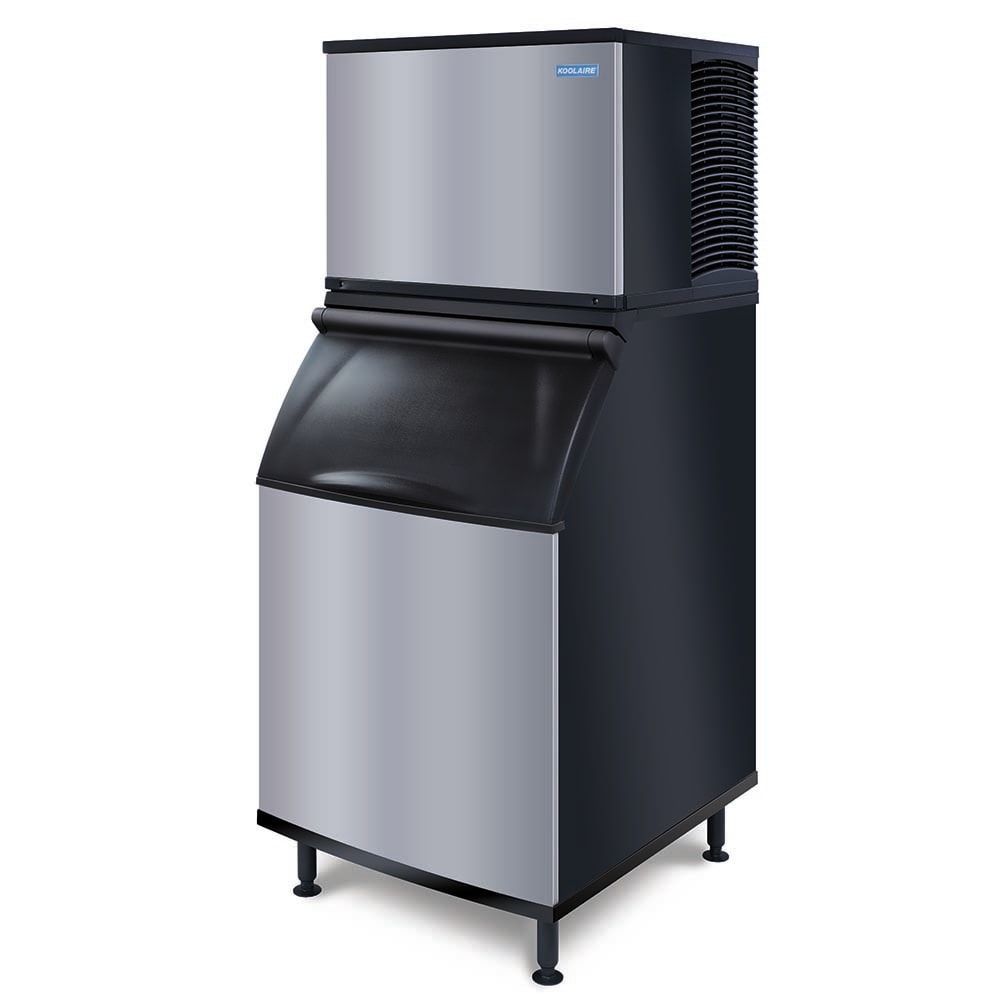

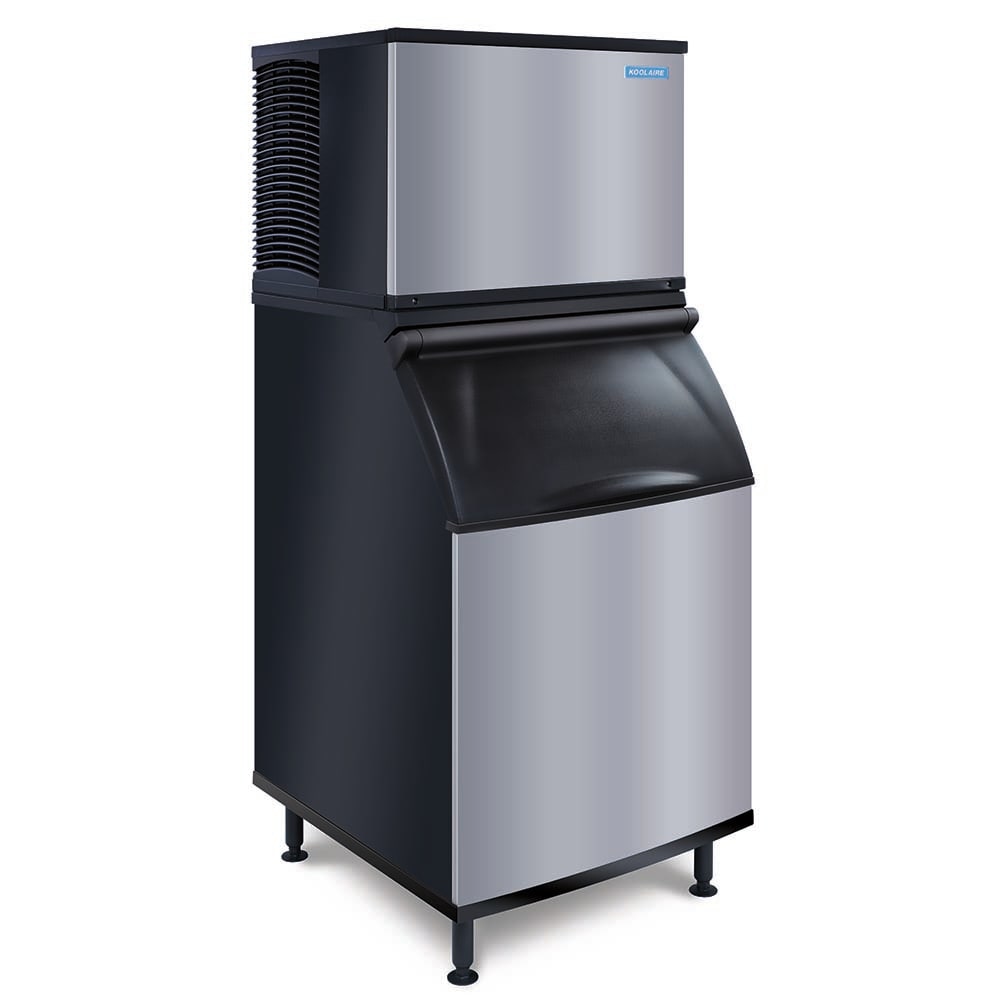

Koolaire KDP0700A/K570 614 lb KDT Series Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,573.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDP0700A/K570 Description
The Koolaire KDP0700A-261/K570 full-cube ice machine head with bin has an air-cooled condensing unit that uses fans to direct cold air across the condenser and cool the equipment. Depending on surrounding conditions, this unit can produce 614 pounds of full-cube ice daily. This ice melts more slowly than half-cube ice, so it is perfect for drinks that are meant to be sipped. Its exterior looks and feels like stainless steel and resists smudges and rust. Its food zone—the areas that touch water and ice—is sealed to prevent bacterial growth. In order to keep the unit sanitary, the food zone has white plastic components that stand out against dirt. When they need cleaning, the water shield, floats, pump, distribution tube, and trough can be removed by hand.
The Koolaire KDP0700A-261/K570 ice maker with bin can store 532 pounds of ice and has an exterior that resists corrosion like stainless steel. For comfortable scooping, the door can be propped open, and it is insulated to prevent condensation from building up. Providing stability on uneven surfaces, the bin's legs can be adjusted. An 82-ounce scoop with an interior holder is included to keep the ice sanitary. This unit's black side panels match the ice machine to provide a uniform appearance.
- Air-cooled condensing unit
- 614-lb. production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R290 refrigerant
- Pump, floats, water shield, trough, and distribution tube can be removed without tools
- Food zone can be taken apart by removing 2 screws and lifting the door
- Exterior looks like stainless steel and resists fingerprints
- White plastic components in the food zone reveal dirty spots
- Food zone is sealed to keep bacteria out
- Button activates the cleaning cycle
- Incoming water pressure: 20-80 PSI
- Incoming water temperature: 40-90 degrees F
- Ambient air temperature: 40-110 degrees F
- 532-lb. application capacity
- 17.9-cu.-ft. AHRI-certified interior space
- Exterior finish resists smudges and resembles stainless steel
- Adjustable legs elevate the bin
- Stay-open door facilitates scooping
- Insulated door minimizes condensation buildup
- 82-oz. scoop included
- Holder keeps the scoop out of the ice
- Black side panels match the ice maker
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 8.5 A, 5.35 kW
- 208-230 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 44 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0700A/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 614 lb/24 hours at 70°/50° (529 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0700A/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 614 |
| Access | Lift Up Door |
| Also Known As | KDT0700A/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 282.00 |
