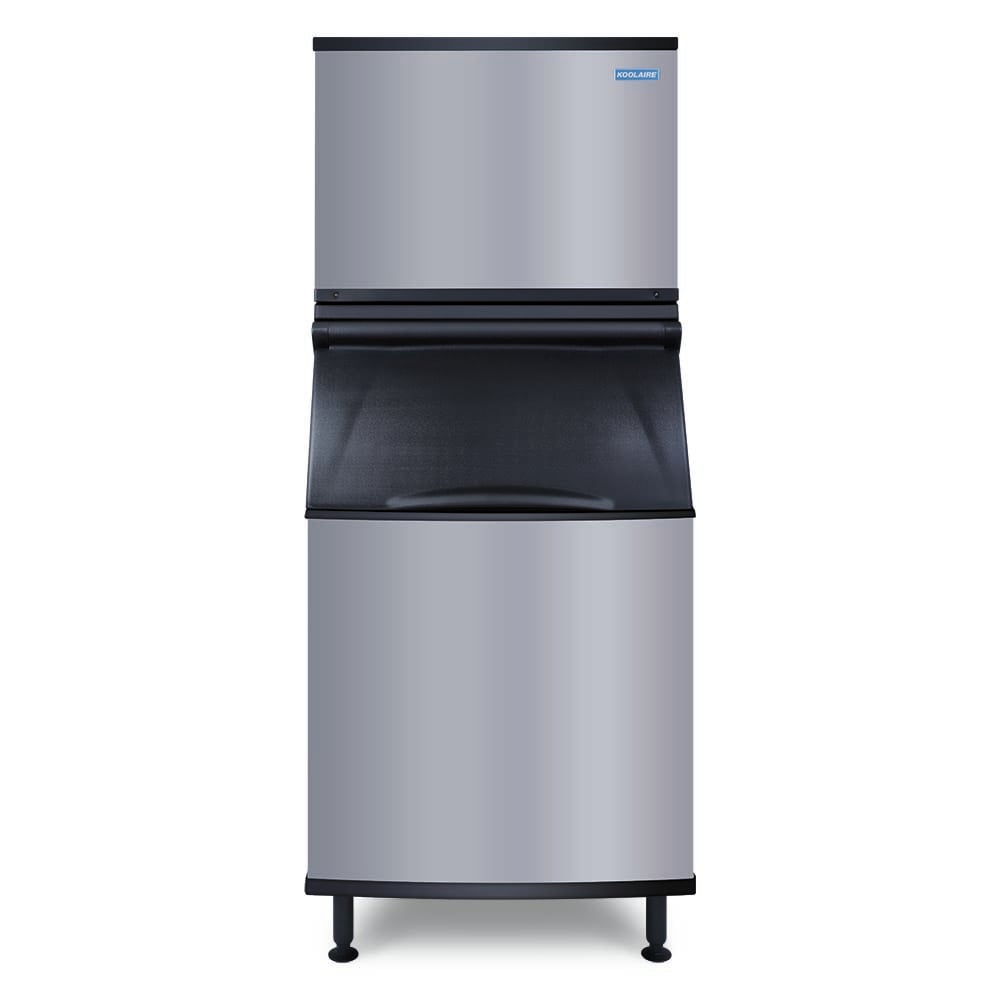

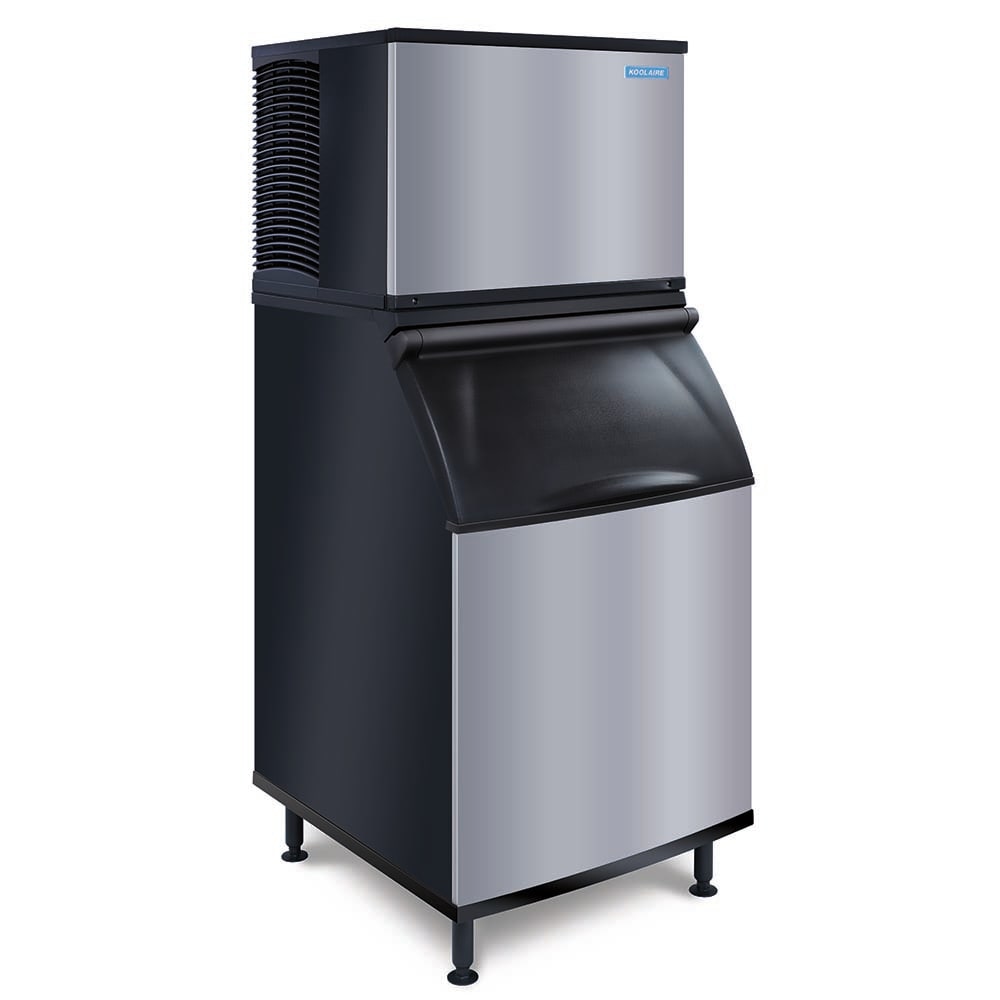

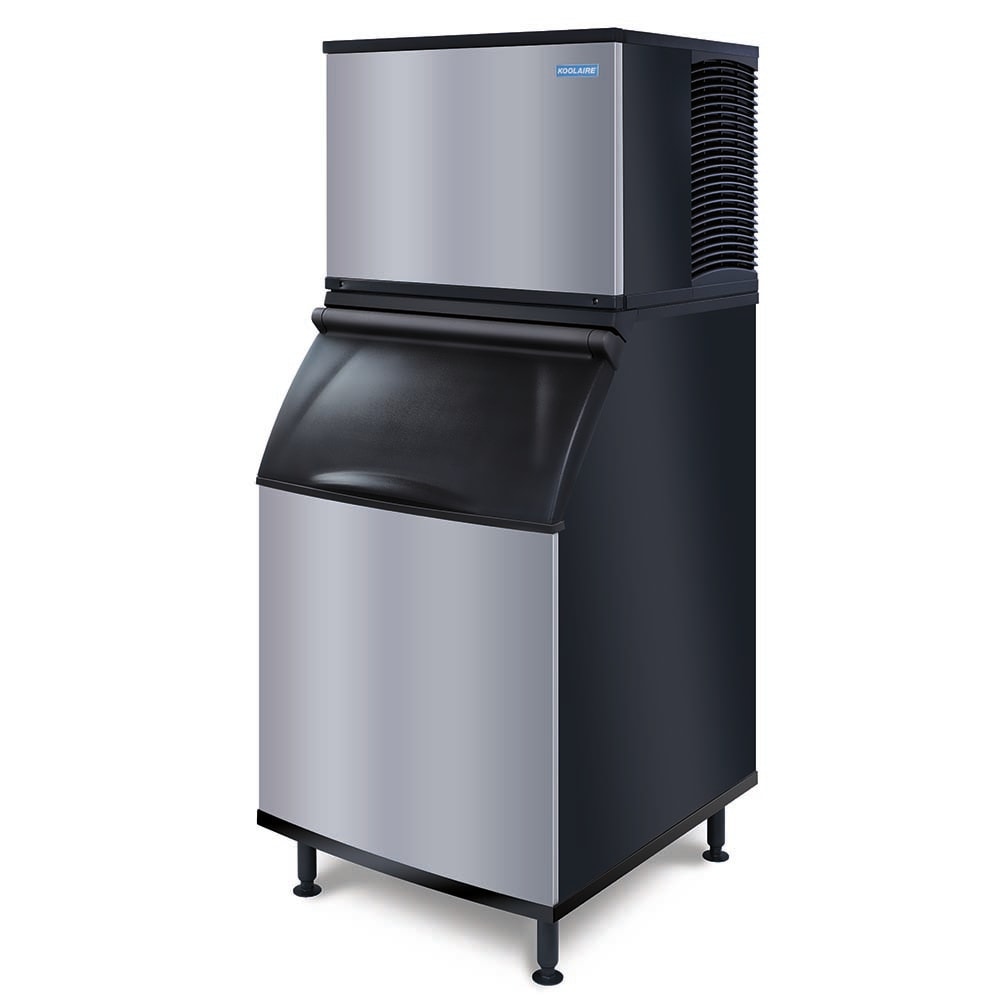

Koolaire KYP0700W/K570 705 lb KYT Series Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 208-230v
$6,765.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Koolaire KYP0700W/K570 Description
The Koolaire KYP0700W/K570 ice maker with bin has an exterior that looks like stainless steel and avoids corroding or showing smudges. In order to cool its refrigerant, the ice maker has a self-contained, water-cooled condenser that is chilled by cool water flowing around the condenser coils. Self-contained condensers facilitate maintenance, as all the components are housed together. The food zone—an area that touches the ice and water—has white plastic to reveal dirt and grime that need to be cleaned. To promote painless upkeep, the water shield, tube, pump, distribution tube, floats, and trough can be removed by hand.

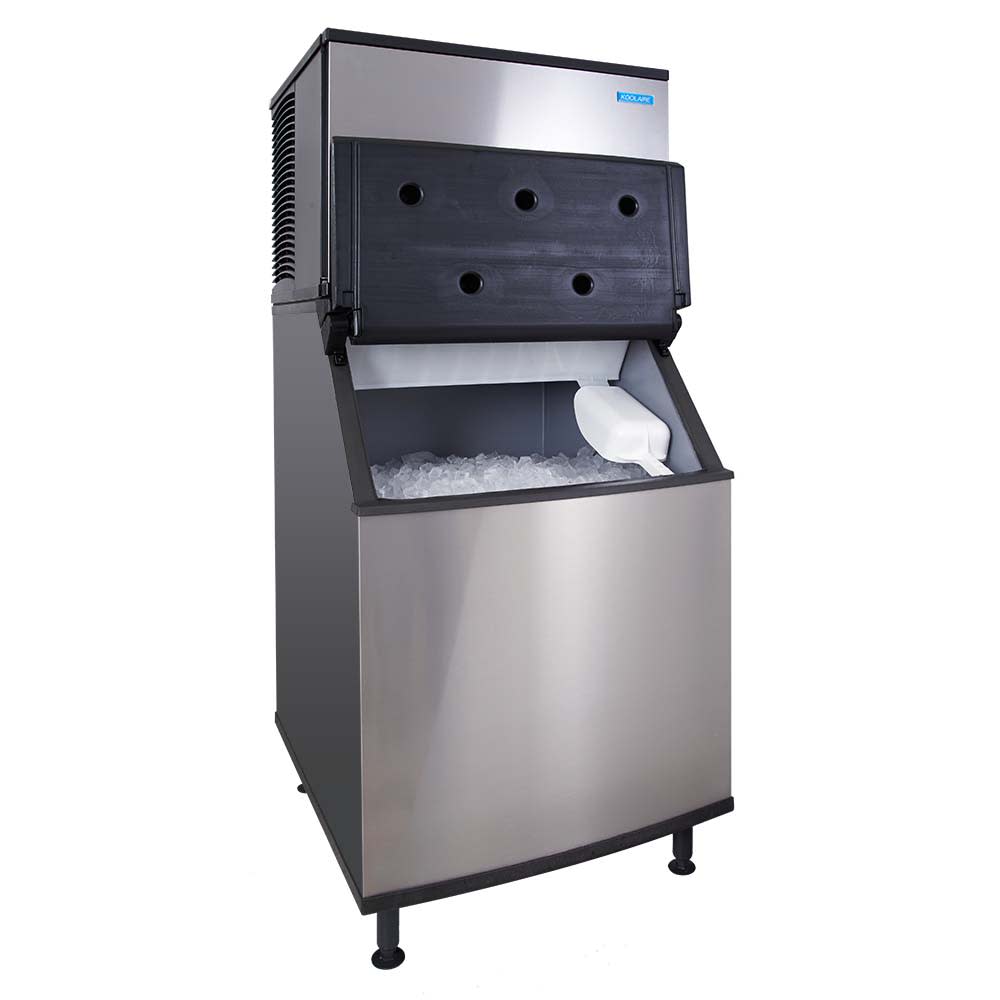

The Koolaire KYP0700W/K570 ice maker with bin can store 532 pounds of half-size ice cubes, and a holder on the inside of the bin provides space to house the 82-ounch scoop. Its 6-inch legs can be adjusted to different heights to keep it level on uneven floors. In order to keep ice from melting, its foam-insulated door seals in cold air. When propped up, the door remains open so that users can scoop ice more efficiently.
- 705-lb. capacity
- 580-lb. AHRI-certified capacity
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Stainless steel-like finish on the exterior is resistant to smudges and fingerprints
- Water shield, tube, pump, distribution tube, floats, and trough can be removed by hand for maintenance and cleanup
- Water-cooled, self-contained condenser
- Uses R290 refrigerant
- Food zone features white plastic to assist with cleaning
- Required ambient air temperature: 40-110 degrees F
- Required water temperature: 40-90 degrees F
- Required water pressure: 20-80 PSI
- 532-lb. ice capacity
- 17.9-cu.-ft. AHRI-certified interior space
- Exterior is similar to stainless steel to provide superior corrosion resistance
- Interior has a polyethylene construction
- 6-in. legs are adjustable
- Foam-insulated door prevents sweat from forming and slows the melting of ice
- Door remains open while scooping ice
- Internal ice scoop holder stores the scoop away from ice
- 82-oz. ice scoop included
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice Maker: 30 in. W x 24 in. D x 21.5 in. H
- 8.2 A, 4.45 kW
- 230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP0700W/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W, production capacity up to 705 lb/24 hours at 70°/50° (580 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R290 refrigerant, NSF, cULus, CE (replaces KY-0600W)
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KYP0700W/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 705 |
| Access | Lift Up Door |
| Also Known As | KYT0700W/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KYT Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 291.00 |
