Koolaire KYP0500W-161/K570 522 lb KYT Series Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v
$6,112.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Koolaire KYP0500W-161/K570 Description
The Koolaire KYP0500W-161/K570 ice maker with bin produces half-size ice cubes, which chill beverages faster than full-size cubes. With an ambient temperature of 70 degrees Fahrenheit and a water flow temperature of 50 degrees Fahrenheit, it can make 522 pounds of ice in a day. The exterior of this unit looks similar to stainless steel and resists corrosion and smudges. Its water-cooled, self-contained condenser is chilled by a constant flow of cold water around the condenser coils. To facilitate maintenance, the water shield, distribution tube, pump, floats, and trough can all be removed by hand.

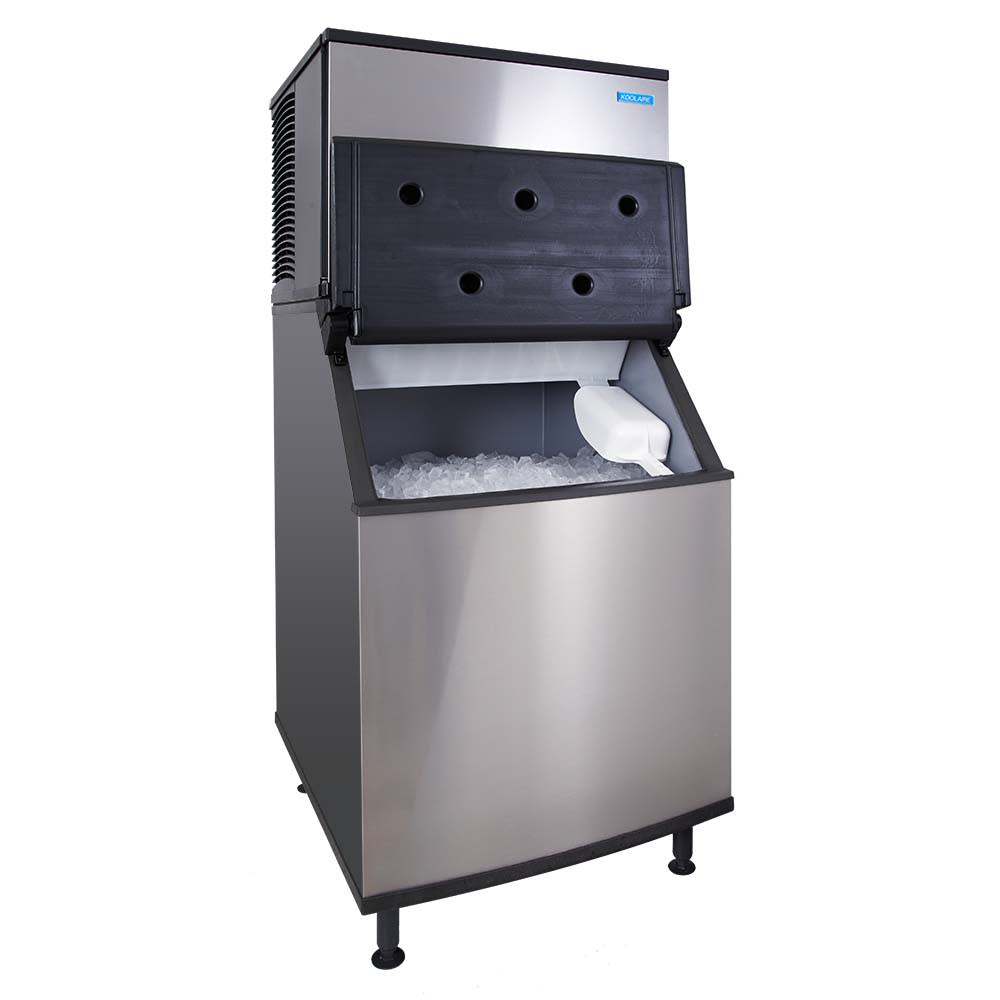

The food zone of the Koolaire KYP0500W-161/K570 ice maker with bin utilizes white plastic to highlight dirty areas for cleaning. This unit sits on four legs that can be adjusted to various heights, and its bin accommodates as much as 532 pounds of ice. To slow down melting, the foam-insulated door retains cold air and stays propped open for ice scooping. A scoop is included and can be housed in the built-in scoop holder on the inside of the unit.
- 522-lb. capacity
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Stainless steel-like finish is resistant to smudges and fingerprints
- Water shield, distribution tube, pump, floats, and trough can be removed by hand
- Water-cooled with a self-contained condenser to support maintenance
- Food zone with white plastic highlights dirty areas
- Ambient air temperature: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- Uses R290 refrigerant
- 532-lb. ice capacity
- 17.9-cu.-ft. AHRI-certified interior space
- Polyethylene interior is water resistant
- Stainless steel-like exterior resists corrosion
- Legs are adjustable
- Includes a scoop with an internal scoop holder
- Door is insulated with foam to limit sweat and slow down melting
- Door stays open while scooping ice
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice maker: 30 in. W x 24 in. D x 21.5 in. H
- 12 A, 4 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP0500W-161/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 522 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KYP0500W-161/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 522 |
| Access | Lift Up Door |
| Also Known As | KYT0500W/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KYT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 278.00 |
