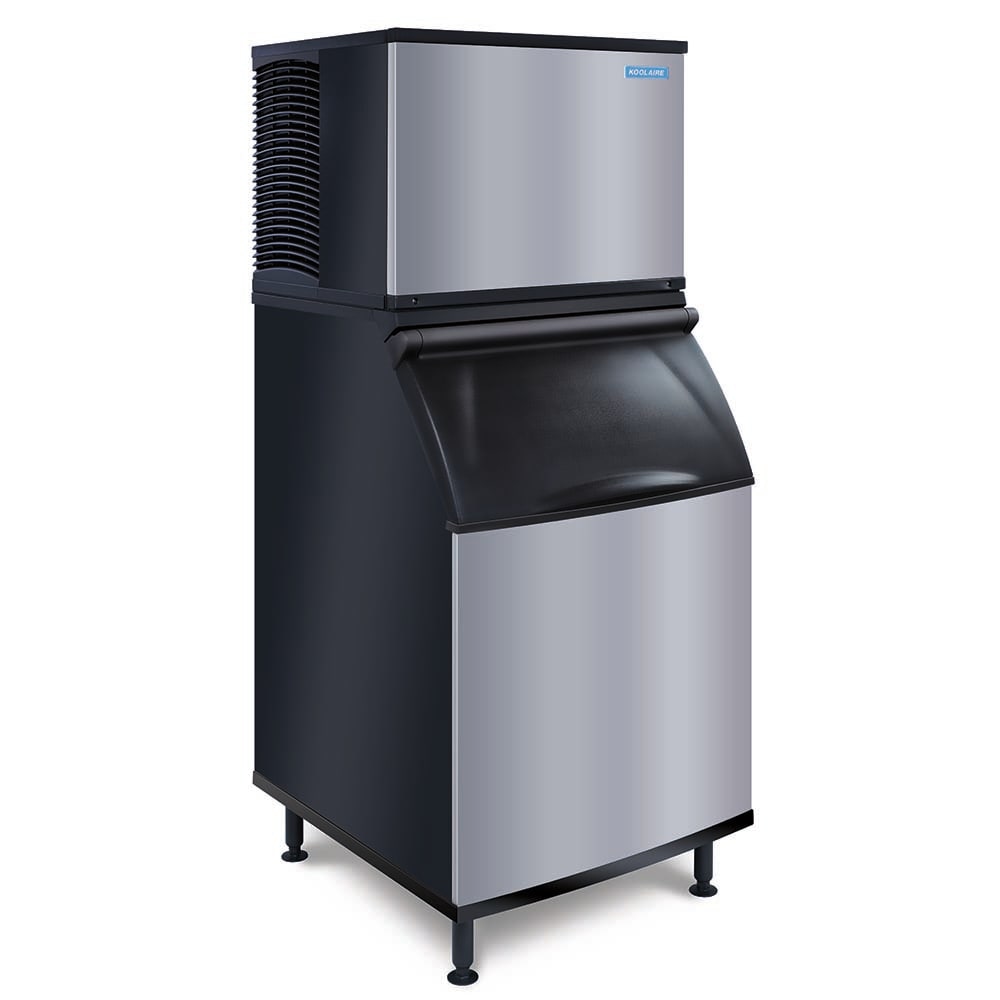

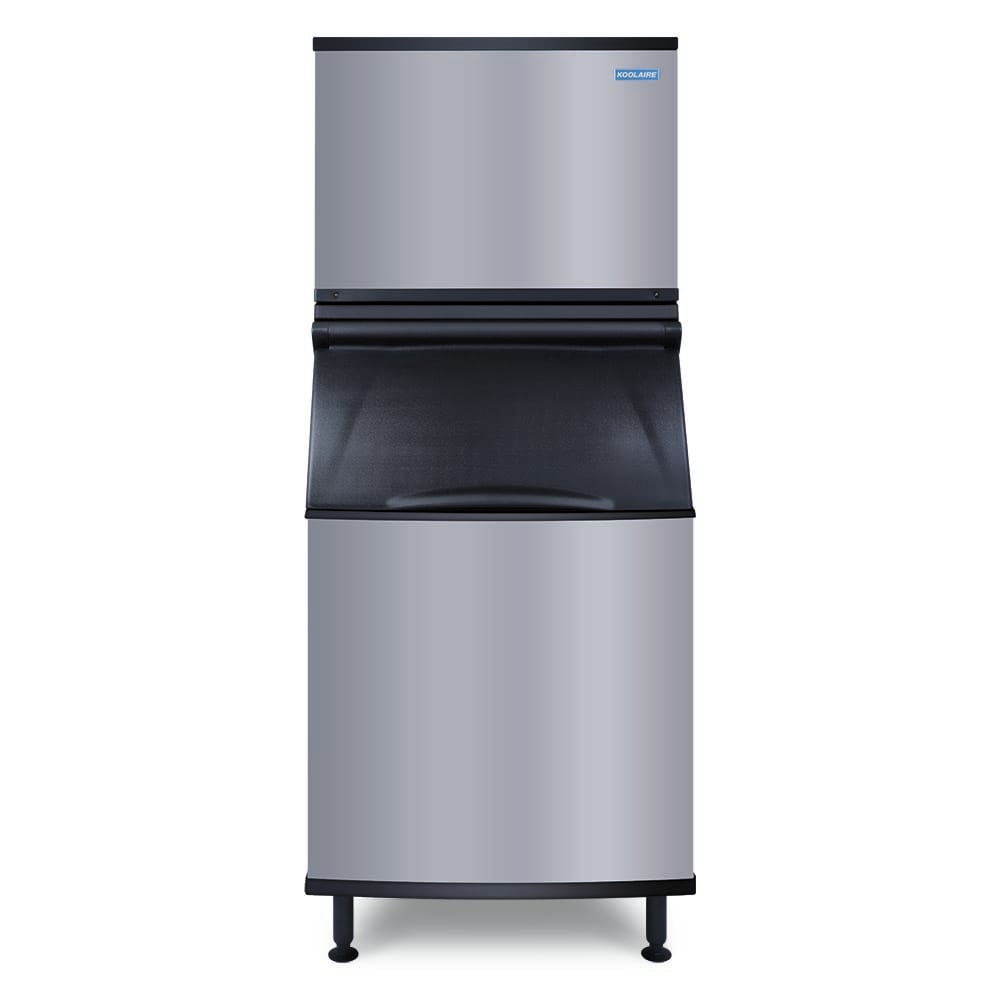

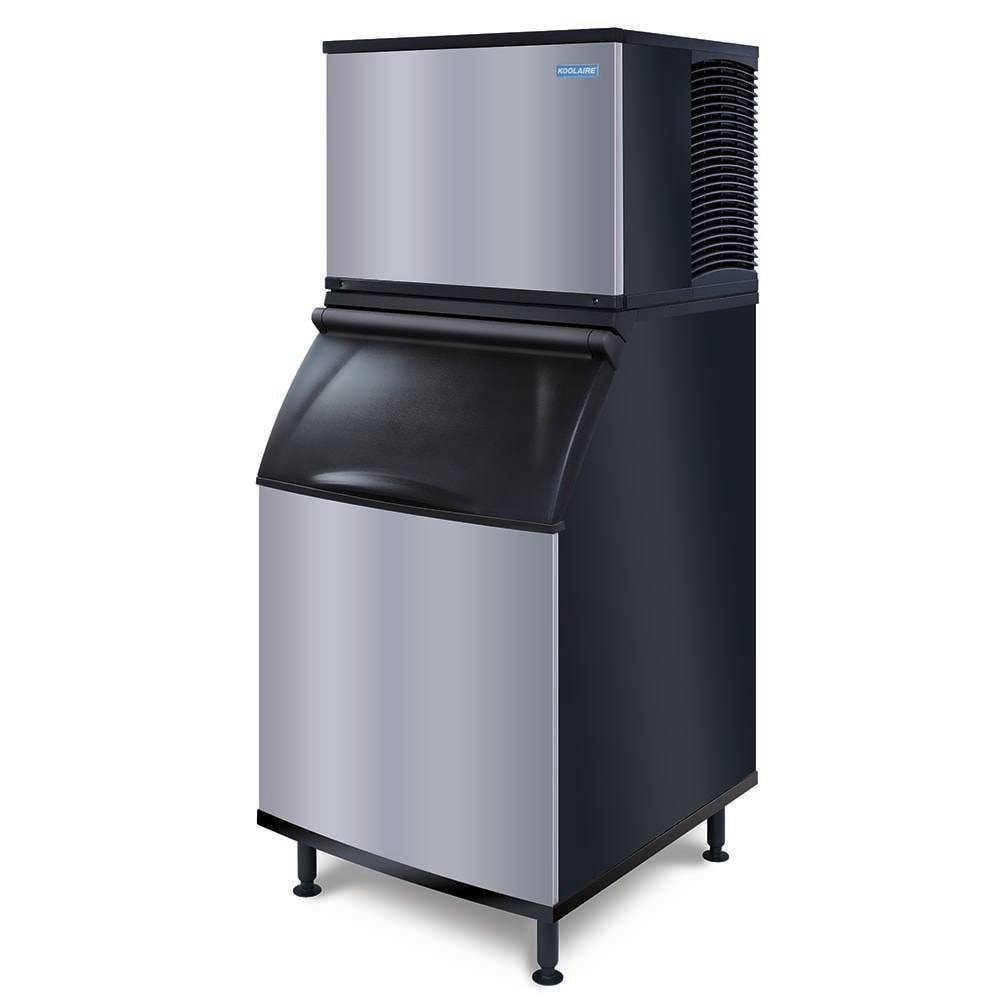

Koolaire KDT0500W/K570 533 lb KDT Series Full Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v

The Koolaire KDT0500W-161/K570 ice machine head can produce anywhere from 420 to 533 pounds, depending on ambient air and incoming water temperatures. Full-cube ice is perfect for bagged ice and drinks since it melts slowly. However, it does not cool liquids as quickly as smaller ice types. Water that will soon become ice flows through the food zone, so this area should be cleaned on a regular basis to avoid scale buildup. Its components can be removed to aid in maintenance and sanitation and are accessible through the lift-off door. The exterior's finish is heavy duty and protects the unit from scratches and dents.

Its ice bin can store 532 pounds of ice and its door is insulated to prevent ice from melting quickly. For simple scooping, this door stays open on its own. A holder for the scoop sits right inside the bin, enabling operators to comfortably reach it and prevent contaminants from contacting the ice. Adjustable legs stabilize the Koolaire KDT0500W-161/K570 ice bin on uneven surfaces, and its black side panels have a corrosion-resistant finish.

Ice Maker Details

• 533-lb. ice production capacity
• 420-lb. AHRI-certified ice production capacity
• Finish on the exterior is resistant to corrosion
• 2 screws and the door must be removed to access the food zone
• White plastic in the food zone can be wiped clean
• Removable distribution tube, floats, pump, trough, and water shield
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Uses R410A refrigerant
• Ice deflector is required
• 5,300 average BTU; 6,100 maximum BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI
• Required top and side clearance: 8 in.
• Required rear clearance: 5 in.

How It Works

• Water curtain must be closed and the toggle switched to "ice"
• Water in the trough is removed by the purge cycle
• Refrigerant lines chill the evaporator plate
• Evaporator plate freezes any water that flows over it
• Water flow turns off after running over the ice thickness float switch for a set amount of time
• Ice sheet thickness is measured by the harvest float switch
• Ice is released when the evaporator plate warms slightly

Ice Bin Details

• 532-lb. storage capacity
• 17.9-cu.-ft. storage space
• 4 legs adjust for uneven floors

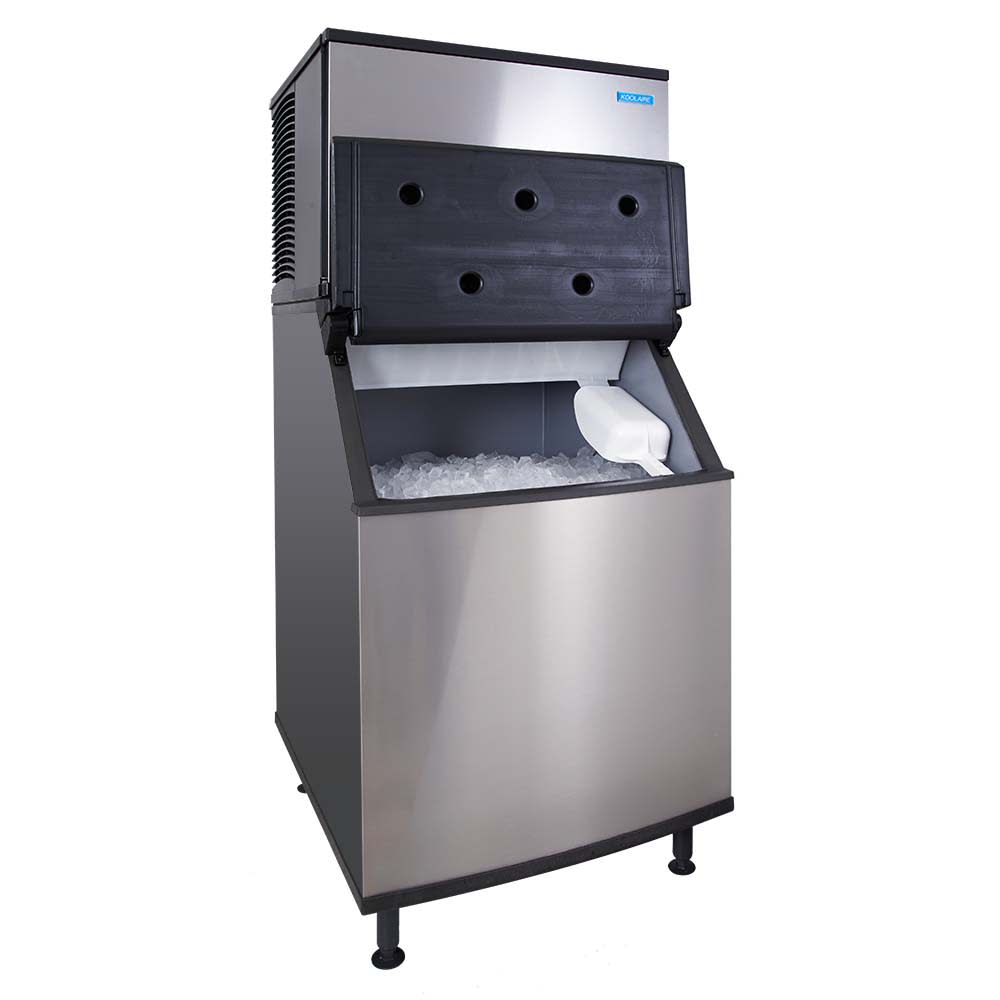

• Scooping is facilitated since the door stays open
• Holder keeps the scoop out of the ice to prevent contamination
• Foam-insulated door prevents ice from melting quickly
• Exterior has a corrosion- and smudge-resistant finish
• Black side panels

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 21.5 in. H
• 12 A, 4.6 kW
• 115 V/60 Hz/1 ph
• Ice Bin
• 30 in. W x 34 in. D x 50 in. H

*Free shipping on Koolaire KDT0500W/K570 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W, production capacity up to 533 lb/24 hours at 70°/50° (420 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KD-0500W)

Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.
