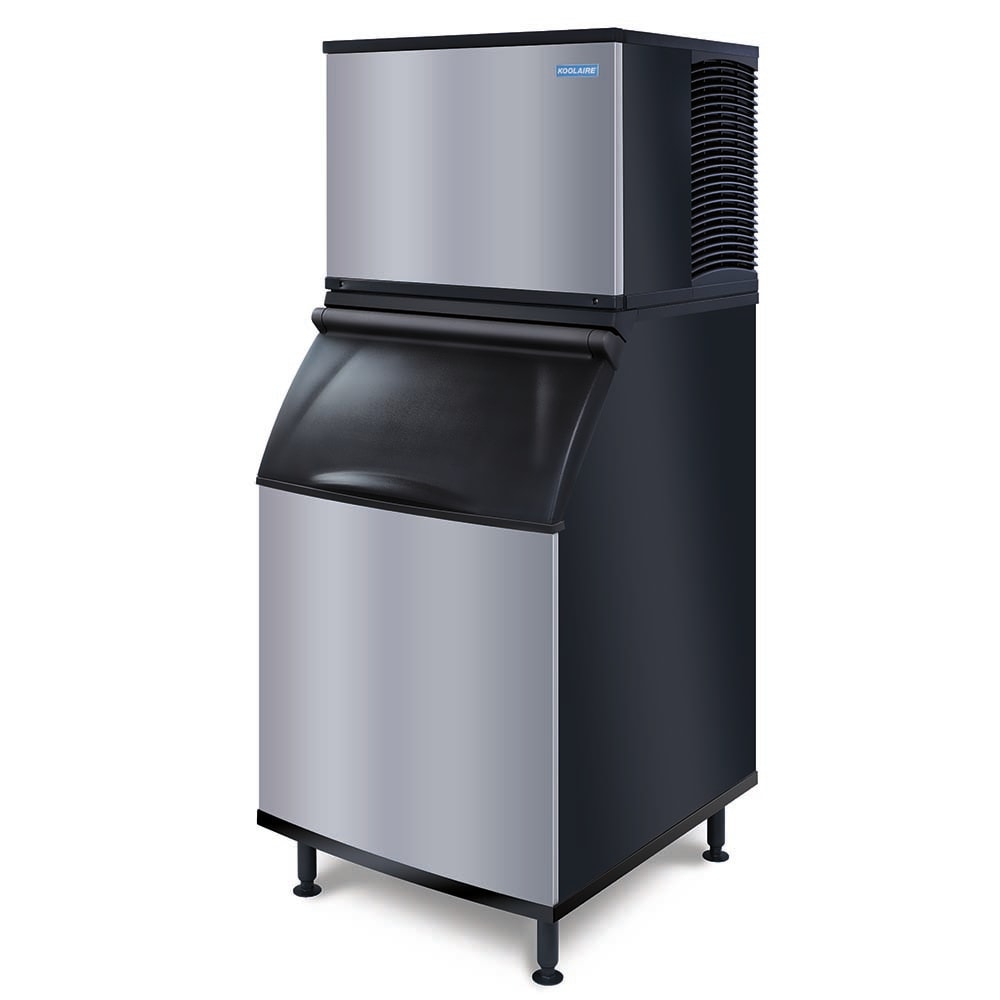

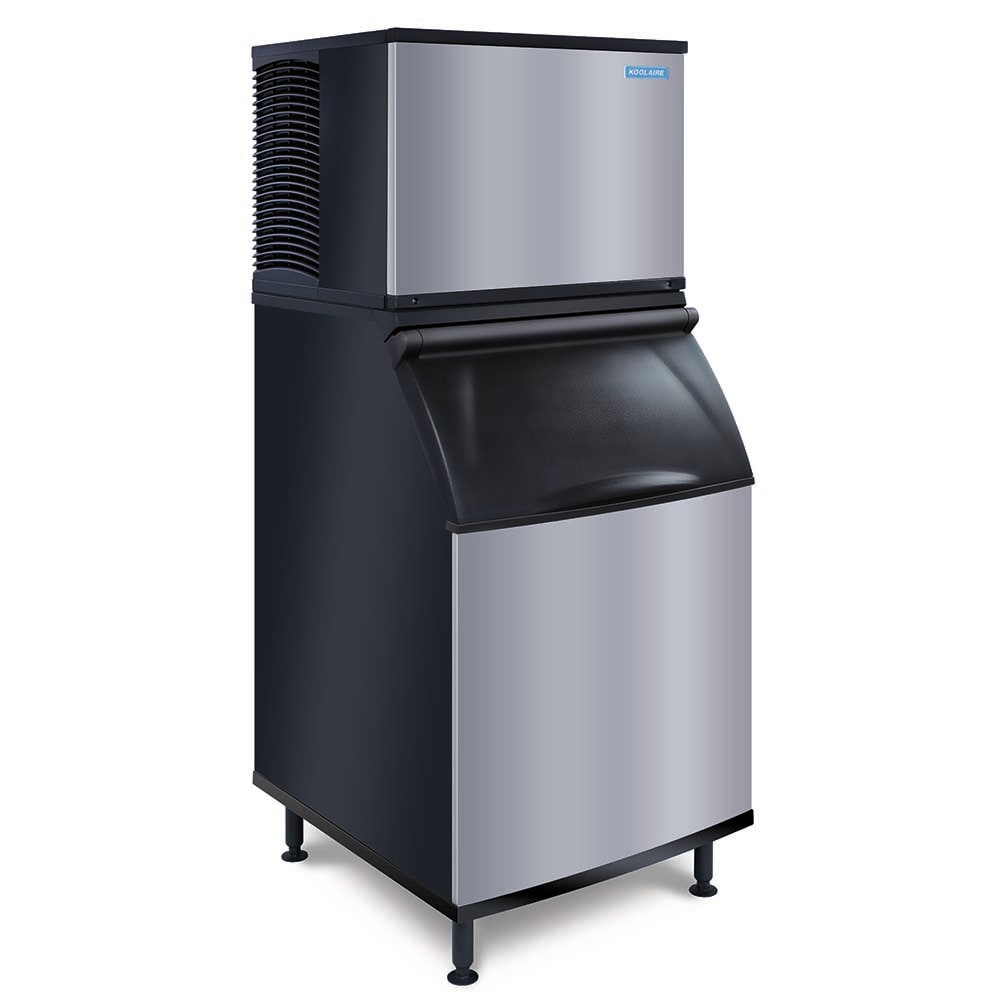

Koolaire KDP0500A-161/K570 502 lb KDT Series Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,945.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDP0500A-161/K570 Description
The Koolaire KDP0500A-161/K570 ice maker with bin has an air-cooled condenser, meaning refrigerant in the condenser coils is cooled with fan-circulated air. When the refrigerant is cooled, it chills the evaporator plate, freezing water as it moves on the plate to form cubes. It makes 0.875-inch-by-0.875-inch-by-0.875-inch, full-cube ice, which is ideal for restaurants and bars, and it produces as much as 502 pounds of ice in 24 hours.
Parts in the ice machine head that contact ice or water are located in the food zone. This area is accessible, and some of these components are removable to facilitate cleaning. Made of corrosion-resistant plastic, the components are durable, and since they are white, users can see when they need to be cleaned.
The storage bin can hold 532 pounds of ice. Insulated with foam, the door is durable and retains cold air to slow melting. When users are scooping ice, the door stays open automatically. An 82-ounce ice scoop comes with this Koolaire KDP0500A-161/K570 ice maker with bin, while a holder in the bin keeps the scoop out of the ice to prevent contamination from the unsanitary handle. On the exterior of the machine head and bin, the stainless steel-like finish resists corrosion and smudges.
- 502-lb. maximum daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condensing unit
- R290 refrigerant
- Food zone can be accessed by removing 2 screws and the lift-off door
- White plastic parts on the food zone resist corrosion
- Trough, pump, floats, distribution tube, and water shield are removable from the food zone
- Exterior is similar to stainless steel to resist smudging and corroding
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-90 degrees F
- Required ambient air temperature: 40-110 degrees F
- 532-lb. application capacity
- 17.9-cu.-ft. AHRI-certified capacity
- 82-oz. ice scoop
- Scoop holder in the bin protects ice from contamination
- Door stays open on its own during scooping
- Foam door insulation slows melting and reduces condensation buildup
- Stainless steel-like exterior
- Black side panels match ice machine head
- Legs adjust to stabilize on uneven floors
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 12.7 A, 5.4 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 44 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0500A-161/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 502 lb/24 hours at 70°/50° (391 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0500A-161/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 502 |
| Access | Lift Up Door |
| Also Known As | KDT0500A/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 271.00 |
