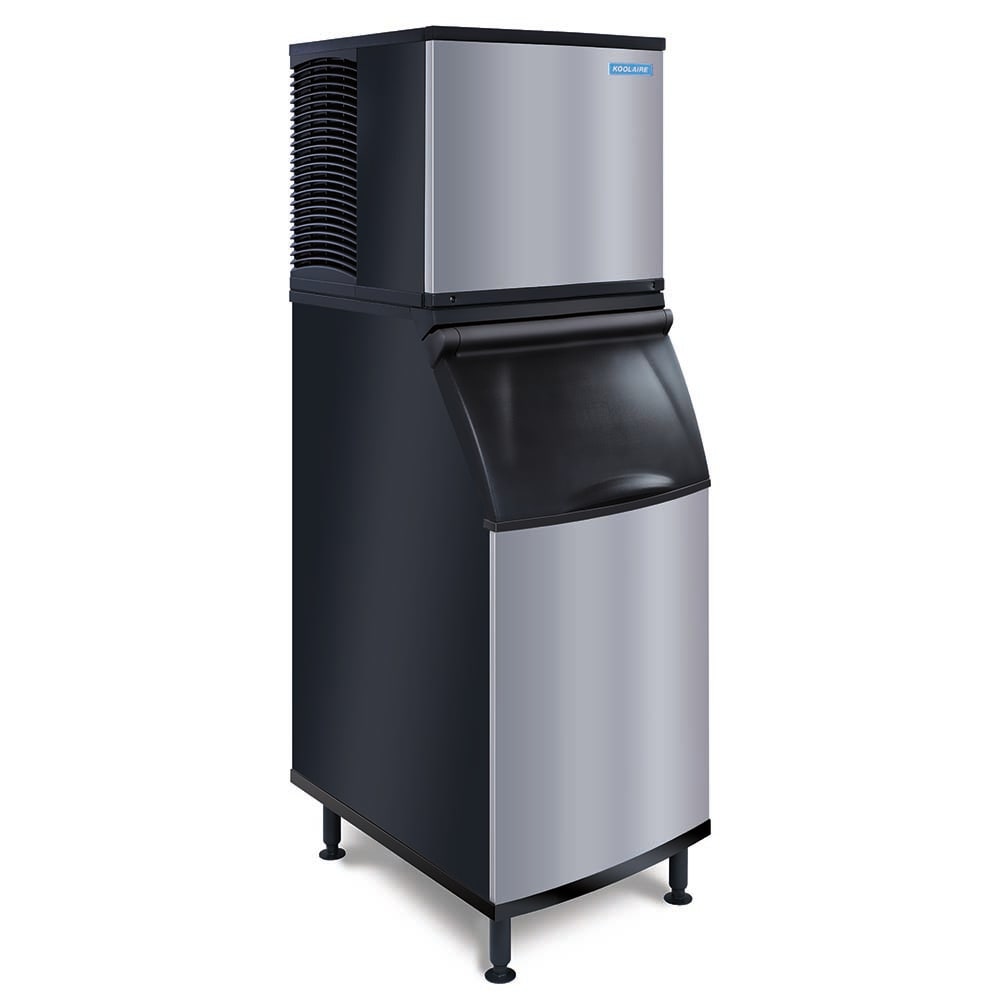

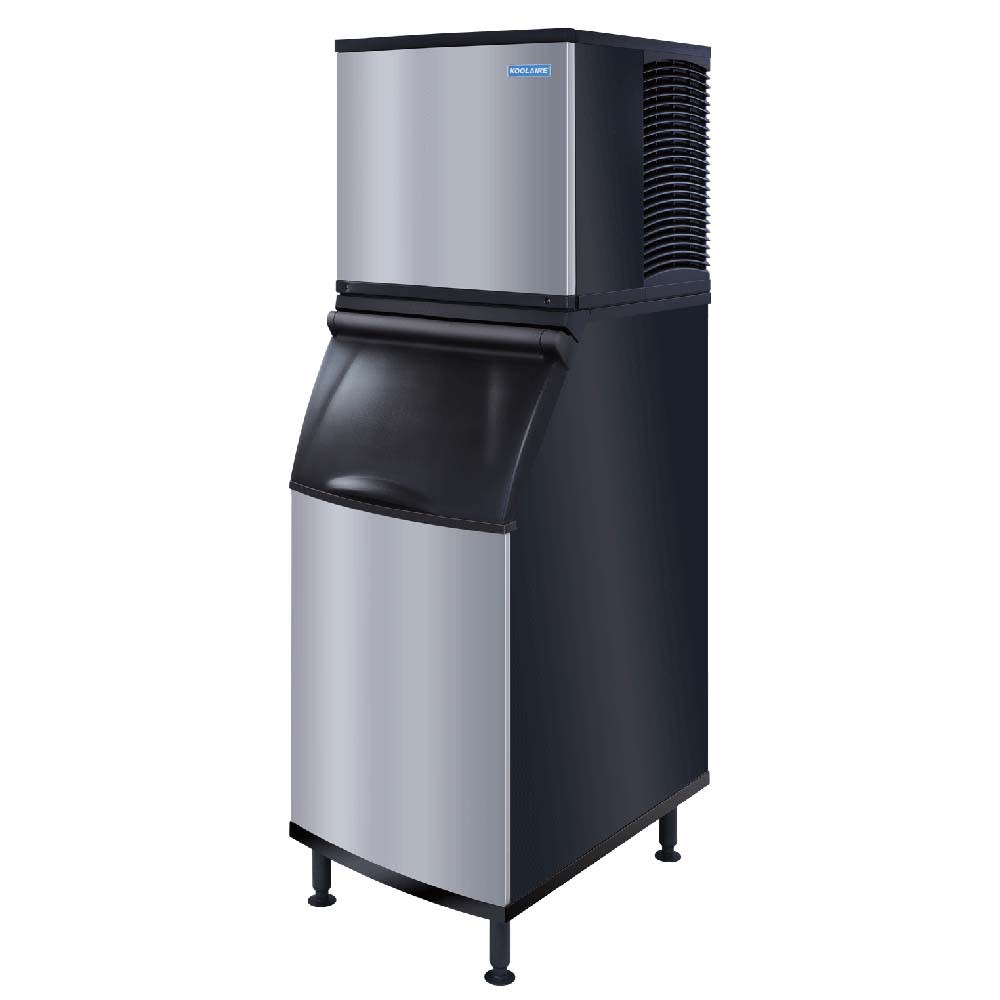

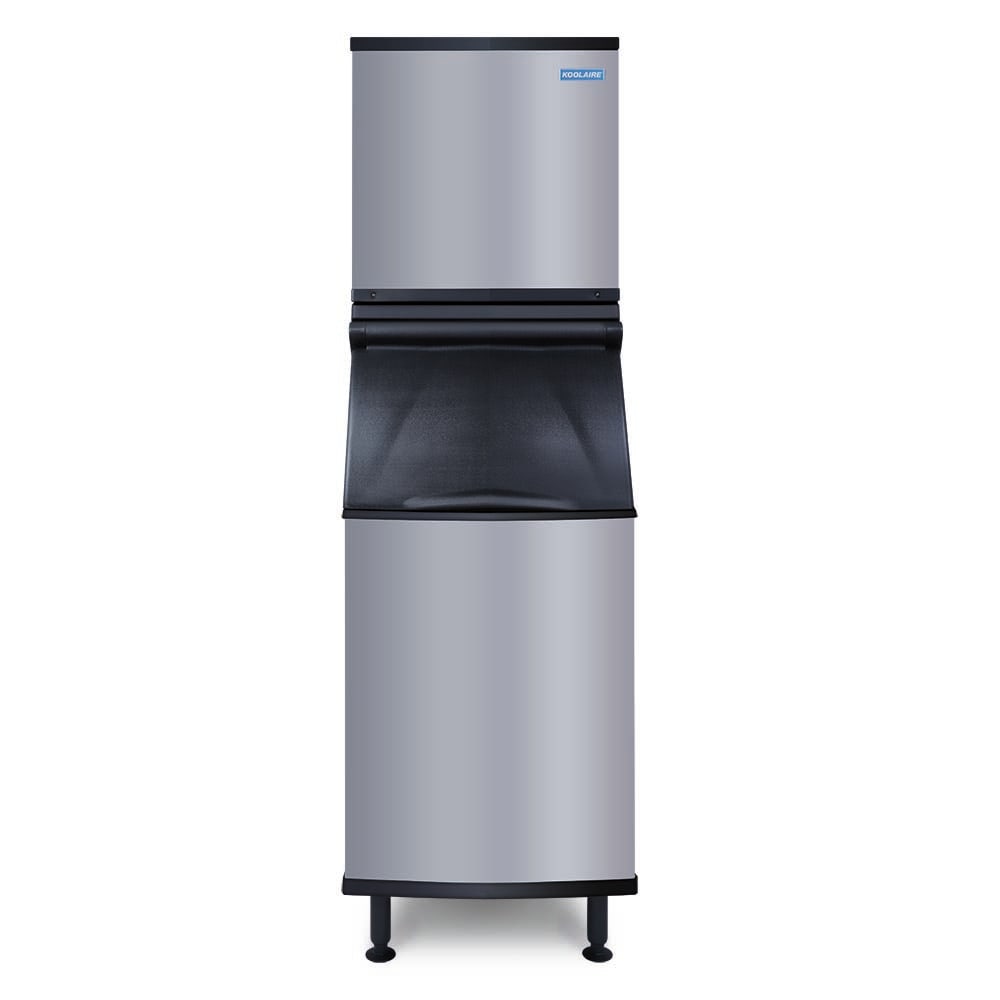

Koolaire KYT0420W/K420 435 lb KYT Series Half Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v

Given proper conditions, the Koolaire KYT0420W/K420 half-cube ice maker with bin produces 435 pounds of half-cube ice, a type that measures 0.375 inch by 1.125 inches by 0.875 inch and cools beverages more quickly than full-cube ice. This ice maker has a water-cooled condenser that chills the condenser coils and refrigerant with a stream of water. Its exterior finish looks like stainless steel and resists fingerprints and rust.

The food zone includes any space that comes into contact with ice and water, and it is sealed to eliminate debris-trapping crevices. To help staff clearly see dirt and slime, the food zone has white plastic components. It can be accessed by removing two screws and a lift-off door. The pump, floats, water shield, distribution tube, and trough are removable without tools, and the entire unit can be cleaned with the push of a button.

The Koolaire KYT0420W/K420 ice machine with bin can store 383 pounds of ice. It has an 82-ounce scoop with a built-in holder that keeps the scoop out of the ice. This bin's exterior looks and feels like stainless steel, and its side panels are black to complement the ice machine. Its door is insulated with foam to prevent ice from melting and condensation from forming. When staff are scooping ice, the door props open so that it stays out of the user's way. This bin has four legs that can be adjusted to accommodate various heights.

Ice Maker Details

• Water-cooled condenser
• Uses R410A refrigerant
• 435-lb. production capacity
• 390-lb. AHRI-certified production capacity
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Exterior has a finish that looks like stainless steel and resists fingerprints
• Removable trough, floats, water shield, distribution tube, and pump
• Cleaning cycle is activated by pushing a button
• Food zone's crevices are sealed to keep debris from getting trapped
• White plastic pieces in the food zone help staff find dirty areas
• 2 screws and a lift-off door can be removed for food zone access
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Ice Bin Details

• 383-lb. application capacity
• 12.9-cu.-ft. AHRI-certified interior space
• 82-oz. scoop
• Internal holder provides a place to store the scoop
• Smudge-resistant exterior finish is similar to stainless steel
• Side panels are black to match the ice maker
• Foam-insulated door retains temperatures to keep ice cold
• Stay-open door design facilitates scooping
• Legs can be adjusted to suit various heights

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24 in. D x 21.5 in. H
  • 9.6 A, 4.6 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KYT0420W/K420 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, water-cooled, self-contained condenser, 22" W, production capacity up to 435 lb/24 hours at 70°/50° (390 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KY-0420W)

Ice Storage Bin, with top-hinged front opening door, 383 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
