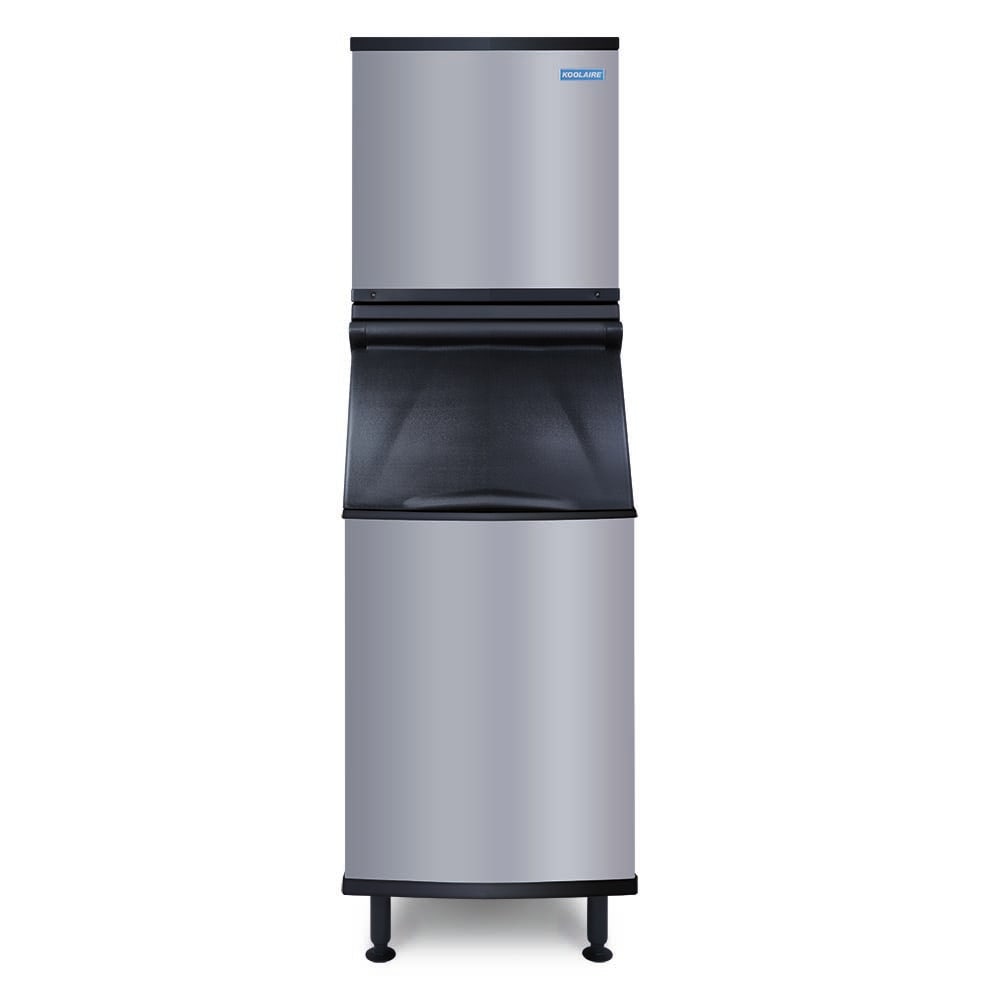

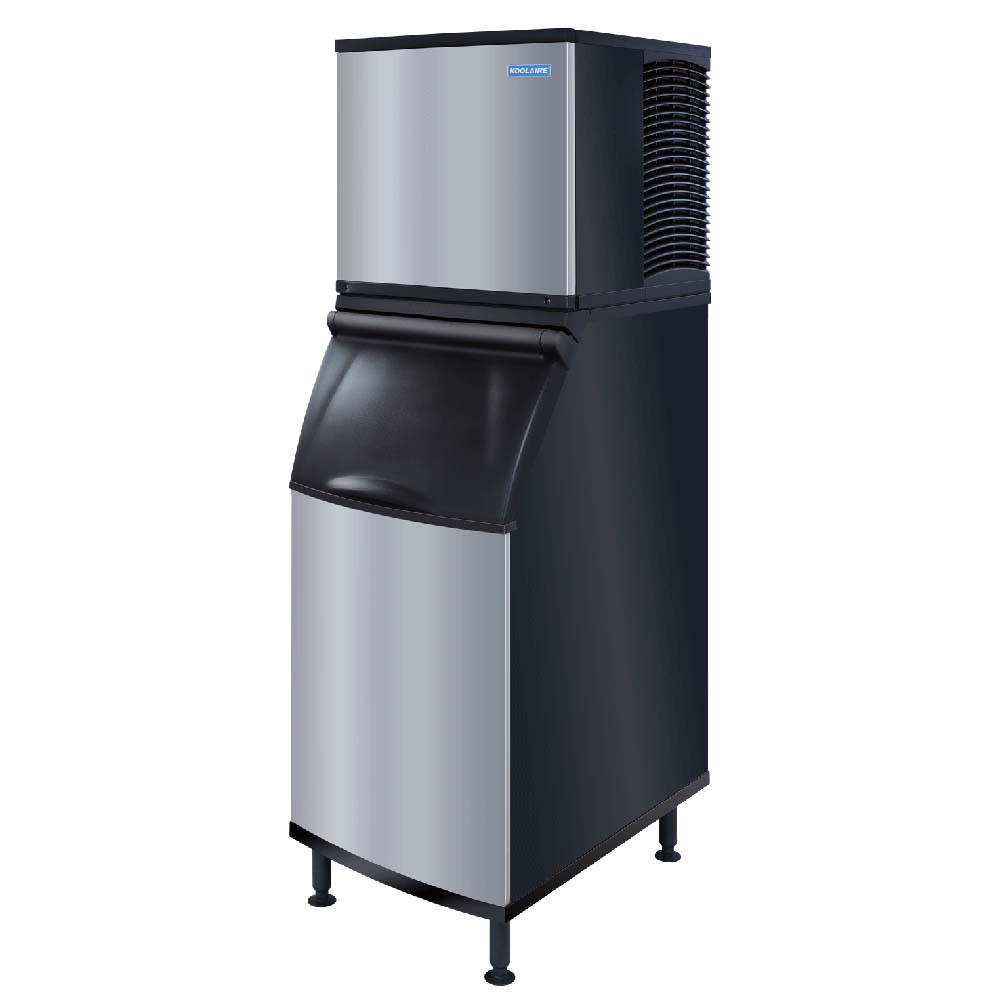

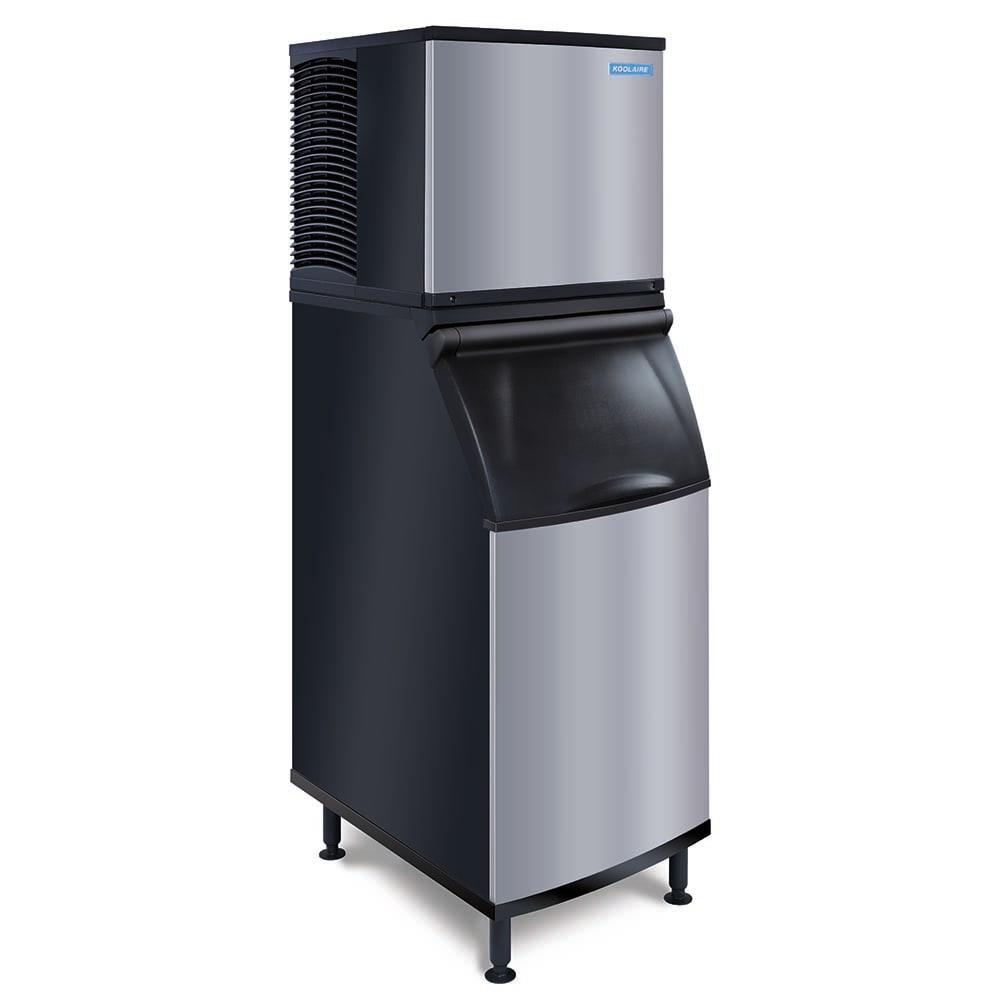

Koolaire KDT0420W/K420 457 lb KDT Series Full Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v

The Koolaire KDT0420W/K420 ice machine with bin can produce 457 pounds of ice in 24 hours if ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. The unit has a water-cooled condenser, meaning water flows over the refrigerant coils, cooling the evaporator plate so ice will form from the water running over it. Perfect for restaurants and bars, the ice machine makes full-cube ice that melts slowly and takes up space in drinkware.

Components in the ice machine's food zone come in contact with ice and water, so they need to be cleaned often. Since these parts are white, users can easily see when cleaning is needed. Their plastic construction adds corrosion resistance, and some of the components are removable to simplify cleaning. Users can conveniently access the parts behind the lift-off door and by removing two screws.

An ice scoop comes with the bin, and an internal holder prevents its handle from contacting ice and causing contamination. Users can easily scoop ice since the bin door has a stay-open design. Foam insulation in the door reduces condensation and slows melting by keeping cold air inside the bin. With a stainless steel-like exterior, the Koolaire KDT0420W/K420 ice maker with bin resists corrosion and hides smudges. The legs on the bin elevate the unit and adjust to accommodate uneven surfaces.

Ice Maker Details

• 457-lb. maximum daily ice production
• 375-lb. AHRI-certified daily ice production
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Water-cooled condensing unit
• R410A refrigerant
• Food zone can be accessed easily with 2 removable screws and lift-off door
• Food zone's plastic components are white, showing buildup that needs to be cleaned
• Trough, pump, distribution tube, floats, and water shield can be removed from the food zone
• Corrosion-resistant stainless steel-like exterior hides fingerprints
• Required incoming water pressure: 20-80 PSI
• Required incoming water temperature: 40-90 degrees F
• Required ambient air temperature: 40-110 degrees F

Ice Bin Details

• 383-lb. application capacity
• 12.9-cu.-ft. AHRI-certified capacity
• 82-oz. ice scoop with internal holder
• Door stays open when users are scooping ice
• Foam insulation in the door retains cold air to prevent condensation from accumulating
• Stainless steel-like exterior
• Black side panels match ice maker
• Legs adjust on uneven floors

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24 in. D x 21.5 in. H
  • 9.6 A, 4.6 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KDT0420W/K420 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, water-cooled, self-contained condenser, 22" W, production capacity up to 457 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KD-0420W)

Ice Storage Bin, with top-hinged front opening door, 383 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

Koolaire KDT0420W/K420 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
