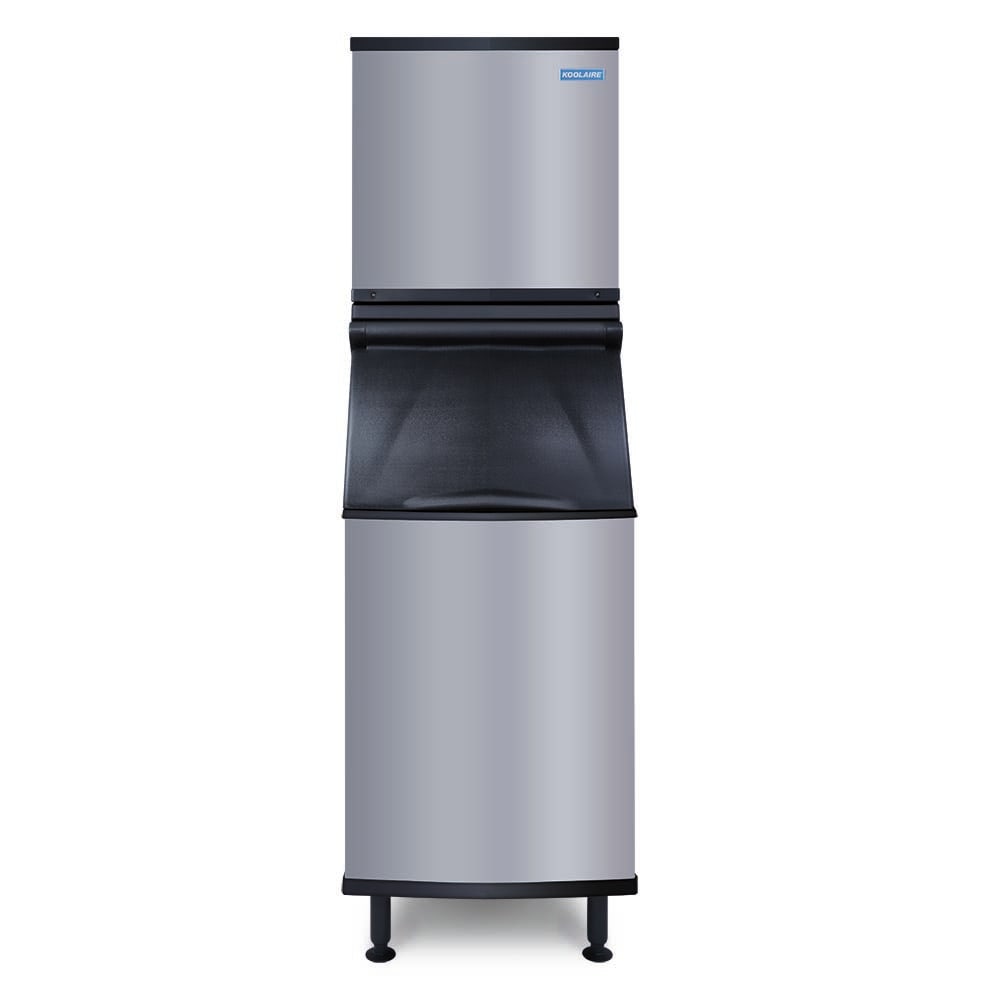

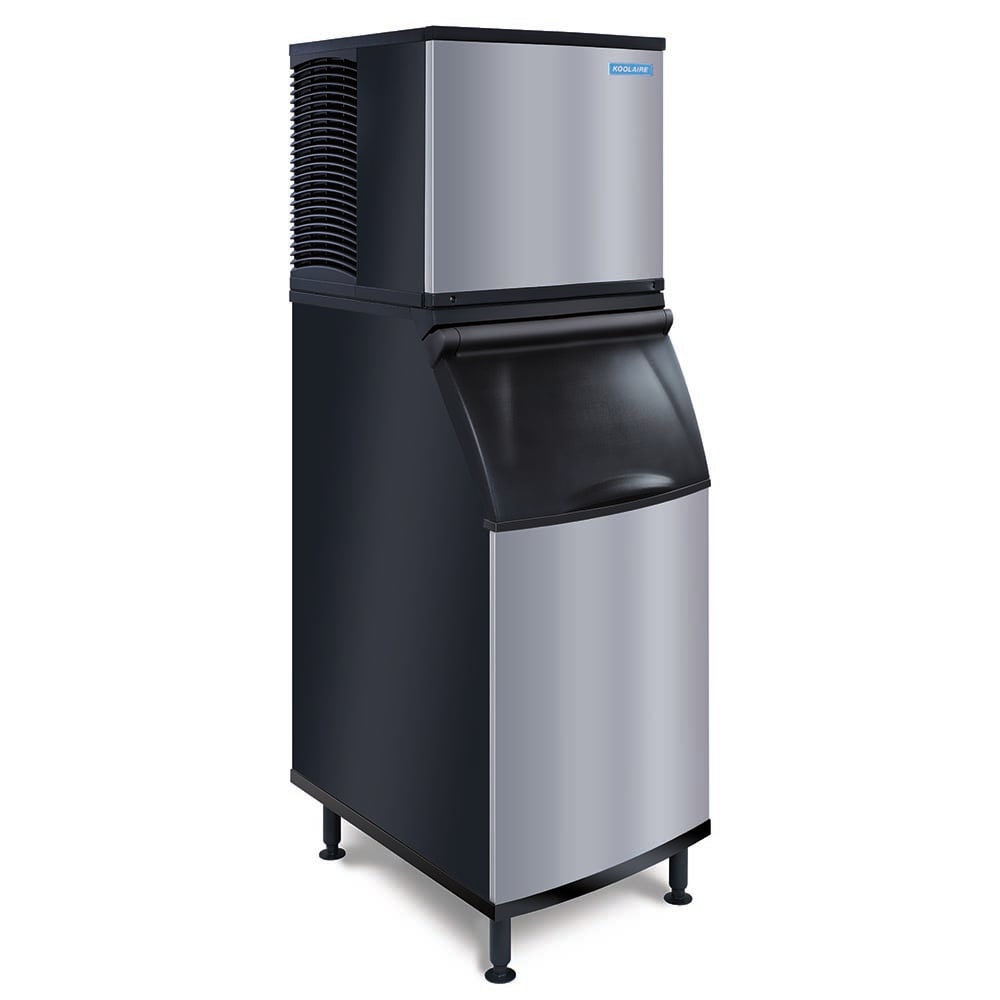

Koolaire KDT0420A/K420 440 lb KDT Series Full Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v

Producing full-cube ice, the Koolaire KDT0420A/K420 ice maker with bin is ideal for operations that sell a large amount of drinks. This ice type melts slowly, though it also cools drinks slowly. Ice in the machine head forms when the evaporator plate is cooled by refrigerant running through the coils, freezing the water running over the evaporator plate. In 24 hours, the unit can make 440 pounds of ice in ideal air and water conditions.

The ice machine head has a food zone to house components that come in contact with water and ice. These parts need to stay clean to ensure ice does not get contaminated, and operators can access these components by removing the lift-off door. Components are made of corrosion-resistant plastic, and since they are white, users can see when cleaning is required. Some of the important parts are removable, which simplifies the cleaning process.

The bin can hold 383 pounds of ice, and an 82-ounce scoop is included. Users can store the scoop in the internal holder, which keeps the unsanitary handle out of stored ice. Foam insulated to retain cold air, the stay-open door prevents quick ice melting and condensation buildup. With a stainless steel-like exterior finish, the Koolaire KDT0420A/K420 ice machine with bin is corrosion resistant and reduces fingerprint visibility. Legs elevate the bin off the floor, adjusting to accommodate uneven floors.

Ice Maker Details

• 440-lb. maximum daily ice production
• 350-lb. AHRI-certified daily ice production
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Air-cooled condensing unit
• R410A refrigerant
• Access food zone by removing 2 screws from the lift-off door
• Food zone has white plastic components that show unsanitary buildup to ensure users can see when cleaning is needed
• Trough, water shield, distribution tube, floats, and pump can be removed from the food zone
• Exterior is similar to stainless steel to resist smudges and corrosion
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Bin Details

• 383-lb. application capacity
• 12.9-cu.-ft. AHRI-certified capacity
• Includes an 82-oz. ice scoop
• Interior scoop holder keeps scoop handle out of ice to prevent contamination
• Door has a stay-open design that ensures scooping is simple
• Foam-insulated door retains cold air to slow melting
• Stainless steel-like exterior finish
• Black side panels match ice machine head
• Legs adjust to stay level on uneven floors

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24 in. D x 21.5 in. H
  • 10.3 A, 5.8 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KDT0420A/K420 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 22" W, production capacity up to 440 lb/24 hours at 70°/50° (350 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KD-0420A)

Ice Storage Bin, with top-hinged front opening door, 383 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
