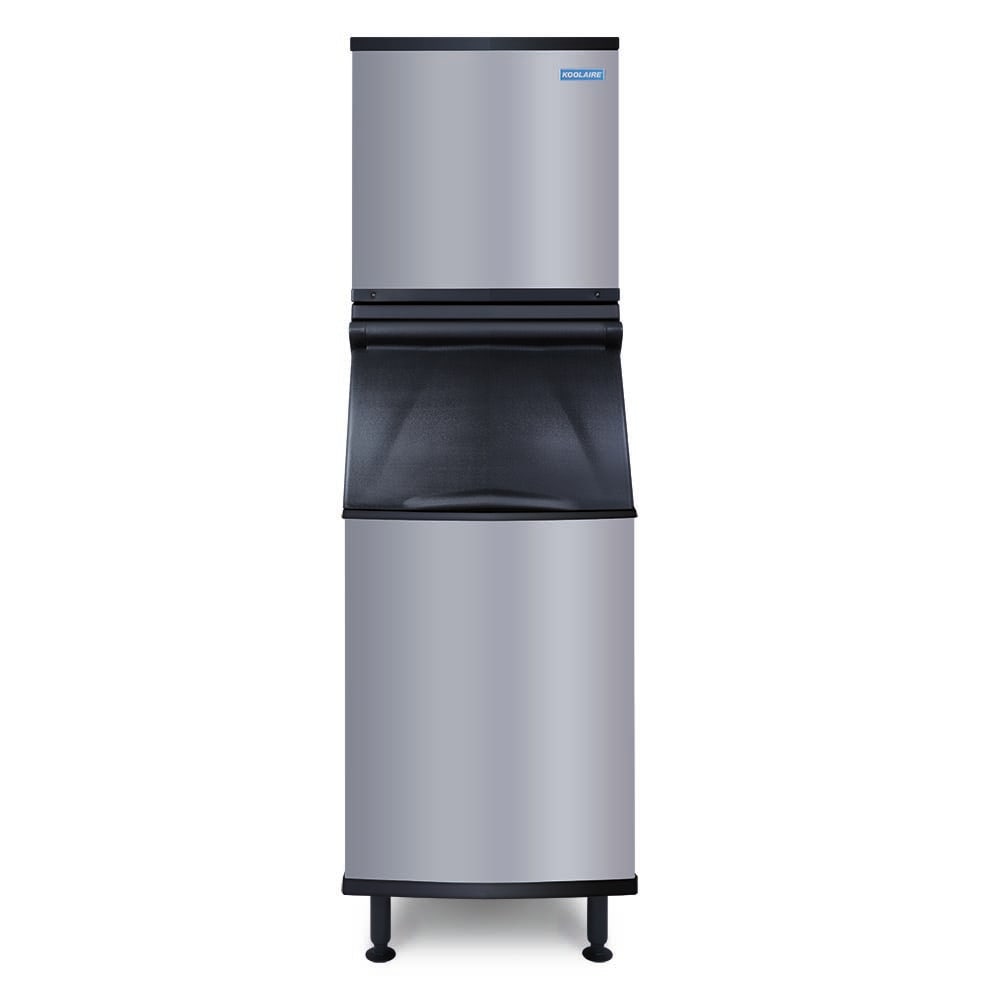

Koolaire KYP0420A/K420 450 lb KYT Series Half Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,352.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Koolaire KYP0420A/K420 Description
The Koolaire KYP0420A/K420 half-cube ice maker with bin can store 383 pounds of ice. An 82-ounce scoop is provided, and a built-in holder keeps the scoop out of the ice so that it stays sanitary. Resembling stainless steel, the exterior finish resists fingerprints and rusting, and its black side panels match the ice maker. This bin has an insulated door that keeps ice frozen and reduces condensation buildup, and when users are scooping, it can be propped up. Adjustable legs provide enough space underneath for cleaning.
If outside conditions are ideal, the Koolaire KYP0420A/K420 ice machine with bin can produce 450 pounds of half-cube ice a day. Since this ice type cools drinks quickly, it is perfect for soft drinks and blending into smoothies. With its air-cooled condenser, the machine uses fans to chill refrigerant as it flows away from the evaporator. Areas that come into contact with ice and water are collectively called the food zone and are sealed to eliminate the risk of trapped debris. White plastic parts make up this area, which enables staff to spot dirt and slime. By removing two screws and the lift-off door, the user can conveniently access the internal food zone components.
- 450-lb. production capacity
- 360-lb. AHRI-certified production capacity
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Air-cooled condenser keeps the evaporator chilled by using fans
- Uses R290 refrigerant
- Removing 2 screws and the lift-off door provides access to the food zone
- Sealed food zone prevents debris from getting trapped in crevices
- Dirt in the food zone can be seen clearly against the white plastic parts
- Removable pump, distribution tube, floats, trough, and water shield
- Single-button push initiates the cleaning cycle
- Exterior finish resists smudges like stainless steel
- Incoming water pressure: 20-80 PSI
- Incoming water temperature: 40-90 degrees F
- Ambient air temperature: 40-110 degrees F
- 383-lb. application capacity
- 12.9-cu.-ft. AHRI-certified interior space
- Exterior finish looks and feels like stainless steel
- Black side panels match the ice machine
- 82-oz. scoop
- Scoop can be stored in the built-in holder
- Adjustable legs facilitate cleaning
- Door can be propped up for convenient scooping
- Ice stays frozen for hours since the door is foam insulated
- Ice Maker
- 22 in. W x 24 in. D x 21.5 in. H
- 10.3 A, 5.5 kW
- 115 V/60 Hz/1 ph
- Bin
- 22 in. W x 34 in. D x 44 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP0420A/K420 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 22" W, production capacity up to 450 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, NSF, cULus, CE, ENERGY STAR® (replaces KY-0420A)
Ice Storage Bin, with top-hinged front opening door, 383 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KYP0420A/K420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 450 |
| Access | Lift Up Door |
| Also Known As | KYT0420A/K420 |
| Bin Capacity (lb) | 383 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KYT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 253.00 |
