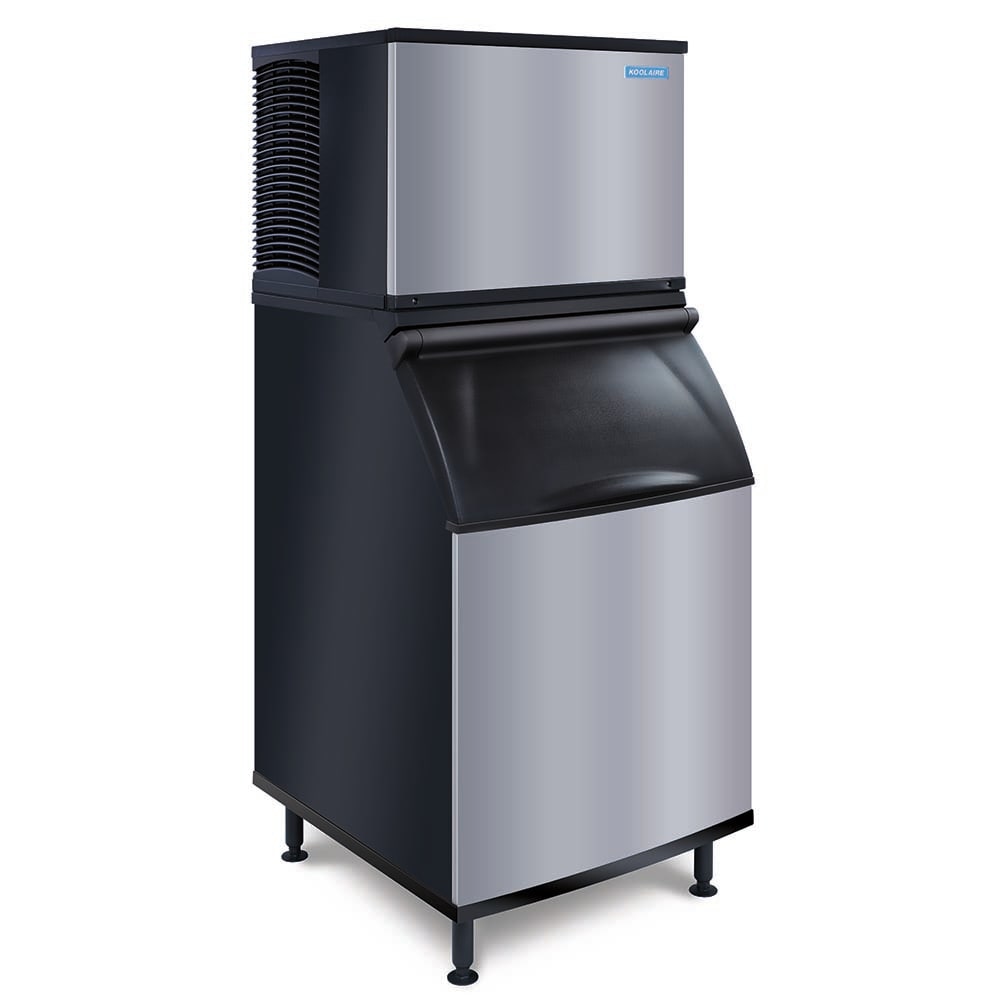

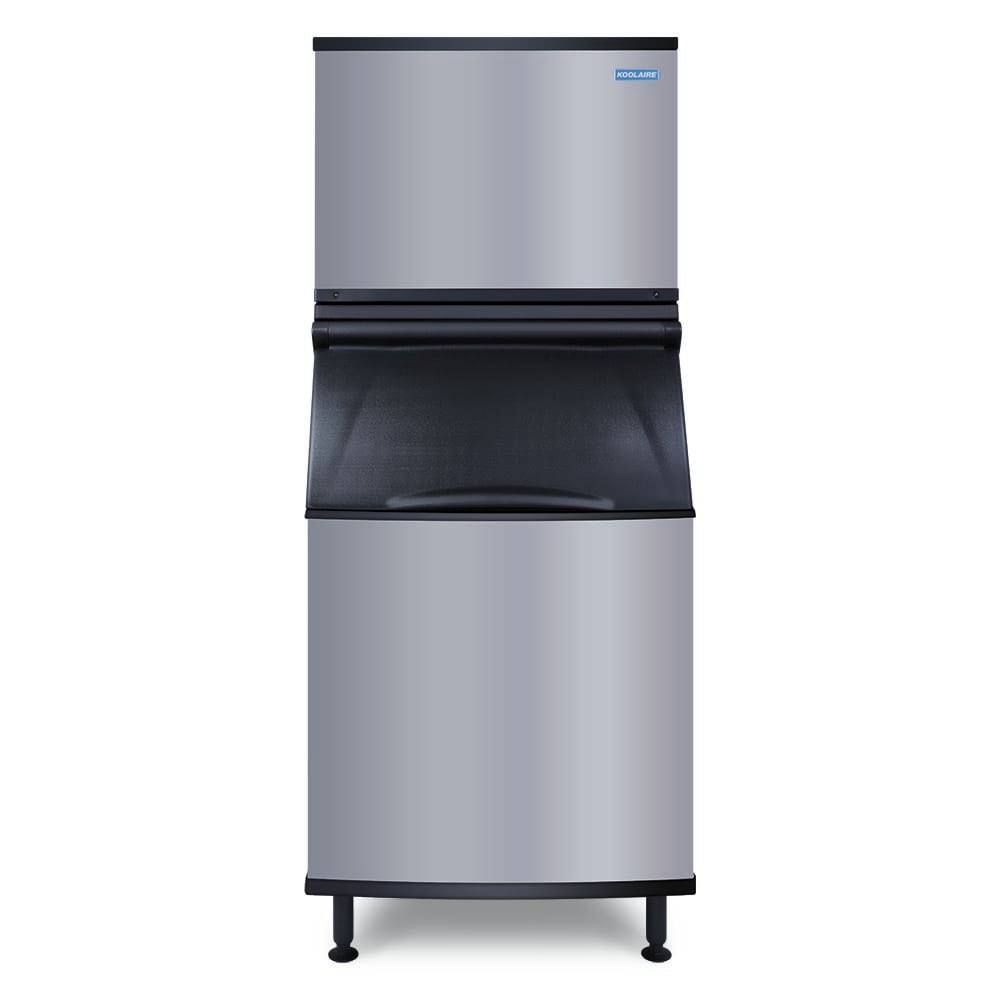

Koolaire KYT0400A/K570 450 lb KYT Series Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

Depending on ambient air and incoming water temperatures, the Koolaire KYT0400A/K570 half-cube ice maker with bin can produce 450 pounds of half-cube ice daily. This type of ice cools drinks and melts more quickly than full-cube ice. Since the unit's condenser is air cooled, it uses fans to chill the evaporator. Its exterior functions like stainless steel in that it resists smudges and rust. Its food zone, which includes any area that touches water and ice, is sealed to prevent dirt and debris buildup. White plastic components in the food zone clearly reveal dirt so that staff can clean it. Most of the unit's internal parts can be removed without tools.

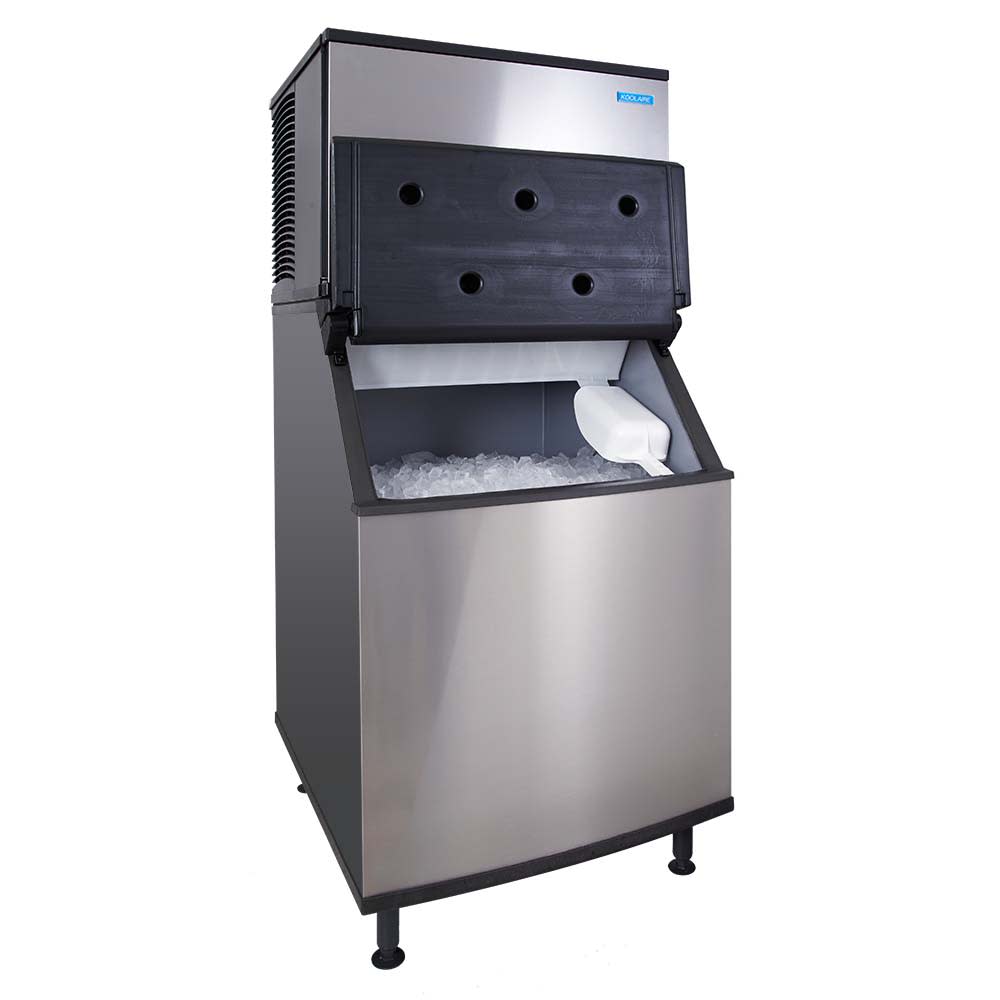

The Koolaire KYT0400A/K570 ice machine with bin can store 532 pounds of ice. Its door is insulated with foam to reduce condensation and keep ice frozen, and when staff are scooping, the door can stay open on its own. This bin has an exterior finish that resembles stainless steel and black side panels that coordinate with the ice machine. An 82-ounce scoop is provided, and its built-in holder creates a sanitary storage space. All four legs can be adjusted to provide room for sweeping underneath the unit.

Ice Maker Details

• Air-cooled condenser operates through fans that blow cold air across the condenser to cool the evaporator
• Uses R410A refrigerant
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• 450-lb. production capacity
• 350-lb. AHRI-certified production capacity
• Food zone has white plastic pieces that resist corrosion
• Crevices are eliminated in the sealed food zone
• Food zone is accessible by removing 2 screws and a lift-off door
• Exterior has a finish that resists fingerprints like stainless steel
• Cleaning cycle runs with the push of a button
• Distribution tube, floats, water shield, pump, and trough can be removed without tools
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• CE approved; cULus listed; California Low-lead qualified; AHRI, NSF, and ENERGY STAR certified

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified interior space
• Foam-insulated door reduces condensation
• Stay-open door design provides complete access to the bin
• Exterior finish functions like stainless steel
• Side panels are black to complement the ice maker
• Adjustable legs elevate the unit for cleaning underneath
• 82-oz. scoop
• Holder keeps ice safe from germs on the scoop's handle

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 12.1 A, 5.6 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KYT0400A/K570 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 450 lb/24 hours at 70°/50° (350 lb AHRI certification at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR® (replaces KY-0350A)

Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
