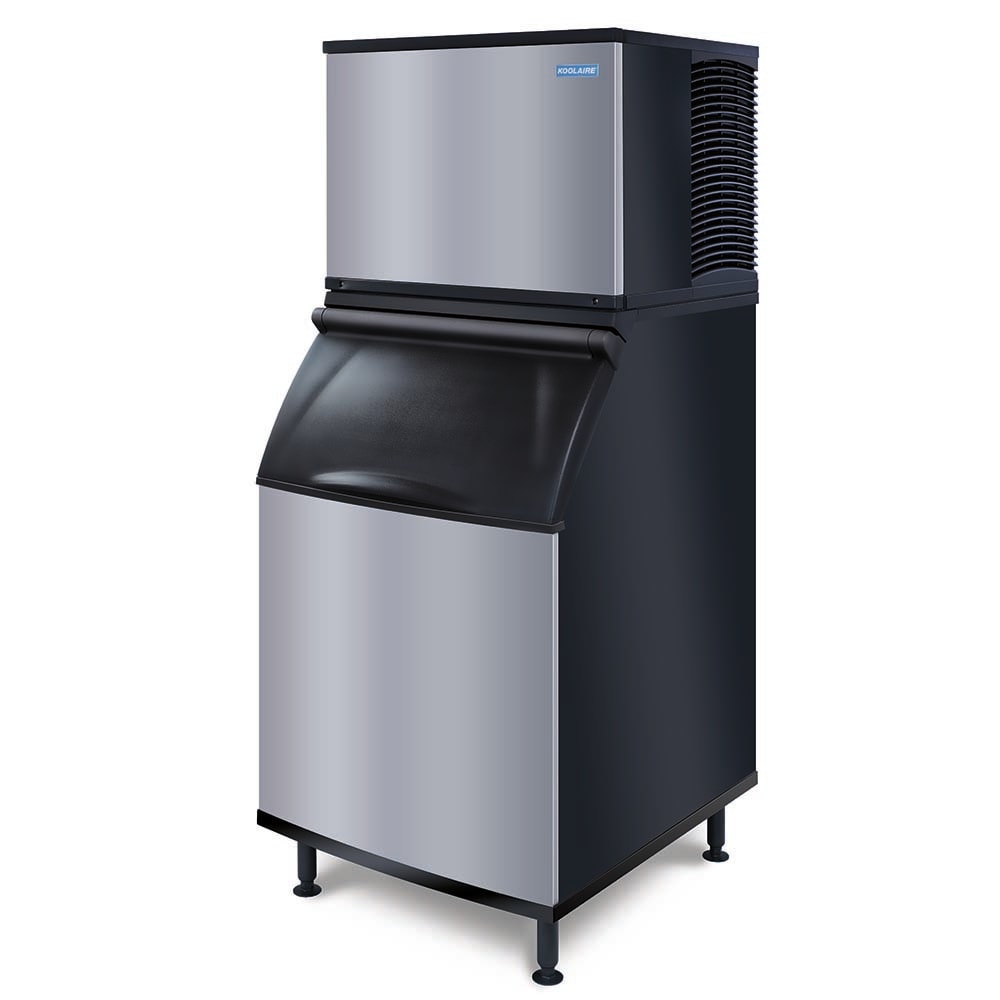

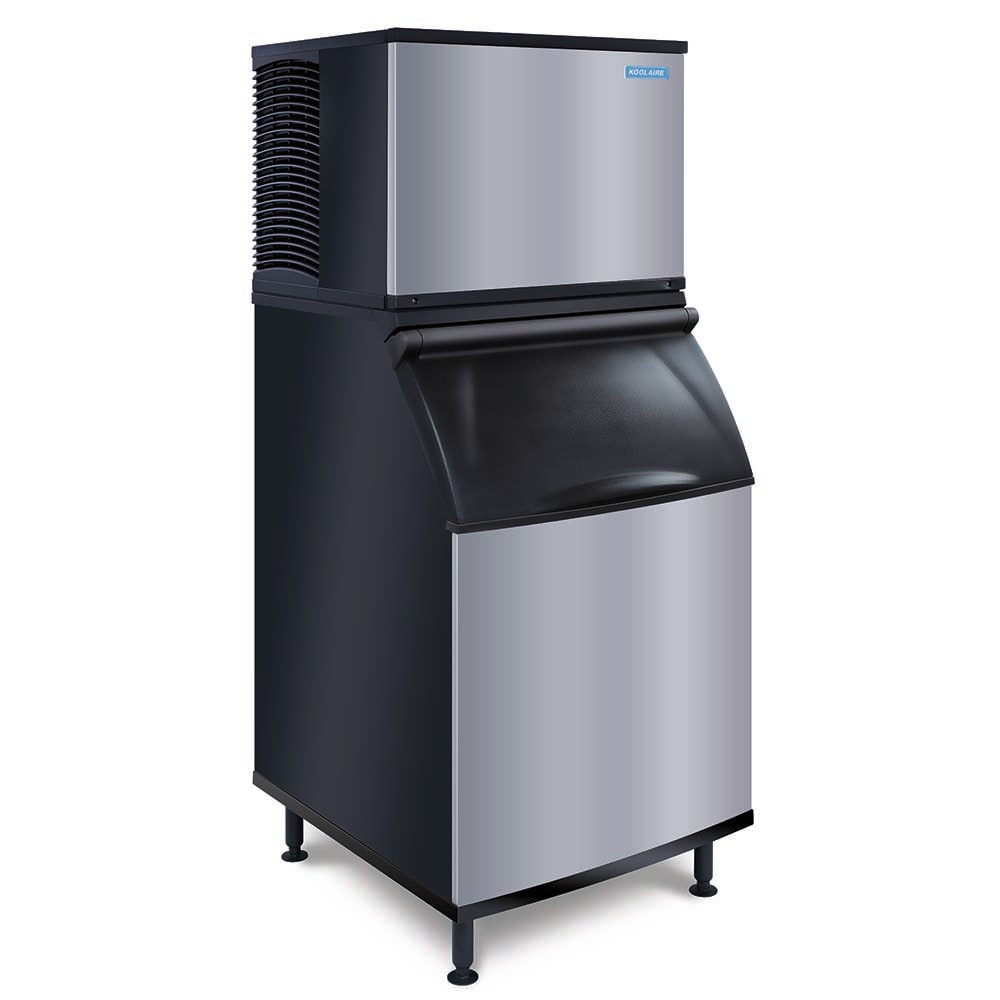

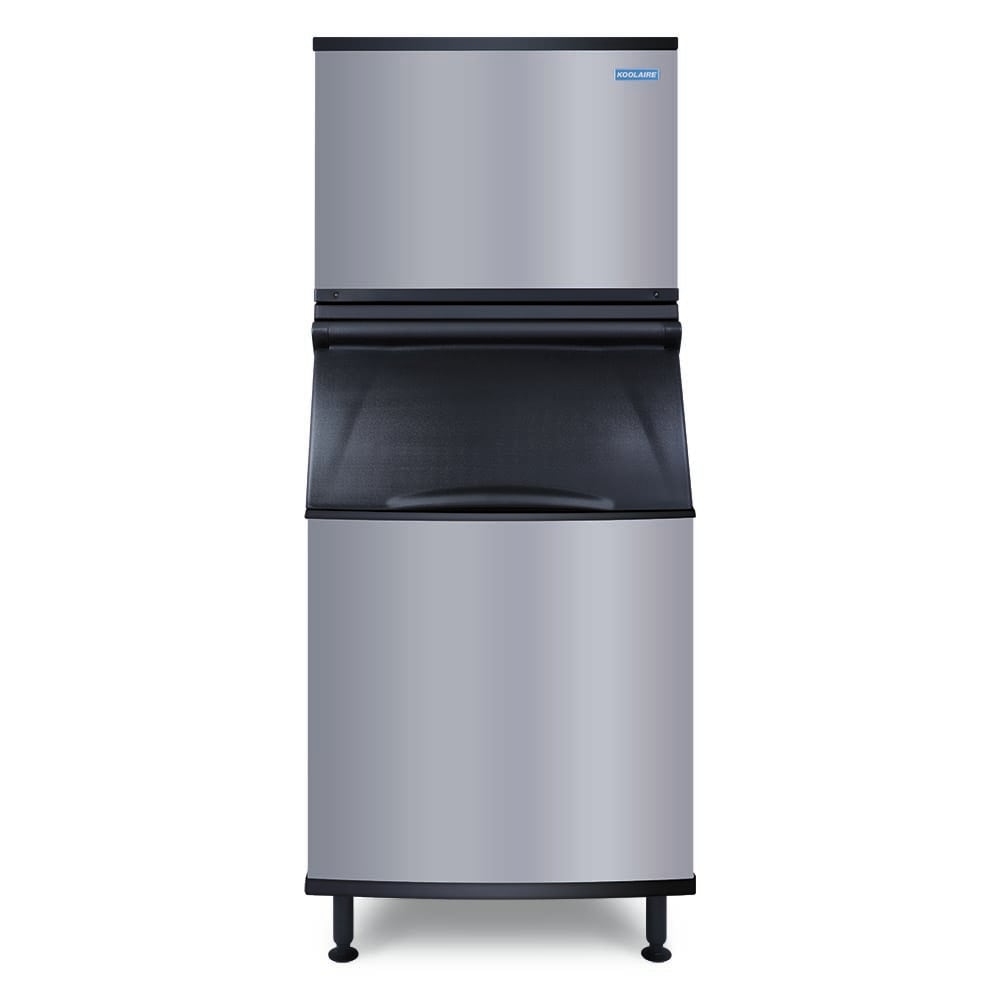

Koolaire KDT0400A/K570 440 lb KDT Series Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

The Koolaire KDT0400A/K570 ice machine with bin can make 440 pounds in 24 hours depending on the ambient air and incoming water temperature. An air-cooled condenser operates with a fan that blows cool air over the coils, chilling refrigerant to cool the evaporator plate so water freezes as it runs over it. This ice machine forms full-cube ice, which measures 0.875 inch by 0.875 inch by 0.875 inch and is typically used in restaurants and bars because it melts slowly.

In an ice machine head, the food zone houses all components that come in contact with ice and water, meaning these parts should be cleaned often to prevent ice contamination. These components are made of white plastic, ensuring users can see when cleaning is required, and the material also resists corrosion. Some of the food zone parts can be removed, simplifying the cleaning process.

This Koolaire KDT0400A/K570 ice maker with bin can hold 532 pounds of ice. Slowing ice melting and preventing condensation from accumulating, the bin door has a foam-insulated design that retains cold air. Since the bin door has a stay-open design, employees can scoop ice with ease. An included 82-ounce scoop can be stored inside the bin in the holder to prevent the unsanitary handle from contaminating ice.

Ice Maker Details

• 440-lb. maximum daily ice production
• 345-lb. AHRI-certified daily ice production
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Air-cooled condensing unit
• Uses R410A refrigerant
• Access food zone by removing 2 screws from the lift-off door
• Food zone's white plastic components show dirt and slime buildup, so users know when to clean
• Removable trough, distribution tube, floats, water shield, and pump
• Exterior is similar to corrosion-resistant stainless steel that hides fingerprints
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Includes 82-oz. ice scoop
• Scoop holder inside prevents unsanitary handle from touching ice
• Door's stay-open design ensures convenient scooping
• Foam-insulated door retains cold air
• Exterior finish is similar to stainless steel
• Black side panels match the ice maker
• Legs adjust to maintain stability

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 12.1 A, 6.1 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 44 in. H

*Free shipping on Koolaire KDT0400A/K570 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 440 lb/24 hours at 70°/50° (345 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KD-0350A)

Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
