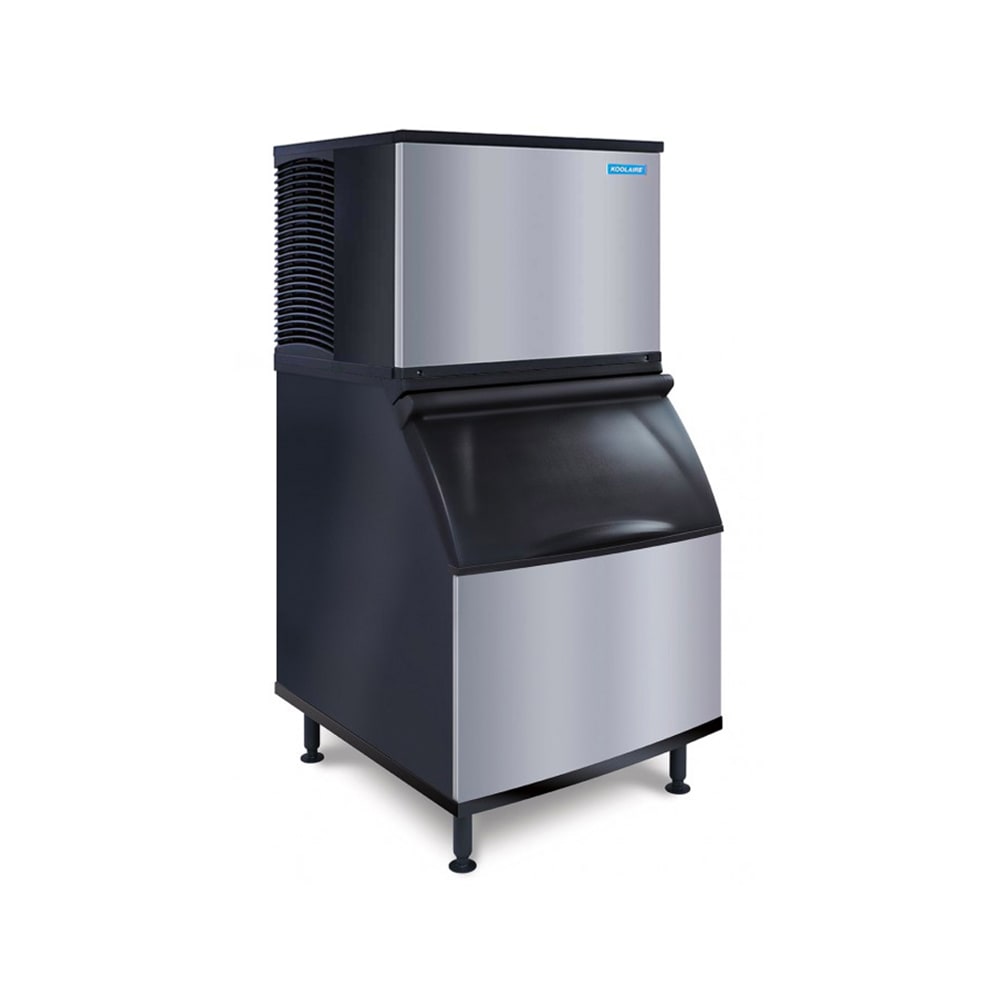

Koolaire KYT0400A/K400 450 lb KYT Series Half Cube Ice Machine w/ Bin - 365 lb Storage, Air Cooled, 115v

The Koolaire KYT0400A/K400 half-cube ice machine with bin has an air-cooled condenser that uses fans to blow cold air and cool the equipment. When the evaporator gets cold enough, flowing water freezes to form ice cubes. In ideal conditions, it takes 24 hours to make 450 pounds of half-cube ice, which measures 0.375 inch by 1.125 inches by 0.875 inch and cools drinks more effectively than full-cube ice. This machine's exterior has a finish that, much like stainless steel, resists fingerprints and rust.

Every ice maker has a food zone, an area made up of the surfaces that come into contact with water and ice. This unit's food zone features white plastic parts so that dirt can be spotted by staff and cleaned. Users can remove the lift-off door and two screws to access the internal parts of the food zone, and several other internal components can be removed without tools. To prevent bacterial growth, the food zone is sealed, and a cleaning cycle can be started with the push of a button.

The Koolaire KYT0400A/K400 ice maker with bin has an exterior finish that looks like stainless steel and black side panels to match the ice machine. This bin can hold 365 pounds of ice and has a foam-insulated door to keep ice frozen. When scooping, the door can be propped open for full access to the bin. An 82-ounce scoop is included, along with a built-in holder that prevents the handle from contaminating the ice. This bin has four legs that elevate the unit and enable the user to clean underneath it.

Ice Maker Details

• 450-lb. production capacity
• 350-lb. AHRI-certified production capacity
• Air-cooled condenser uses fans to cool the evaporator
• Uses R410A refrigerant
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Exterior looks and feels like stainless steel
• White plastic components in the food zone highlight dirty areas
• Sealed food zone minimizes bacteria growth
• 2 screws and a lift-off door can be removed to access the food zone
• Removable pump, trough, distribution tube, floats, and water shield
• Button-initiated cleaning cycle
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• Ambient air temperature: 40-110 degrees F

Ice Bin Details

• 365-lb. application capacity
• 12.3-cu.-ft. AHRI-certified interior space
• 82-oz. scoop
• Scoop is kept out of the ice by a built-in holder
• Exterior has a finish similar to stainless steel
• Black side panels coordinate with the ice maker
• Door is foam insulated to keep ice frozen
• Door props open while scooping
• Legs raise the unit to clean underneath

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 12.1 A, 5.6 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 32 in. H

*Free shipping on Koolaire KYT0400A/K400 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 450 lb/24 hours at 70°/50° (350 lb AHRI certification at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR® (replaces KY-0350A)

Ice Storage Bin, with top-hinged front opening door, 365 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor

Koolaire KYT0400A/K400 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
