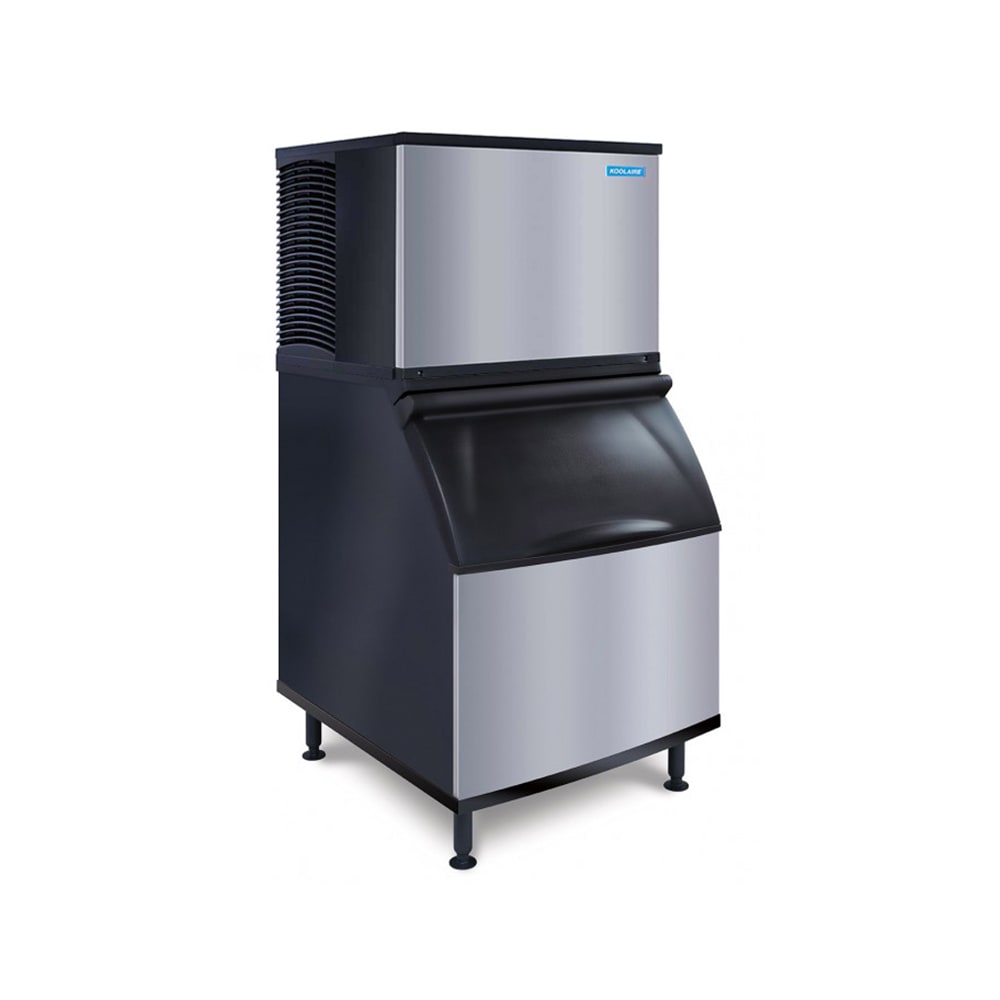

Koolaire KDP0400A/K400 440 lb KDT Series Full Cube Ice Machine w/ Bin - 365 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,193.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Koolaire KDP0400A/K400 Description
If ambient air and incoming water temperatures are at the proper level, the Koolaire KDP0400A-161/K400 ice maker with bin can produce 440 pounds each day. Ice forms when refrigerant cools the evaporator plate as water runs across it, making half-cube ice. This ice is ideal for operations that serve drinks in bars and restaurants.
The food zone in the ice machine head houses the components that come in contact with water and ice, and this area needs to be kept clean to eliminate the risk of ice contamination. Parts in the food zone are accessible behind the lift-off door for cleaning. These parts are white, enabling users to see unsanitary buildup, and some parts are removable for cleaning.
The Koolaire KDP0400A-161/K400 ice maker with bin can hold 365 pounds and comes with an 82-ounce scoop. In the bin, the holder keeps the ice scoop out of ice, preventing unsanitary contact between handle and ice. A stay-open design on the bin door enables convenient scooping, while its foam insulation prevents condensation from building and keeps cold air around the ice.
- 440-lb. maximum daily ice production
- 345-lb. AHRI-certified daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser uses a fan to chill refrigerant in the coils, cooling the evaporator plate and forming ice
- Uses R290 refrigerant
- Food zone is accessible by removing 2 screws and lifting the door off
- White, corrosion-resistant plastic components in the food zone
- Removable floats, water shield, distribution tube, trough, and pump
- Exterior is similar to stainless steel to resist corrosion and smudges
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 365-lb. application capacity
- 12.3-cu.-ft. AHRI-certified capacity
- 82-oz. ice scoop
- Internal scoop holder keeps unsanitary scoop handle out of ice
- Stay-open door for convenient scooping
- Foam-insulated door keeps cold air inside to reduce condensation
- Stainless steel-like exterior finish
- Black panels on sides match the ice machine
- Adjustable legs elevate unit off the floor for cleaning
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 12.1 A, 6.1 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 32 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0400A/K400 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 440 lb/24 hours at 70°/50° (350 lb AHRI certification at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, full-dice size cubes, R290a refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 365 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0400A/K400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 440 |
| Access | Lift Up Door |
| Also Known As | KDT0400A/K400 |
| Bin Capacity (lb) | 365 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 53.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 244.00 |
