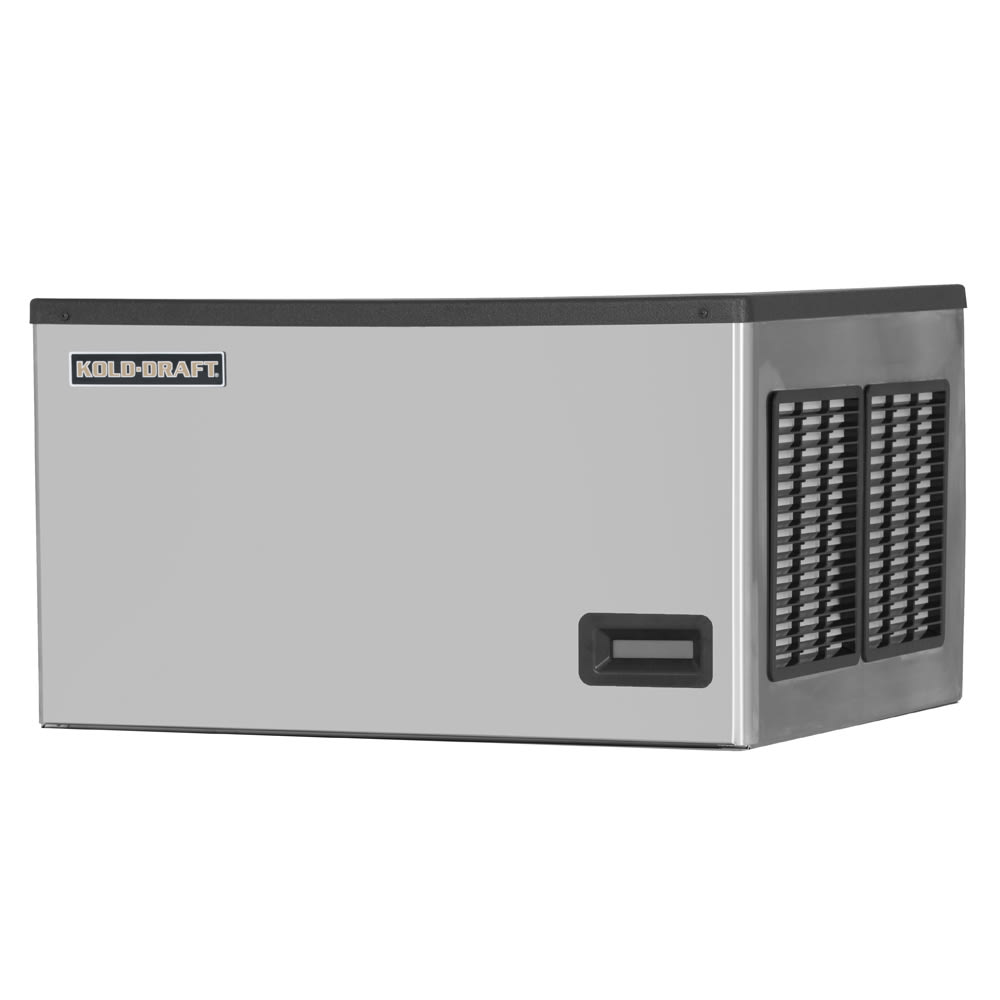

Kold-Draft GTX361LC 30" X-SERIES Full Cube Ice Machine Head - 358 lb/24 hr, Water Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 657-GTX361LC • MPN: GTX361LC
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $5,445.00
$3,331.77 / Each

Image may not depict product color, inclusions or accessories.

Kold-Draft GTX361LC Description

Kold-Draft

The Kold-Draft GTX361LC ice maker can produce 358 pounds of full-cube ice, which is suited for alcoholic beverages since it melts slowly. It has a water-cooled condenser that does not generate as much heat and noise as an air-cooled condenser. A horizontal evaporator is placed upside down on the water plate, so each compartment is filled with water and frozen individually. This process creates pure, mineral-free ice since the cubes are frozen from the outside in. Because the Kold-Draft GTX361LC ice machine head is constructed of 300 series stainless steel, it resists corrosion, dents, and stains. To support efficient operation, this unit can be stacked with a bin and dispenser, both of which are sold separately from the maker. Its rounded corners clean up quickly and prevent staff injuries, and its plastic top panels and louvers can be removed for cleaning.

Product Details

  • 358-lb. daily ice production with 70-degree F ambient air and 50-degree F incoming water
  • 304-lb. daily ice production with 90-degree F ambient air and 70-degree F incoming water
  • Liquid-cooled condenser

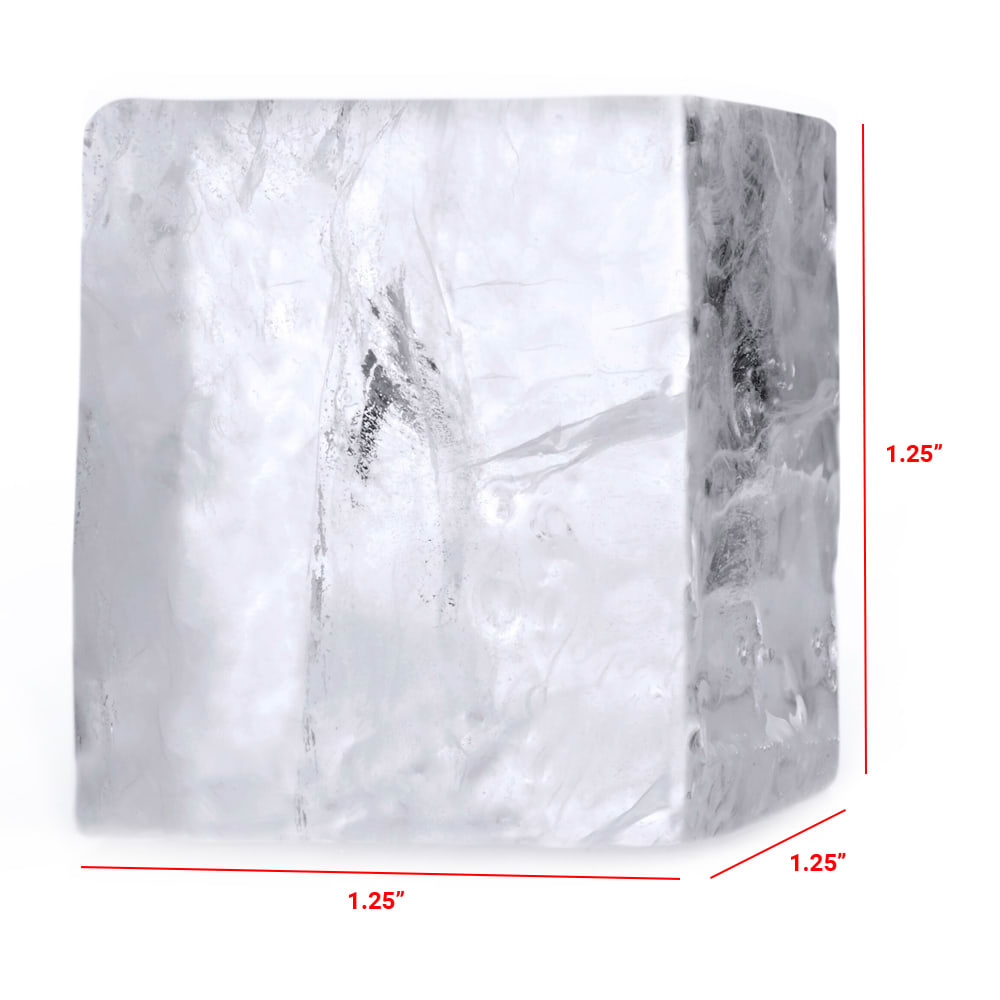

  • Full-cube ice size: 1.25 in. x 1.25 in. x 1.25 in.
  • Uses R404A refrigerant
  • Constructed of bend-resistant 300 series stainless steel
  • Horizontal evaporator helps reduce the risk of freezing minerals into water
  • Rounded corners support cleaning
  • Removable top and louvers are made of plastic
  • LCD display
  • Can be stacked with KDB230 or KDB400 bins (sold separately)
  • Needs 8-in. right and back, 6-in. top, and 4-in. left clearance
  • Incoming water pressure: 20-100 PSIG
  • Incoming water temperature: 45-90 degrees F
  • Ambient air temperature: 45-110 degrees F
  • 4,700 average BTU; 5,850 peak BTU
  • cETLus listed component
  • Made in the U.S.

Plumbing

  • 34-in. FPT potable water inlet
  • 34-in. FPT bin drain
  • 34-in. I.D. flex tubing cuber drain
  • 38-in. FPT condenser inlet
  • 12-in. FPT condenser outlet

Dimensions and Utilities

  • 30.1 in. W x 25.7 in. D x 16.9 in. H
  • 11.1 A, 5.2 kW
  • 115 V/60 Hz/1 ph

Check out our ice makers buying guide to find out if these units are right for you.

Ice Maker, cube-style, water-cooled self-contained condenser, production capacity up to 358 lbs/24 hours at 70°/50° (304 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 11.1 amps, cETLus, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Kold-Draft GTX361LC Specifications

PDF Spec Sheet
Manufacturer Kold-Draft
Ice Type Full Cube
Warranty 3-yr parts & labor; 5-yr compressor & evaporator
Voltage 115
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins KDB230, KDB400, HD201, HD204, HD207, HDX201, HDX204
Depth (in) 25.7
Width (in) 30.1
Product Ice Machine Head
24 Hr. Production (lbs) 358
Height (in) 16.9
Compressor Type Water Cooled
Made in USA Yes
Series X-SERIES
Cold Water (in) 3/4
Indirect Waste Size (in) 3/4
Amps 11.1
Production Range (per day) 100-999 lb
Width (in) Range 30-39
Weight 174.00
Kold-Draft GTX361LC Certifications
  • ETL
