Kold-Draft GTX361AC 30" X-SERIES Full Cube Ice Machine Head - 352 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 657-GTX361AC • MPN: GTX361AC
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $5,445.00
$3,331.77 / Each

Image may not depict product color, inclusions or accessories.

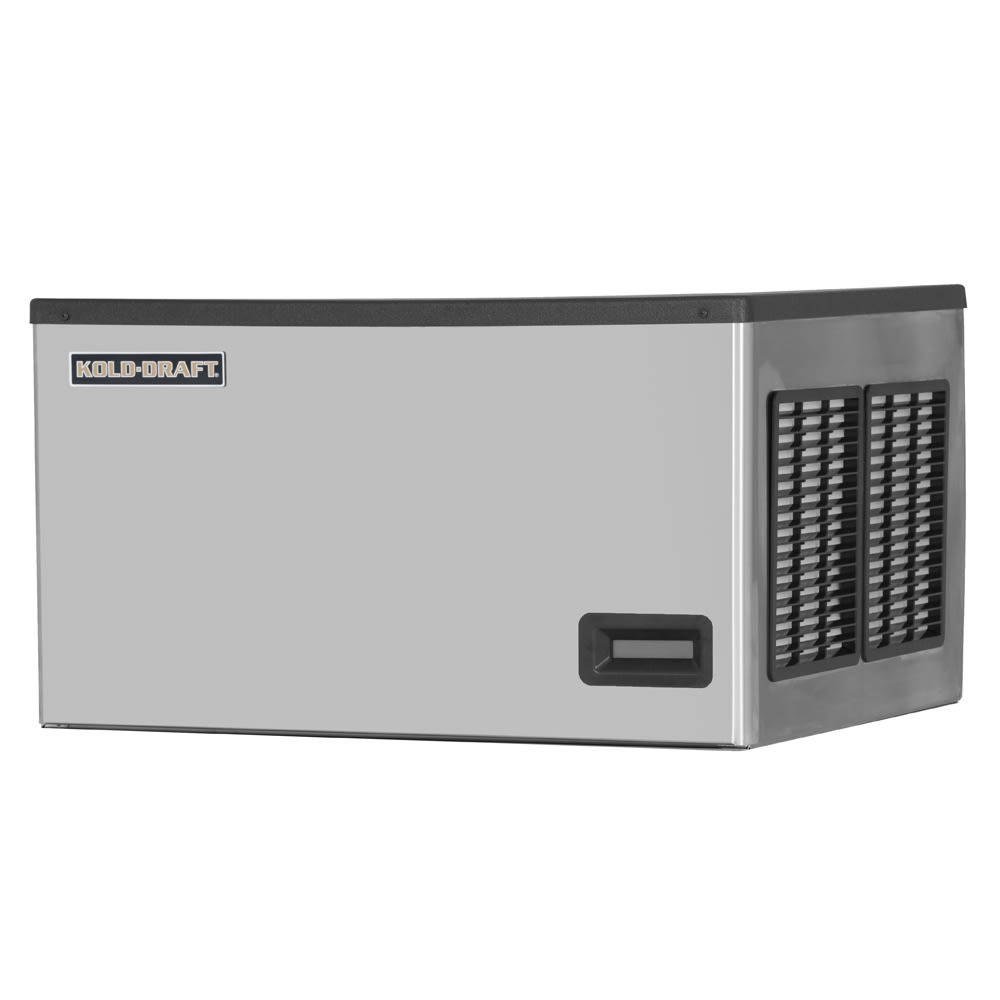

Kold-Draft GTX361AC Description

Kold-Draft

The Kold-Draft GTX361AC ice machine head has an air-cooled condenser that uses less water to produce ice than a water-cooled condenser. If surrounding conditions are ideal, this unit can produce 352 pounds of full-cube ice daily. Full-cube ice melts more slowly than half-cube ice, so it is excellent for drinks that are meant to be sipped. Its exterior is constructed of 300 series stainless steel, which has more nickel than 400 series and is more resistant to corrosion. The Kold-Draft GTX361AC ice maker has a horizontal evaporator that freezes each cube from the outside in to create pure, clear ice. To aid in cleaning, its plastic top and louvers are removable, and its corners are rounded. An LCD display shows the unit's operating status.

Product Details

  • 352-lb. daily ice production with 70-degree F ambient air and 50-degree F incoming water
  • 282-lb. daily ice production with 90-degree F ambient air and 70-degree F incoming water
  • Durability and strength are provided by the 300 series stainless steel exterior
  • Air-cooled condenser
  • Horizontal evaporator sits over the water plate
  • Can be serviced from the front

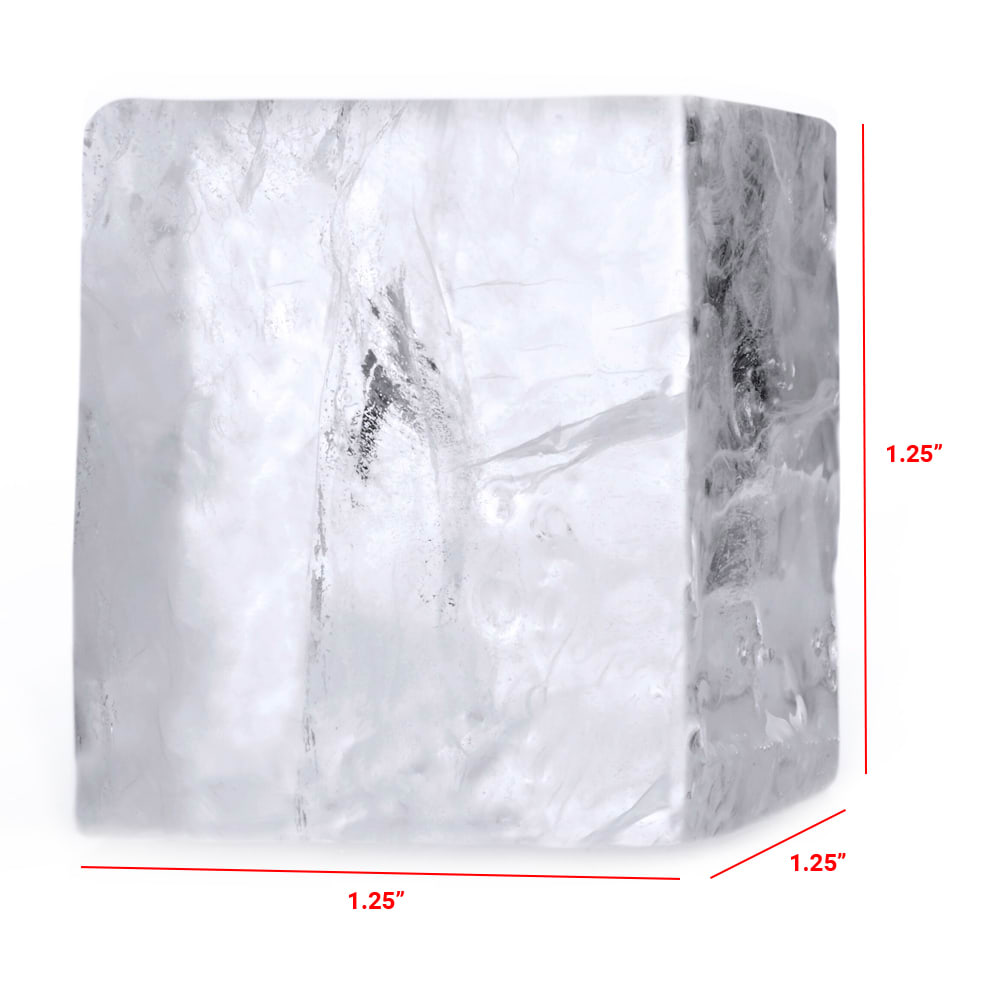

  • Full-cube ice size: 1.25 in. x 1.25 in. x 1.25 in.
  • LCD display keeps users informed
  • Plastic top and louvers are removable for cleaning
  • Rounded corners minimize injuries
  • Uses R404A refrigerant

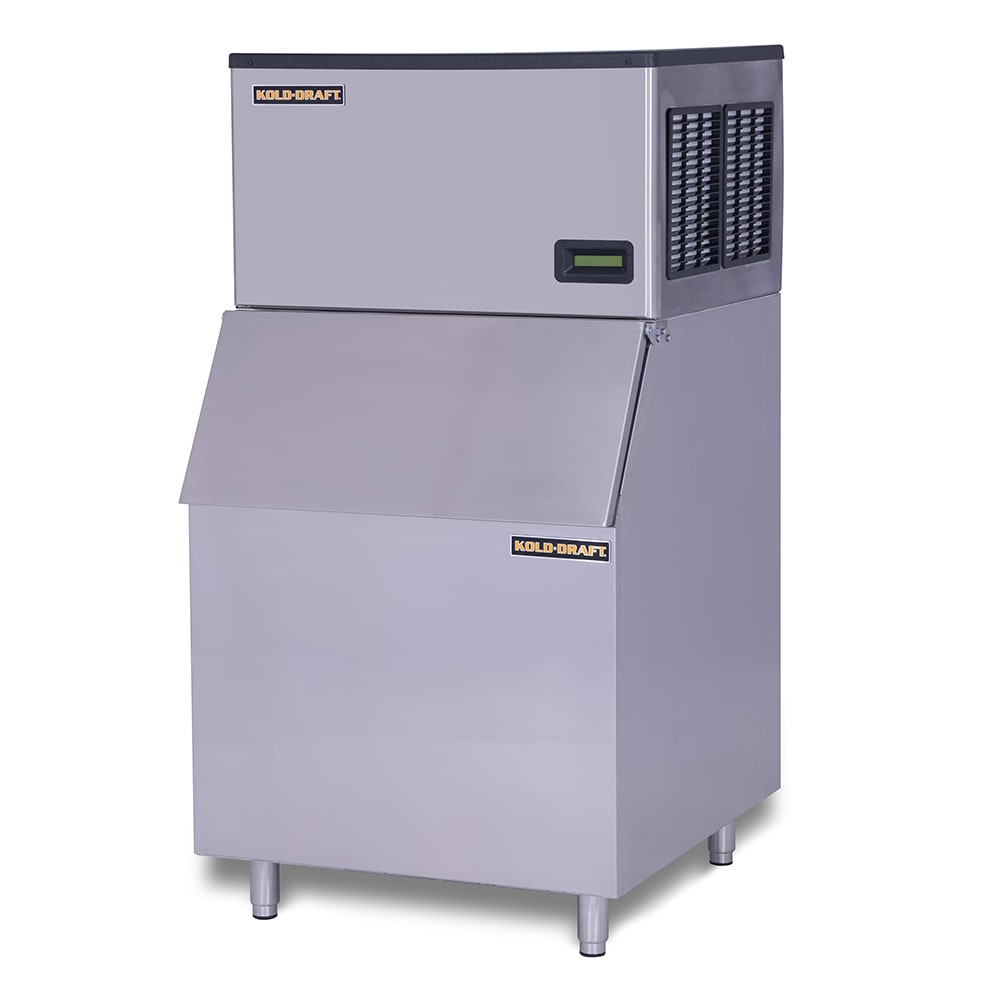

  • Can be stacked with KDB230 or KDB400 bins (sold separately)
  • Operator should provide 8-in. right and back, 6-in. top, and 4-in. left clearance
  • Incoming water pressure: 20-100 PSIG
  • Incoming water temperature: 45-90 degrees F
  • Room air temperature: 45-110 degrees F
  • 4,700 average BTU; 5,850 peak BTU
  • cETLus listed component
  • Made in the U.S.

Plumbing

  • 34-in. FPT potable water inlet
  • 34-in. FPT bin drain
  • 34-in. I.D. flex tubing cuber drain
  • 38-in. FPT condenser inlet
  • 12-in. FPT condenser outlet

Dimensions and Utilities

  • 30.1 in. W x 25.7 in. D x 16.9 in. H
  • 12 A, 6.5 kW
  • 115 V/60 Hz/1 ph

Take a look at our ice makers buyers' guide to learn more about air-cooled ice machines.

Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 352 lbs/24 hours at 70°/50° (282 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 12.0 amps, cETLus, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Kold-Draft GTX361AC Specifications

PDF Spec Sheet
Manufacturer Kold-Draft
Ice Type Full Cube
Warranty 3-yr parts & labor; 5-yr compressor & evaporator
Voltage 115
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins KDB230, KDB400, HD201, HD204, HD207, HDX201, HDX204
Depth (in) 25.7
Width (in) 30.1
Product Ice Machine Head
24 Hr. Production (lbs) 352
Height (in) 16.9
Compressor Type Air Cooled
Made in USA Yes
Series X-SERIES
Cold Water (in) 3/4
Indirect Waste Size (in) 3/4
Amps 12
Production Range (lbs/day) 100-999 lb
Width (in) Range 30 - 39
Weight 180.00
Kold-Draft GTX361AC Certifications
  • ETL
