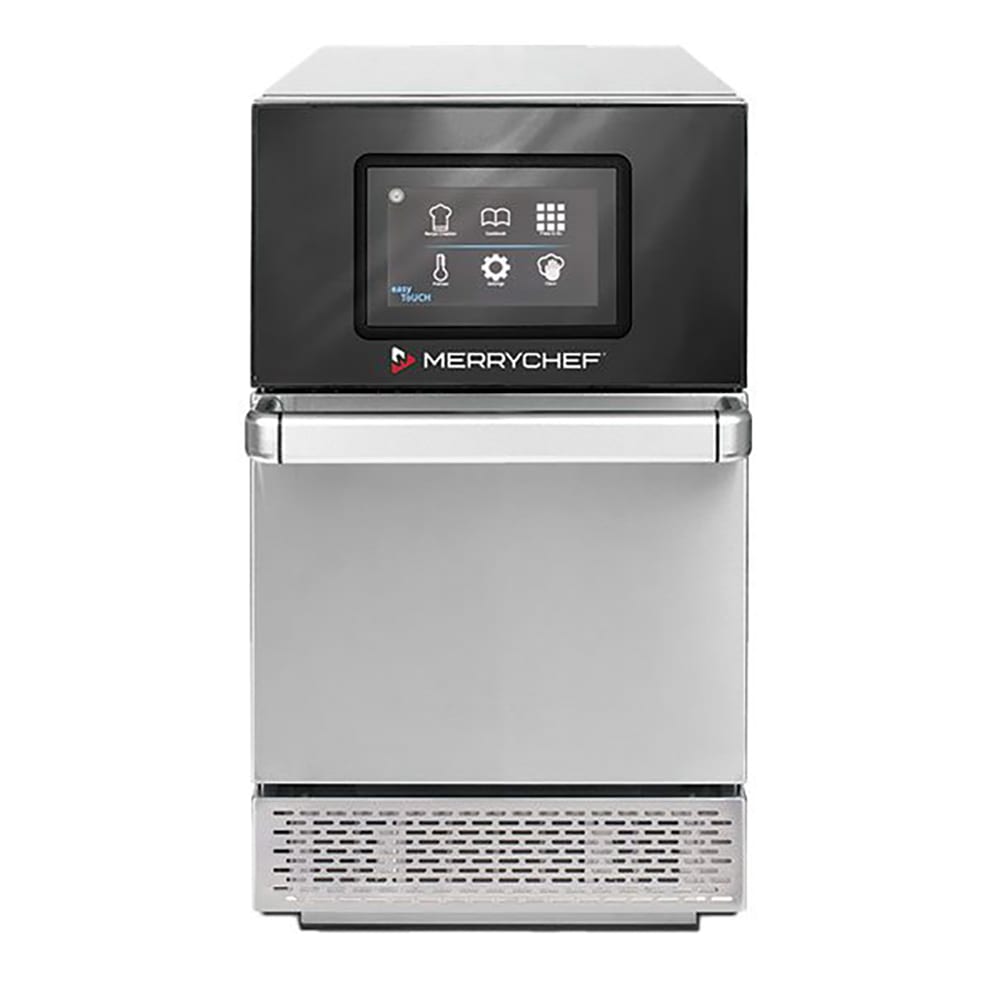

Merrychef CONNEX12SPNEMA6-20PSS Merrychef conneX® 12 Microwave Convection/Impingement Oven - 208 240v/1ph, Silver
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Merrychef CONNEX12SPNEMA6-20PSS Description
The versatile Merrychef CONNEX12STANDARDPOWERSTAINLESSSTEEL convection oven enables operators to cook, toast, grill, or reheat food promptly by utilizing microwave, convection, and impingement technologies. Microwave settings are adjustable between 5 and 100 percent, while a rotating antenna ensures even heating. Convection heating settings are modifiable between 212 and 527 degrees Fahrenheit, while the tuned impingement promotes even browning. The oven’s high-definition touchscreen provides storage memory with programmed or pre-set cooking recipes, cooking times, microwave power settings, or written and pictorial user instructions. In full-service mode, the touchscreen’s easyTouch® icon-driven controls offer Recipe creation, Press & Go, Cookbook, Cleaning, Temperature Change, and Settings menus. Six stages can be programmed with each cooking profile made in recipe mode.

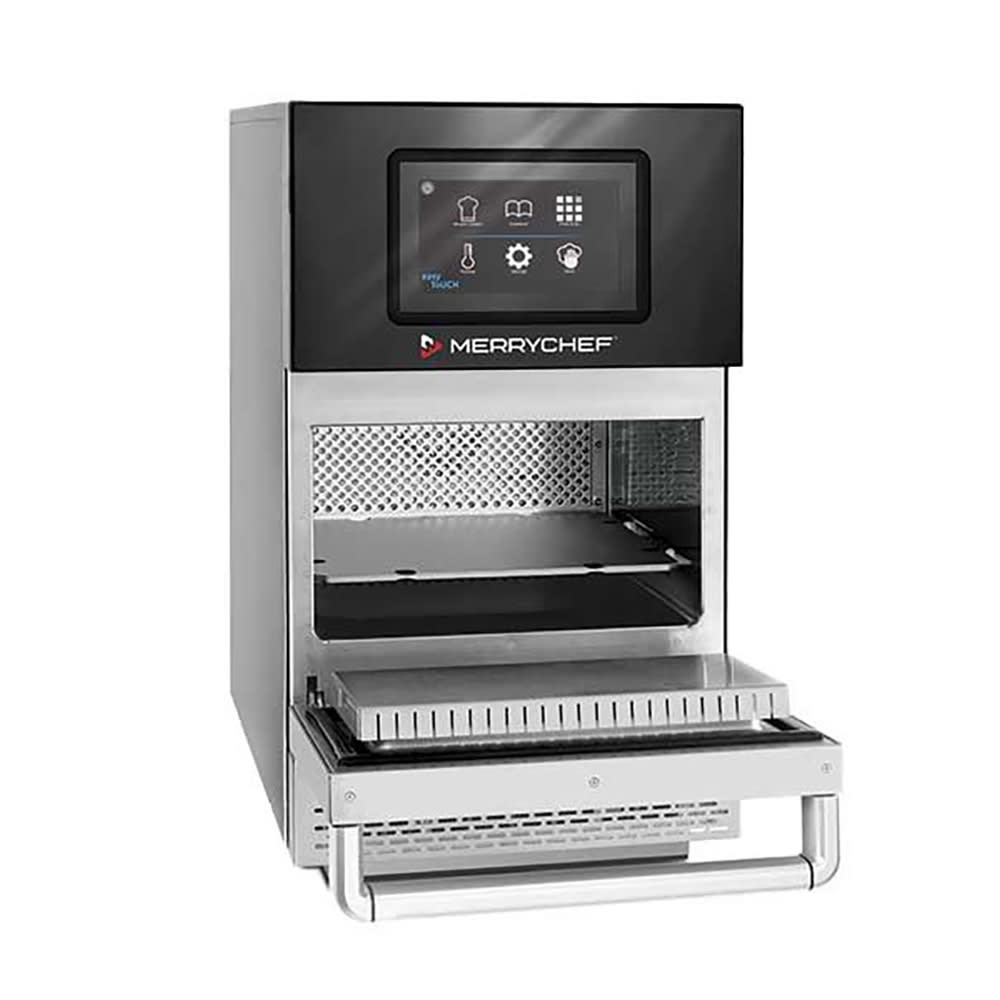

This Merrychef CONNEX12STANDARDPOWERSTAINLESSSTEEL microwave and convection oven features a 12-inch by 12-inch cavity and performs 20 times faster than standard cooking methods. The unit’s compact 14-inch width fits on crowded, 235/8-inch worktops. The interior is accessed through the bottom-mounted door with an extended, ergonomic handle. The stainless steel body stays cool to the touch with patented air-cooled technology for safe use throughout operation. It’s built with catalytic converters for ventless operation, and it features a front-facing air filtration system.
Product Details
- conneX® series
- Fits 235/8-in. worktops
- 7-in. high-definition touchscreen control
- Built-in catalytic converters for ventless design
- Compact size
- Bottom-hinged door
- Door features ergonomic handle
- Stainless steel finish stays cool to the touch
- Cavity with sealed, rounded edges
- Microporous insulation
- Front-facing, monitored air filtration
Touchscreen Details
- Combines 3 heat technologies: microwave, convection, and impingement
- Microwave setting options: 5-100 percent
- Convection temperature range: 212-527 degrees F
- Icon-driven easyTouch control system
- Cooking profiles with programmable cooking times, microwave power settings, or written/pictorial user instructions
- Convenient diagnostic self-monitoring
- Data transfers through USB memory stick or KitchenConnect cloud
Accessories Included
- Cook plate
- Paddle
- Solid-bottom basket
- Cooldown pan
- Non-stick cooking liner
- Oven cleaner/protector pack
Dimensions & Utilities
- Cooking cavity: 12 in. W x 12 in. D
- Overall: 14 in. W x 251/2 in. D x 242/5 in. H
- 20 A
- 208-240 V/60 Hz/1 ph, NEMA 6-20P plug
Product Features
*Free shipping on Merrychef CONNEX12SPNEMA6-20PSS within the 48 contiguous states.
From The Manufacturer
Merrychef conneX® 12, Standard Power Microwave Convection/Impingement Oven, 1000 watt microwave / 2200 watt convection, ventless, 12" x 12" cooking cavity, EasyTouch™ 2.0 , 7" high definition touchscreen control, bottom-hinged door, built-in catalytic converters, (1) cook plate (DB0739), (1) paddle (SR318), (1) solid bottom basket (32Z4165), (1) cool down pan (32Z4079), (1) non-stick cooking liner (32Z4088), (1) oven cleaner/protector pack (32Z4148), (1) Scrapper (32Z4191), (1) steam pipe brush (32Z4188), stainless steel exterior, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.

Merrychef CONNEX12SPNEMA6-20PSS Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Merrychef |
Amps | 20 |
Base | None |
Cavities | 1 |
Color | Silver |
Construction | Stainless Steel |
Controls | Digital |
Depth (in) | 25.2 |
Door Construction | Solid Only |
Door Type | Independent |
Heat | Electric |
Height (in) | 24.4 |
Hertz | 60 |
kW | 4.5 |
Special Features | Ventless |
Type | Convection/Impingement/Microwave |
Voltage | 208/240 |
Warranty | 1-year Limited Parts & Labor |
Watts | 4500 |
Width (in) | 14 |
Series | ConneX® 12 |
Interior Width (in) | 12 |
Interior Depth (in) | 12 |
Phase | 1 |
Rating | Best |
Product | High Speed Ovens |
Product Type | Cooking Equipment |
NEMA | 6-20P |
Weight | 133.00 |
Important Prop 65 information for California residents.
Other Products From This Line
Compare to Similar Items
Attributes | ![]() Current Item: Merrychef CONNEX12SPNEMA6-20PSS Merrychef conneX® 12 Microwave Convection/Impingement Oven - 208 240v/1ph, Silver |
![]() TurboChef SOTA-TC High Speed Countertop Microwave Convection Oven, 208 240v/1ph |
![]() XpressChef MRX1 High Speed Countertop Microwave Impingement Oven, 208v/1ph |
---|---|---|---|
Customer Rating |
|
|
|
Price | $11,356.00 | $14,011.00 | $7,782.24 |
Shipping | Ships Free | Ships Free | Ships Free |
Lead Time | Typically ships in 6 - 8 weeks | IN STOCK: Ships in 1 Business Day | Typically ships in 10 - 12 weeks |
Type | Convection/Impingement/Microwave | Impingement/Microwave | Impingement/Microwave |
Rating | Best | Best | Good |
Color | Silver | Black | Silver |
Controls | Digital | Touch Screen | Touch Screen |
Voltage | 208/240 | 208/240 | 208 |
kW | 4.5 | 3.6 | |
Interior Width (in) | 12 | 12.5 | 12.25 |
Interior Depth (in) | 12 | 10.5 | 12.25 |
Special Features | Ventless | Ventless | Ventless |
Heat | Electric | Electric | Electric |
Warranty | 1-year Limited Parts & Labor | 1-year Parts & Labor | 1-year Limited Parts & Labor; 3-year Magnetron Tube |
