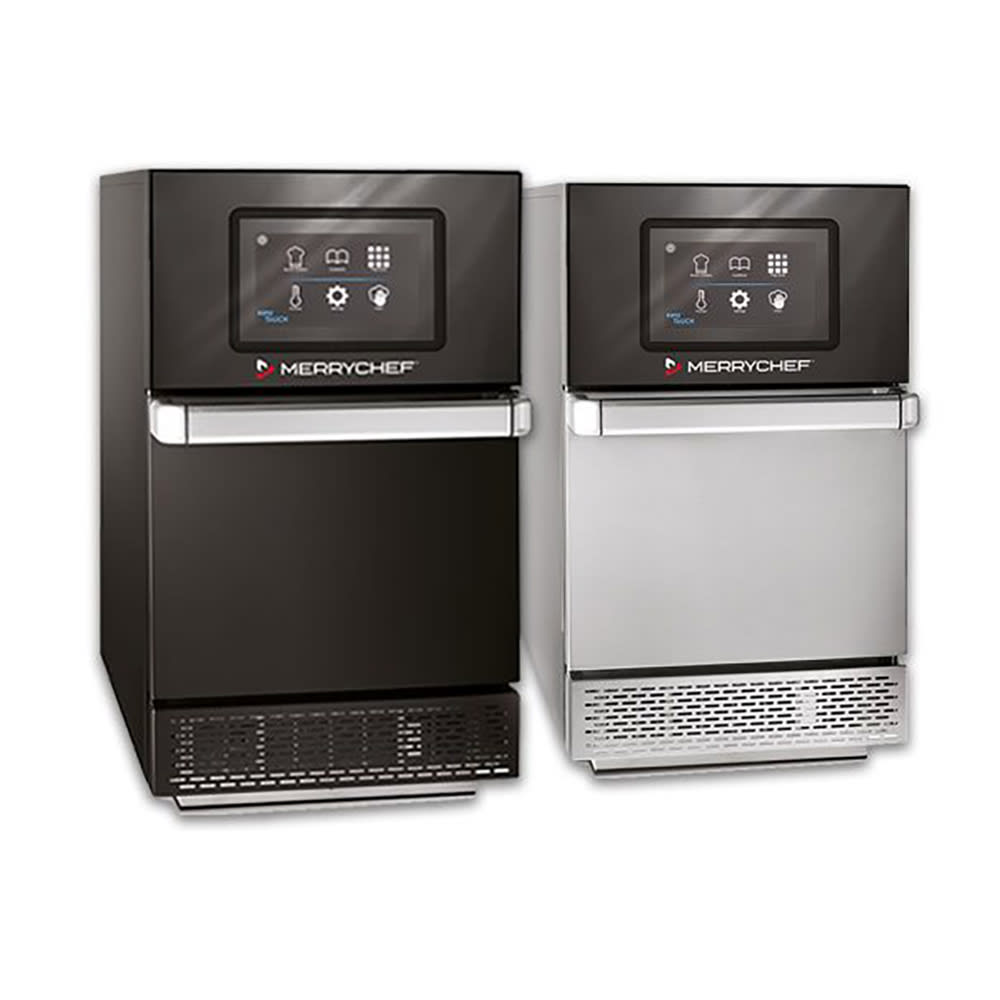

Merrychef CONNEX12SPNEMA6-20PBLK Merrychef conneX® 12 Microwave Convection/Impingement Oven - 208 240v/1ph, Black
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Merrychef CONNEX12SPNEMA6-20PBLK Description
The Merrychef CONNEX12STANDARDPOWERCARBONBLACK microwave convection/impingement oven is easy to install due to its catalytic converters that control grease and odor output. These components also enable a ventless design. This unit’s compact,14 inch-wide by 251/2 inch-deep size fits comfortably on a 235/8-inch worktop. Its 12-inch-long and wide cavity is accessed through the bottom-mounted door with an ergonomic, extended handle. The body is made of impact-resistant stainless steel that remains cool to the touch due to the oven’s patented air-cooled technology. The air filtration system is located at the front for easy access and maintenance when needed.
This Merrychef CONNEX12STANDARDPOWERCARBONBLACK microwave convection/impingement oven is managed and operated with the front-facing, 7-inch touchscreen. The menus are simple to distinguish through the easyTouch® icon-driven control panel. This full-service menu provides Recipe creation, Press & Go, Cookbook, Cleaning, Temperature Change, and Settings options. All saved recipes can be updated with user-preferable settings, and employees can add six stages per cooking profile for better guidance during cooking cycles. This touchscreen features a USB data stick input and a WiFi and ethernet connection for quick menu updates. This unit operates using three cooking technologies: convection, microwave, and impingement.
Product Details
- conneX® series
- Easily fits on a 235/8-in. worktop
- High-definition touchscreen control
- Ventless design with catalytic convertors to minimize grease and odor
- Compact, slim size

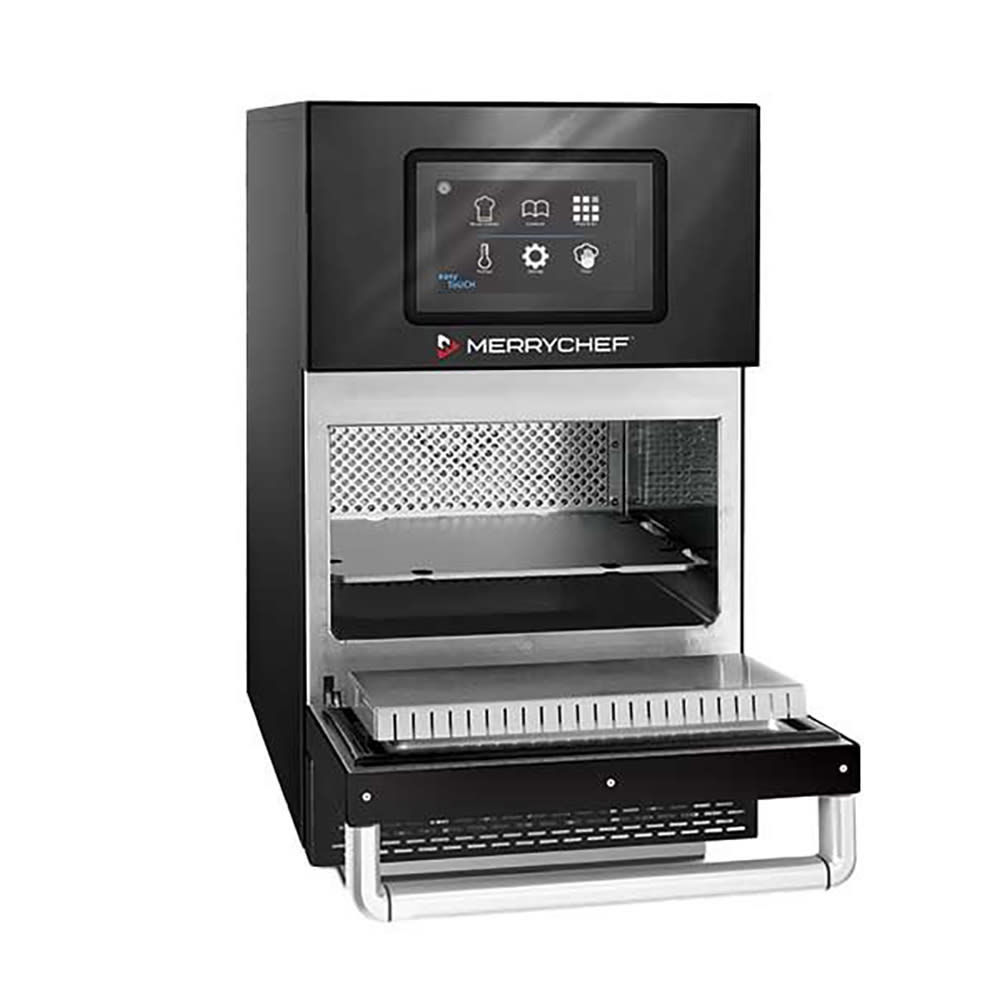

- Bottom-hinged door accessible via ergonomic handle
- Stainless steel with air-cooled technology stays cool to the touch
- Carbon black finish
- Interior features sealed, rounded edges for simple cleaning
- Microporous insulation
- Front-facing monitored air filtration
Touchscreen Details
- 3 synchronous technologies: microwave, convection, and impingement
- Microwave setting options: 5-100 percent
- Convection temperature range: 212-527 degrees F
- Icon-driven easyTouch control system
- Self-monitoring capability monitors components
- Culinary profiles with programmable cooking times, microwave power settings, and instructions in 6 stages
- USB memory stick or KitchenConnect cloud for quick updates to menu
Accessories Included
- Cook plate
- Paddle
- Solid-bottom basket
- Cool-down pan
- Non-stick cooking liner
- Oven cleaner/protector pack
Dimensions & Utilities
- Cooking cavity: 12 in. W x 12 in. D
- Overall: 14 in. W x 251/2 in. D x 242/5 in. H
- 30 A
- 208-240 V/60 Hz/1 ph, NEMA 6-30P plug
Product Features
*Free shipping on Merrychef CONNEX12SPNEMA6-20PBLK within the 48 contiguous states.
From The Manufacturer
Merrychef conneX® 12, Standard Power Microwave Convection/Impingement Oven, 1000 watt microwave / 2200 watt convection, ventless, 12" x 12" cooking cavity, EasyTouch™ 2.0 , 7" high definition touchscreen control, bottom-hinged door, built-in catalytic converters, (1) cook plate (DB0739), (1) paddle (SR318), (1) solid bottom basket (32Z4165), (1) cool down pan (32Z4079), (1) non-stick cooking liner (32Z4088), (1) oven cleaner/protector pack (32Z4148), (1) Scrapper (32Z4191), (1) steam pipe brush (32Z4188), carbon black exterior, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.

Merrychef CONNEX12SPNEMA6-20PBLK Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Merrychef |
Amps | 20 |
Base | None |
Cavities | 1 |
Color | Black |
Construction | Carbon Black |
Controls | Digital |
Depth (in) | 25.2 |
Door Construction | Solid Only |
Door Type | Independent |
Heat | Electric |
Height (in) | 24.4 |
Hertz | 60 |
kW | 4.5 |
Special Features | Ventless |
Type | Convection/Impingement/Microwave |
Voltage | 208/240 |
Warranty | 1-year Limited Parts & Labor |
Width (in) | 14 |
Series | ConneX® 12 |
Interior Width (in) | 12 |
Interior Depth (in) | 12 |
Phase | 1 |
Rating | Best |
Product | High Speed Ovens |
Product Type | Cooking Equipment |
NEMA | 6-20P |
Weight | 133.00 |
