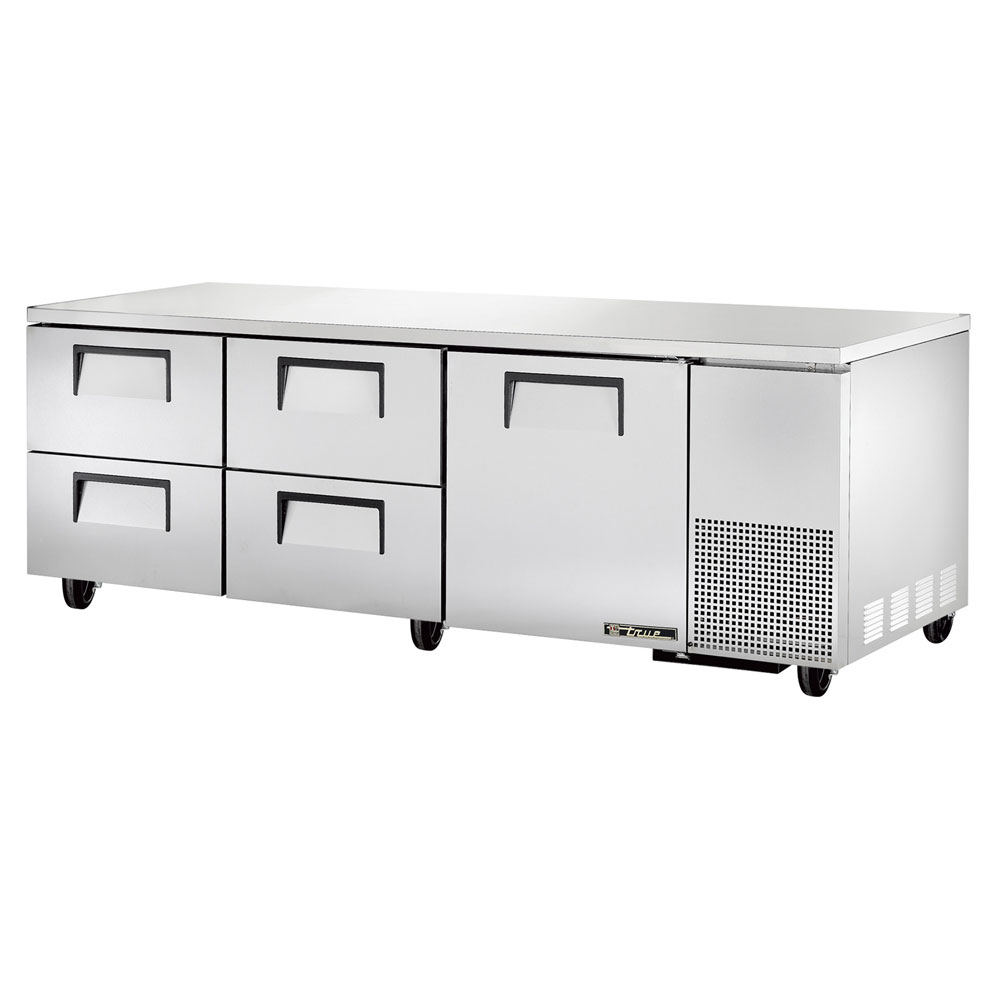

True TUC-93D-4-HC 93" W Undercounter Refrigerator w/ (3) Sections, (1) Door & (4) Drawers, 115v

The True TUC-93D-4-HC undercounter refrigerator is made of stainless steel with a GalFan-coated, steel back and a clear-coated, aluminum liner. The cabinet, door, and drawers are insulated with polyurethane, containing zero ozone depletion and zero global warming potential. The self-contained, capillary tube system—which uses R134A refrigerant—and the extra-large evaporator coil maintain a user-designated temperature between 33 and 38 degrees Fahrenheit. With its high-horsepower compressor and large condenser, the refrigeration system delivers guided airflow for uniform temperatures. The epoxy-coated evaporator has a self-lubricating, cast iron fan motor with large blades to provide a low-velocity, high-volume airflow. This refrigerator has fast temperature recovery and short run time, making it ideal for heavy use.

When the compressor cycles on, its condensing fan motor blows in an opposite direction for a 20 second period; this helps remove settled dust and debris from the condensing coil. Though this self-cleaning feature helps improve coil performance, regular preventive maintenance is still necessary to ensure the coil is operating correctly.

The doors on the True TUC-93D-4-HC refrigerator swing within the cabinet dimensions and are fitted with 12-inch-long, recessed handles with sheet metal interlocks. The magnetic gaskets and stainless steel slides and rollers are removable without tools for swift maintenance. Each drawer accommodates small food pans or two 12-inch by 20-inch by 8-inch food pans, which are sold separately. This unit also includes two PVC-coated, wire shelves that each include four chrome-plated shelf clips and are adjustable in ¹⁄₂-inch increments.

Product Details

• 2 PVC-coated, wire shelves adjustable in ¹⁄₂-in. increments
• 4 chrome-plated shelf clips per shelf are included
• Stainless steel doors and drawers are fitted with 12-in.-long, recessed handles
• Handles are foamed in place with sheet metal interlock for permanent placement
• Doors swing within the cabinet dimensions
• Aluminum-lined drawers feature removable, stainless steel slides and rollers
• One-piece, magnetic gaskets can be removed without tools
• Each drawer accommodates (2) 12-in. L x 20-in. W x 8-in. D food pans (sold separately) or incremental pans; divider bars are available
• Cabinet features a stainless steel exterior with a GalFan-coated, steel back
• Interior has a clear-coated, aluminum liner and a stainless steel floor with coved corners
• Entire structure is insulated with high-density polyurethane
• 5-in.-diameter stem castors have locks on the front set
• Work surface is 36 in. high
• Temperature holding range: 33-38 degrees F
• Oversized refrigeration system maintains temperatures using guided airflow
• Capillary tube system uses R134A refrigerant for environmental safety
• Epoxy-coated evaporator has a self-lubricating, sealed, cast iron fan motor for a low-velocity, high-volume system
• Large fan blades ensure fast temperature recovery and short run times
• Reverse compressor fan motor blows dirt away from condensing coil for 20 seconds every cycle

• Condensing unit is located and removed from behind the front grille

Dimensions & Utilities

• Shelves: 23⁵⁄₈ in. W x 28 in. D
• Overall: 93¹⁄₄ in. W x 35 in. D x 36 in. H
• 4.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-93D-4-HC within the 48 contiguous states.

From The Manufacturer

Deep Undercounter Refrigerator, 33 - 38°F, side mounted self-contained refrigeration, (1) stainless steel door, (2) PVC coated adjustable wire shelves, (4) drawers accommodates (2) 12"x 20"x8" pans (NOT included), stainless steel top & sides, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-93D-4-HC Specifications
