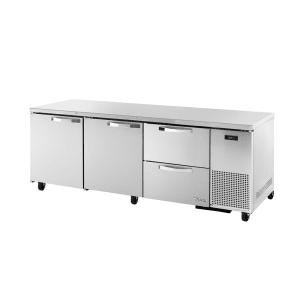

True TUC-93D-2-HC~SPEC3 93" W Undercounter Refrigerator w/ (3) Sections, (2) Doors & (2) Drawers, 115v

With a stainless steel exterior and polyurethane insulation, the True TUC-93D-2~SPEC3 refrigerator includes lockable stem castors measuring 5 inches in diameter and a work surface height of 36 inches. The capillary tube system is factory engineered, uses R134A refrigerant, and its large fan blades power a low-velocity, high-volume airflow pattern. The epoxy-coated, sealed evaporator self-lubricates to ensure fast temperature recovery and short run times in busy environments. The sliding condensing unit is accessible behind the front grille for simple cleaning. The high-horsepower, extra-large coil and the large condenser maintain cabinet temperatures between 33 and 38 degrees Fahrenheit, and this level can be adjusted by the operator to their specified level.

To improve performance, the condensing fan motor eliminates settled debris from the condensing coil by reversing for 20 seconds when the compressor starts up. A clean condensing coil surface enables it to cool products with less energy, and it can help lengthen the unit’s lifespan. Though effective, this mechanism works best when paired with routine preventive maintenance.

This undercounter refrigerator has four PVC-coated, wire shelves, each including four chrome-plated clips. These shelves are adjustable in ¹⁄₂-inch increments, with two shelves placed on the right door and two on the center door. Shelf support pilasters are made of stainless steel to match the cabinet interior. Both drawers can hold two 12-inch by 20-inch by 8-inch food pans, or incrementally sized pans when using the divider bars. The True TUC-93D-2~SPEC3 undercounter refrigerator features positive-seal doors that have locks and swing within the cabinet dimensions; drawers do not include locks.

Product Details

• Temperature holding range: 33-38 degrees F
• Made of stainless steel and insulated with polyurethane
• Extra-large, epoxy-coated evaporator and high-horsepower system maintains the set temperature
• Factory-balanced refrigeration system provides cool temperatures throughout
• Uses R134A refrigerant
• Large fan blades operate at a low velocity with high airflow volume
• Reversing condensing fan mechanism blows dust off condensing coil

• Designed for busy environments, with a fast temperature recovery and a short run time
• Sealed evaporator fan motor is made of cast iron and self-lubricates
• Condenser slides out and is located behind the front grille
• Lockable stem castors with 5-in. diameters
• 36-in. work surface height
• Door/drawers can be moved to any section of the cabinet if indicated when ordering
• Lockable doors are lined with clear-coated aluminum
• Each door and drawer is fitted with an all-metal spec handle
• Doors swing within the cabinet dimensions
• Magnetic gaskets are removable without tools for quick cleaning
• Heavy-duty drawer slides and rollers can be removed
• 2 drawers accommodate (2) 12-in. L x 20-in. W x 8-in. D food pans (sold separately) or incremental small pans
• Drawers come with divider bars for food pans
• 4 PVC-coated, wire shelves are heavy-duty and adjustable in ¹⁄₂-in. increments
• 2 shelves are located on the right door; 2 on the center door
• Each shelf comes with 4 chrome-plated clips
• Heavy-duty, 16-gauge top and 20-gauge doors
• Door front is flush with countertop fronts
• Includes a temperature control with a digital display
• Spec Series® logo

Dimensions & Utilities

• Right door shelves: 23⁵⁄₈ in. W x 28 in. D
• Center door shelves: 25¹⁄₂ in. W x 28 in D
• Overall: 93¹⁄₄ in. W x 35 in. D x 36 in. H
• 4.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-93D-2-HC~SPEC3 within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Deep Undercounter Refrigerator, 33 - 38°F, side mounted self-contained refrigeration, SPEC Package 3 includes: stainless steel top, (2) heavy-duty stainless steel doors, (4) PVC coated adjustable wire shelves, (2) drawers accommodates (2) 12" x 20" x 8" pans (NOT included), steel handles, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
