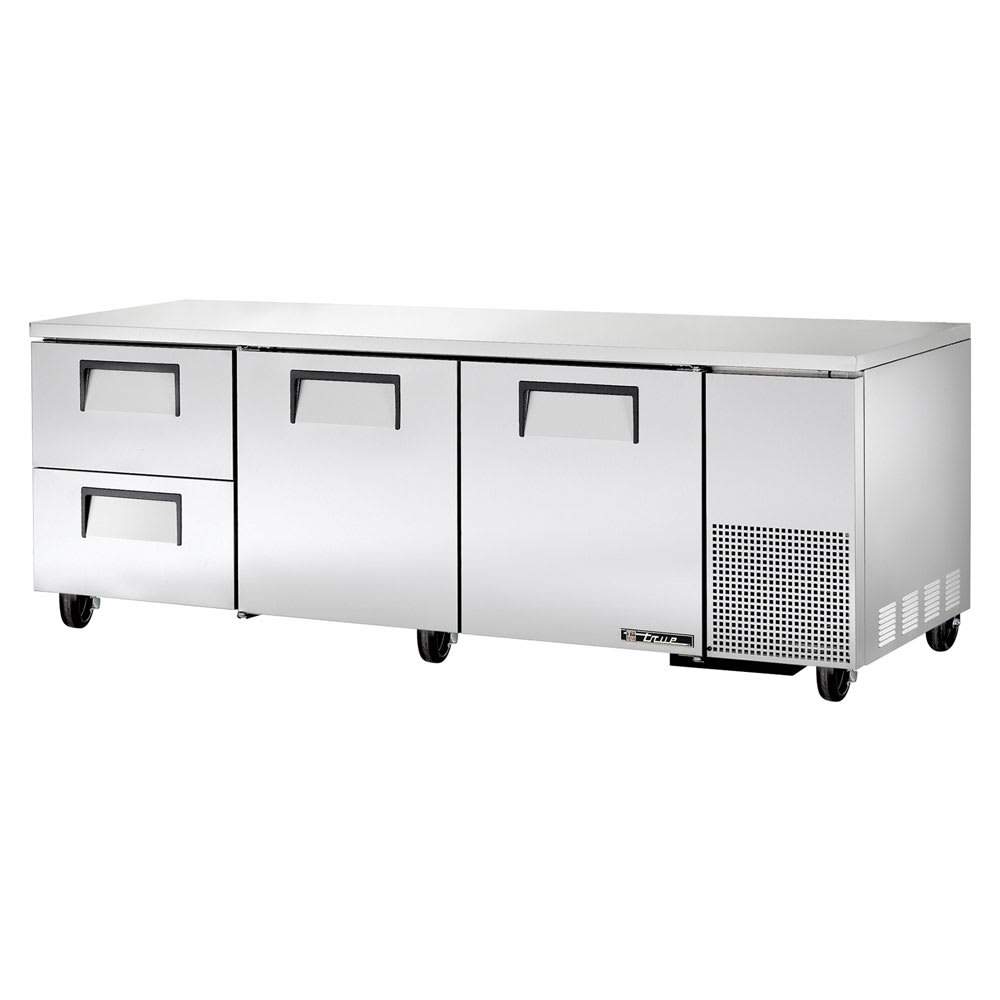

True TUC-93D-2-HC 93" W Undercounter Refrigerator w/ (3) Sections, (2) Doors & (2) Drawers, 115v

The True TUC-93D-2-HC undercounter refrigerator has two drawers fitted with recessed, 12-inch-long handles—held in place with a sheet metal interlock—and two doors that swing within the cabinet dimensions. Each drawer can accommodate small food pans or two 12-inch by 20-inch by 8-inch food pans, measurable with divider bars. There are two PVC-coated, wire shelves on the right door and two at the center, each including four chrome-plated clips. These shelves are adjustable in ¹⁄₂-inch increments.

Maintaining temperatures between 33 and 38 degrees Fahrenheit, the True TUC-93D-2-HC deep undercounter refrigerator uses environmentally friendly hydrocarbon refrigerant and a factory-balanced refrigeration system with guided airflow. This unit cools products uniformly and operates with peak efficiency, using fan motors that minimize heat. Buildup is removed from the condensing coil with a 20-second reversal feature. Each cycle, the compressor fan motor runs in reverse to blow away debris that’s collected on the coil. This mechanism helps optimize performance, lower energy consumption, and lengthen the lifespan of the unit. For best results, preventative maintenance should still be performed on a routine basis.

The state-of-the-art condensing unit slides out from behind the front grille and the evaporator is coated in epoxy to eliminate corrosion. Its stainless steel cabinet features a GalFan-coated steel back and a clear-coated, aluminum liner. The drawers, doors, and cabinet are insulated with high-density polyurethane, retaining cold air and increasing structural strength.

Product Details

• 4 PVC-coated, wire shelves; 2 on the right door and 2 in the center
• Shelves are adjustable in ¹⁄₂-in. increments
• Each shelf includes 4 chrome-plated clips
• Each drawer accommodates (2) 12-in. L x 20-in. W x 8-in. D food pans (sold separately) or equally sized small pans
• Doors and drawers are made of stainless steel and can be in any section, specifiable upon order
• 12-in.-long, recessed handles with a sheet metal interlock
• Doors swing within the cabinet dimensions
• Magnetic door and drawer gaskets, drawer sliders, and rollers can be removed for cleaning
• Cabinet exterior is made of stainless steel and has a GalFan-coated, steel back
• Interior is lined with clear-coated aluminum and has a stainless steel floor with coved corners
• Structure is foamed in place using polyurethane insulation
• 5-in.-diameter, steel castors with locks on the front set
• 36-in. work surface height

Self-contained Refrigeration System

• Temperature holding range: 33-38 degrees F
• R290 hydrocarbon refrigerant
• Guided airflow system ensures that product temperatures are uniform and consistent
• Electronically commutated fan motors operate more efficiently and generate less heat than standard models
• 20-second fan reversal feature eliminates buildup from condenser coil

• Condensing unit is accessible behind the front grille

Dimensions & Utilities

• Right door shelves: 23⁵⁄₈ in. W x 28 in. D
• Center door shelves: 25¹⁄₂ in. W x 28 in. D
• Overall: 93¹⁄₄ in. W x 33¹⁄₂ in. D x 36 in. H
• 4.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-93D-2-HC within the 48 contiguous states.

From The Manufacturer

Deep Undercounter Refrigerator, 33 - 38°F, side mounted self-contained refrigeration, (2) stainless steel doors, (4) PVC coated adjustable wire shelves, (2) drawers accommodates (2) 12" x 20" x 8" pans (NOT included), stainless steel top & sides, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
