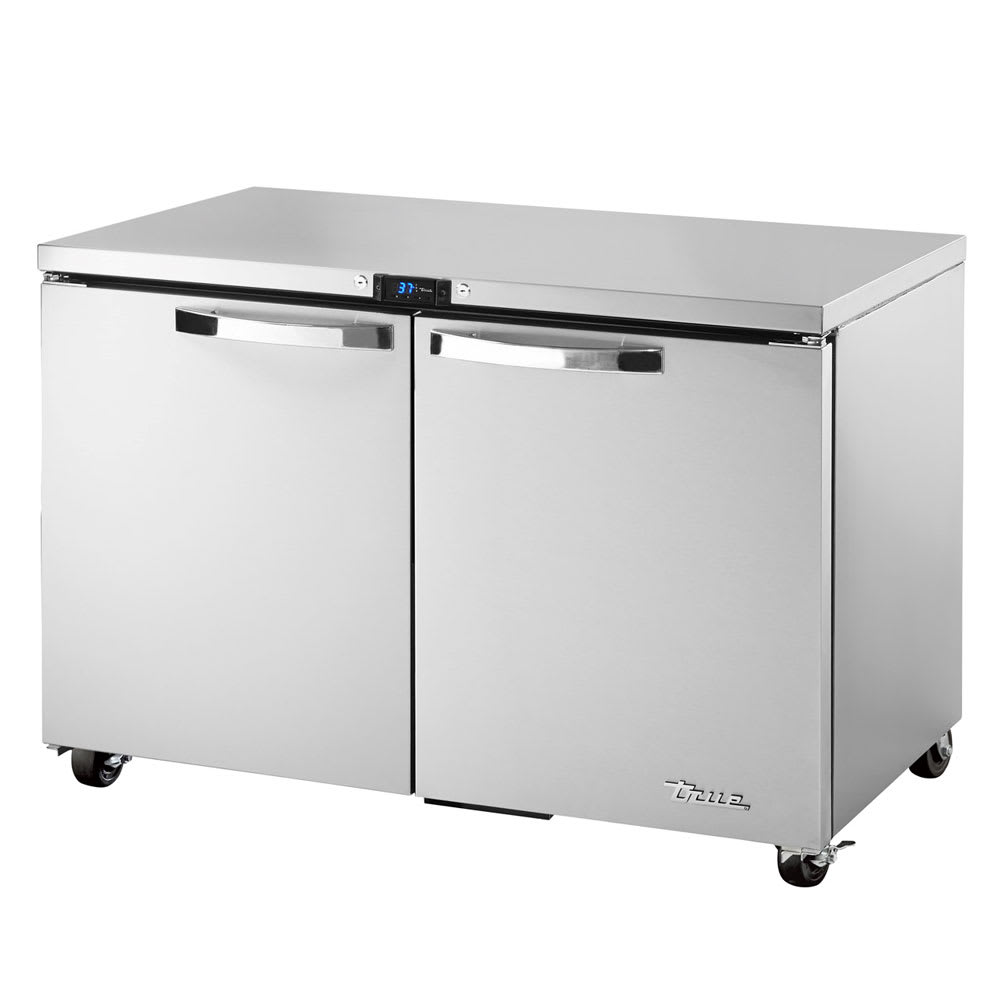

True TUC-48-HC~SPEC3 ADA 48" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

The energy-efficient refrigeration system in the True TUC-48-HC~SPEC3 undercounter freezer provides uniform product temperatures using guided airflow. Its condensing unit slides out from behind the cabinet for expedited maintenance. The evaporator and condenser fan motors are electronically commutated to generate less heat and reduce energy consumption. The four wire shelves are coated in heavy-duty, corrosion-resistant PVC. To suit any application, the shelves are adjustable in ¹⁄₂-inch increments.

This True TUC-48-HC~SPEC3 undercounter freezer has a self-contained capillary tube system that uses R290 hydrocarbon, an environmentally friendly refrigerant. Its refrigeration system maintains cabinet temperatures of 33 to 38 degrees Fahrenheit, and operators can set the level on the electronic control. Though not functioning as a replacement for routine preventive maintenance, the fan compressor’s self-cleaning feature improves overall performance and optimizes efficiency. At the start of each cycle, the motor directs air in reverse for a 20 second period; this blows away any debris or dust that may have collected on the condensing coil since the last cycle.

Product Details

• 4 adjustable, corrosion-resistant, PVC-coated shelves
• 34-in. work surface is ADA compliant
• Interior has a stainless steel liner, stainless steel floor, and coved corners
• Exterior sides, back, front, and 16-ga. top are constructed of heavy-duty stainless steel
• 3-in.-diameter stem castors
• Cabinet structure and solid doors are foamed in place by high-density polyurethane insulation
• Doors are flush with the front of the countertop
• 90-degree, stay-open doors with positive-seal and self-closing features swing within the dimensions of the cabinet
• Magnetic door gaskets are removable; no tools required
• Door locks prevent unauthorized cabinet access
• Doors have a stainless steel exterior with a clear-coated aluminum liner that matches the rest of the cabinet
• Strong, all-metal door handles
• Part of the Spec Series

Energy-efficient Refrigeration System

• Guided airflow circulates air and maintains consistent product temperatures
• Condenser slides out the back of the cabinet for convenient access
• Evaporator and condenser fan motors are electronically commutated to reduce heat production and energy use while moving air
• 20-second fan reversal every cycle blows buildup off condensing coil

• Uses R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Digital display comes with electronic temperature control
• Epoxy coats the evaporator and eliminates the potential for corrosion

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48³⁄₈ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (2) heavy-duty stainless steel doors, steel handles, door lock standard, (4) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior,3" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

True Refrigeration TUC-48-HC~SPEC3 ADA Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Door
Cubic Feet	14
Depth (in)	31.63
Door Type	Solid
Height (in)	33.75
Hertz	60
Interior Construction	Stainless Steel
Sections	2
Suggested Use	Commercial
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	48
Series	Spec Series®
Refrigerant	R290 (Hydrocarbon)
No. of Doors	2
Phase	1
Rating	Better
Product	Undercounter Refrigerators
Product Type	Commercial Refrigeration
NEMA	5-15P
Weight	305.00
