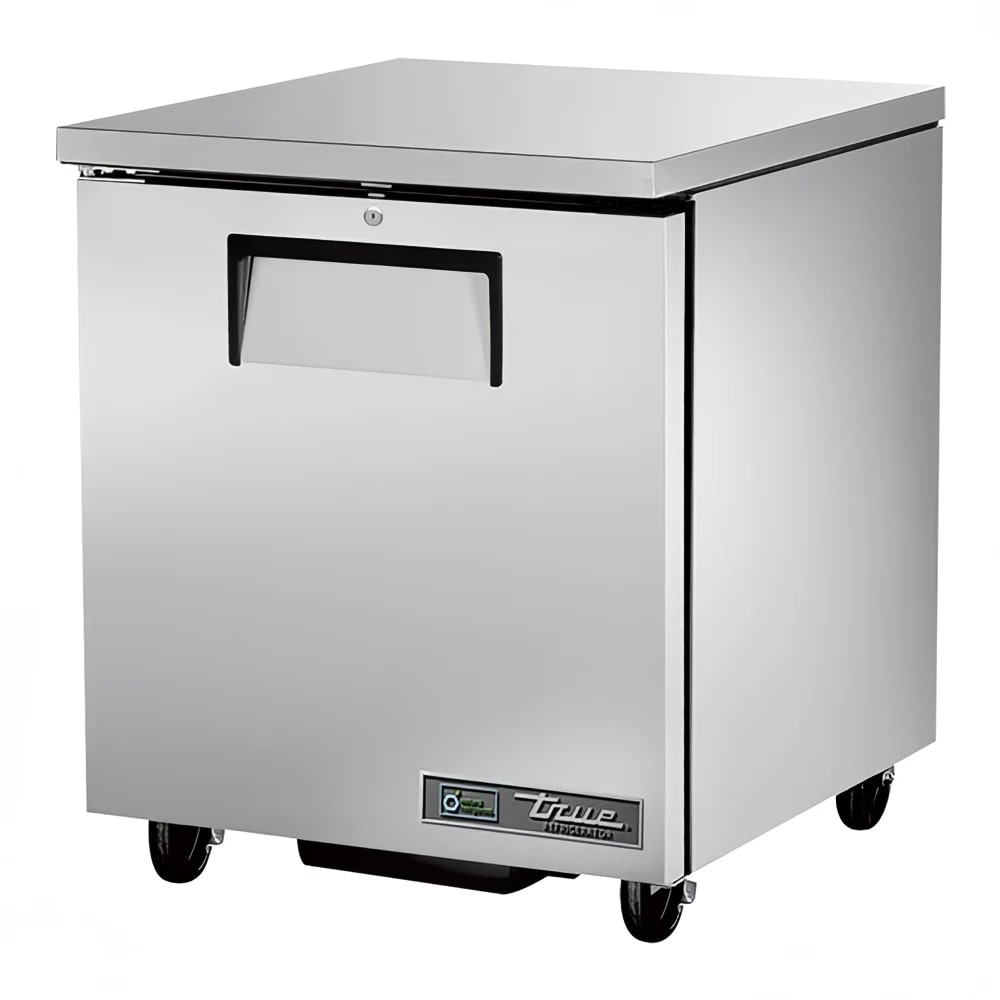

True TUC-27-HC ADA 27" W Undercounter Refrigerator w/ (1) Section & (1) Left Hinge Door, 115v

The True TUC-27-HC undercounter refrigerator has a door fitted with a 12-inch-long, recessed handle that does not take up space in the aisle. Its magnetic door gasket has a durable, one-piece construction and can be removed without tools to simplify cleaning. This unit's self-closing, positive seal door has a 90-degree, stay-open feature for stocking the cabinet and cleaning the interior. The 3-inch-diameter stem castors and 34-inch work surface height are compliant with ADA requirements.

Its interior has a clear-coated aluminum liner with a stainless steel floor that can be swiftly cleaned if product spills. Coved corners on the floor do not trap food or harbor bacteria. The True TUC-27-HC one-section undercounter refrigerator's solid door and entire cabinet structure are foamed in place using polyurethane to keep cold air inside the cabinet. Corrosion-resistant GalFan coats the steel back to increase durability. The exterior has a stainless steel front, top, and ends to facilitate cleaning.

The unit's compressor fan motor utilizes a self-cleaning mechanism to keep the condensing coil free of dirt accumulation. Each time the compressor starts up, the fan runs in reverse for 20 seconds to blow buildup off the coil. Intended to pair with routine preventative maintenance, this feature lengthens the unit’s lifespan and improves overall performance.

Product Details

• 2 heavy-duty, PVC-coated, adjustable wire shelves
• 4 chrome-plated shelf clips per shelf
• Support pilasters for the shelves are adjustable on ¹⁄₂-in. increments
• Self-closing, positive-seal door has a 90-degree stay-open feature so users can stock the cabinet
• Door is fitted with a 12-inch recessed handle
• 1-piece, magnetic door gasket is removable without tools to expedite cleaning
• 3-in. diameter stem castors, 34-in. work surface height, compliant with Americans with Disabilities Act requirements
• Interior has a clear-coated aluminum liner with a stainless steel floor
• Coved floor corners eliminate crevices that trap debris
• Polyurethane insulation in the solid door and cabinet is foamed in place to retain cold air
• Exterior has a stainless steel front, top, and ends with a corrosion-resistant GalFan coating on the steel back

Product Features

Refrigeration System

• Condensing unit access in the back of the cabinet with a slide-out design
• Guided airflow provides uniform cold air distribution
• Electronically commutated evaporator and condenser fan motors operate efficiently and move more air consistently while reducing energy use and heat production
• Compressor fan motor runs in reverse periodically to blow buildup off condensing coil
• Evaporator is epoxy coated to eliminate corrosion
• Uses R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F

Dimensions & Utilities

• Shelves: 23¹⁄₄ in. W x 16 in. D
• Overall: 27⁹⁄₁₆ in. W x 31¹⁄₁₆ in. D x 33¹¹⁄₁₆ in. H
• 2 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

From The Manufacturer

ADA Compliant Undercounter Refrigerator, 33-38° F, stainless steel top & sides, (1) left-hinged stainless steel door, (2) shelves, clear coated aluminum interior with stainless steel floor, 3" castors, front breathing, R290 Hydrocarbon refrigerant, reverse condensing fan motor, 1/6 HP, 115v/60/1, 2.0 amps, NEMA 5-15P, 34" working height, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
