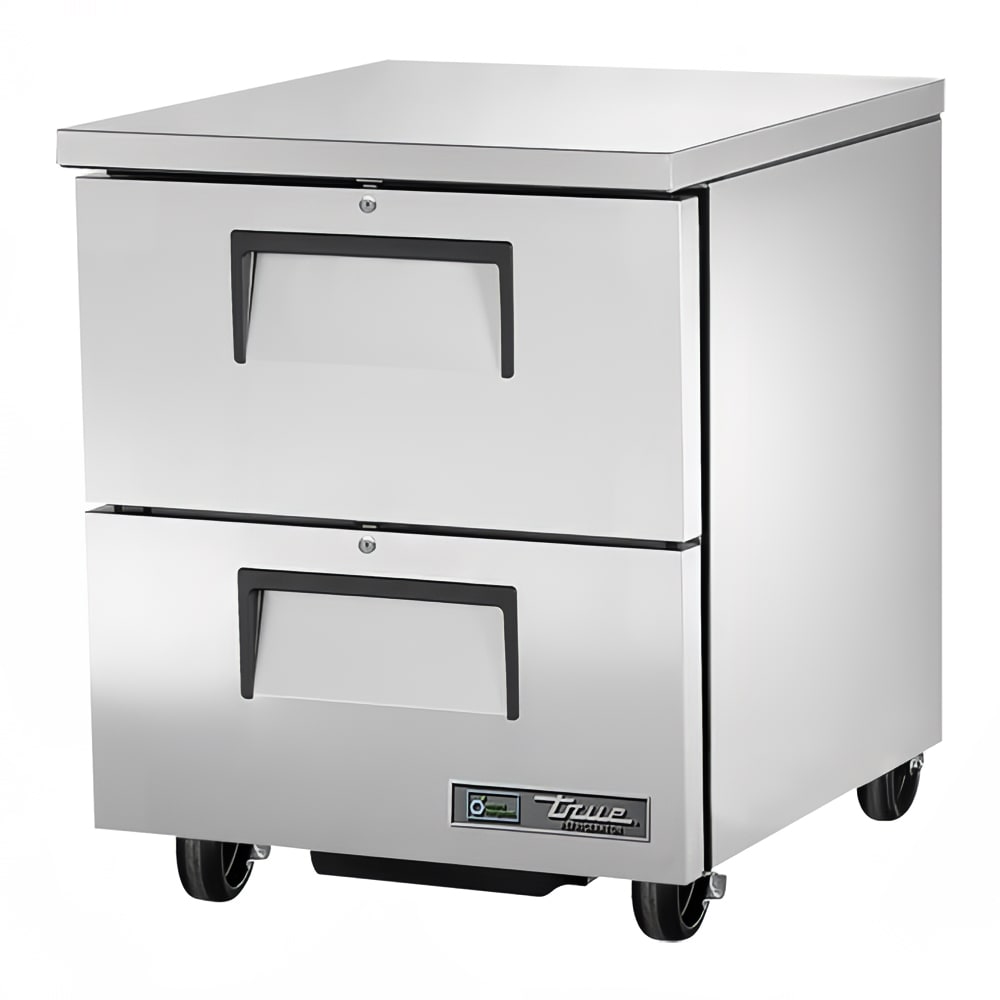

True TUC-27D-2-HC ADA 27" W Undercounter Refrigerator w/ (1) Section & (2) Drawers, 115v

Each of the two drawer sections in this True TUC-27D-2-HC undercounter refrigerator can hold a full-size food pan that measures 12 inches long by 20 inches wide by 6 inches deep. These drawers can also hold various pan combinations with pan divider bars, but any pans and divider bars must be purchased separately. For durability, the unit's exterior is mostly made of stainless steel, and its back is GalFan-coated steel. The drawer liner, slides, and rollers are also made from stainless steel for sturdiness. Because they are foamed in place with a sheet metal interlock, the 12-inch recessed handles are permanent and provide a comfortable grip when opening and closing.

Set by the operator, temperatures range from 33 to 38 degrees Fahrenheit and are kept cold with eco-friendly R290 hydrocarbon refrigerant. Less energy is consumed and less heat is produced as the evaporator and condenser fans create a consistent airflow. Because the condensing unit slides out from the back of the cabinet, users can quickly access it for maintenance and cleaning. This True TUC-27D-2-HC undercounter refrigerator is fully insulated with polyurethane foam to trap cold air inside, and gaskets prevent cold air from leaking out of the drawers.

Each time the compressor starts up, the fan motor runs in reverse for 20 seconds to blow dust and dirt off the condensing coil. This self-cleaning function reduces energy consumption as well as necessary labor while lengthening the overall lifespan of the unit. For optimal performance, however, routine preventive maintenance is still required.

Product Details

• 34-in. ADA-compliant working height
• Durable, corrosion-resistant exterior is made of stainless steel and GalFan-coated steel
• Clear-coated aluminum interior liner
• Coved corners are built into the stainless steel floor
• Foamed-in-place polyurethane insulation increases structural strength and cold-air retention
• 3-in. castors

2 Drawers

• Each can accommodate a full-size, 12-in. x 20-in. x 6-in. food pan (sold separately)
• Stainless steel exterior, liners, and frames resist rust
• 12-in. recessed handles are attached with a sheet metal interlock for permanence
• Drawer slides and rollers are heavy-duty stainless steel
• Magnetic gaskets are removable for cleaning or replacing

Refrigeration System

• R290 hydrocarbon refrigeration moves through capillary tubes to keep temperatures cool
• Temperature holding range: 33-38 degrees F
• Corrosion-resistant, epoxy-coated evaporator
• Consistent airflow is produced by the evaporator and condenser fans
• Compressor fan motor blows away dirt from condensing coil for 20 seconds each cycle

• Fan motors consume little energy and produce little heat
• Condensing unit slides out for cleaning and maintenance

Dimensions & Utilities

• 27⁹⁄₁₆ in. W x 31¹⁄₁₆ in. D x 33¹¹⁄₁₆ in. H
• 2 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Undercounter Refrigerator, 34" working height, 33 - 38°F, (2) drawers each, accommodates (1) 12" x 20" x 6" food pan (NOT included), stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/6 HP, 115v/60/1-ph, 2.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

Food Pans Not Included

Food Pans are not included with this item

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-27D-2-HC ADA Specifications
