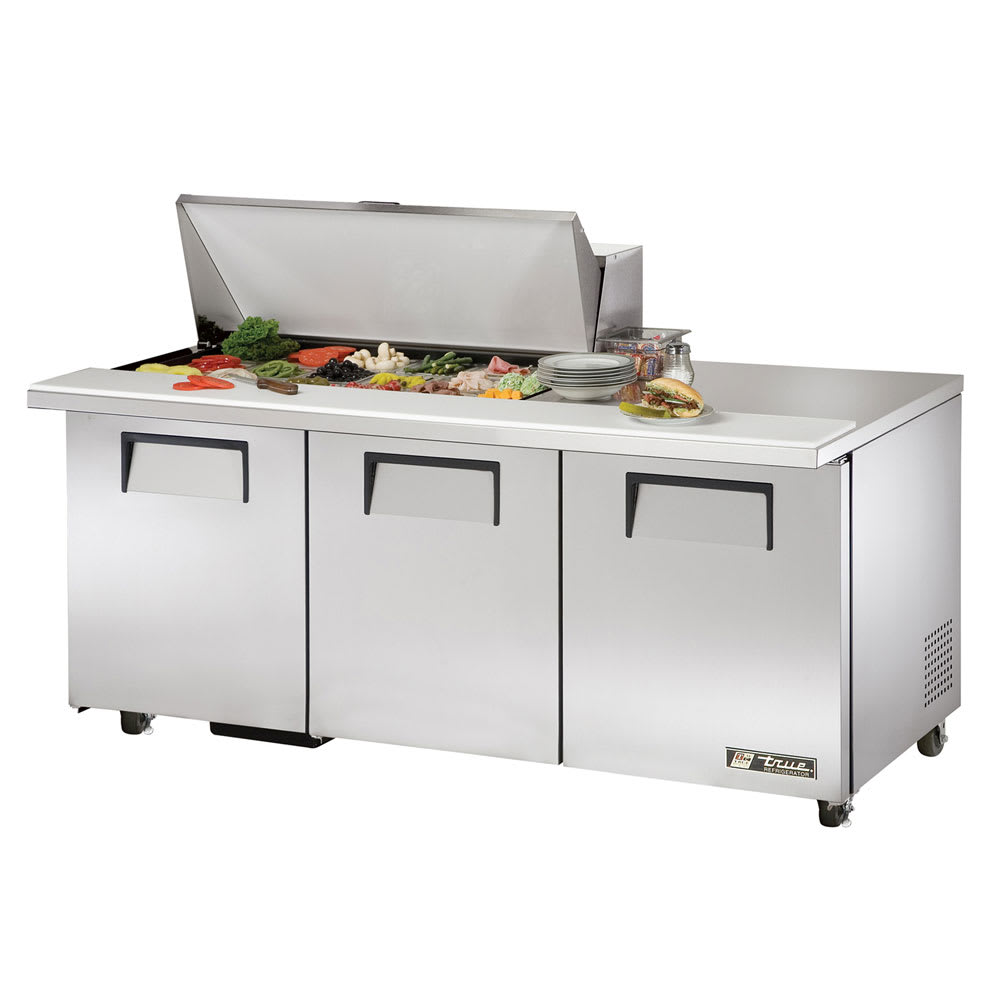

True TSSU-72-18M-B-HC ADA 72" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The refrigeration system in the True TSSU-72-18M-B-HC food prep table has a forced-air design that keeps the temperature consistent in the cabinet base and pan compartment. Operators can set the temperature to run between 33 and 41 degrees Fahrenheit, which is maintained with environmentally friendly R290 hydrocarbon refrigerant running through self-contained capillary tubes. To create efficient airflow with a low velocity, this unit has large fan blades and a sealed, self-lubricating evaporator fan motor, and the condenser slides out of the cabinet's back for convenient service access.

Compliant with ADA, this True TSSU-72-18M-B-HC prep table has a 34-inch work surface height. In the pan area, it comes with 18 sixth-size, 4-inch-deep pans, but 6-inch-deep pans can also fit in this section. The removable polyethylene cutting board enables users to prep ingredients in the food pans and assemble salads and sandwiches, while additional products can be stored in the refrigerated cabinet base.

Upon compressor fan start up, the motor works in a reversing motion for 20 seconds to blow dirt, dust, and debris off the condenser coil. Because the coil is cleaned using a unique feature, the unit runs more efficiently and reduces energy consumption compared to systems that run with dirty components. Although this self-cleaning feature prolongs the unit's lifespan, it doesn't eliminate recommended routine maintenance and cleaning.

Product Details

• ADA-compliant work surface height at 34 in.
• 8⁷⁄₈-in.-deep, full-length cutting board is removable and provides a place to assemble sandwiches and salads
• Equipped with 18 sixth-size, 4-in.-deep clear polycarbonate food pans in countertop prep area
• Can hold 6-in.-deep food pans (sold separately)
• 12-in.-long door handles are recessed to save aisle space
• 6 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• Stainless steel, removable lid and hood are foam-insulated to keep pan temperatures cold, minimize condensation, and lock in freshness
• 90-degree, stay-open feature on positive-seal, self-closing doors for cabinet cleaning and loading
• Magnetic door gaskets have a seamless construction and are removable without tools to facilitate cleanup
• High-density polyurethane insulation in the cabinet and doors traps cold air inside
• Clear-coated aluminum liner on interior resists corrosion
• Coved corners in stainless steel floor eliminate cracks and crevices
• Stainless steel exterior with a GalFan-coated steel back to resist corrosion
• 3-in.-diameter stem castors

Patented Refrigeration System

• Temperature holding range: 33-41 degrees F
• Guided airflow in energy-efficient, factory-balanced system provides uniform temperatures in food pans and cabinet interior
• Condensing unit is accessible from the back with a slide-out feature
• Uses eco-friendly R290 hydrocarbon refrigerant
• Evaporator is epoxy coated to resist corrosion
• Reversing fan motor for condenser coil cleaning

Dimensions & Utilities

• Pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 2 right and 2 left shelves: 21⁹⁄₁₆ in. W x 16 in. D
• 2 center shelves: 23¹⁄₂ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 44⁷⁄₃₂ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-18M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (18) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-18M-B-HC ADA Specifications

Documents

Spec Sheet

Warranty

Product Info
