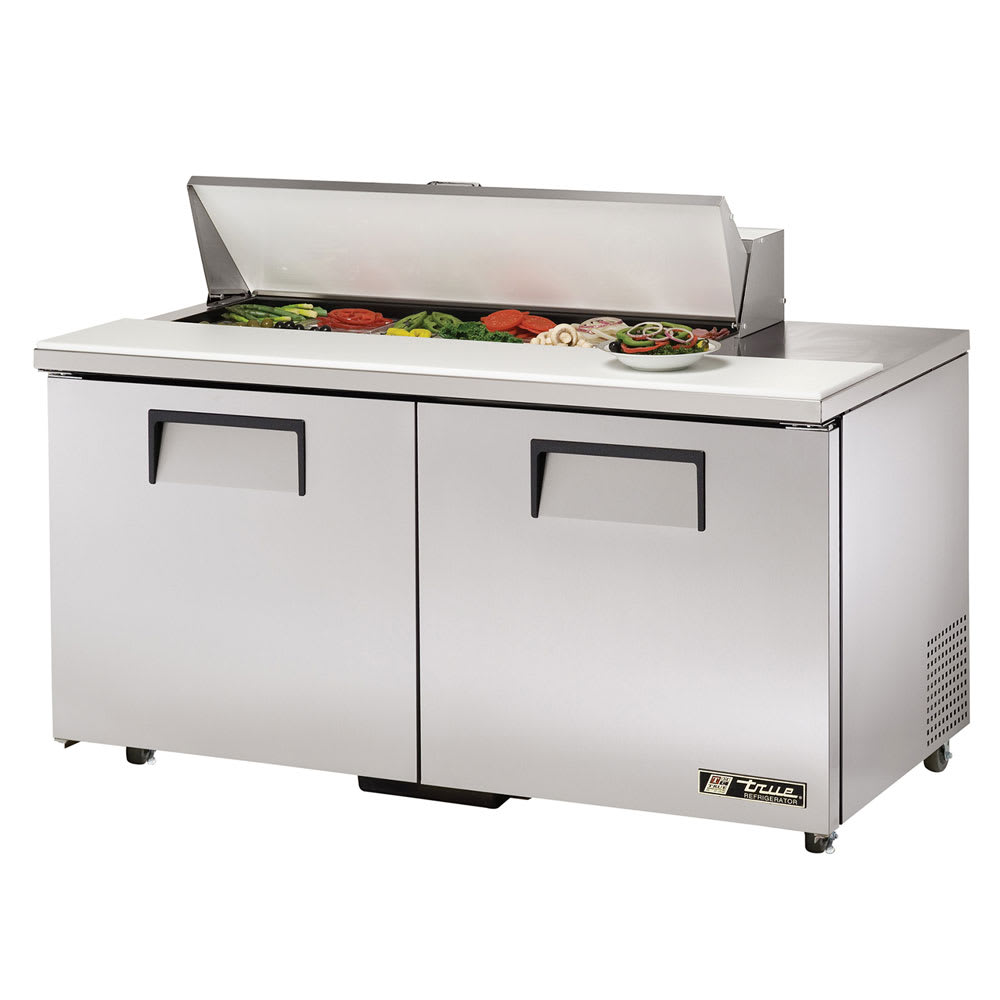

True TSSU-60-12-HC ADA 60" TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-60-12-HC food prep table has two swing-out doors with 12-inch recessed handles and one-piece, removable magnetic gaskets, which trap cold air inside. For heavy use, the exterior of this unit is made of stainless steel with a GalFan-coated steel back, while the interior liner is constructed of clear-coated aluminum and a stainless steel floor that has coved corners, ensuring debris is convenient to clean up. Inside the cabinet, four adjustable shelves help organize cold storage.

On the top, a removable cutting board provides space to chop ingredients and assemble sandwiches, and its 11³⁄₄-inch width is large enough for users to move trays and plates over it. Because the counter is 34 inches high, it conforms to ADA regulations. Ingredients sit in 12 sixth-size pans on the left, and 14¹¹⁄₃₂ inches of free space is on the right, creating an area for sauces, non-refrigerated snacks, and prep equipment.

Adjustable by the user, the set temperature in this True TSSU-60-12-HC food prep ranges from 33 to 41 degrees Fahrenheit. It has an evaporator that is epoxy coated for corrosion resistance, and large evaporator fan blades move high volumes of air at a low speed. For reliability, the fan motor is sealed and self-lubricating, and when service is required, the condenser can be accessed from the back of the unit. To ensure the best operating results, routine maintenance should be implemented alongside the unit's self-cleaning feature. The reverse condensing fan motor operates for 20 seconds each time the compressor starts, blowing buildup from the condensing coil to keep it clean. This mechanism reduces energy consumption and improves product temperatures.

Product Details

• 34-in. ADA-compliant work height
• Refrigerated pan rail on the left side
• 12 sixth-size, clear polycarbonate food pans
• Insulated hood and lid keep ingredients cool and fresh
• 14¹¹⁄₃₂-in.-wide open space on the right side for snacks or sauces
• 4 heavy-duty, PVC-coated wire shelves
• Aluminum pilasters enable shelves to be adjusted in ¹⁄₂-in. increments
• Cabinet is insulated with thick polyurethane insulation
• Temperature holding range: 33-41 degrees F
• Uses R290 hydrocarbon refrigerant
• Cast iron fan motor is sealed and self-lubricating
• Large fan blades move air through cabinet for uniform temperatures
• Fan motor blows in reverse upon compressor start up to clean the condensing coil
• Condenser can be removed from the back of the cabinet for maintenance access

Sturdy Construction

• Full-length cutting board is removable and made of white polyethylene
• Exterior top, front, sides, and door are constructed of durable stainless steel
• GalFan-coated steel back is rust resistant
• Solid doors have 12-in. recessed handles
• Doors are self-closing until pushed open to 90 degrees, where they stay open for cleaning or stocking
• Magnetic door gaskets are removable in 1 piece
• Cabinet interior is lined with clear-coated aluminum and has a stainless steel floor
• Interior floor corners are coved to eliminate crevices that could be difficult to clean

Dimensions & Utilities

• Cutting board: 60⁵⁄₁₆ in. W x 11³⁄₄ in. D x ¹⁄₂ in. H
• Shelves: 27¹⁄₂ in. W x 16 in. D
• Sixth-size food pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 60⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 40¹¹⁄₁₆ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-60-12-HC ADA within the 48 contiguous states.

From The Manufacturer

Sandwich/Salad Unit, 34" work surface height, (12) 1/6 size (4"D) poly pans, stainless steel insulated cover, 11-3/4"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
