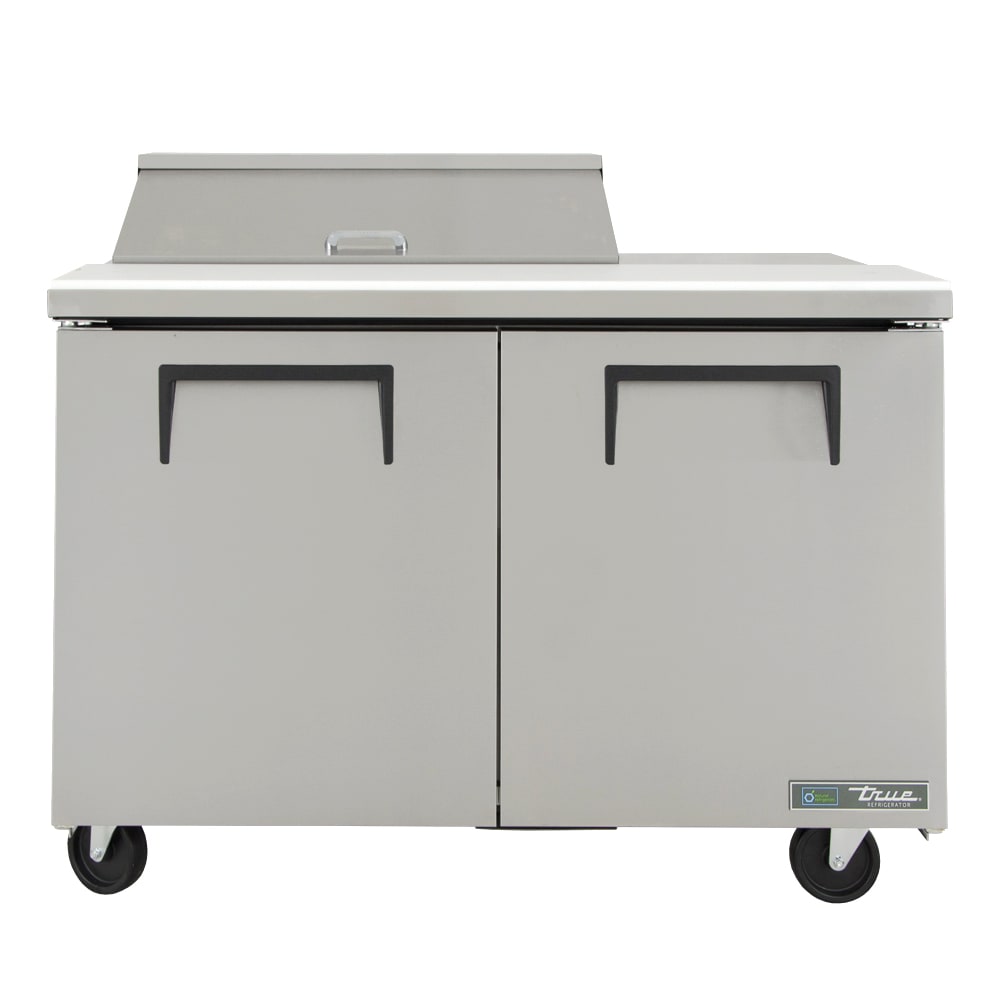

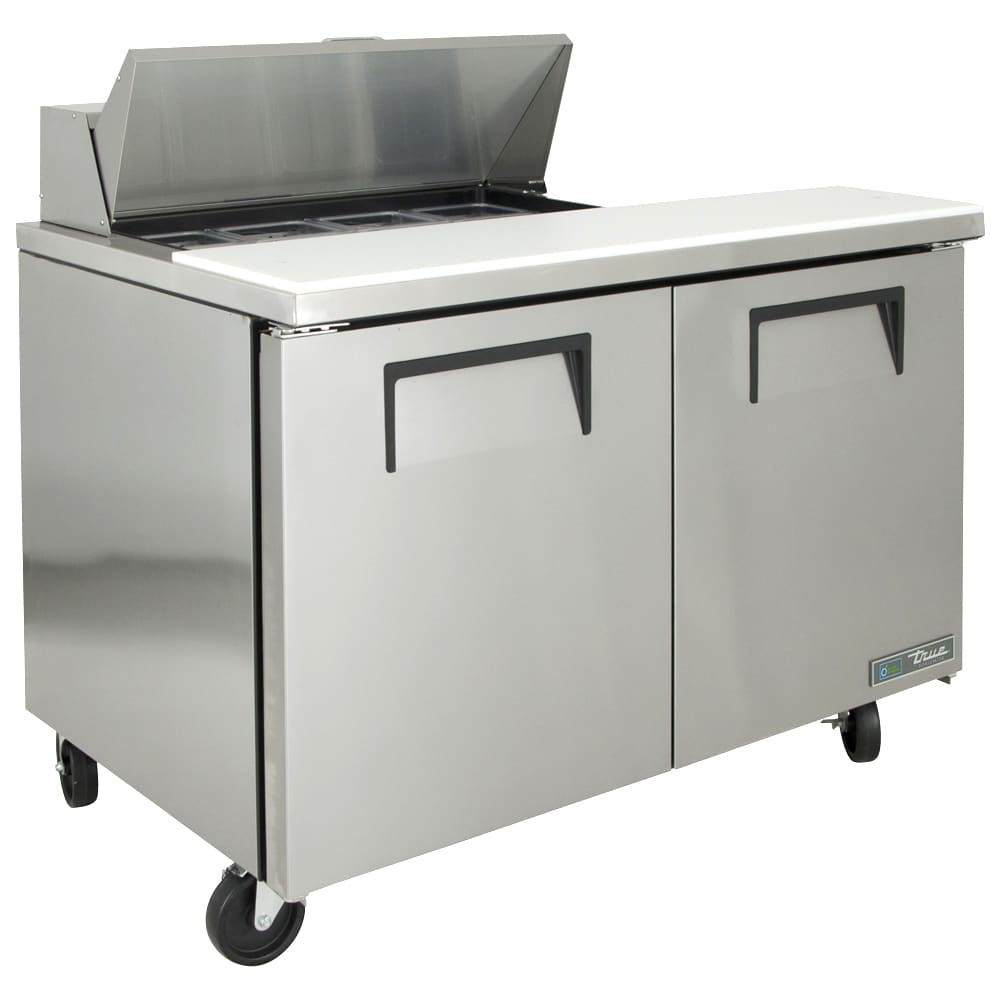

True TSSU-48-08-HC 48" TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

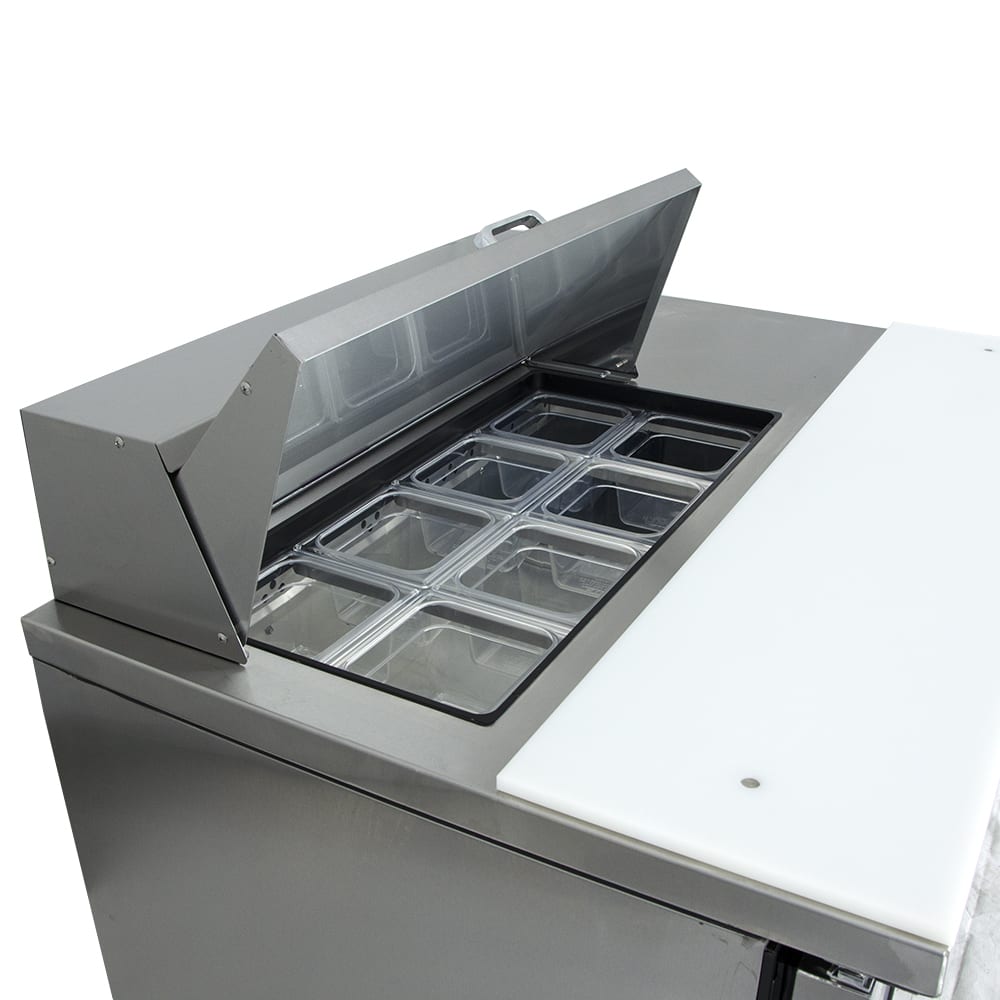

For durability and versatility, the True TSSU-48-08-HC sandwich and salad prep table has a stainless steel construction and a countertop pan opening for storing ingredients. To hold and prep ingredients, eight sixth-size food pans and a full-length polyethylene cutting board are included, and the cutting board can be efficiently removed for cleaning and sanitizing. Its interior lining is constructed of aluminum with a clear coat, while the stainless steel floor has coved corners, which do not gather debris.

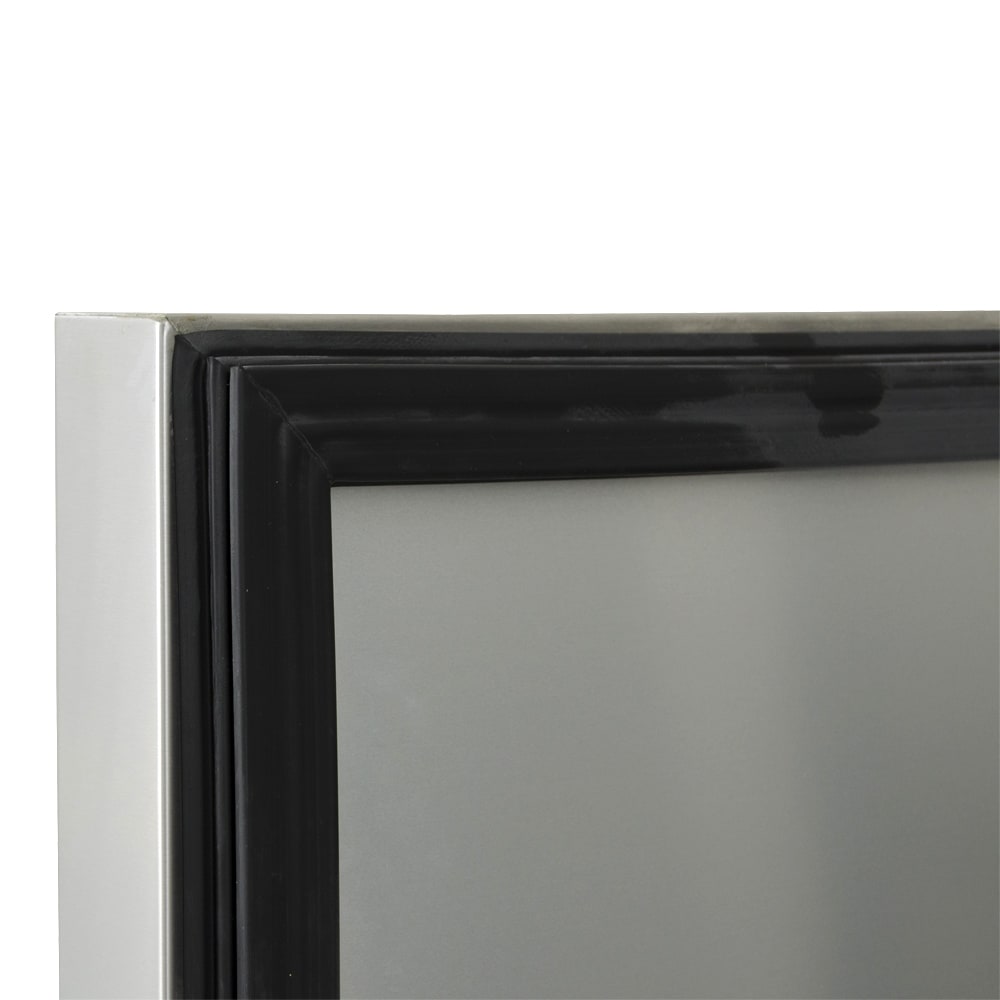

Each stainless steel door has a 12-in. recessed handle that is firmly attached with a metal sheet interlock, and a seal is created around the door with a one-piece, magnetic door gasket, which removes for cleaning. The doors have a 90-degree, stay-open feature that holds them open past 90 degrees to facilitate product stocking, and if left open less than 90 degrees, the doors will close to reduce cool-air loss.

The refrigeration system used in the True TSSU-48-08-HC prep table is oversized and factory-balanced for efficient operation with low run times, and heavy-duty refrigeration is provided by a sealed, self-lubricating fan motor and a corrosion-resistant, epoxy-coated evaporator. When maintenance is needed, the condenser pulls out from the cabinet's back for convenient access. Using R290 hydrocarbon refrigerant, the self-contained capillary tube system maintains a set holding temperature between 33 and 41 degrees Fahrenheit.

When regular maintenance is implemented alongside the unit's automatic cleaning feature, its lifespan and efficiency is increased. The reverse condensing fan motor operates in reverse for 20 seconds when the compressor turns on, blowing dust away from the condensing coil. To keep product cold, this mechanism ensures proper product temperatures.

Product Details

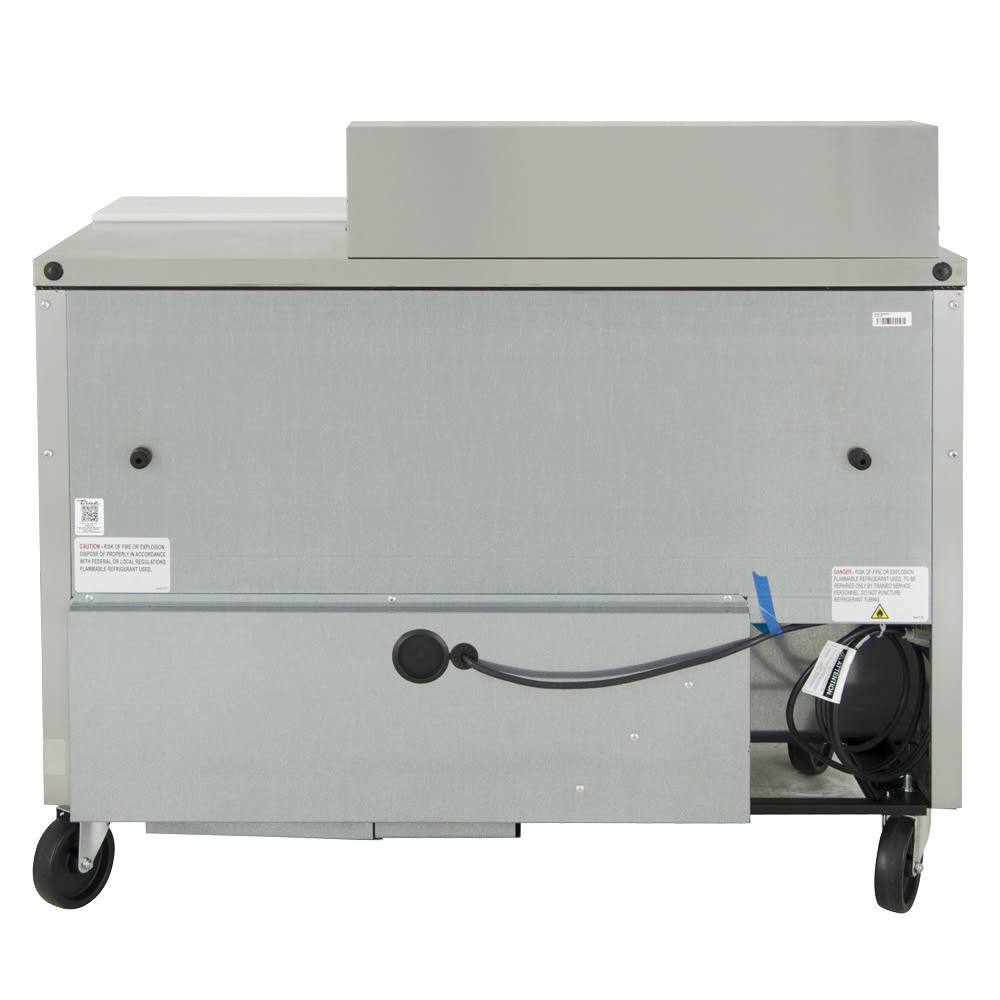

• Exterior is made of stainless steel with a GalFan-coated steel back that resists corrosion
• Interior lining is made of clear-coated aluminum

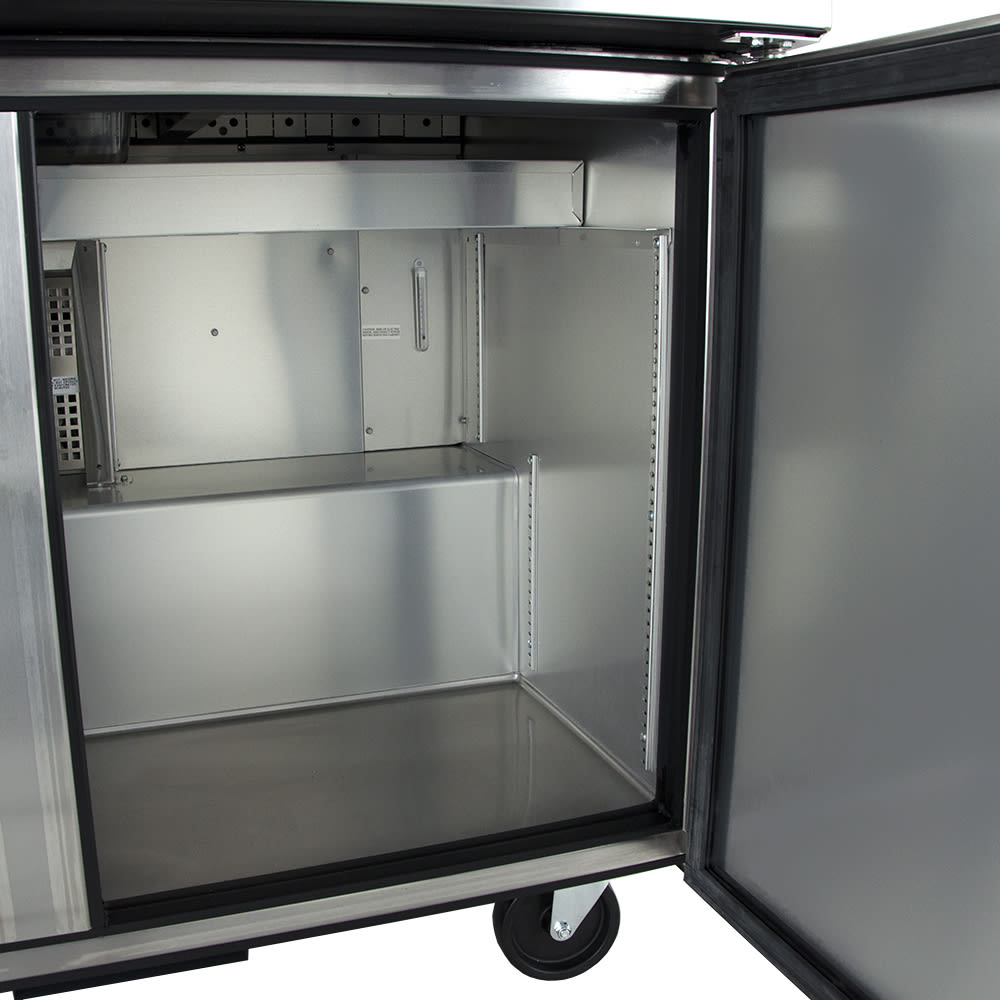

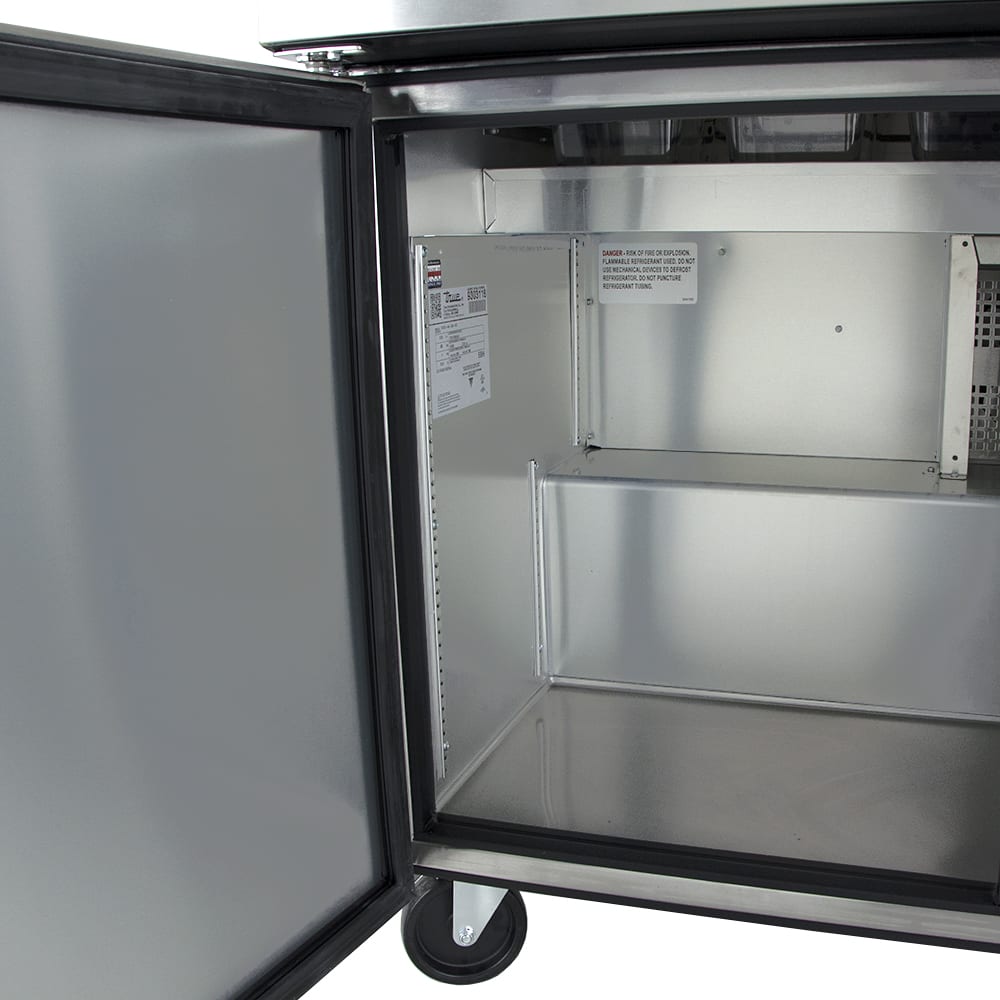

• Stainless steel interior floor with coved corners that do not gather debris to simplify cleanup
• Polyurethane insulation is foamed in place in the cabinet
• 11³⁄₄-in.-deep, full-length cutting board is made of high-density polyethylene
• Cutting board can be removed for cleaning and sanitizing
• Stainless steel lid and hood are insulated to retain cool air

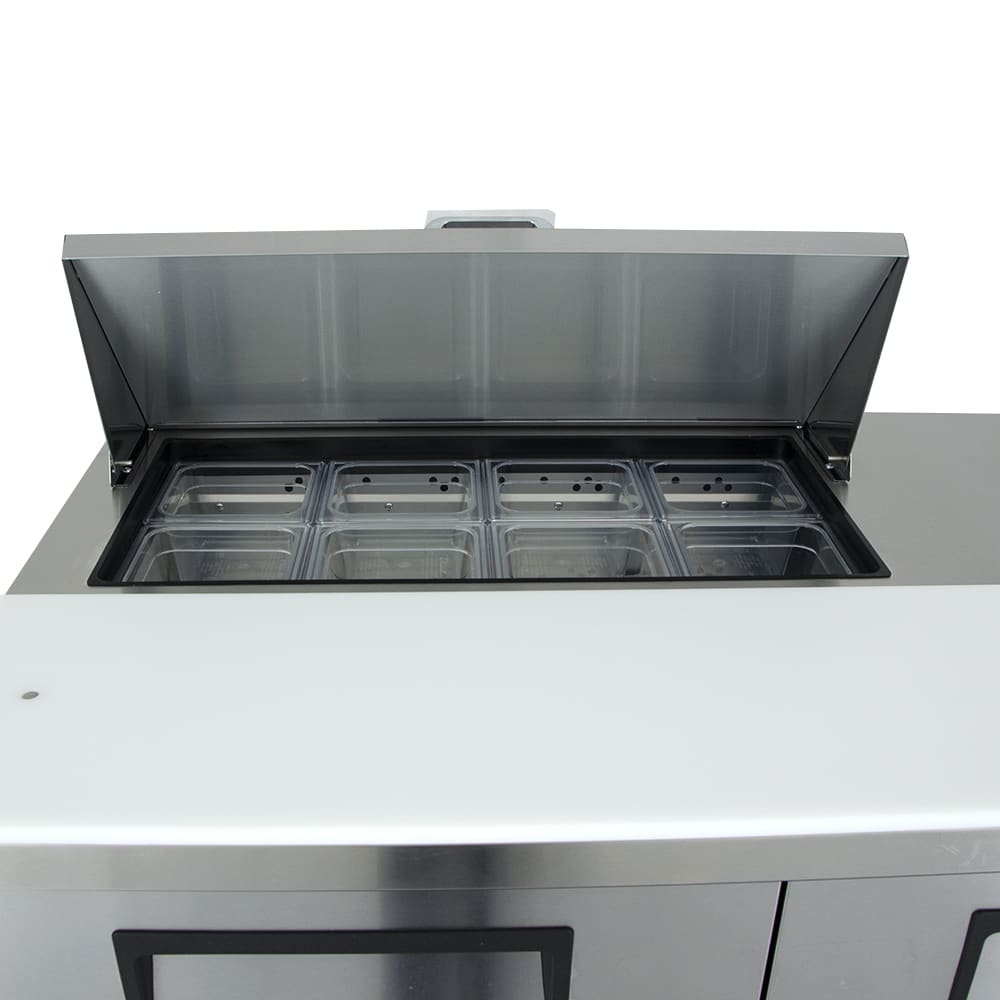

• Includes 8 sixth-size food pans constructed of polycarbonate
• Stainless steel doors with a white aluminum liner
• Doors self-close if left open less than 90 degrees

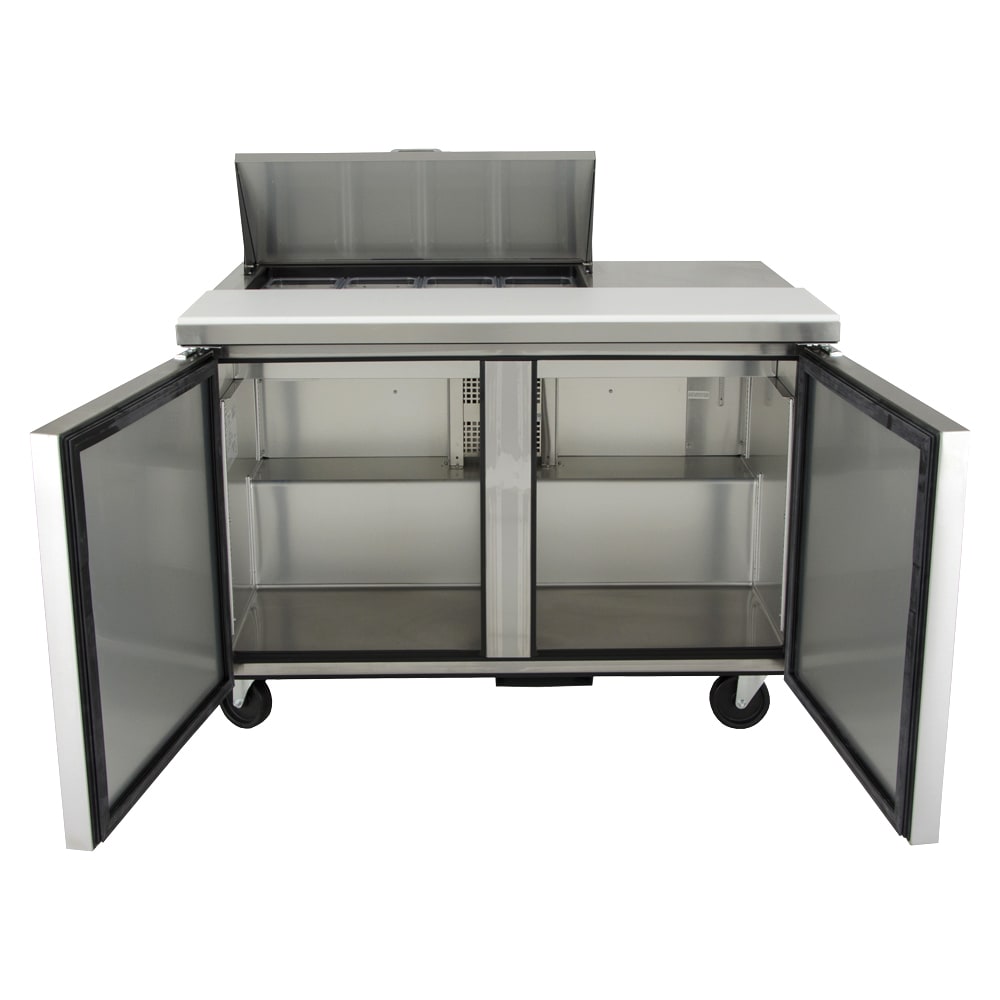

• 90-degree, stay-open door feature assists with product stocking
• Doors feature a 12-in. recessed handle and a 1-piece magnetic gasket
• NSF/ANSI standard 7 approved for open food product

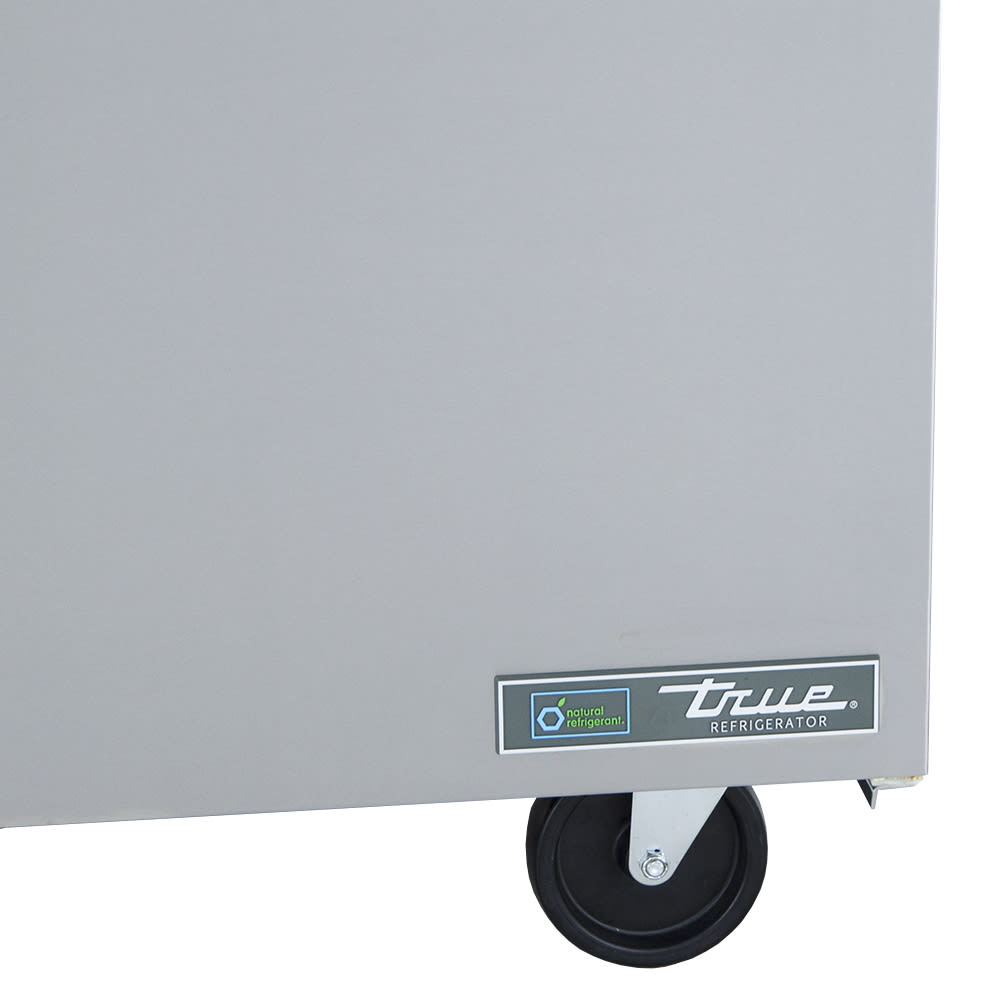

• 5-in. castors enable movement

Product Features

Refrigeration System

• Cooled with an oversized, factory-balanced refrigeration system

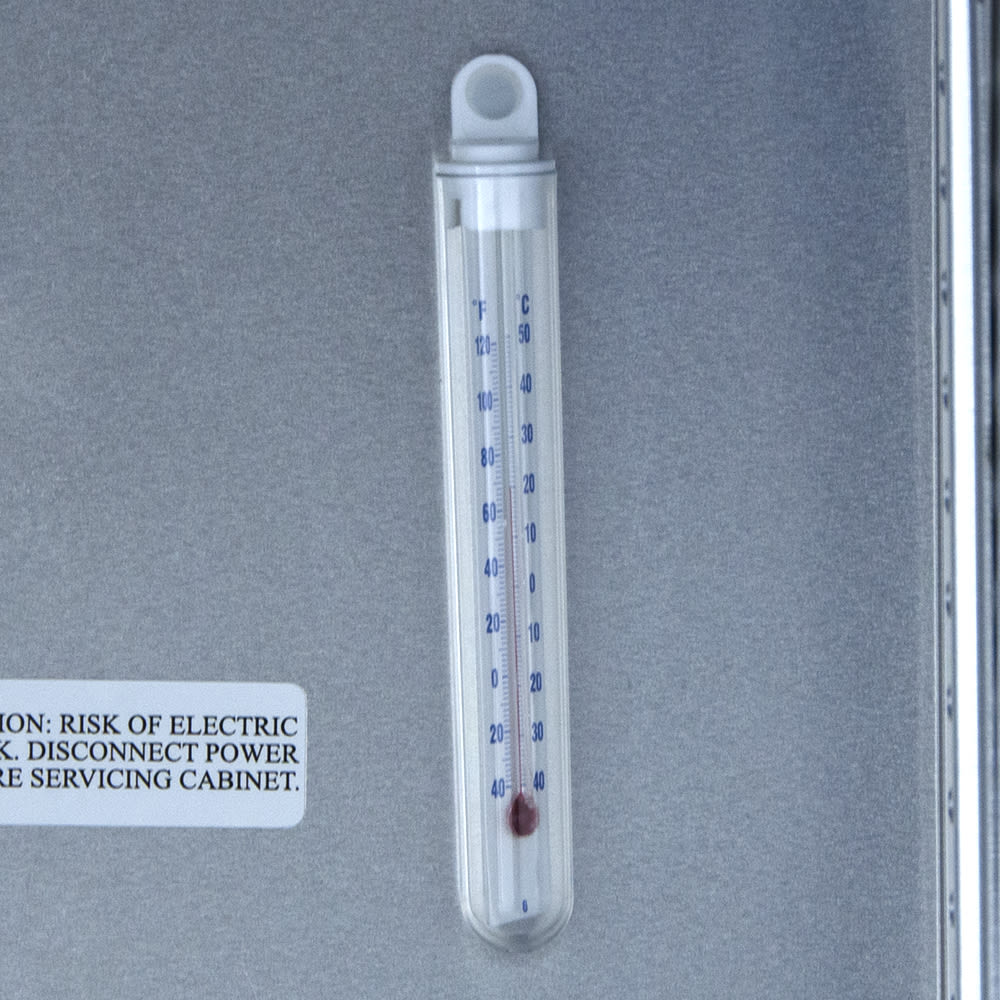

• Temperature holding range: 33-41 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant

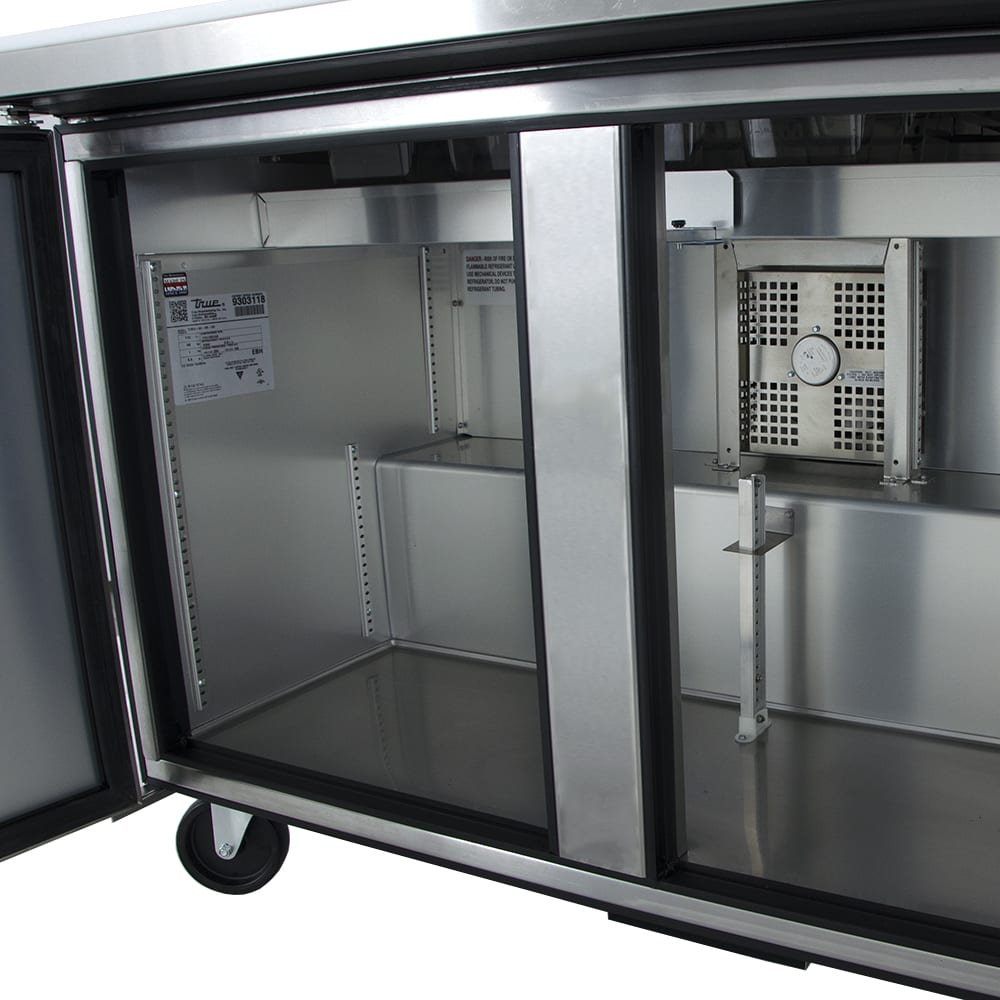

• Large fan blades move air throughout the cabinet at a low velocity

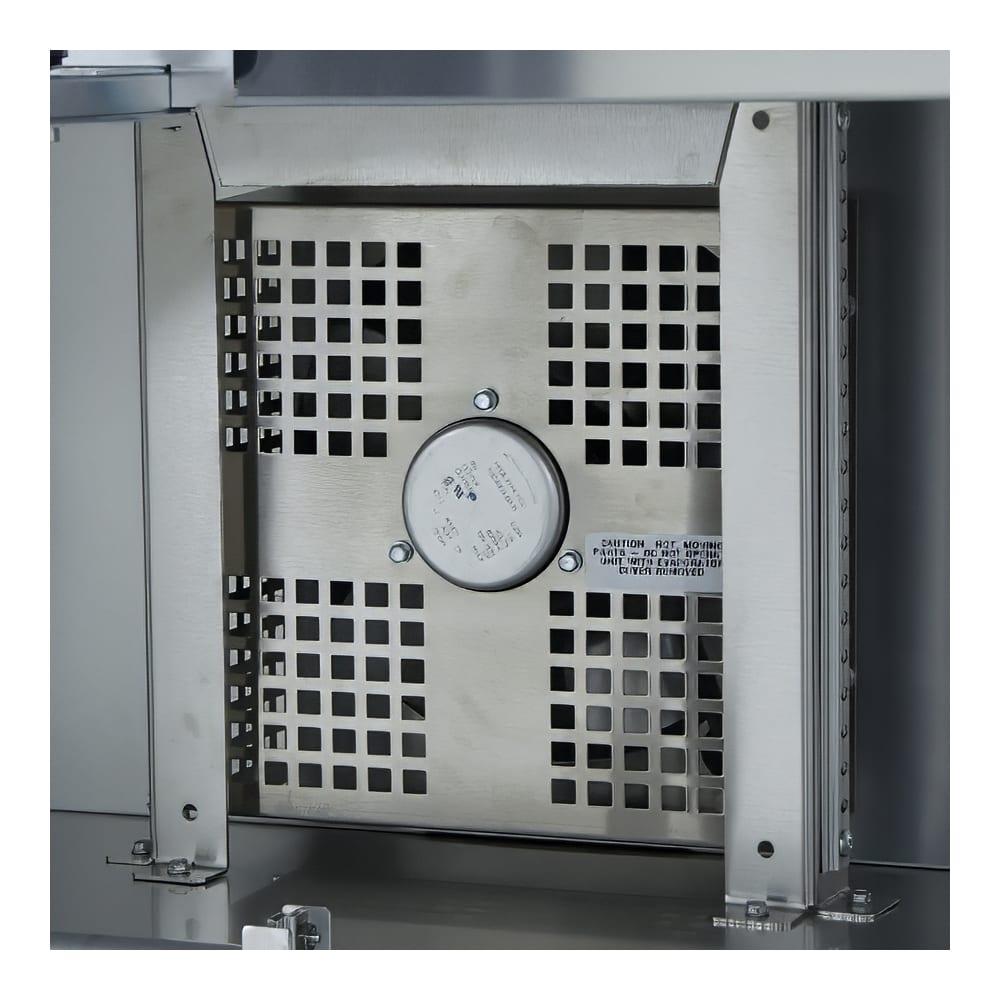

• Fan motor is sealed and self-lubricating to reduce maintenance needs
• Condensing coil freed of dust and dirt with a reverse condensing fan motor
• Evaporator is epoxy coated for corrosion resistance
• Condenser is accessible from the back to simplify maintenance

Dimensions & Utilities

• Sixth-size food pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 42¹⁵⁄₁₆ in. H
• 5.8 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Sandwich/Salad Unit, (8) 1/6 size (4"D) poly pans, stainless steel insulated cover, 11-3/4"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top/front/sides, GalFan coated steel back, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.8 amps, NEMA 5-15P, cULus, UL EPH Classified Made in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
