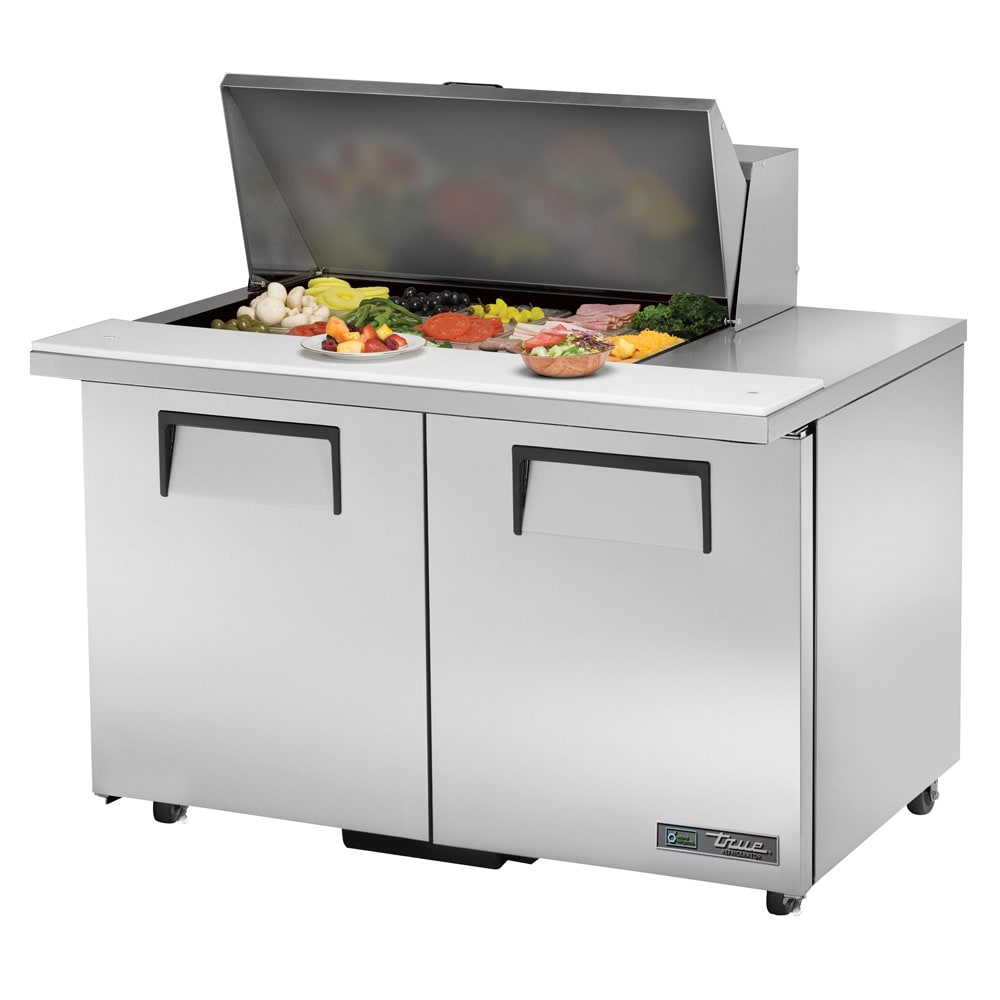

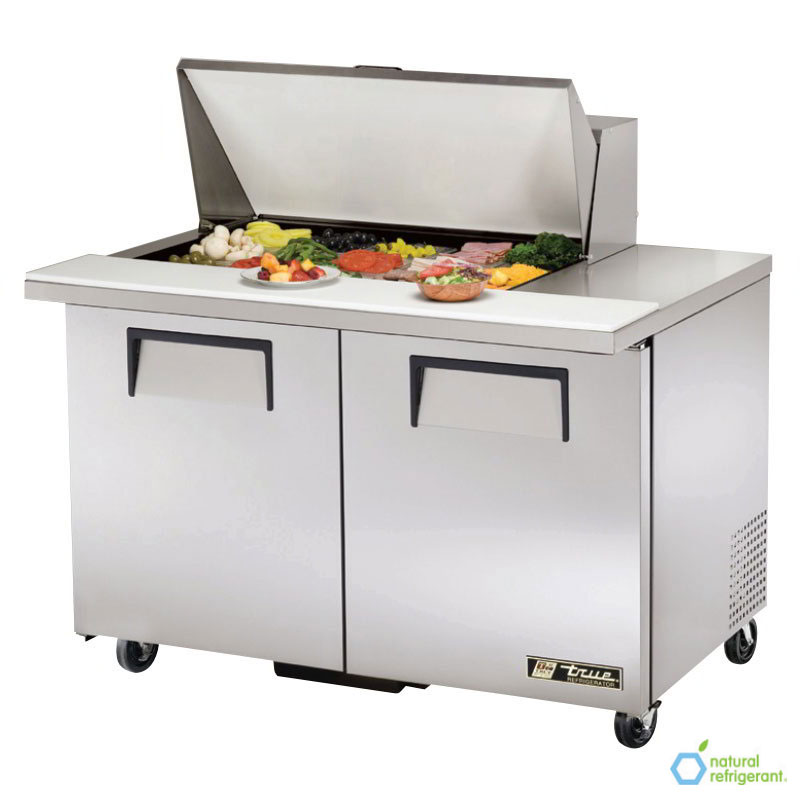

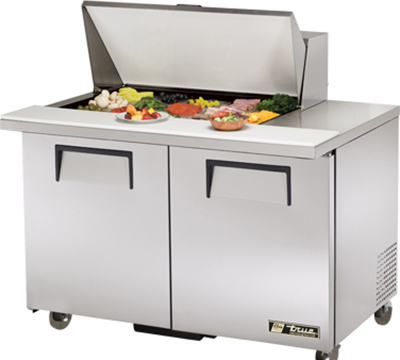

True TSSU-48-15M-B-HC ADA 48" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-48-15M-B-HC prep table is ADA compliant with a 34-inch working height, and the refrigerated food pan compartment holds 15 sixth-size pans. Other combinations and pan sizes can also be used with the appropriate adapter bars, though these additional pans and bars are sold separately. To keep pan contents fresh, a lid protects them, and additional counter space rests beside the food pans for sauces and seasonings. Sandwiches and salads can be created by moving them down the cutting board, and this removable board is constructed of white polyethylene, so it can be wiped down for cleaning.

Its bottom hosts refrigerated storage space, and two swing doors provide access to the cabinet. These doors close by themselves if opened less than 90 degrees, preventing them from accidentally being left open, and they stay open past 90 degrees so employees can stock the cabinet. Items can be stored on the four adjustable shelves and on the interior floor, which is rust resistant and has rounded corners to ease cleaning. The rest of the interior is covered in clear-coated aluminum.

A factory-balanced refrigeration system maintains food-safe temperatures that can be set between 33 and 41 degrees Fahrenheit. Its large evaporator fan and guided airflow system ensure temperatures remain even throughout the cabinet and across the pans. Each time the compressor turns on, the condensing fan motor blows in reverse to clean the condensing coil. When dirt, dust, and debris is removed from the coil, the unit runs more efficiently using less energy. To improve product temperature and extend the unit's life, routine maintenance should be regularly implemented. To speed up maintenance time, the True TSSU-48-15M-B-HC has a condenser unit that slides out from the back.

Product Details

• Includes 15 sixth-size food pans
• Equipment can accommodate many sizes and combinations of food pans with the appropriate adapters
• Additional pans and adapters sold separately
• Pan section can be covered with insulated lid to maintain freshness and energy efficiency
• 4 rust-resistant, PVC-coated cabinet shelves
• Shelves are adjustable in ¹⁄₂-in. increments
• Factory-balanced refrigeration system uses R290 refrigerant to provide reliable temperatures
• Temperature holding range: 33-41 degrees F
• Guided airflow system and large evaporator fans spread cold air through the cabinet, so all contents are held at consistent temperatures
• Fan motor reverses for 20 seconds upon start up, blowing dust and debris off the condenser coil
• Condensing unit slides out the back to give technicians access to the compressor and condenser
• Rust-resistant epoxy coating on evaporator
• ADA-compliant height

Durable Construction

• Polyethylene cutting board can be used to prep ingredients and top sandwiches
• Front, sides, doors, and top are constructed of sturdy stainless steel
• Aluminum back matches stainless steel exterior
• Clear-coated aluminum interior
• Stainless steel interior floor has coved corners to prevent trapped debris
• Cabinet is insulated with foamed-in-place polyurethane to reinforce the cabinet
• Since it is mounted on 3-in. castors, it can be relocated or wheeled out for cleaning the floor underneath
• Doors are fitted with 12-in. recessed handles that are permanently attached by sheet metal interlocks
• One-piece magnetic door gaskets are removable without tools for cleaning

Dimensions & Utilities

• Cutting board: 48⁵⁄₁₆ in. L x 8⁷⁄₈ in. W
• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 48⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 44¹⁄₄ in. H
• 5.8 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-48-15M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (15) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top, front, sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.8 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
