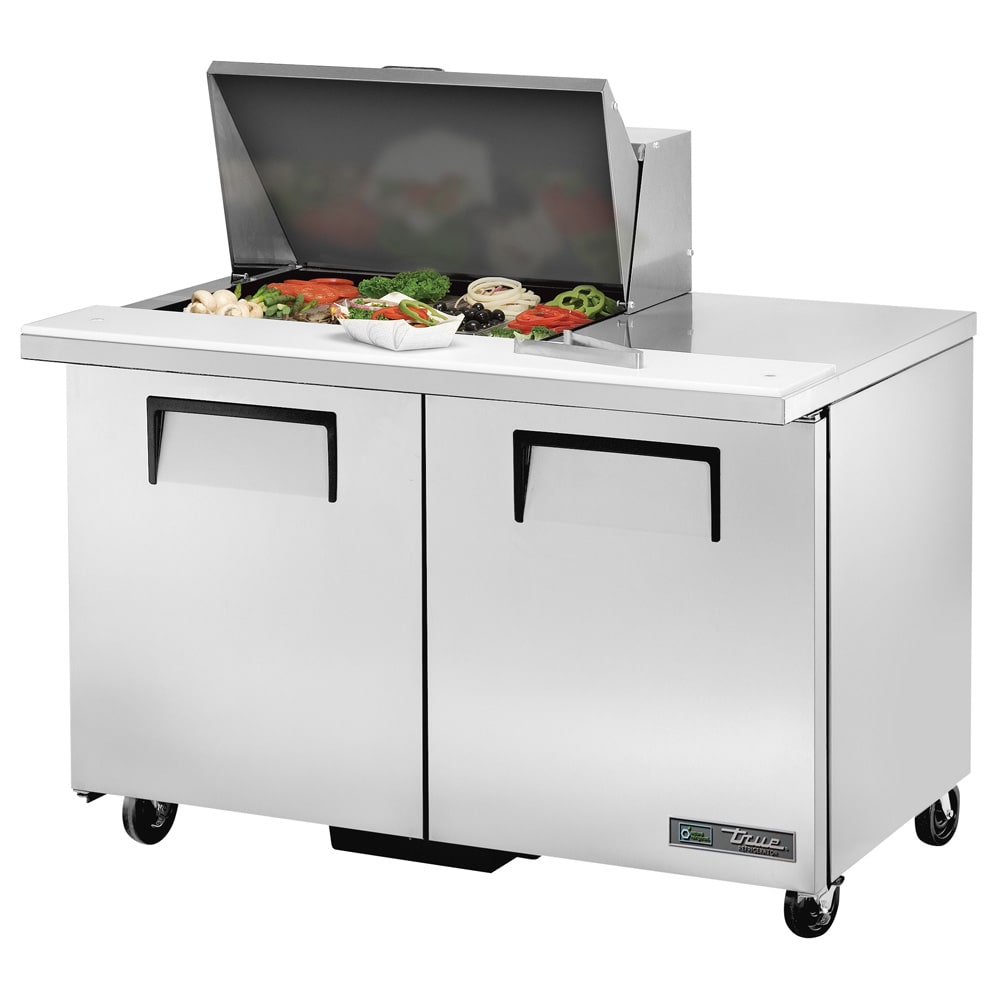

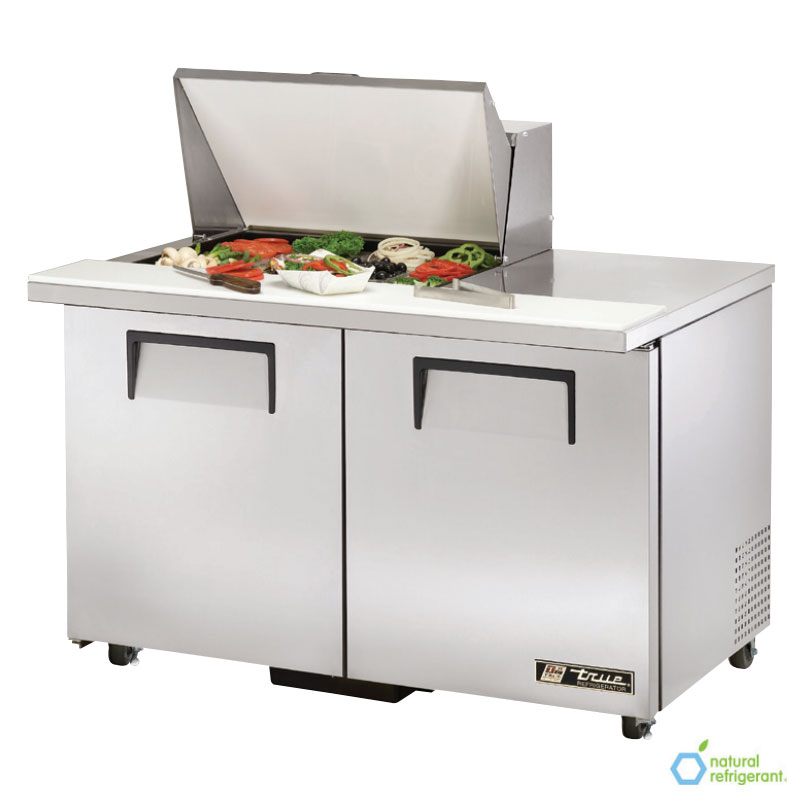

True TSSU-48-12M-B-HC ADA 48" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-48-12M-B-HC food prep table comes with 12 sixth-size polycarbonate food pans that are on the left side of the table, leaving a work space on the right side. The front, top, sides, doors, lid, and hood are all made of stainless steel, and the hood and lid are insulated to maximize energy efficiency. The self-closing doors stay open when pushed to 90 degrees. Each door has a 12-inch recessed handle for effortless operation.

This True TSSU-48-12M-B-HC food prep table is designed for swift cleaning, with interior coved corners and a removable polyethylene cutting board. The lid and hood are also removable for cleaning, and the interior is lined with clear-coated aluminum that resists corrosion. The refrigeration system features a sealed, self-lubricating fan motor, an epoxy-coated evaporator for durability, and a condenser that can be removed for service. This unit uses R290 hydrocarbon refrigerant to keep temperatures between 33 and 41 degrees Fahrenheit.

Improving the unit's function, the condensing fan motor reverses for 20 seconds each time the compressor starts, reducing the buildup of dust and debris from the condensing coil. When the coil is kept clean, the unit's life is extended, less energy is consumed, and product temperatures are enhanced. This feature doesn't replace the need for frequent preventative maintenance.

Product Details

• Stainless steel front, top, sides, door exteriors, lid, and hood
• Lid and hood are insulated to maintain safe temperatures and are removable for cleaning
• Each door has a 12-in. recessed handle
• 1-piece magnetic door gaskets are removable
• Self-closing door is energy efficient
• Door liners are made of the same clear-coated aluminum as the interior cabinet liner
• Interior corners are coved for cleaning
• 4 heavy-duty wire shelves coated in PVC
• Shelves can be adjusted in ¹⁄₂-in. increments
• Countertop pan openings accommodate a variety of pan sizes using divider bars (sold separately)
• 12 sixth-size, clear polycarbonate food pans are included
• Pans are located on the left side of the table, leaving an 18²⁷⁄₃₂-in. work space on the right side
• White polyethylene cutting board is 8⁷⁄₈-in. deep and runs the full length of the prep table
• 3-in. castors provide movement
• ADA compliant

Refrigeration System

• Temperature range: 33-41 degrees F
• Uses R290 hydrocarbon refrigerant
• Self-lubricating, cast iron evaporator fan motor powers large fan blades for high-volume, low-velocity air circulation
• Reverse condensing fan motor blows dirt and debris off the condensing coil
• Evaporator is coated in epoxy for durability and corrosion resistance
• Condenser is removable from the back of the cabinet when service is needed

Dimensions & Utilities

• Pan size: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 48³⁄₈ in. W x 35¹⁄₈ in. D x 44³⁄₈ in. H
• 5.8 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15 plug

*Free shipping on True Refrigeration TSSU-48-12M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (12) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top, front, sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.8 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
