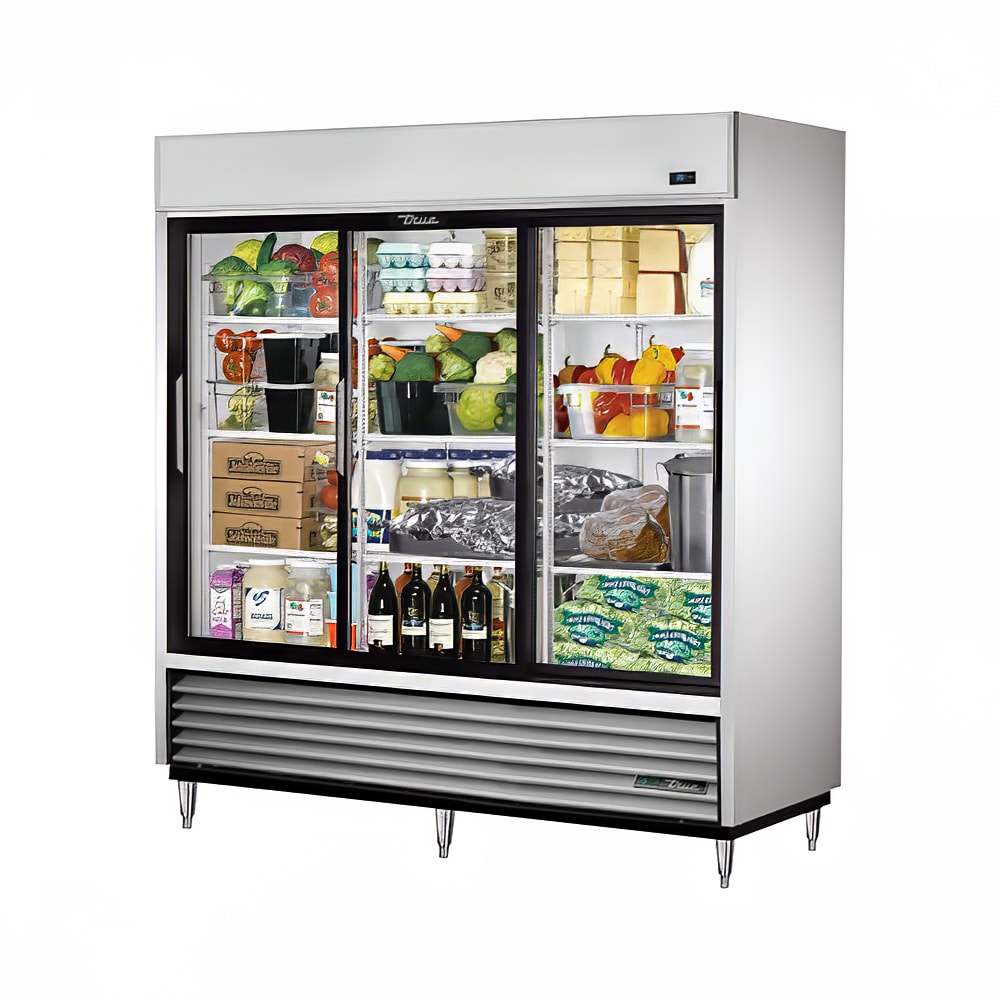

The True TSD-69G-LD three-section refrigerator uses R134A refrigerant through a capillary tube system to keep temperatures between 33 and 38 degrees Fahrenheit. An external display enables the operator to monitor the temperature, while the large evaporator fan motor and fan blades quickly recover temperature when the door is opened. Its refrigeration system is mounted on the bottom for accessibility, and its evaporator is coated in epoxy to resist corrosion.
Product is stored on nine adjustable PVC-coated shelves to accommodate various sizes. LED interior lights and a bright aluminum white interior highlights product, while the exterior has a stainless steel front, aluminized sides, and GalFan-coated steel back. Structure is added by foamed-in-place insulation, and the True TSD-69G-LD reach-in refrigerator has three sliding glass doors.
- Capillary tube system uses R134A refrigerant to maintain temperature
- Temperature range: 33-38 degrees F
- Quick temperature recovery is possible because of the evaporator fan motor and large fan blades
- Bottom-mount refrigeration system is accessible for maintenance
- LED interior lights enhance product visibility
- External temperature display
- Epoxy-coated evaporator resists corrosion
- Certified to hold open food product
- 9 wire shelves are coated in PVC and adjustable
- 3 glass doors each have a 12-in. recessed handle
- Doors slide open and closed
- 12 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
- Shelf dimensions: 237⁄8 in. W x 209⁄16 in. D
- Overall dimensions: 781⁄8 in. W x 30 in. D x 841⁄2 in. H
- CE approved; cULus and UL-EPH listed
- Made in the U.S.
- Durable, stainless steel front
- Anodized aluminum ends resist corrosion
- Strong, GalFan-coated steel back
- Foamed-in-place polyurethane insulation adds strength
- Black powder coating on the frame resists corrosion
- 6-in. legs elevate the unit
Additional information on reach-in units can be found in our three-section refrigerators buyers' guide.
Refrigerator, Reach-in, (3) glass sliding doors, stainless steel front, aluminum sides, white aluminum interior with stainless steel floor, (9) white shelves, LED interior lighting, 6" legs, 1/2 HP, 115/60/1, 12.0 amps, 9' cord, NEMA 5-15P, cULus, UL EPH Classified, CE, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
True Refrigeration TSD-69G-LD SpecificationsPDF Spec Sheet
|Compressor Location||Bottom Mount|
|Evaporator Type||Capillary Tube|
|Warranty||3 years parts & labor/5 years compressor|
|Width (in) Range||73 - 84|
