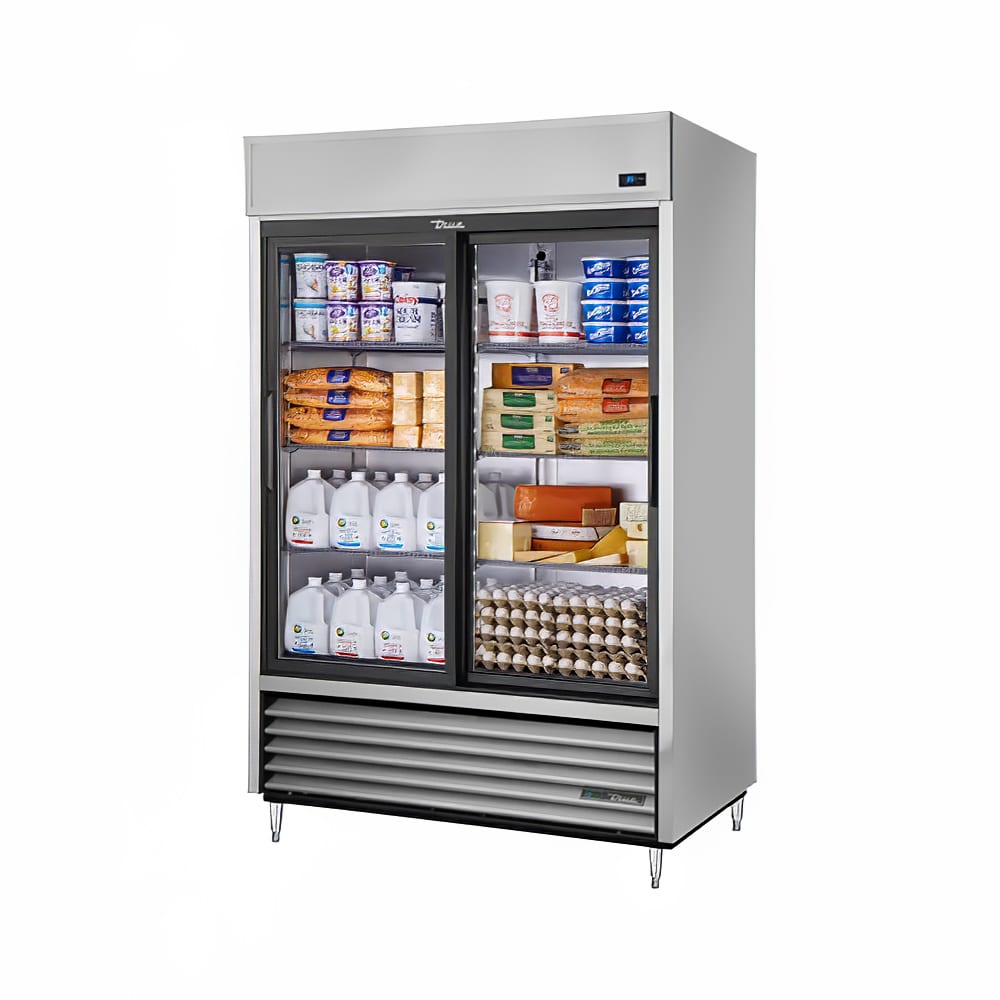

True TSD-47G-HC-LD 54 1/10" Two Section Reach In Refrigerator, 2 Sliding Glass Doors, 115v

KaTom #: 598-TSD47GLD • MPN: TSD-47G-HC-LD
  • 598-TSD47GLD Primary Thumbnail Image

Typically ships in 9 - 13 Business Days

Free Shipping Item
Lowest Price Guarantee

$7,573.43 /Each

Noah Wilbourn User Image
Ask a Foodservice Equipment Specialist

True Refrigeration TSD-47G-HC-LD Description

The True TSD-47G-HC-LD TSD series reach-in two-section refrigerator has a self-contained capillary tube system that uses eco-friendly R290 hydrocarbon refrigerant. Because the evaporator and condenser fan motors are electronically commutated, the motors move a consistent volume of air while producing little heat, and this optimized design reduces energy consumption and provides motor reliability. Due to the condensing unit's low positioning, it stays within reach for convenient maintenance, and the compressor runs in the coolest, most grease-free area of the kitchen, freeing up storage space on top of the unit.

When the unit's compressor is turned on, the condensing fan motor moves air in an opposite direction for 20 seconds to help clean off the condensing coil's surface. A consistenly clean coil can better maintain product temperature, and it uses less energy to operate. This technology works best alongside general preventive maintenance practices.

Because of its glass doors and LED lighting, the True TSD-47G-HC-LD reach-in refrigerator shows off product to customers. Its PVC-coated shelves and stainless steel floor resist corrosion in case of leaks, while the exterior surfaces are rust-resistant stainless steel, GalFan-coated steel, and anodized aluminum. Doors slide open efficiently because they are counterbalanced, and close by themselves to prevent cold air from escaping. Keeping cold temperatures inside, polyurethane insulation is foamed in the walls, and along with a heavy-duty frame rail, the insulation reinforces the cabinet structure.

Sliding Glass Doors
Two full-width sliding glass doors provide clear product visibility and no-stoop access
Low-E Glass Panels
Doors include low-emissivity glass to reduce heat transfer and enhance temperature retention
LED Interior Lighting
Energy-efficient LED lights illuminate contents without adding excess heat
Bottom-Mounted Compressor
Condensing unit sits at the base, leaving upper storage space clear and service access easier
Stainless Steel Front Exterior
Stainless steel front offers durability and easy cleaning in commercial settings
Clear-Coated Aluminum Interior
Aluminum liner resists corrosion and supports sanitation in high-use kitchens

  • Part of the TSD series
  • 6 heavy-duty, PVC-coated wire shelves
  • Shelves are adjustable in 1⁄2-in. increments
  • Each shelf includes 4 chrome-plated clips
  • Cabinet interior matches shelf support pilasters
  • Safety-shielded, LED lighting brightens interior
  • Double-pane, thermal glass provides product visibility
  • Smooth, positive door closure
  • Doors self-close with counterbalanced weight system
  • 12-in.-long plastic handle on each door
  • Durable stainless steel V-channel and stainless steel bearings
  • Interior has attractive, clear-coated aluminum liner
  • Coved corners on stainless steel floor
  • Frame rail is welded for strength and coated with black powder for corrosion protection
  • Insulated with high-density polyurethane foam
  • Stainless steel front and anodized aluminum ends
  • Steel back is coated with corrosion-resistant GalFan
  • 6-in. legs raise unit off the floor

  • Corrosion potential is reduced by epoxy coating on the evaporator
  • Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing little heat by operating at high-peak efficiencies
  • Reverse condensing fan motor mechanism directs air toward condensing coil for 20 seconds
  • Optimized design reduces energy consumption and provides motor reliability
  • Capillary tube system is factory-engineered and self-contained, using environmentally friendly R290 hydrocarbon refrigerant
  • Convenient maintenance is provided by bottom-mounted condensing unit
  • Compressor runs in cool, grease-free kitchen area
  • Storage area available on top of unit
  • Temperature holding range: 33-38 degrees F
  • Exterior display shows interior temperature

  • Shelves: 24 7⁄16 in. W x 20 9⁄16 in. D
  • Overall: 54 1⁄8 in. W x 30 in. D x 84 1⁄2 in. H
  • 8.5 A, 1⁄2 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration TSD-47G-HC-LD within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Refrigerator, reach-in, (2) glass sliding doors, (6) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 6" legs, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 8.5 amps, NEMA 5-15P, cULus, UL EPH Classified, CE
Warranty Icon
7-year Parts & Labor; 7-year Compressor
