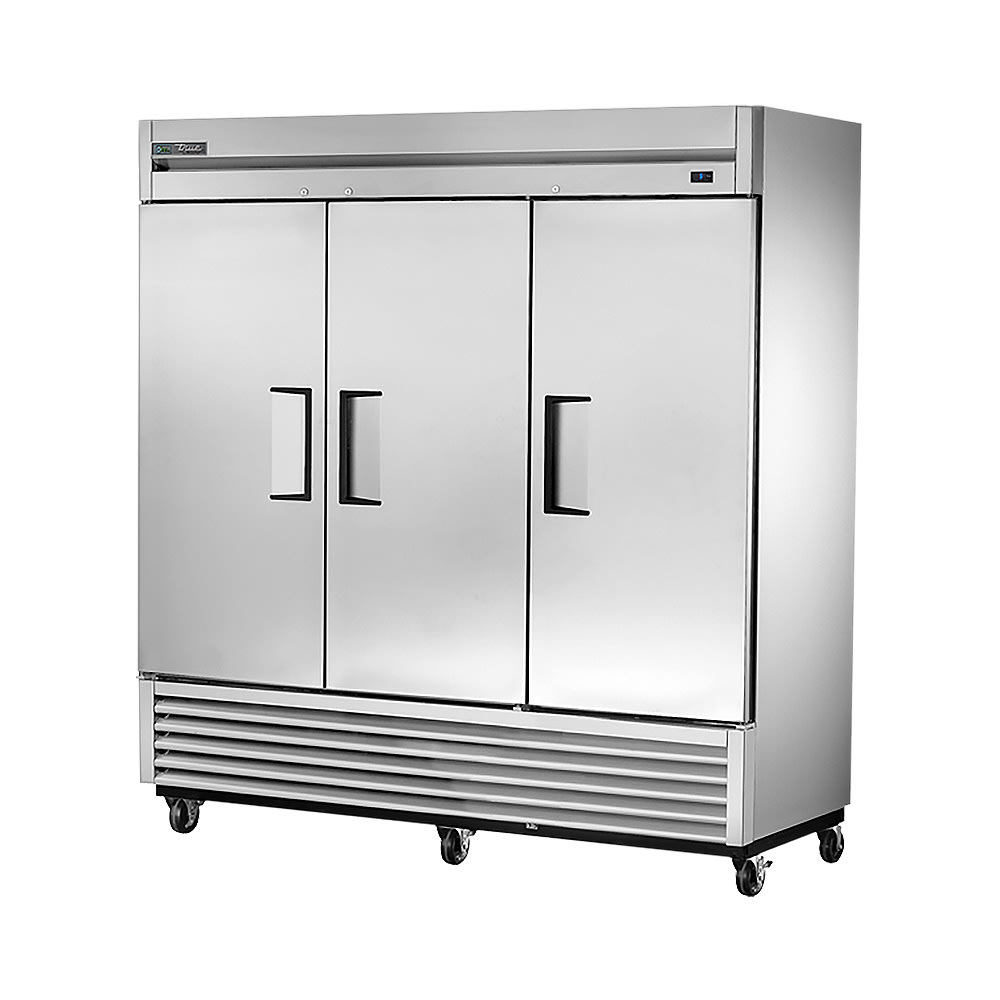

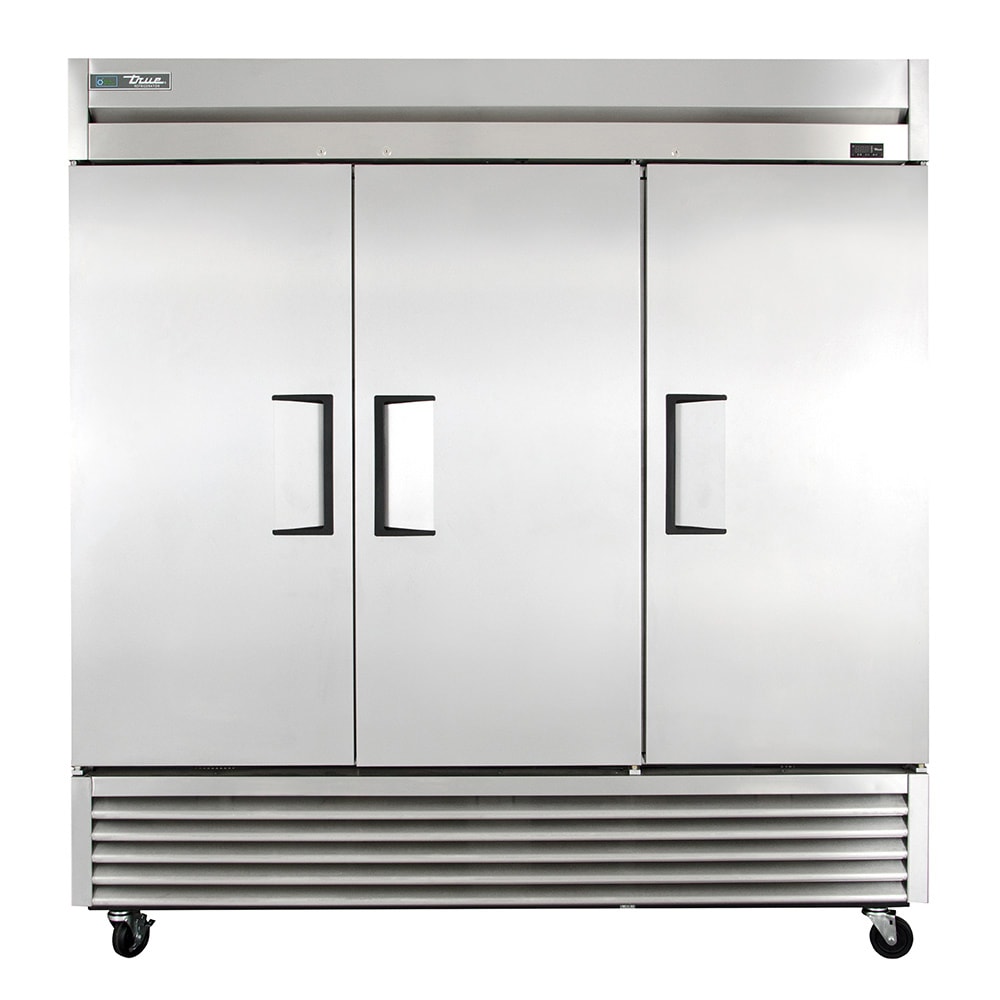

True TS-72F-HC 78 3/8" TS Series Three Section Reach In Freezer, (3) Left/Right Hinge Solid Doors, 115v

For durability and dent resistance, the True TS-72F-HC three-section reach-in freezer's exterior front, sides, doors, and interior liner and floor are made of stainless steel, while the freezer's back is made of GalFan-coated steel to resist corrosion. In the cabinet, nine PVC-coated wire shelves are adjustable in ¹⁄₂-inch increments. Its three doors are self-closing to trap cold air inside, and their 12-inch-long handles are recessed, so they do not take up aisle space.

To retain cold air, the entire cabinet structure is insulated with foamed-in-place polyurethane, and its self-contained, capillary tube refrigeration system uses eco-friendly R290 hydrocarbon refrigerant to keep temperatures cool. An extra-large evaporator coil is balanced with a high-horsepower condenser to maintain the temperature of the True TS-72F-HC three-section freezer at -10 degrees Fahrenheit, and it can hold open food products. The compressor fan motor in this unit blows in reverse for 20 seconds when it starts up, attempting to eliminate any collected dust or debris on the condenser coil. This mechanism improves refrigeration system efficiency, reduces energy use, and keeps the storage temperatures as cold and consistent as possible. This reversing fan feature extends the lifespan of the unit, but it doesn't eliminate the need for routine preventative maintenance.

Product Details

• 9 PVC-coated wire shelves come with 4 chrome-plated shelf clips per shelf
• Safety-shielded LED lights enhance interior visibility
• Rocker switch above doors controls interior lighting
• Interior liner and floor are made of stainless steel to provide strength and simplify cleaning
• Stainless steel exterior front, sides, and doors are durable and rust resistant
• Unit's back is made of GalFan-coated steel for corrosion resistance
• Cabinet is insulated with foamed-in-place polyurethane, adding structure and retaining cold air
• Doors have 12-in.-long recessed handles
• Self-closing doors keep cold air in the cabinet

Product Features

Self-contained Refrigeration System

• Operating temperature: -10 degrees F
• Exterior solar, digital temperature display
• Self-contained, capillary tube refrigeration system uses environmentally friendly R290 hydrocarbon refrigerant
• Sealed, self-lubricated evaporator fan motors and large fan blades efficiently move air for fast temperature recovery
• Reversing fan motor eliminates dust and debris buildup on condenser coil
• Rear airflow guards prevent product from being placed in the airflow path
• Bottom-mounted, dual condensing unit operates in the coolest area of the kitchen

Dimensions & Utilities

• Shelves: 24¹⁄₈ in. W x 22³⁄₈ in. D
• Overall: 78³⁄₈ in. W x 29¹⁄₂ in. D x 83³⁄₈ in. H
• 14 A, (2) ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

*Free shipping on True Refrigeration TS-72F-HC within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, three-section, -10°F, (3) stainless steel doors, (9) gray PVC coated adjustable wire shelves, LED interior lighting, stainless steel front/sides, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 14.0 amps, NEMA 5-20P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
