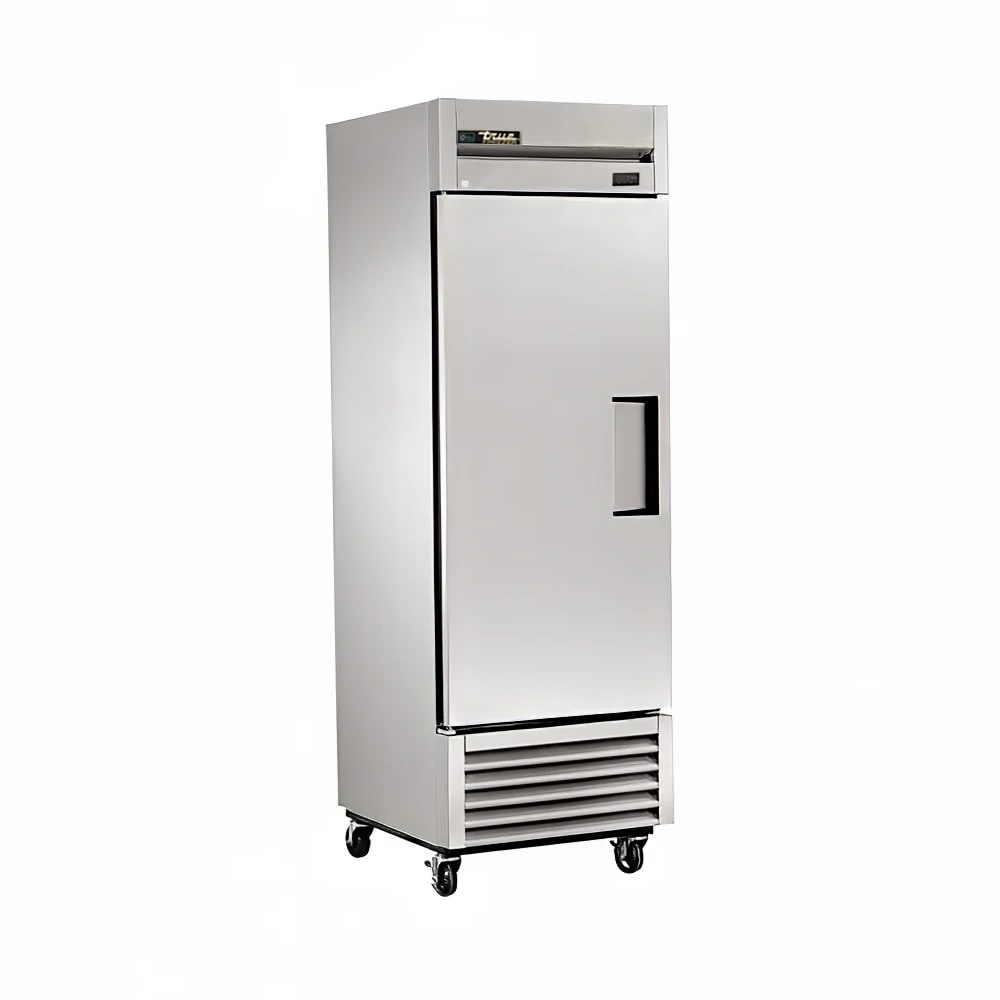

True TS-23F-HC 27" T Series One Section Reach In Freezer, 1 Left Hinge Solid Door, 115v
$5,691.63 /Each
Selected Hinge: Left Hinge
True Refrigeration TS-23F-HC Description
Using R290 hydrocarbon refrigerant in its capillary tube system, the True TS-23F-HC reach-in freezer maintains -10 degrees Fahrenheit, and cold air is evenly distributed throughout the cabinet with electronically commutated condenser and evaporator fan motors. Its automatic defrost system turns on at a certain time and shuts off when the unit reaches a certain temperature, reducing energy consumption while providing the shortest possible defrost cycle.
Blowing dust and debris off the condensing coil, the condenser fan motor in this unit runs in reverse for 20 seconds when it starts up. Keeping this coil clean encourages efficient operation, reduces energy use, and keeps temperatures in the cabinet cold and consistent. Despite the numerous benefits of this self-cleaning, it doesn’t eliminate the need to perform routine preventative maintenance.
Made of stainless steel, the solid door and front are quick to wipe down and resist dents, scratches, and dirt. This one-section reach-in freezer has three heavy-duty, PVC-coated shelves that hold product and a positive seal, self-closing door with lifetime guaranteed hinges and a torsion type closure system for convenient access. Ideal for warm environments, the True TS-23F-HC reach-in freezer has a bottom-mounted refrigeration system that is kept away from hot areas because warm air rises.
- Uses R290 hydrocarbon refrigerant
- Maintained operating temperature: -10 degrees F
- Little heat is created by the electronically commutated evaporator fan motors with large blades that create low-velocity, high-volume airflow
- Fan motor reverses for 20 seconds at start up to blow dust off condenser coil
- Lowest shelf is slightly lifted so products are comfortable to reach
- Minimal maintenance is needed because the defrost system is automatic
- Evaporator resists corrosion with epoxy coating
- Temperatures are digitally displayed for straightforward monitoring
- Airflow is kept from being blocked by airflow guards
- 3 PVC-coated wire shelves are adjustable in 1⁄2-in. increments to accommodate various product sizes
- Interior lights are activated by a rocker switch
- Corrosion-resistant, durable stainless steel exterior
- Quick-to-clean interior is made of stainless steel
- Cold air stays in the cabinet with foamed-in-place polyurethane insulation
- Cabinet is stable because it has a heavy-duty, black powder-coated steel frame
- Single, solid stainless steel door
- Products are kept safe with standard door locks
- 12-in. recessed handle facilitates opening the doors because it is permanently attached
- Cold air is kept inside with magnetic door gaskets
- 4-in.-diameter castors ensure the unit is convenient to move
- Shelves: 22 7⁄8 in. W x 23 1⁄4 in. D
- Overall: 27 in. W x 29 1⁄2 in. D x 83 5⁄16 in. H
- 3.7 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TS-23F-HC within the 48 contiguous states.
From The Manufacturer
True Refrigeration TS-23F-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Compressor Location | Bottom |
| Cubic Feet | 20.8 |
| Depth (in) | 29.5 |
| Door Design | Full |
| Door Type | Solid |
| Height (in) | 83.38 |
| Hertz | 60 |
| Hinge Configuration | Left |
| Interior Material | Stainless Steel |
| Kitchen Innovations Awards | 2015 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | TS Series |
| Special Features | Casters Included - Uninstalled |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Weight | 310.00 |
WARNING: Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
True Refrigeration TS-23F-HC True TS-23F-HC 27" T Series One Section Reach In Freezer, 1 Left Hinge Solid Door, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $5,691.63 / Each | $5,677.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Rating | Best | Best |
| Sections | 1 | 1 |
| Compressor Location | Bottom | Top |
| Cubic Feet | 20.8 | 23.1 |
| Door Design | Full | Full |
| Door Type | Solid | Solid |
| Type | Reach In | Reach In |
| Width (in) | 27 | 27.5 |
| Special Features | Casters Included - Uninstalled | Casters Included - Uninstalled |
| Hinge Configuration | Left | Left |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Depth (in) | 29.5 | 33.5 |
| Height (in) | 83.38 | 79.5 |
| Warranty | 7-year Parts & Labor; 7-year Compressor | 7-year Parts & Labor; 7-Year Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It holds –10°F to preserve frozen foods.
The door is left hinged on this variant for specific layout preferences.
Yes. It has an automatic defrost cycle to maintain consistent performance.
It provides 20.8 cu. ft. of frozen storage space.
Yes, it uses automatic defrost.
The cabinet temperature is monitored on an external digital display.
It requires 115V, 60 Hz, 1-phase power with a NEMA 5-15P connection.
The compressor is located at the bottom of the cabinet.
Yes, it uses R290 hydrocarbon refrigerant.
Yes, it is ENERGY STAR certified.
Yes, it has self-closing doors.
Yes, its doors include locks.
Yes, it includes casters for mobility.
No, the included casters are uninstalled.
Yes, it has a self-cleaning condenser feature.
Yes, it includes adjustable shelves.
Yes, it includes interior lighting.
