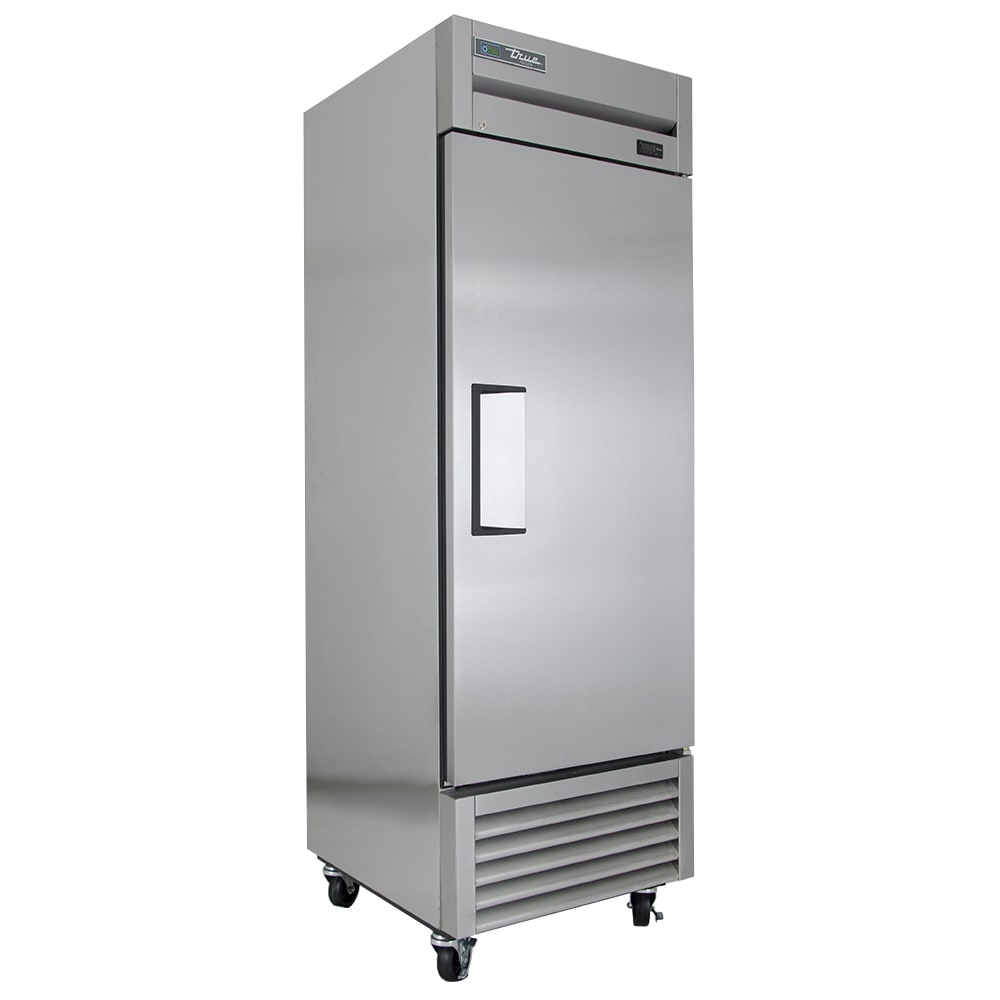

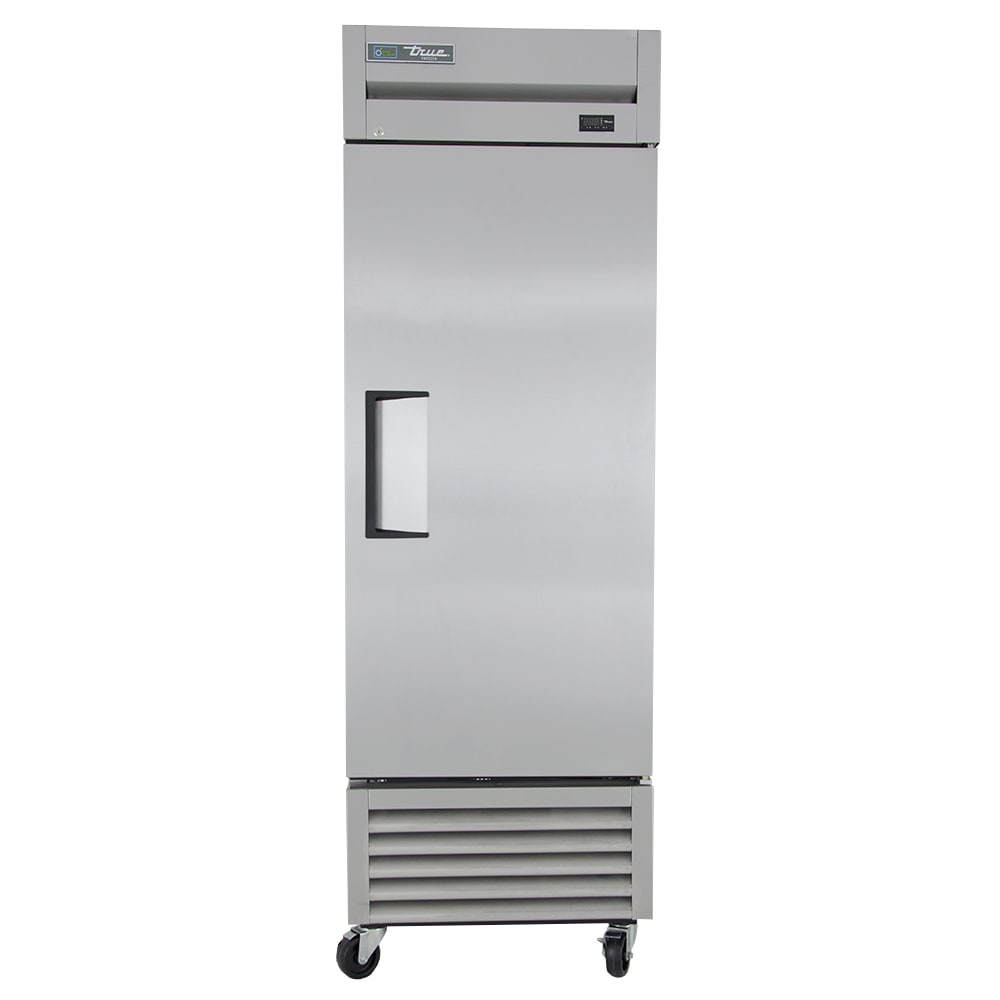

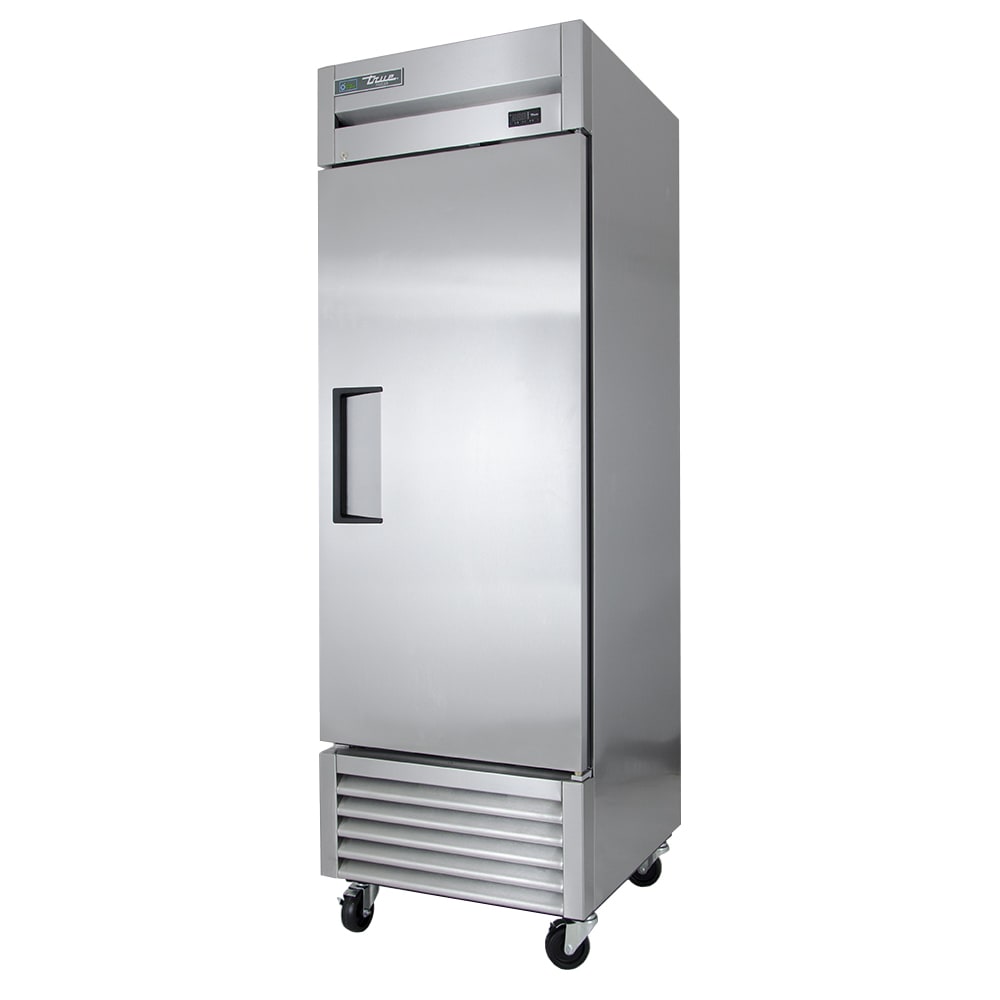

True TS-23F-HC 27" T Series One Section Reach In Freezer, (1) Right Hinge Solid Door, 115v

KaTom #: 598-TS23F • MPN: TS-23F-HC (FLX)
  • 598-TS23F Primary Thumbnail Image
  • 598-TS23F Multiple Thumbnail Image #1
  • 598-TS23F Multiple Thumbnail Image #2
  • 598-TS23F Multiple Thumbnail Image #3
  • 598-TS23F Multiple Thumbnail Image #4
  • 598-TS23F Multiple Thumbnail Image #5
  • 598-TS23F Multiple Thumbnail Image #6
  • 598-TS23F Multiple Thumbnail Image #7
  • 598-TS23F Multiple Thumbnail Image #8
  • 598-TS23F Multiple Thumbnail Image #9
  • 598-TS23F Multiple Thumbnail Image #10
  • 598-TS23F Multiple Thumbnail Image #11
  • 598-TS23F Multiple Thumbnail Image #12
  • 598-TS23F Multiple Thumbnail Image #13
  • 598-TS23F Multiple Thumbnail Image #14
  • 598-TS23F Multiple Thumbnail Image #15
  • 598-TS23F Multiple Thumbnail Image #16
  • 598-TS23F Multiple Thumbnail Image #17
  • 598-TS23F Multiple Thumbnail Image #18
  • 598-TS23F Multiple Thumbnail Image #19

IN STOCK: Ships in 1 Business Day

Less Than 5 in Stock, Order Soon!

Free Shipping Item
Lowest Price Guarantee

$5,691.63 /Each

Selected Hinge: Right Hinge

Left HingeLeft Hinge
Kylie wallace User Image
Ask a Foodservice Equipment Specialist

True Refrigeration TS-23F-HC Description

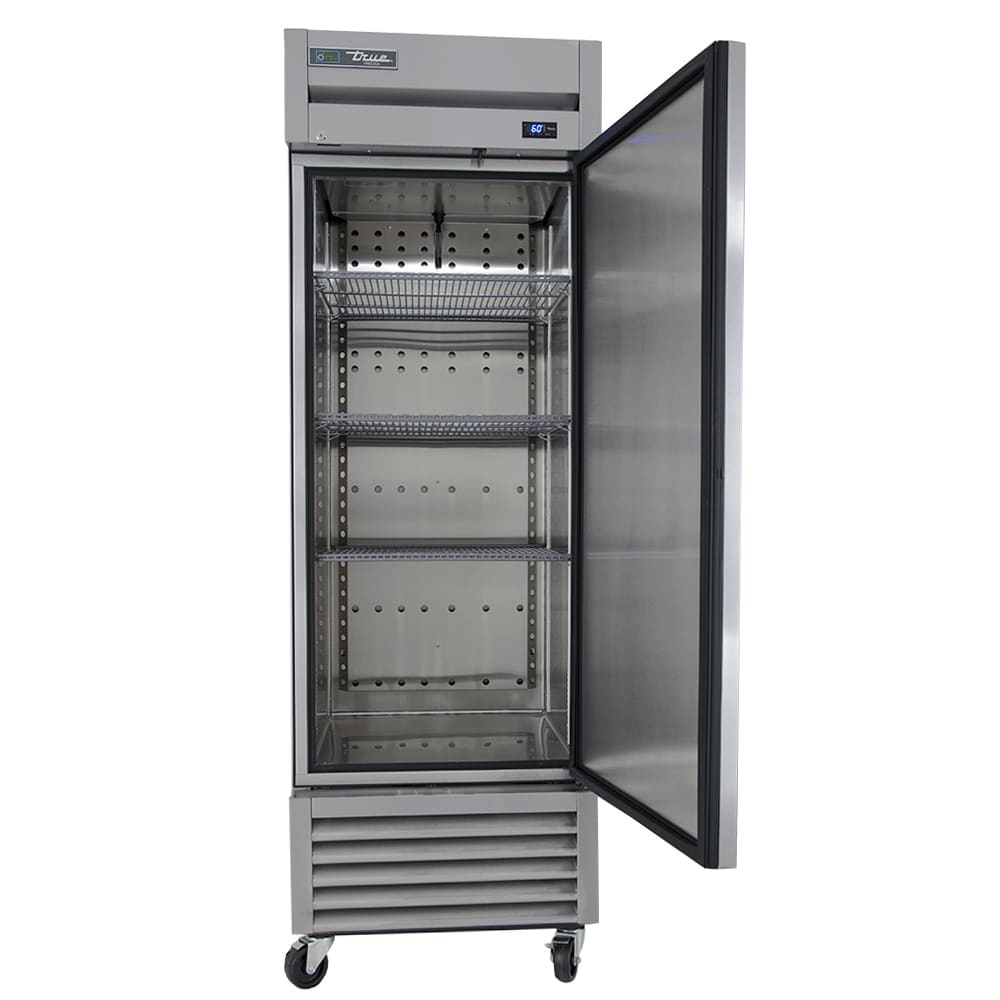

This True TS-23F-HC reach-in freezer is ideal for small venues or businesses with limited available space, and its solid stainless steel door has a durable door hinge with a permanently attached handle. Because the handle is recessed, it lowers the risk of denting nearby equipment. To resist corrosion, the exterior is constructed of stainless steel with a GalFan-coated steel back, while the interior is made of stainless steel, which is scratch and rust resistant. Stability is provided by the steel frame rail, and structure is created by the foamed-in-place polyurethane insulation. Three PVC-coated shelves can be adjusted in 1⁄2-inch increments to accommodate different sizes of products.

Because the refrigeration system is bottom mounted, users can store rarely used supplies on top of the unit. This low placement also lifts the interior floor, so stooping is not needed to reach products. Frozen foods are kept at -10 degrees Fahrenheit by the R290 hydrocarbon refrigerant and a capillary tube system. A consistent airflow is created with the reliable evaporator and condenser fans, and to prevent products from blocking the airflow, guards are in the back of the cabinet. The automatic defroster ensures the True TS-23F-HC reach-in freezer runs properly and reduces the need for excessive maintenance.

When the condenser fan motor in this unit starts up, it reverses for 20 seconds to blow debris, dust, and dirt off the condensing coil. Because this coil is integral to system operation, it should be cleaned regularly for reliable and efficient functioning. This self-cleaning feature also helps to maintain cold, consistent cabinet storage temperatures. Even though this reversing motor doesn't eliminate the need for routine preventative maintenance, it extends the units lifespan and reduces energy use.

Compact Layout
Two-door design fits smaller spaces while offering solid frozen storage
–10°F Freezing
Cabinet maintains reliable deep-freeze temperatures for product protection
Adjustable Shelves
Shelves move to organize varied frozen items
Durable Materials
Stainless steel door and front with aluminum interior handle daily use
Bottom-Mounted Cooling
Compressor below increases efficiency and eases maintenance access
Interior Lighting
Built-in lighting improves visibility during loading

  • Part of the TS series

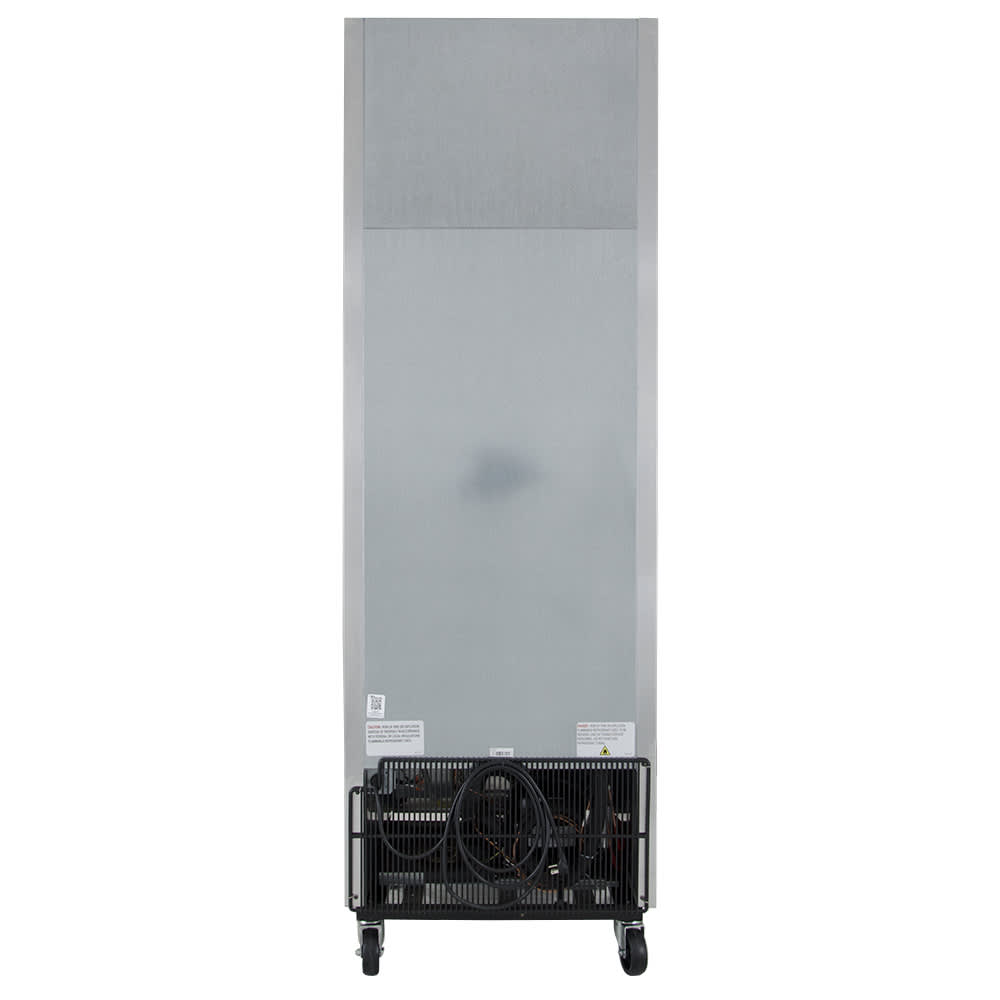

  • Bottom-mounted condensing unit simplifies maintenance
  • Uses R290 hydrocarbon refrigerant that is eco-friendly
  • Operating temperature: -10 degrees F
  • Automatic defrost system keeps the unit running smoothly
  • Epoxy-coated evaporator resists corrosion
  • Electronically commutated fan motors create less heat and use less energy than traditional motors
  • Reversing condenser fan motor runs in reverse for 20 seconds to remove dust from coil
  • Airflow guards prevent products from blocking open airflow

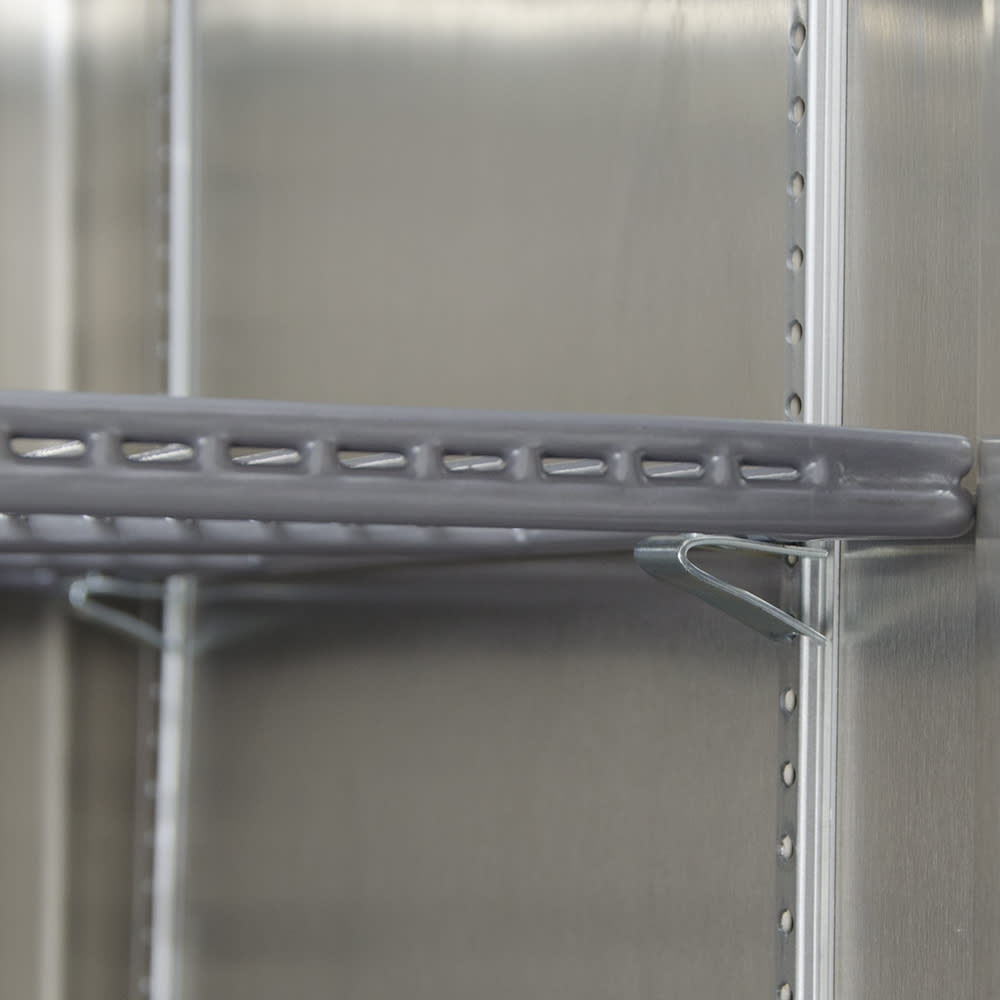

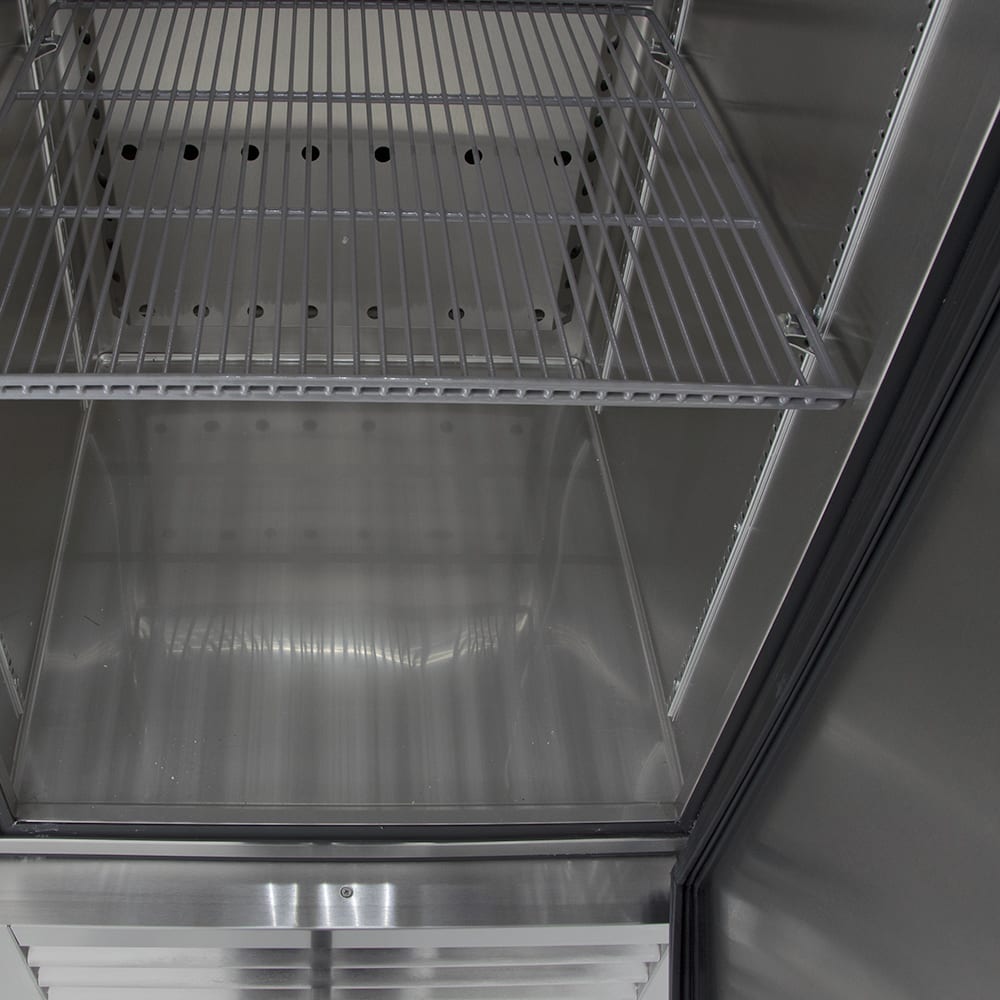

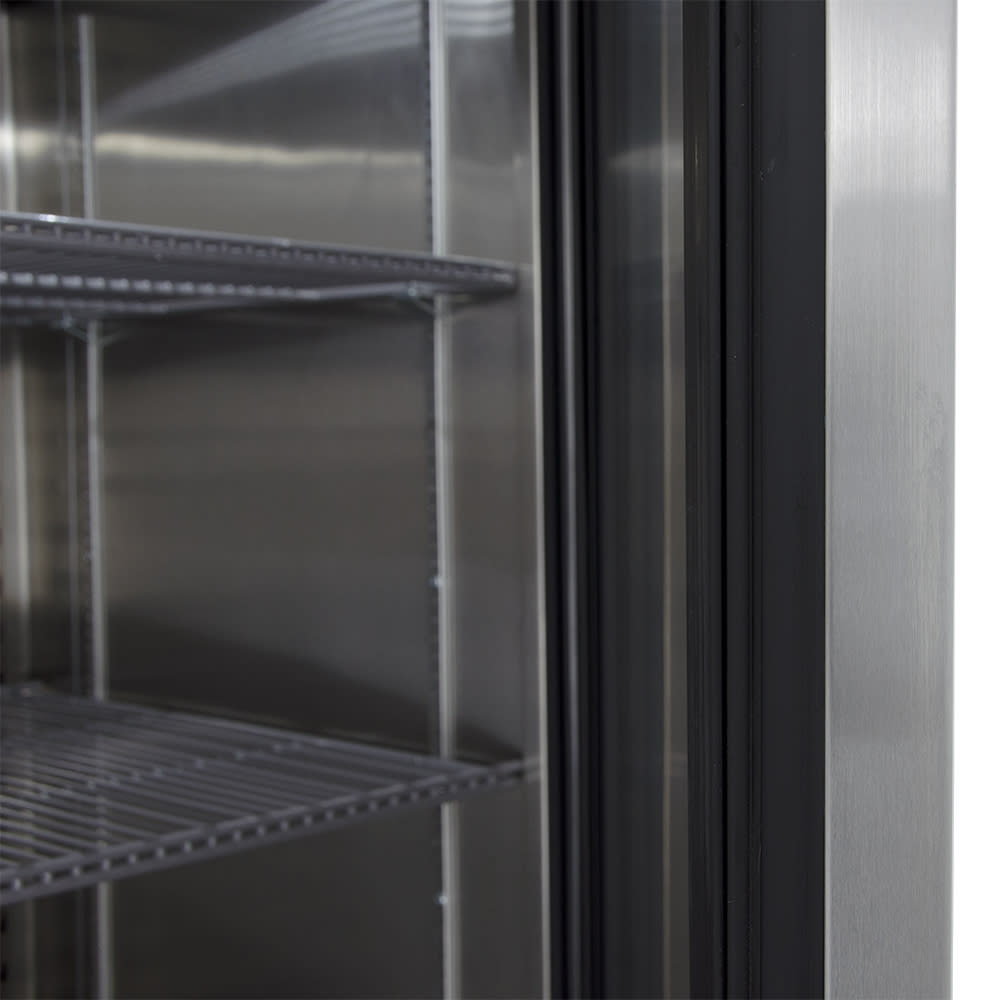

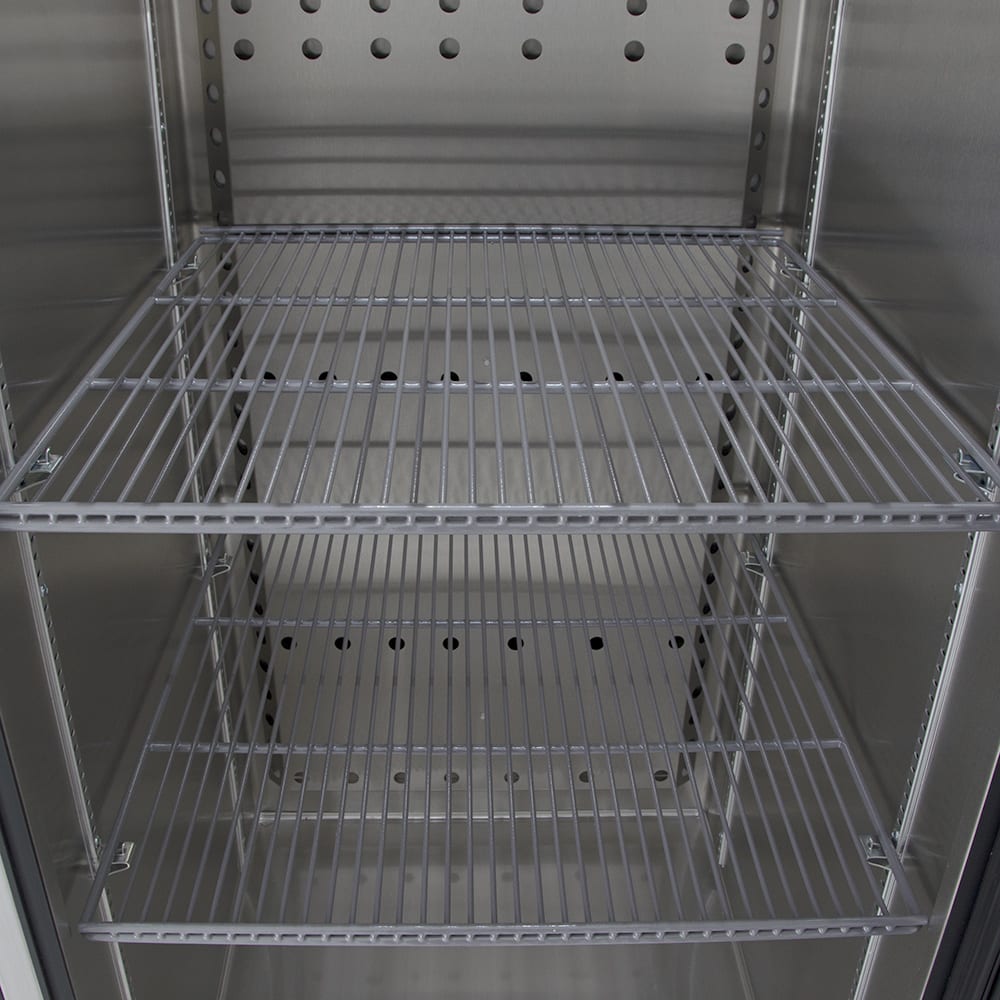

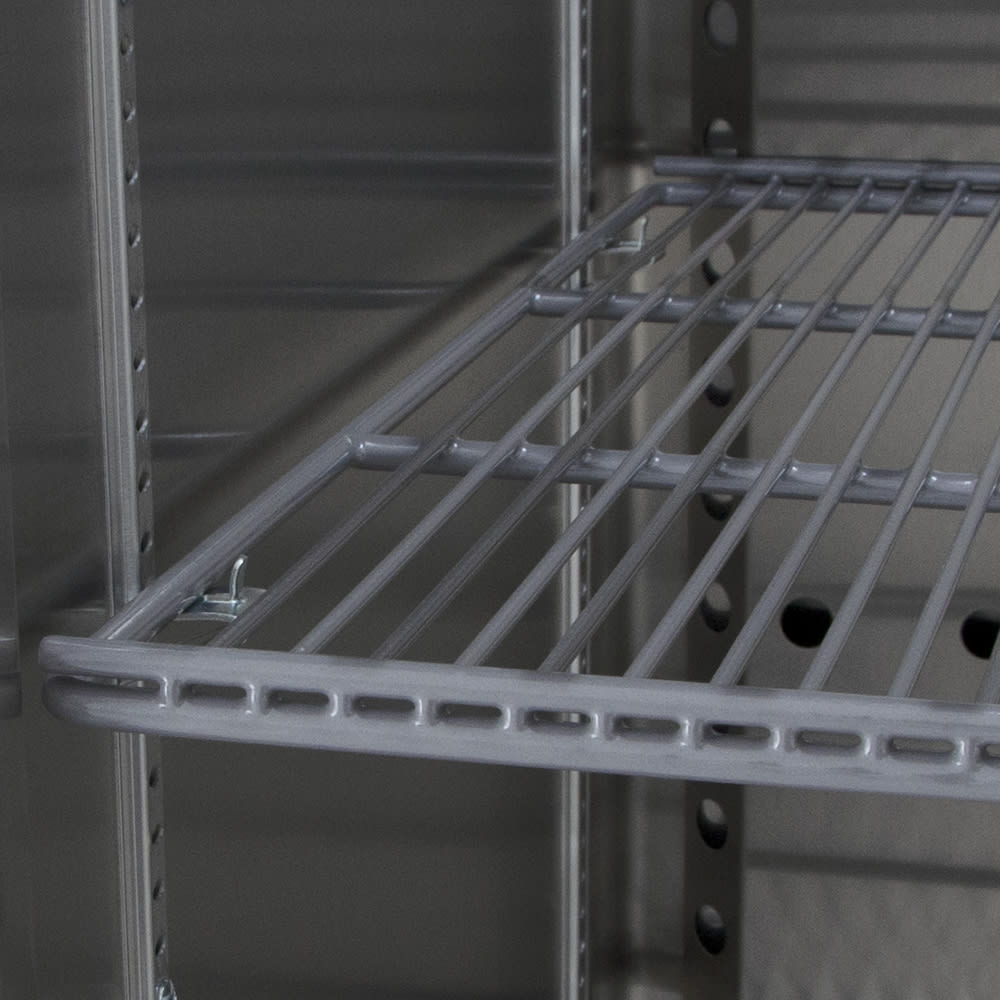

  • 3 PVC-coated shelves are adjustable in 1⁄2-in. increments to accommodate various products

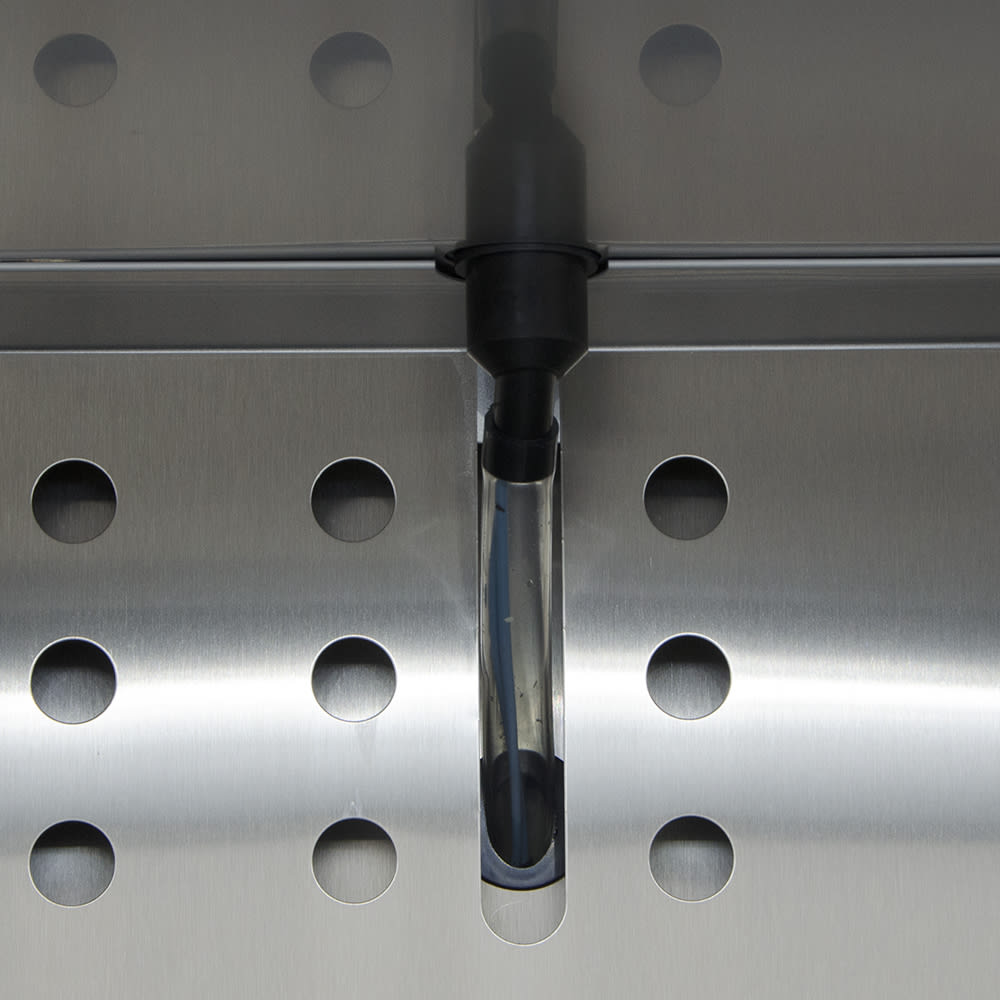

  • Interior lights help users see in the cabinet

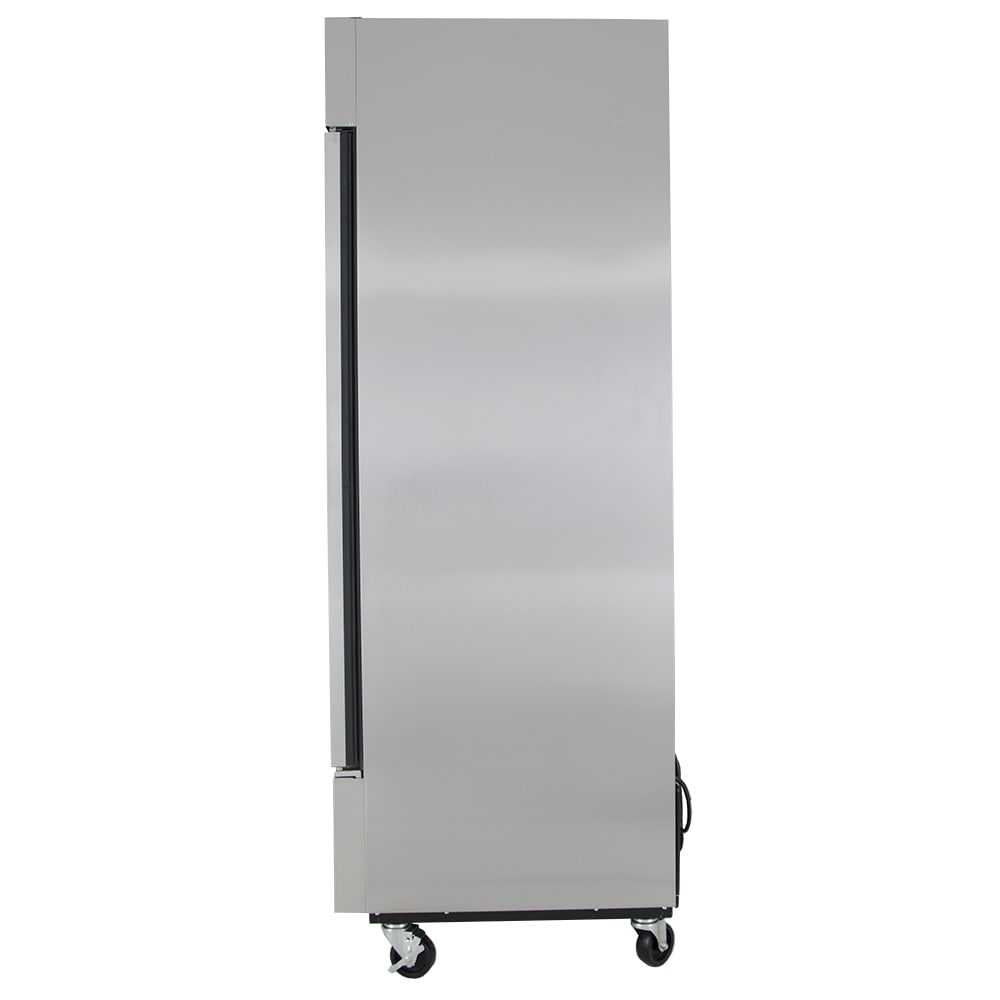

  • Front and sides are stainless steel with a GalFan-coated steel back to resist rust
  • Stainless steel interior is corrosion resistant and quick to clean
  • Cold air stays inside with foamed-in-place polyurethane insulation
  • Black powder-coated steel frame rail provides stability

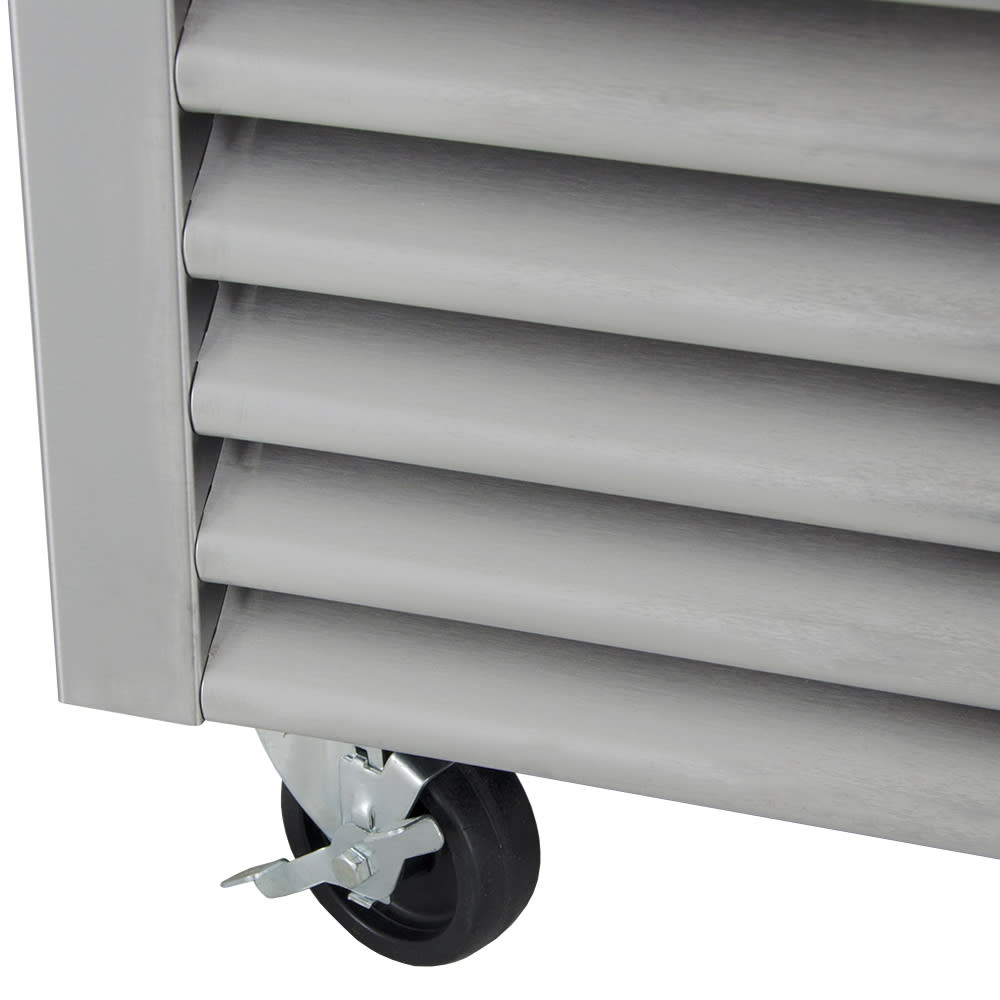

  • 4-in. castors can move the unit for cleaning underneath
  • Front pair of castors lock to keep unit in place

  • Insulated stainless steel door traps cold air in the cabinet

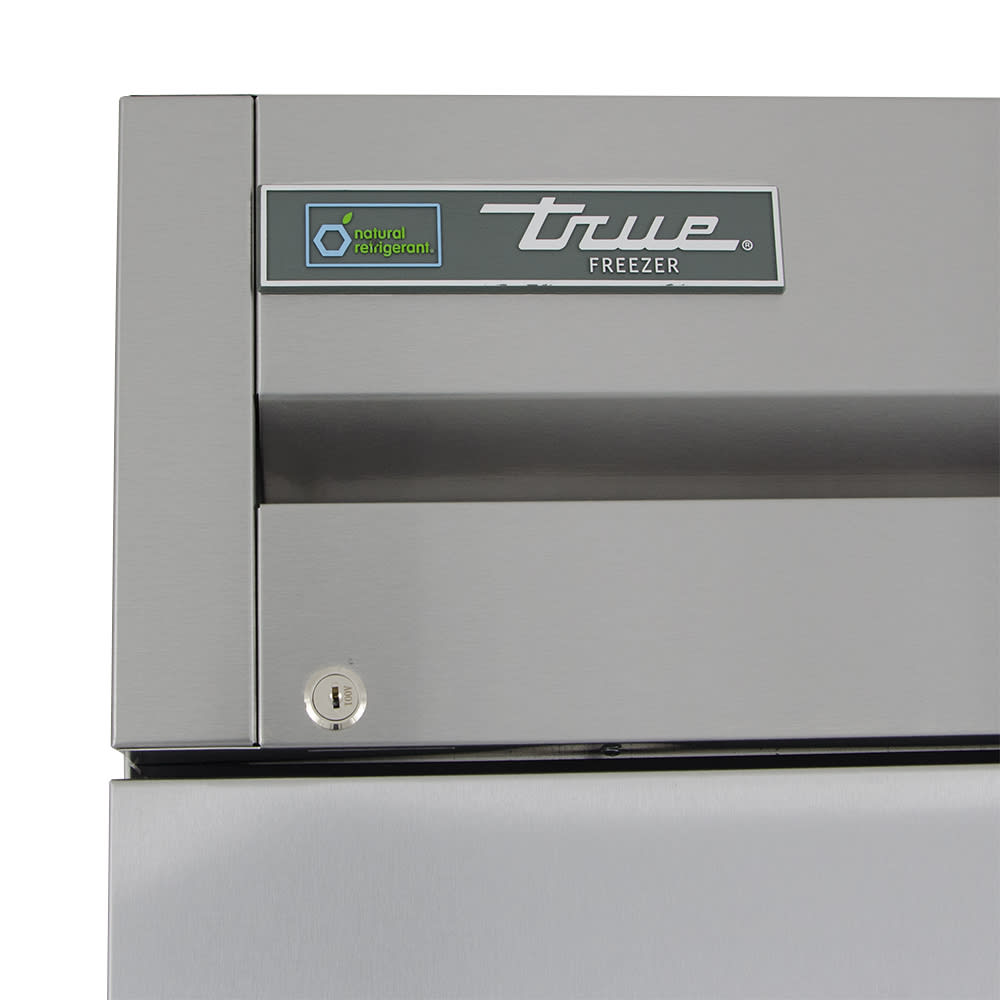

  • Deter unwanted access with the standard lock

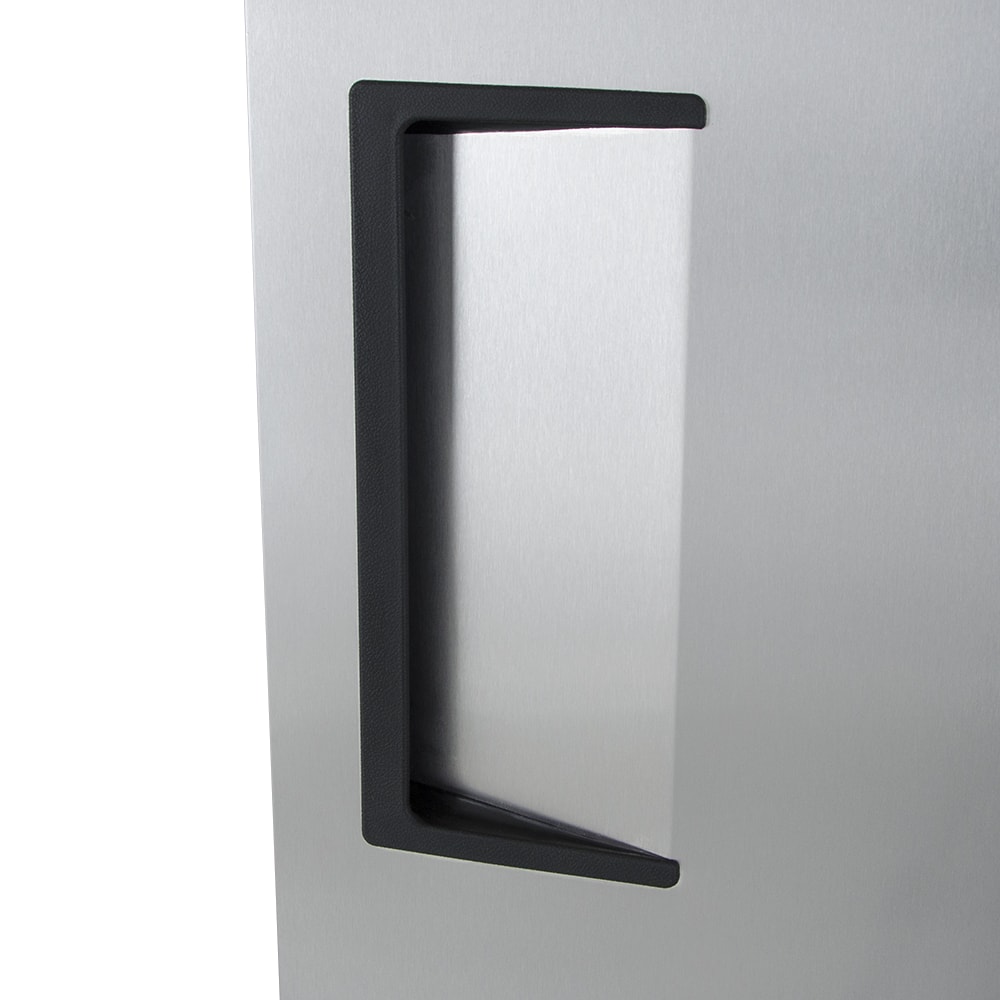

  • Opening the door is comfortable with 12-in.-long, recessed handle

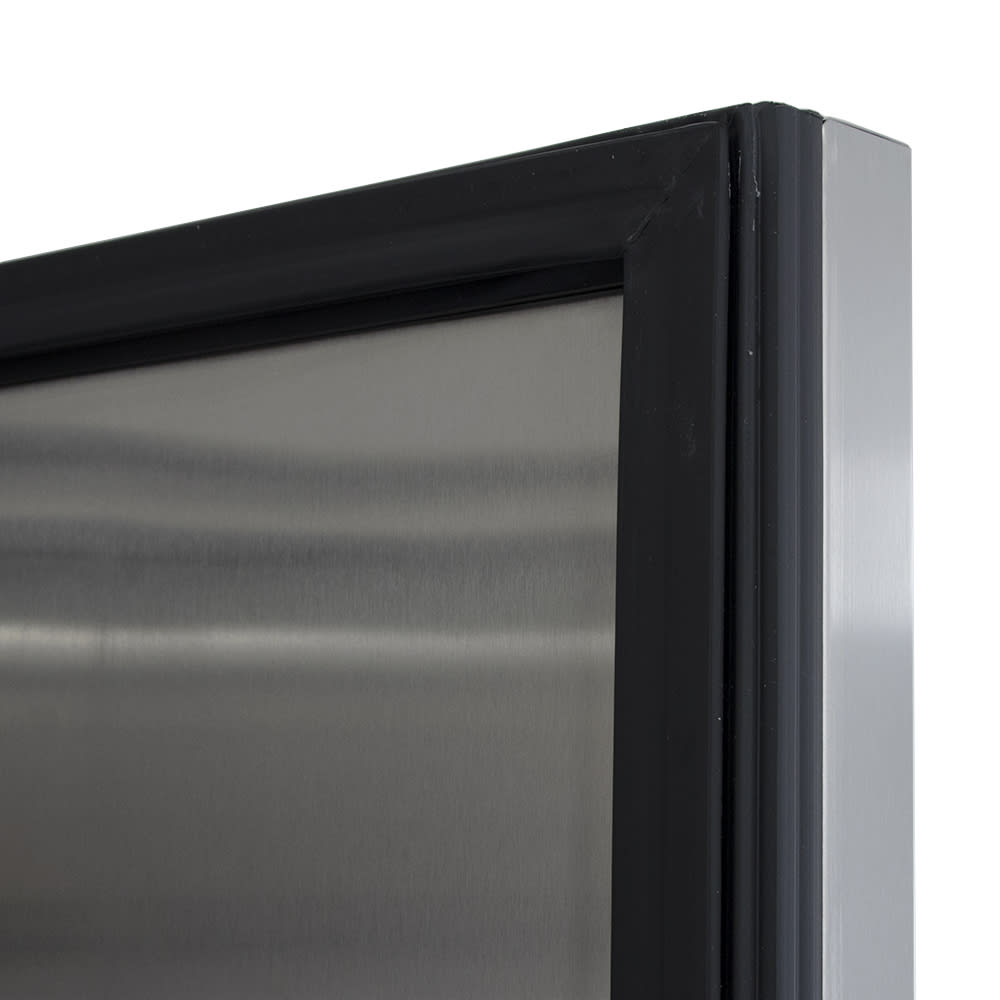

  • Cold-air leaks are prevented with magnetic door gaskets

  • Shelves: 22 7⁄8 in. W x 23 1⁄4 in. D
  • Overall: 27 in. W x 29 1⁄2 in. D x 83 5⁄16 in. H
  • 3.7 A, 1⁄2 HP

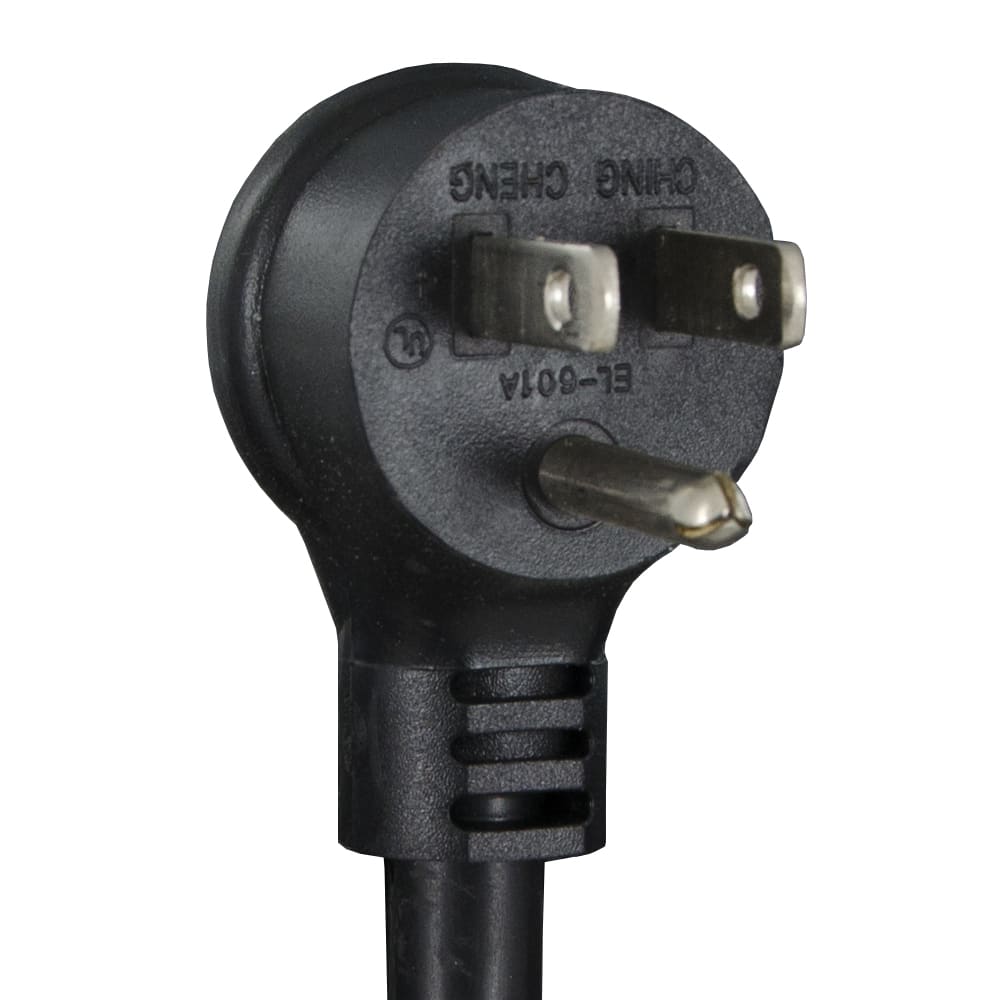

  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration TS-23F-HC within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Freezer, reach-in, one-section, -10°F, (1) stainless steel door, (3) gray PVC coated adjustable wire shelves, interior lighting, stainless steel front/sides, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, NEMA 5-15P, 3.7 amps, cULus, UL EPH Classified, CE, ENERGY STAR®

Warranty Icon
7-year Parts & Labor; 7-year Compressor
