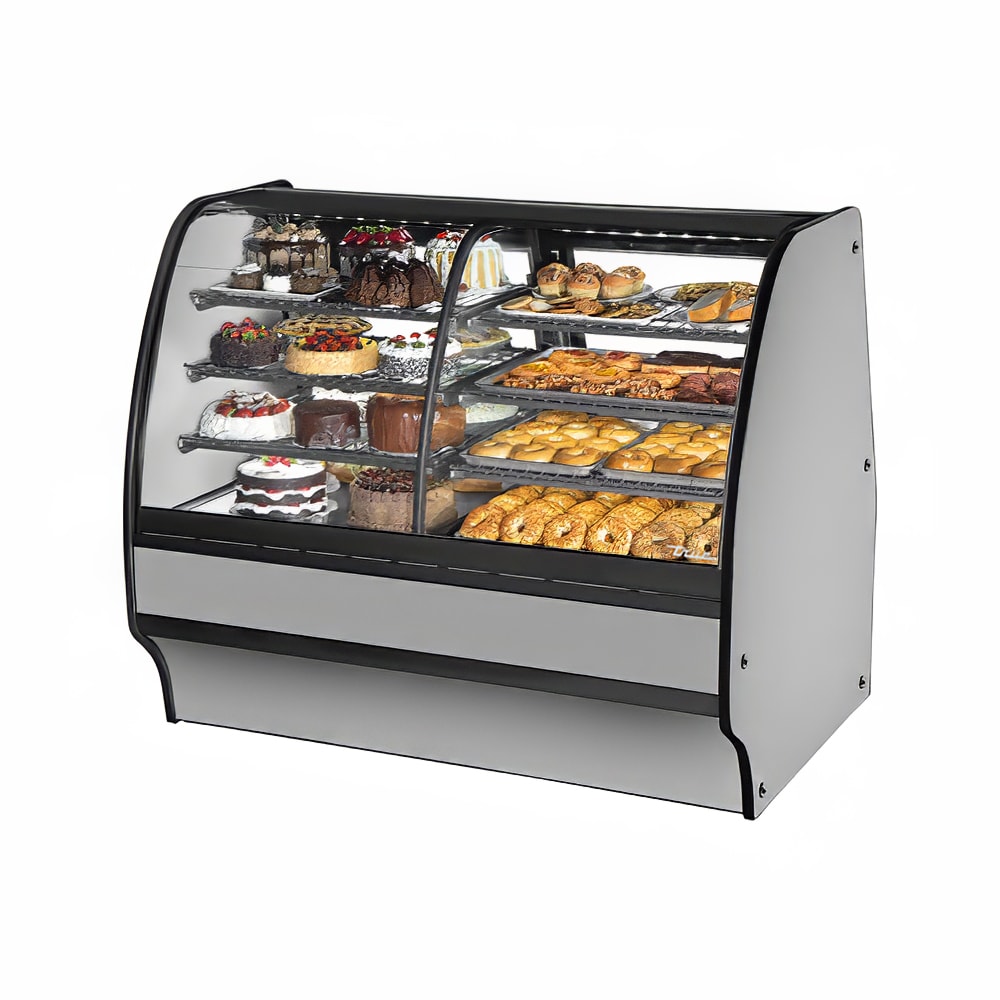

True TGM-DZ-59-SC/SC-S-S 59 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - (4) Levels, 115v
Typically ships in 10 - 12 weeks
$8,381.27 /Each
True Refrigeration TGM-DZ-59-SC/SC-S-S Description
The True Refrigeration TGM-DZ-59-SC/SC-S-S full-service dual-zone bakery case provides one dry section and one chilled section to maintain the quality of contained cakes, pies, and pastries. It uses R290 hydrocarbon refrigerant, which is circulated using its capillary tubing system, to hold the unit at a temperature between 33 and 41 degrees Fahrenheit; it has an optional temperature range between 42 to 65 degrees Fahrenheit for wines or chocolates. To better sustain that temperature, it has a layer of foamed-in polyurethane insulation. Built with convenience and maintenance in mind, its condenser can be removed for quick cleaning, while its condenser fans can be reversed to help remove hard-to-reach dust accumulations. Altogether, this unit measures 59 1⁄4 inches wide by 39 inches deep by 49 1⁄8 inches high.
Constructed with two separate sections that are accessible with the rear-placed sliding glass doors, the True Refrigeration TGM-DZ-59-SC/SC-S-S can hold six 18-inch-long by 26-inch-deep display pans and eight 12-inch-long by 18-inch-deep display pans. It utilizes a curved glass front for customers to look through, and products are visible because of its LED lighting system. Operators can use its six adjustable shelves, which are chrome-plated, to maximize its internal storage space. The whole unit is constructed around a steel frame with wooden sides and aluminum panels along its sides and front. It flaunts a stainless silver exterior and interior to match modern bakery establishment themes.
- Dual-zone unit with 1 refrigerated section and 1 dry section
- Cabinet holds (6) 18 in. L x 26 in. D display pans and (8) 12 in. L x 18 in. D display pans (not included)
- Curved glass front
- 2 sliding glass doors in rear
- 4 levels with 3 shelving tiers
- 6 chrome-plated adjustable shelves
- LED interior lighting system
- Stainless silver exterior and interior
- Steel frame rail featuring wooden sides and aluminum panels
- Interior cabinet made of rolled steel
- High-density, foamed-in polyurethane insulation
- Mounted on leg levelers
- Self-contained capillary tubing utilizes R290 hydrocarbon refrigerant
- Pullout condensing unit eases maintenance
- Condenser motors reverse while idle to remove debris
- Temperature range: 33-41 degrees F
- Optional temperature range: 42-65 degrees F
- 59 1⁄4 in. W x 39 in. D x 49 1⁄8 in. H
- 10 A, 1⁄4 HP
- 115 V/60 Hz/1 ph with 9-ft. NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TGM-DZ-59-SC/SC-S-S within the 48 contiguous states.
From The Manufacturer
Glass Merchandiser, dual zone (dry/refrigerated), 59-1/4"W, self-contained refrigeration, with fixed curved glass front, solid sides, (2) rear sliding glass doors, (3) tiered levels of adjustable chrome plated wire shelves (6 shelves total), LED interior lighting, stainless steel exterior, stainless steel interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, cULus, UL EPH Classified
True Refrigeration TGM-DZ-59-SC/SC-S-S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | Silver |
| Depth (in) | 39 |
| Design | Curved |
| Door Type | Sliding |
| Height (in) | 49.13 |
| Hertz | 60 |
| Number of Levels | 4 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Refrigerated |
| Series | TGMDZ Series |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 6-year Parts; 5-year Labor; 7-year Compressor Parts |
| Width (in) | 59.25 |
| Weight | 800.00 |
