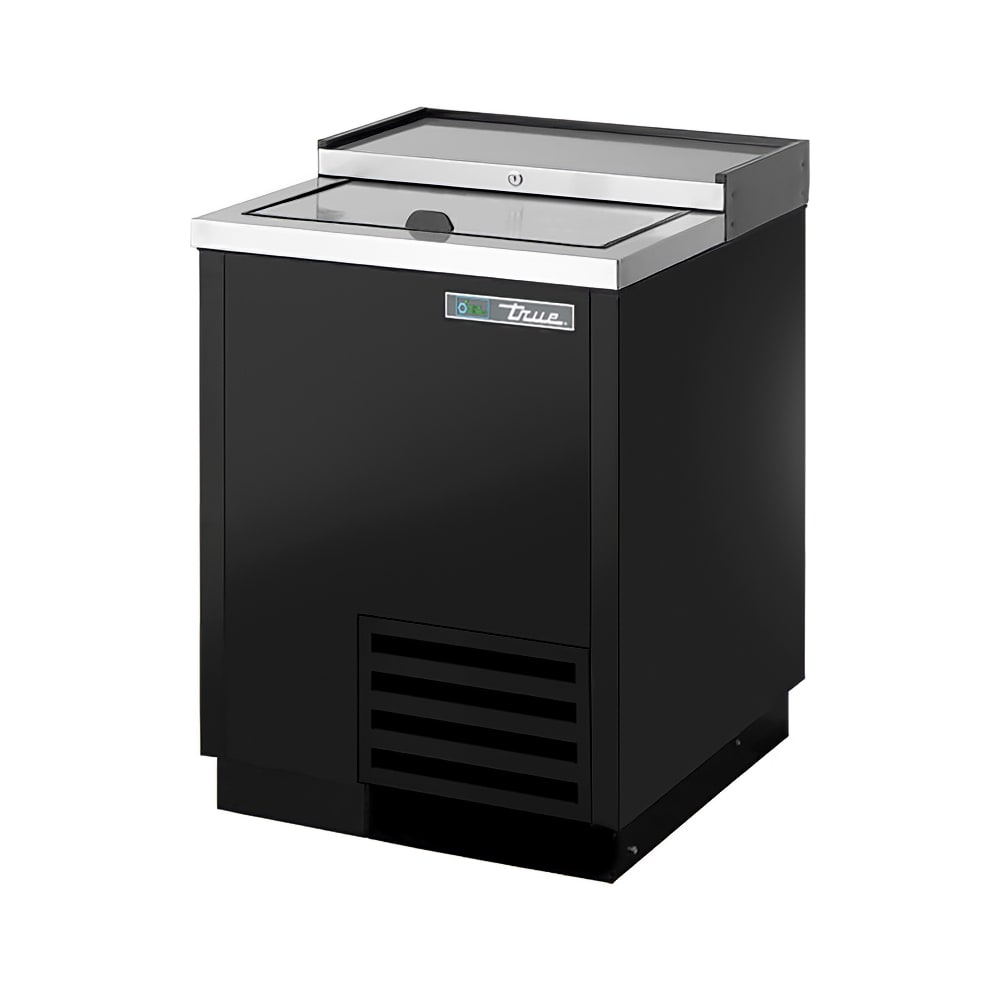

True TD-24-7-HC 24" Forced Air Bottle Cooler - Holds (108) 12 oz Bottles, Lid Lock, 115v

The True TD-24-7-HC forced-air bottle cooler accommodates 4.5 cases of 12-ounce bottles or 6 cases of 12-ounce cans. PVC-coated bin dividers help with organizing product, and the galvanized steel interior is durable and long-lasting. To retain cold air, polyurethane insulation is foamed in place in the cooler's walls. The exterior front, sides, and back are constructed of black powder-coated, cold-rolled steel, while the countertop and lid are constructed of stainless steel. A bottle cap opener and cap catcher are included with this unit for convenient opening of bottles and disposal of caps.

The True TD-24-7-HC forced-air bottle cooler chills the bottles on top first because they are the most accessible. Its self-contained capillary tube system meters R290 hydrocarbon refrigerant. To conserve energy and reduce heat, the electronically commutated evaporator and condenser fan motors move air consistently. The condensing unit slides out for maintenance and can be accessed from behind the front grille. The fan motor reverses direction for 20 seconds when the compressor is started, removing dust and debris from the unit's condensing coil. This feature helps maintain product temperature, reduce energy consumption, and prolong the compressor's life. Employees should still perform routine preventative mainenance to ensure the best results.

Product Details

• Accommodates 4.5 cases of 12-oz. bottles or 6 cases of 12-oz. cans
• Black powder-coated, cold-rolled steel front, sides, and back
• Stainless steel countertop and lid provide durability
• Galvanized steel interior is durable and long-lasting
• Insulated with polyurethane that is foamed in place
• Black-powder coated steel frame is resistant to corrosion
• Bottle cap opener and cap catcher included
• (2) 10 mm.-thick bin dividers are coated in PVC for durability
• LED lighting illuminates products in the interior
• Barrel locks prevent theft

Refrigeration System

• Forced-air cooling chills bottles on top before the bottles on the bottom
• Self-contained capillary tube system meters R290 hydrocarbon refrigerant
• High-capacity, factory-balanced refrigeration system maintains cabinet temperatures
• Temperature holding range: 33-38 degrees F
• Electronically commutated evaporator and condenser fan motors move a consistent volume of air to reduce heat production and energy consumption
• Condensing unit slides out for maintenance and is accessible from behind the grille
• Fan motor reverses direction for 20 seconds upon start up to remove excess dust and debris from the condensing coil
• Evaporator is coated in epoxy for corrosion resistance

Dimensions & Utilities

• 24¹⁄₂ in. W x 26⁷⁄₈ in. D x 33¹⁄₂ in. H
• 1.4 A, ¹⁄₁₀ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TD-24-7-HC within the 48 contiguous states.

From The Manufacturer

Bottle Cooler, flat top, (4-1/2cs) 12 oz. bottles or (6cs) 12 oz. can capacity, stainless steel counter top & (1) lid, barrel lock standard, well design, (2) PVC coated adjustable bin dividers, LED interior lighting, bottle cap opener & cap catcher, black powder coated exterior, galvanized interior, R290 Hydrocarbon refrigerant, 1/10 HP, 115v/60/1-ph, 1.4 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TD-24-7-HC Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Top
Bottle Capacity	108
Color	Black
Cubic Feet	7
Depth (in)	26.88
Door Type	Sliding
Height (in)	33.5
Hertz	60
NEMA	5-15P
Number of Dividers	2
Phase	1
Product	Bottle Coolers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Series	TD Series
Special Features	Door Locks
Supports	Base
Type	Forced Air
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	24.5
Weight	180.00
