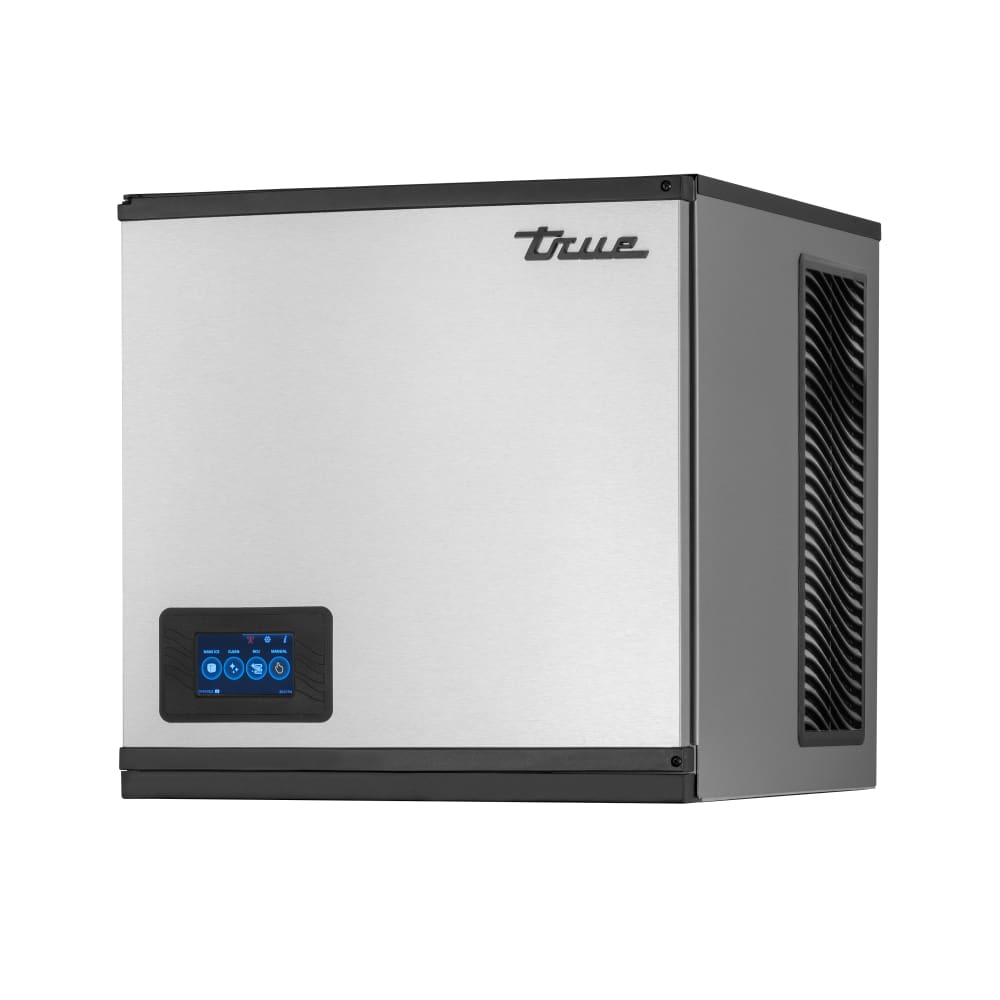

True TCIM-522-LA1-A~T-3 25" Large Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,218.00 /Each
True Refrigeration TCIM-522-LA1-A~T-3 Description
Made with a TrueTech aluminum exterior and plastic interior, the True TCIM-522-LA1-A~T-3 large cube ice machine head contains a micro-channel condenser and fully-insulated evaporator with a high-performance copper plate. This unit produces up to 560 pounds of ice every day when the incoming water measures 50 degrees Fahrenheit and incoming air measures 70 degrees. This machine is designed with a quiet fan operation, and the storage bin must be purchased separately. Overall, this ice machine head measures 24 3⁄5 inches wide by 22 1⁄4 inches deep by 22 3⁄16 inches high.
Staff can adjust the ice production settings since the True TCIM-522-LA1-A~T-3 ice machine head is digitally controlled. The 4 3⁄10-inch front display features touch controls, built-in alarms, and push notifications. To ensure conditions remain optimal, this unit runs advanced diagnostics, while the Time-of-Flight™ ice sensor eliminates the need for bin thermostats. This machine uses R290 refrigerant for continuous ice production and an eco-friendly impact.
- True Ice series
- TrueTech aluminum construction
- Plastic interior
- Produces 560 lbs. of large ice per 24 hours
- Bin purchased separately
- Eco-friendly R290 refrigerant
- Air cooled
- Micro-channel condenser
- High/low pressure transducers
- Fully-insulated evaporator
- Quiet fan operation
- Removable air filter
- Ambient temperature range: 35-110 degrees F
- Water temperature range: 35-100 degrees F
- 7,600-BTU heat transfer capacity
- 4 3⁄10-in. front display
- Simple touch operation
- Programmable ice production
- Advanced diagnostics
- Time-of-Flight ice sensor
- Built-in alarms and push notifications
- Remote monitoring and shut off
- 24 3⁄5 in. W x 22 1⁄4 in. D x 22 3⁄16 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-522-LA1-A~T-3 within the 48 contiguous states.
From The Manufacturer
True Ice Series Ice Maker, head only (bin sold separately), cube style (large), self-contained, air-cooled condenser, 24.6"W x 22.23"D x 22.18"H, up to 550 lb. production/24 hr, advanced electronic control with 4.3" touch display, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, TrueZone™ protection sold separately, UL EPH Classified, cULus
True Refrigeration TCIM-522-LA1-A~T-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.23 |
| Height (in) | 22.18 |
| Hertz | 60 |
| Ice Type | Extra-large Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | One-touch Cleaning |
| Special Features | Removable Air Filter |
| Special Features | TrueGuard Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 180.00 |
