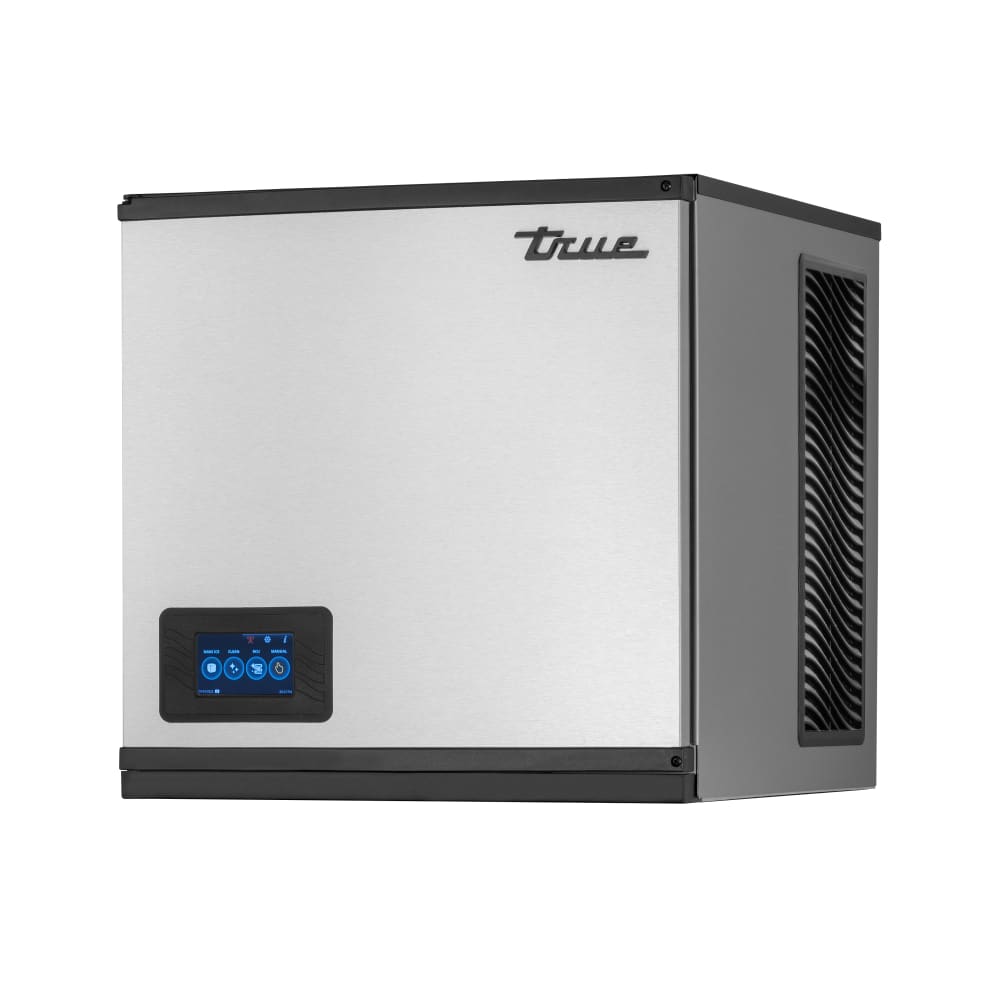

True TCIM-522-FA1-A~T-3 25" Full Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,218.00 /Each
True Refrigeration TCIM-522-FA1-A~T-3 Description
The True TCIM-522-FA1-A~T-3 full-cube ice machine head can make 560 pounds of ice over a 24-hour period when incoming air is 70 degrees Fahrenheit and incoming water measures 50 degrees. With its air-cooled design, this unit streamlines installation, and the plastic interior and aluminum front and side panels promote temperature retention for ultimate ice production. The ice machine maintains cool conditions with R290 refrigerant. The ice bin must be purchased separately.
Measuring 24 3⁄5 inches wide by 22 1⁄4 inches deep by 22 3⁄16 inches high overall, the True TCIM-522-FA1-A~T-3 ice machine head features a 4 3⁄10-inch front display. The unit’s settings are electronically controlled, and advanced diagnostics are available to enable predictive and proactive measures. For enhanced efficiency, this unit can be remotely monitored and shut down.
- True Ice series
- TrueTech aluminum front and side panels
- Plastic interior
- Produces 560 lbs. of ice over 24 hours
- Cube-style ice
- Bin sold separately
- R290 refrigerant
- Air cooled
- Micro-channel condenser
- Fully-insulated evaporator
- Quiet fan operation
- Ambient temperature range: 35-110 degrees F
- Water temperature range: 35-100 degrees F
- 7,600-BTU heat transfer capacity
- 4 3⁄10-in. front display
- Programmable ice production
- Advanced diagnostics
- Built-in alarms and push notifications
- Remote monitoring available
- Remote shut off
- 24 3⁄5 in. W x 22 1⁄4 in. D x 22 3⁄16 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-522-FA1-A~T-3 within the 48 contiguous states.
From The Manufacturer
True Refrigeration TCIM-522-FA1-A~T-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.23 |
| Height (in) | 22.18 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | One-touch Cleaning |
| Special Features | Removable Air Filter |
| Special Features | TrueGuard Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 180.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It can produce up to 550 lb. of ice per 24 hours.
It makes full-cube ice.
It measures 24 5/8 in. W x 22 1/4 in. D x 22 3/16 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It has a cord with a NEMA 5-15P plug.
Its listed certifications include cULus Listed and UL-EPH.
It requires a 1/2-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
Yes, it has a removable air filter.
Yes, it has digital controls.
It uses a NEMA 5-15P plug.
