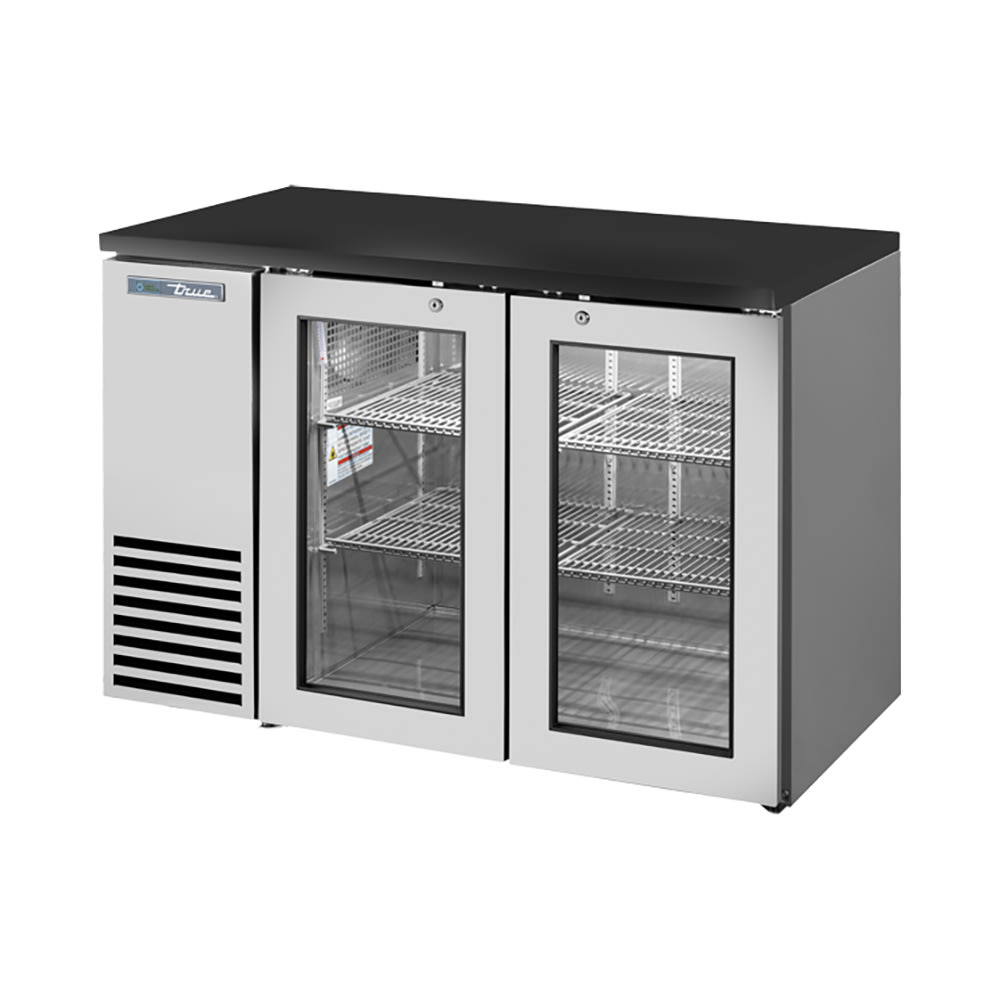

True TBB24-48-2G-Z1-BST-S-1 48 1/8" Bar Refrigerator - 2 Swinging Glass Doors, Stainless, 115v

The True TBB24-48-2G-Z1-BST-S-1 two-section bar refrigerator operates at set temperatures between 33 and 38 degrees Fahrenheit with R290 hydrocarbon refrigerant. Its refrigeration system is self-contained, and the condensing unit is accessible from the front. For cleaning and servicing, a slide-out design provides complete access. Because the fan motors are electrically commutated, they move a consistent amount of air and reduce the amount of energy the unit uses. Cold air is kept inside the unit by dense polyurethane foam in the walls, magnetic gaskets that seal the door, and insulated glass.

When the compressor starts up, the condensing fan motor reverses for 20 seconds, blowing air toward the condensing coil. This mechanism eliminates buildup of dirt, dust, and debris, enabling the coil to perform more efficiently over time. A cleaner coil can also help increase the unit's lifespan. Preventive maintenance practices should be carried out often to ensure the coil is working properly over time.

This True TBB24-48-2G-Z1-BST-S-1 back bar cooler can hold 48 six-packs of 12-ounce cans on four adjustable wire shelves. With their wire design, the shelves promote airflow around stored items, and when they are removed, the unit can accommodate two half-barrel kegs, depending on the tapping kit. LED lights help customers see product despite low lighting, and the doors lock to reduce the chance of theft. Made of stainless steel to support heavy loads, the floor and the door threshold can withstand regular use. All interior surfaces resist corroding in case of spills.

Product Details

• Can hold (48) 6-packs of 12-oz. cans or 2 half-barrel kegs
• 4 adjustable, PVC-coated wire shelves
• LED lighting illuminates the interior
• Reinforced lip in the stainless steel floor supports heavy loads
• Double-pane, insulated glass doors have 12-in. handles
• Locks on the doors deter theft
• 1-piece magnetic door gaskets can be removed without tools
• Door threshold protector reduces the risk of cabinet damage while loading product
• Stainless steel front and sides provide dent and scratch resistance
• Galvanized steel top slides under existing countertops
• High-density polyurethane insulation traps cold air in the unit

Product Features

Self-contained Refrigeration System

• Uses R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Electrically commutated fan motors move air consistently and minimize energy use
• Reverse condensing fan motor tedchnology helps keep condensing coil clean
• Evaporator has a corrosion-resistant epoxy coating
• Condensing unit is accessible from the front with its convenient slide-out design

Dimensions and Utilities

• Shelves: 17³⁄₈ in. W x 16¹⁄₄ in. D

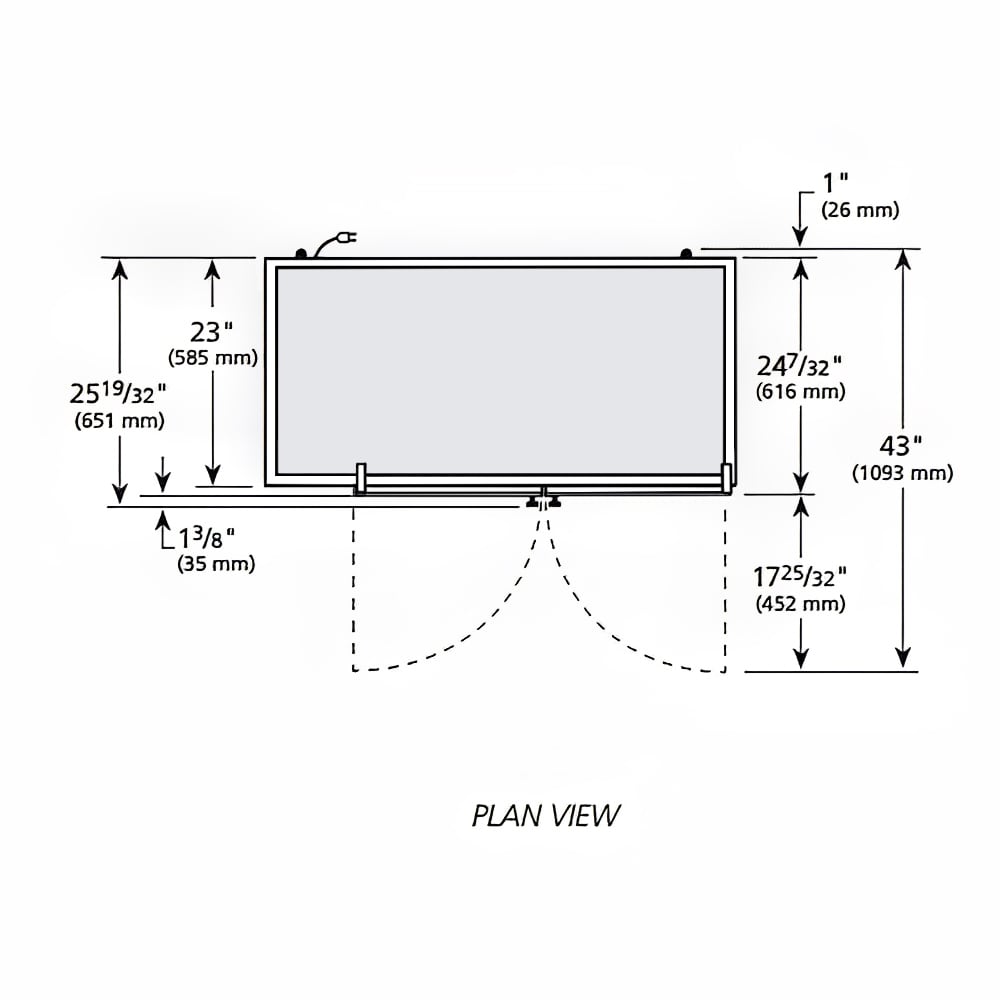

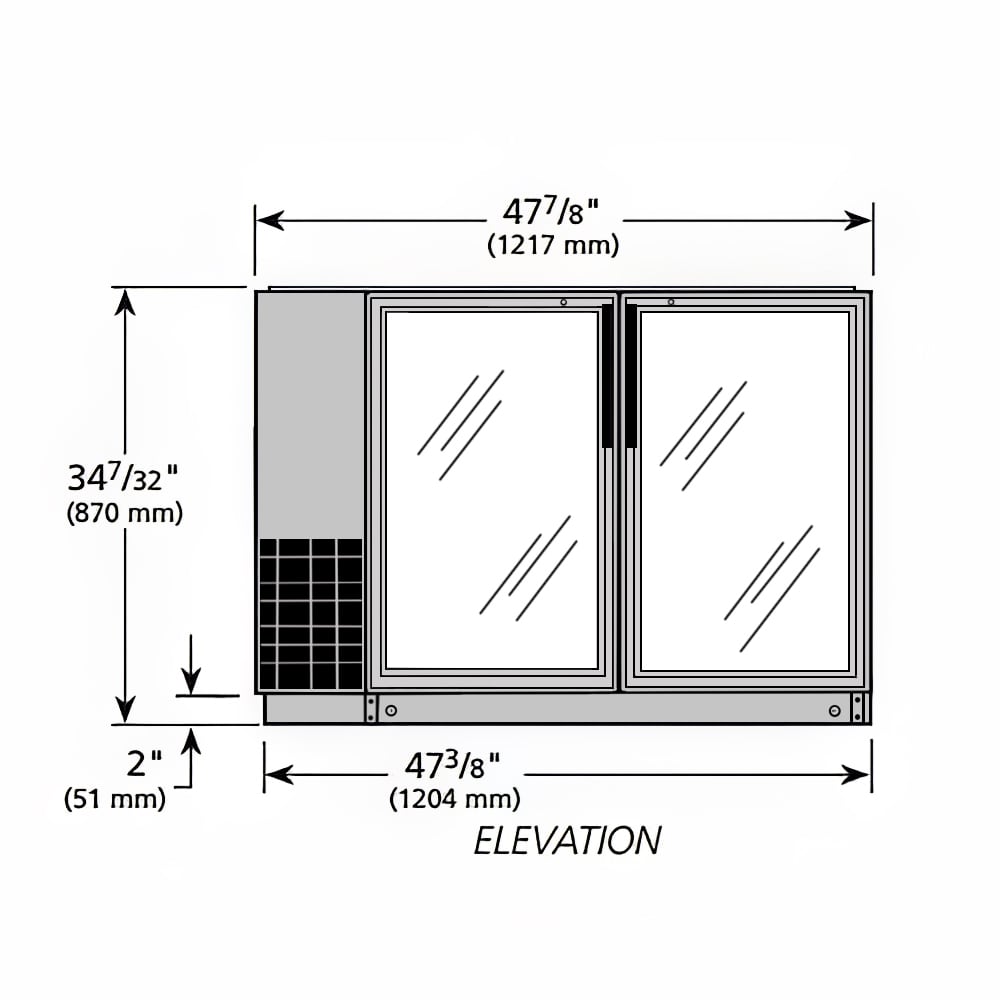

• Overall: 47⁷⁄₈ in. W x 26⁵⁄₈ in. D x 34¹⁄₄ in. H
• 2.1 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TBB24-48-2G-Z1-BST-S-1 within the 48 contiguous states.

From The Manufacturer

Back Bar Cooler, two-section, 48-1/8"W, (76) 6-Packs 12 oz cans or (6) 1/6 barrels, (4) wire shelves, condensing unit on left, (2) glass hinged doors with locks, LED interior lights, black sub top, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 1.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration TBB24-48-2G-Z1-BST-S-1 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
