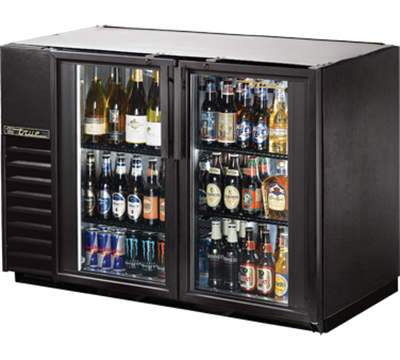

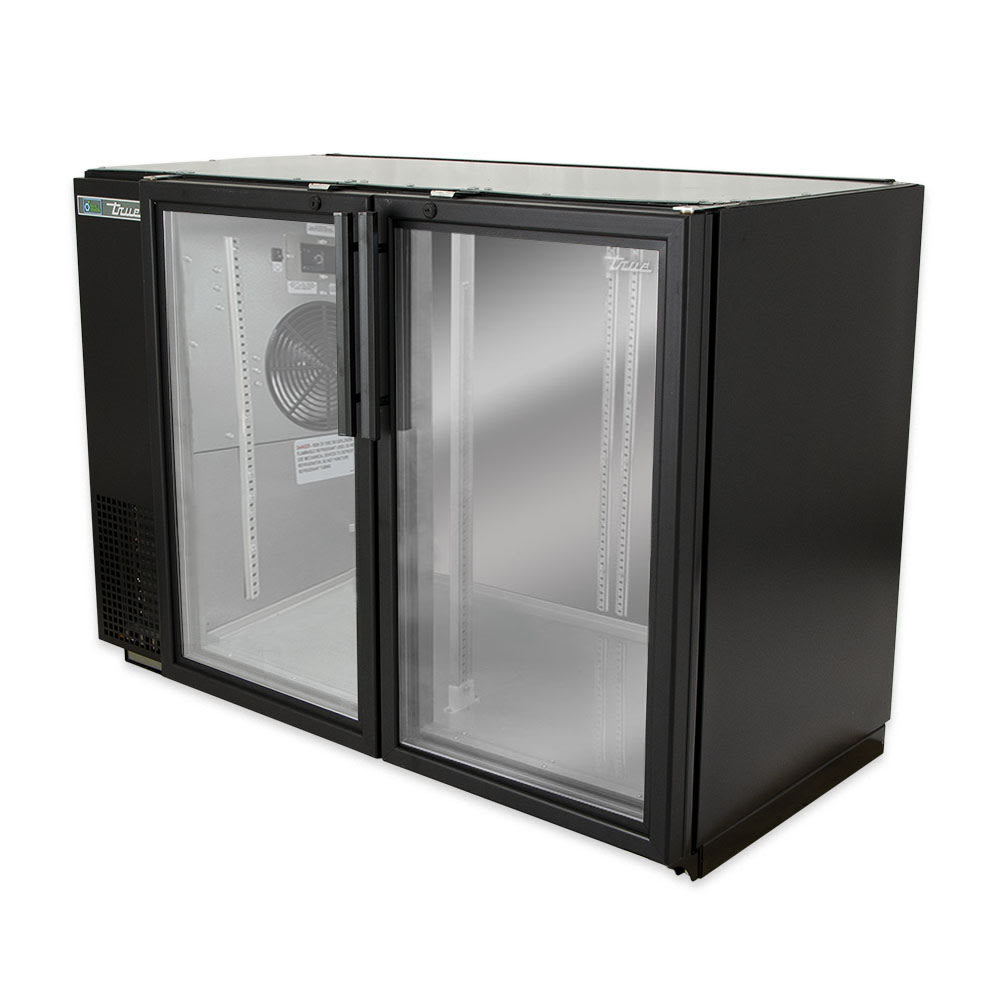

True TBB-24GAL-48G-HC-LD 48" (2) Section Bar Refrigerator - Swinging Glass Doors, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-TBB24GAL48G • MPN: TBB-24GAL-48G-HC-LD

Ships Free

Extended Lead Time (14+ days)

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

True Refrigeration TBB-24GAL-48G-HC-LD Description

True Refrigeration

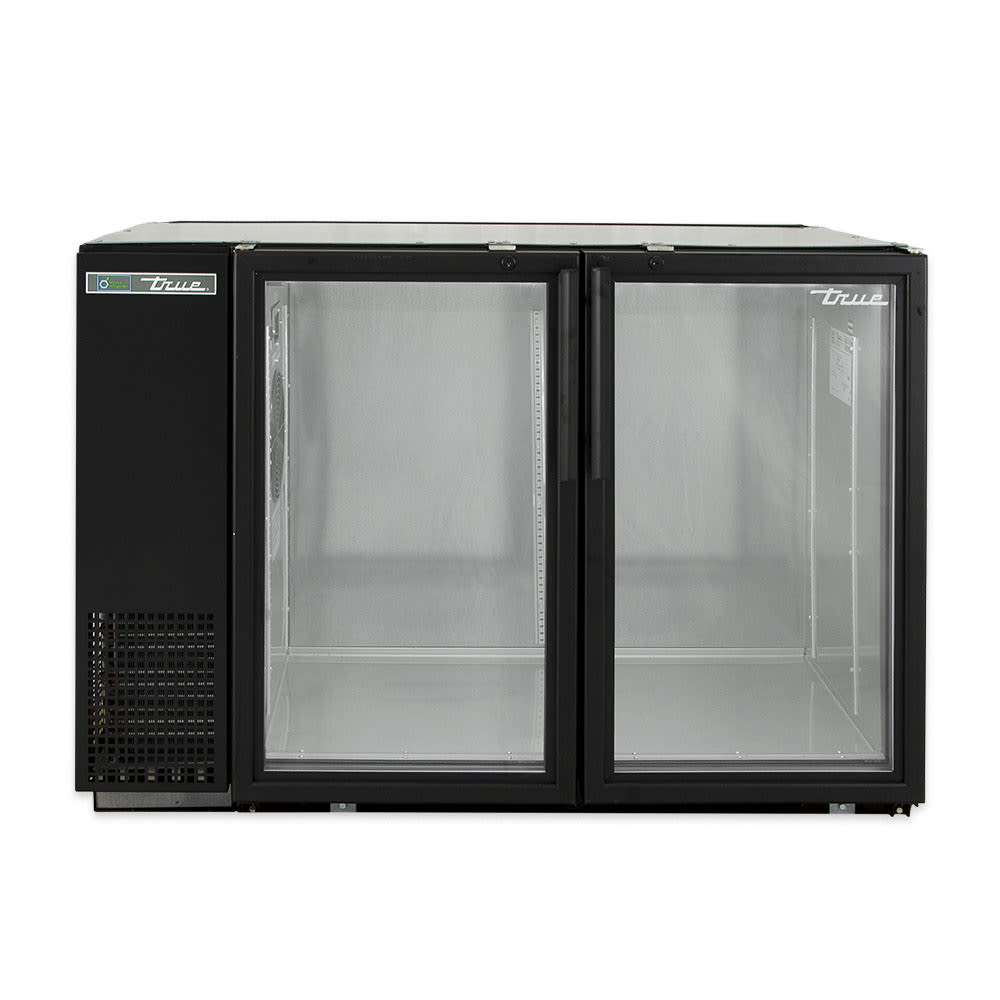

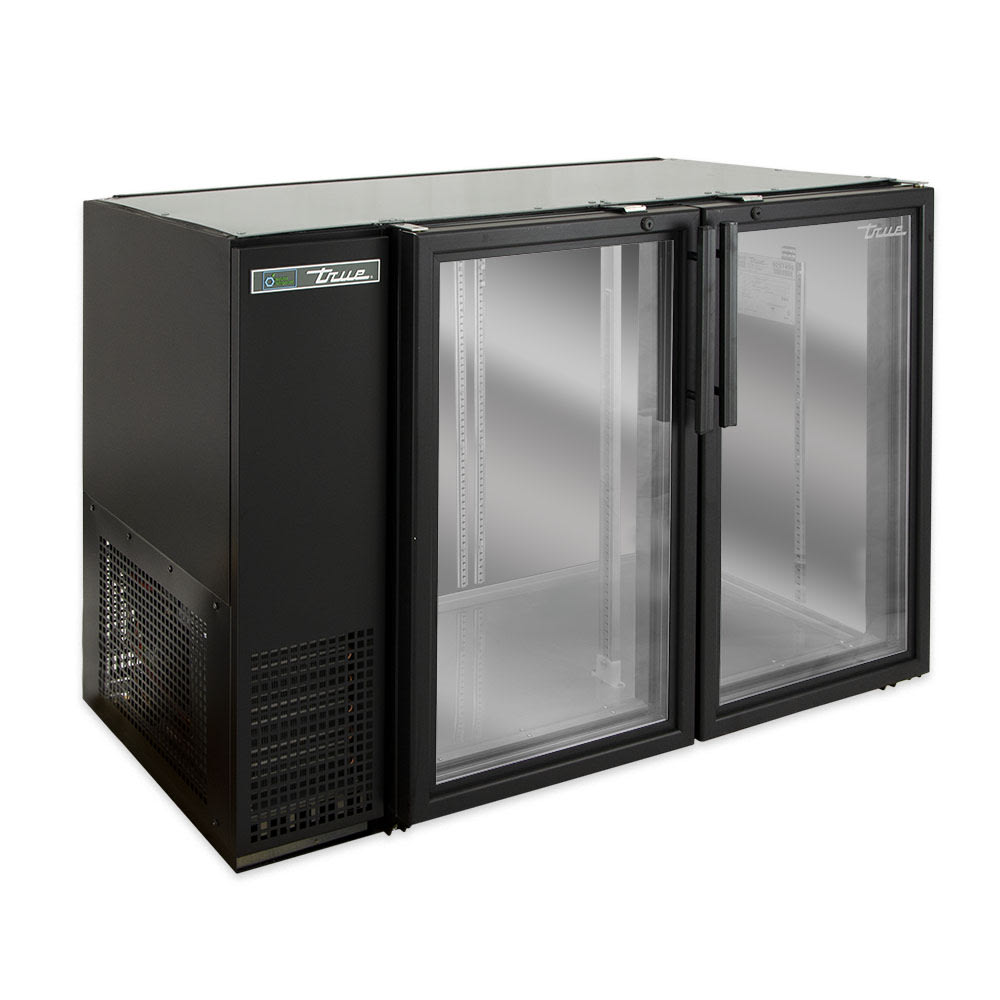

This back bar cooler from True Manufacturing has an exterior that is made from black vinyl with a matching black aluminum back and a galvanized stainless steel top. An oversized, factory balanced, refrigeration system, works in tandem with the evaporator, compressor and condenser; to keep the interior temperatures between 33 to 38 degrees Fahrenheit. This True back bar cooler has two sections with four adjustable wire shelves that are 17-3/8 in. W x 16-1/4 in. D.

Product Details

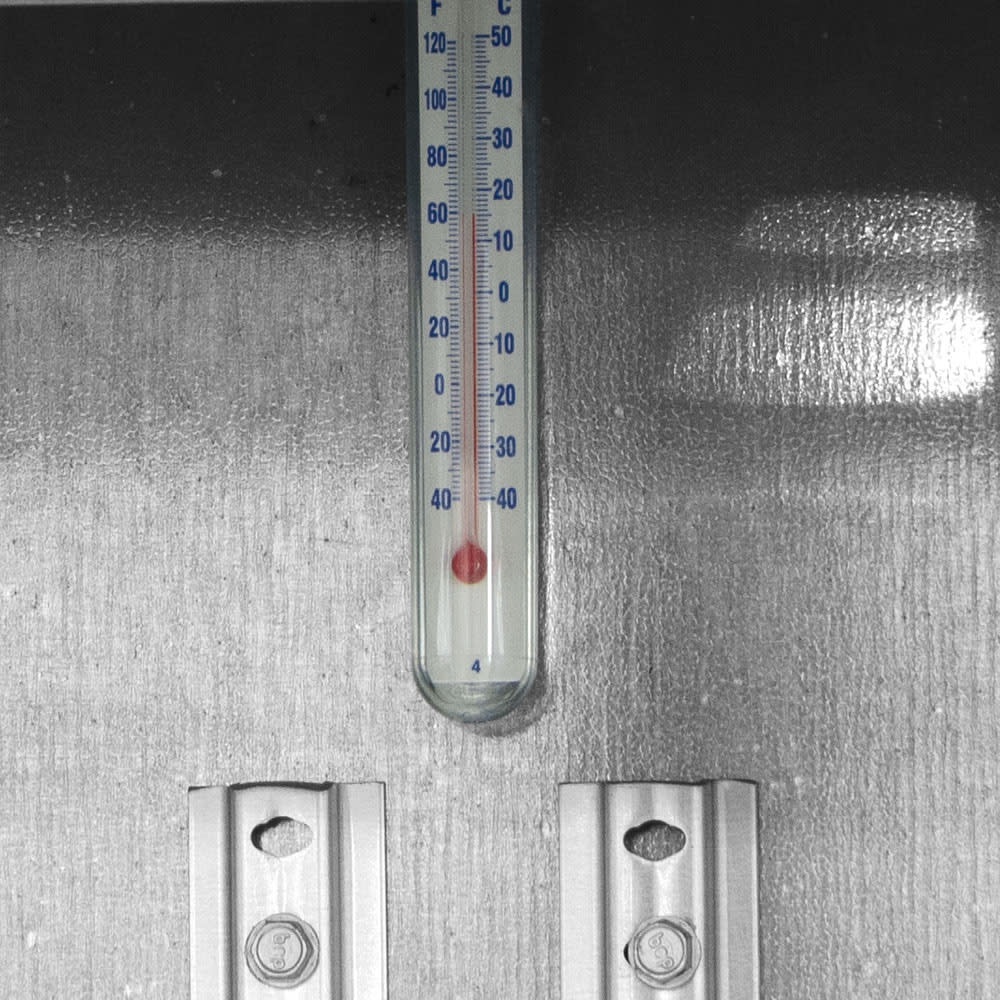

  • Oversized refrigeration system holds temperatures between 33 - 38 degrees F

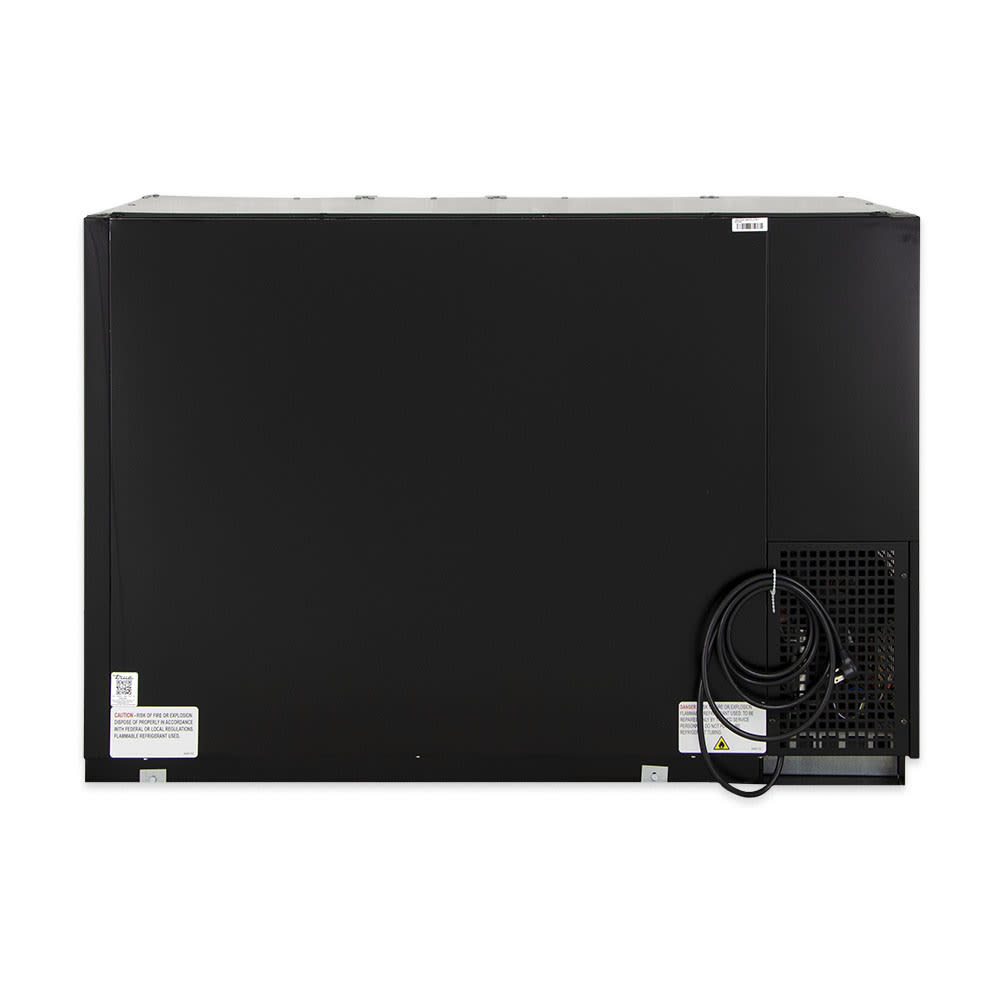

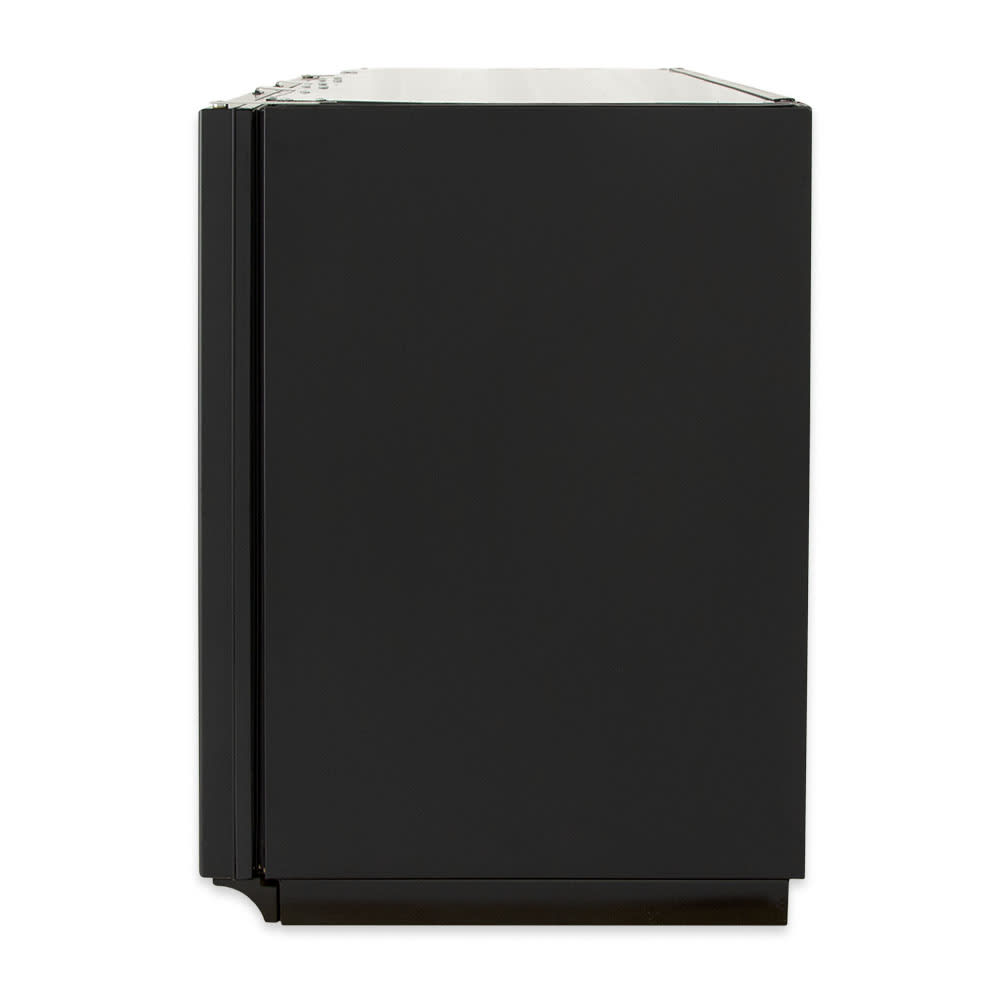

  • Exterior front and sides have a laminated black vinyl cover, back is made from aluminum, and top is made from galvanized stainless steel
  • Interior has a stainless steel floor with a 1/2-in. reinforced lip and heavy gauge galvanized steel walls

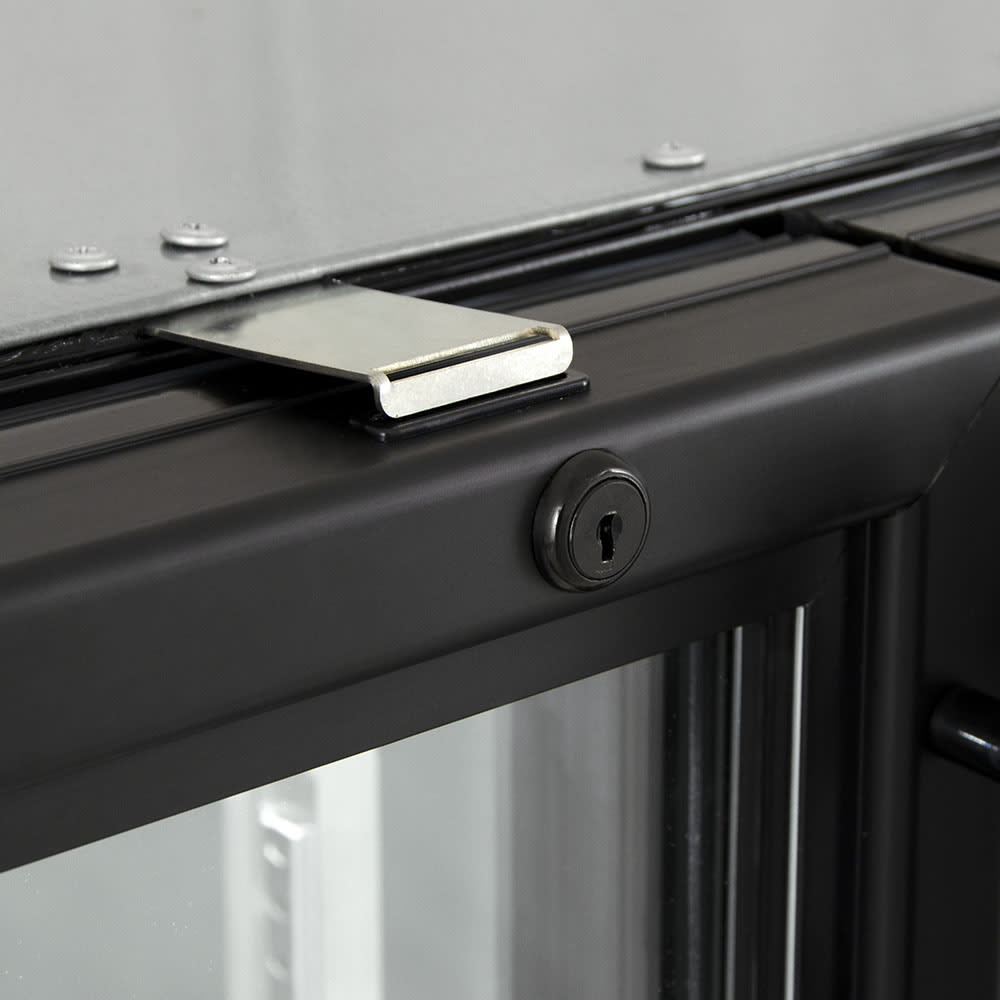

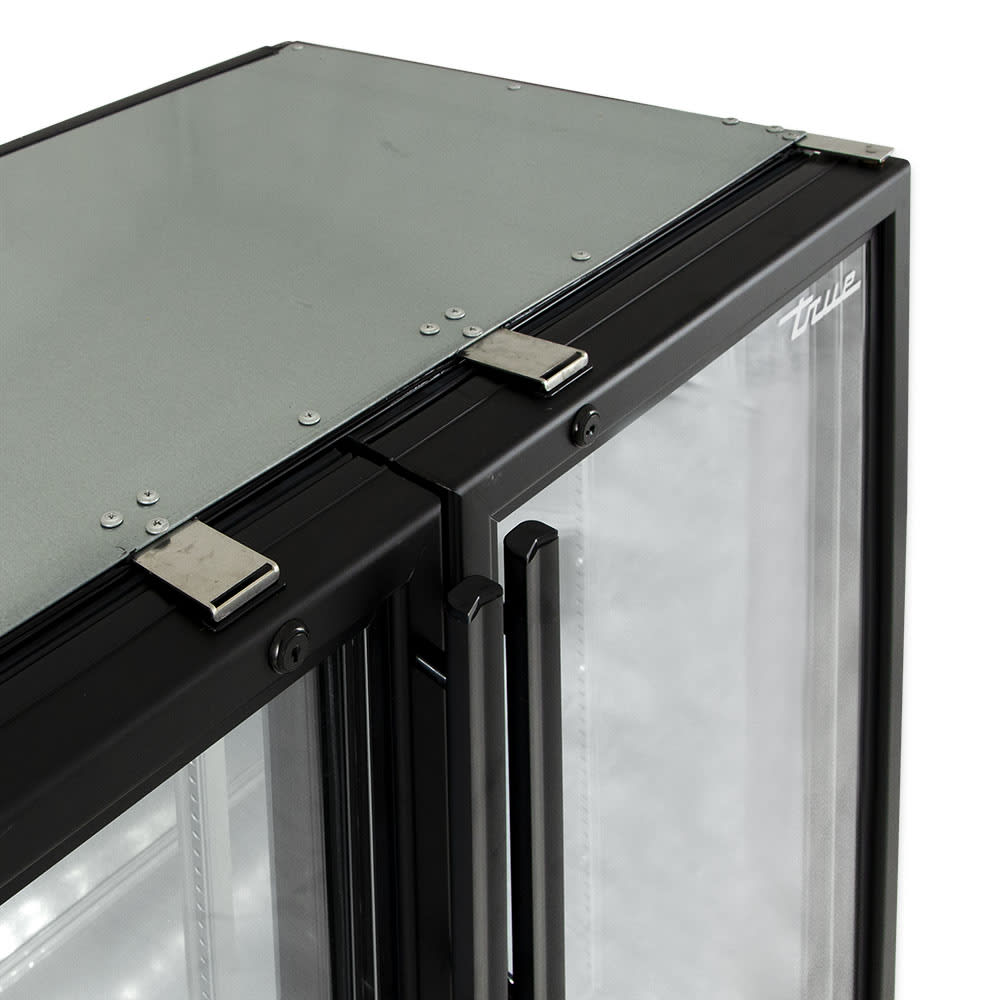

  • Doors have a "Low-E", double-pane, thermal insulated glass design with extruded aluminum frames, a positive-seal magnetic door gasket, and door locks with handles
  • Door threshold keeps the cabinet from being damaged during loading/unloading

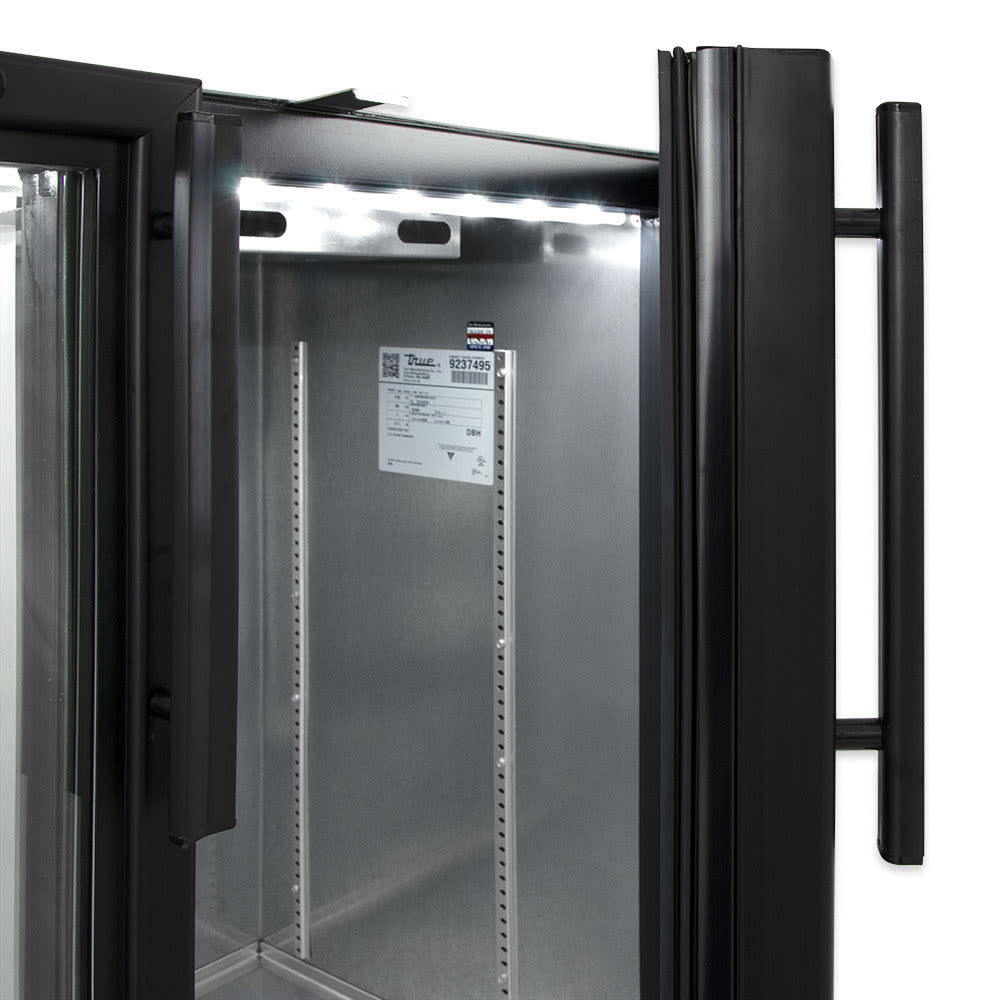

  • Interior LED lighting keeps the product highly visible and includes a safety shield
  • Cabinet structure has foamed-in-place Ecomate® polyurethane insulation
  • 2 sections with 4 shelves total that are adjustable in 1/2-in. increments and are coated with heavy-duty black PVC

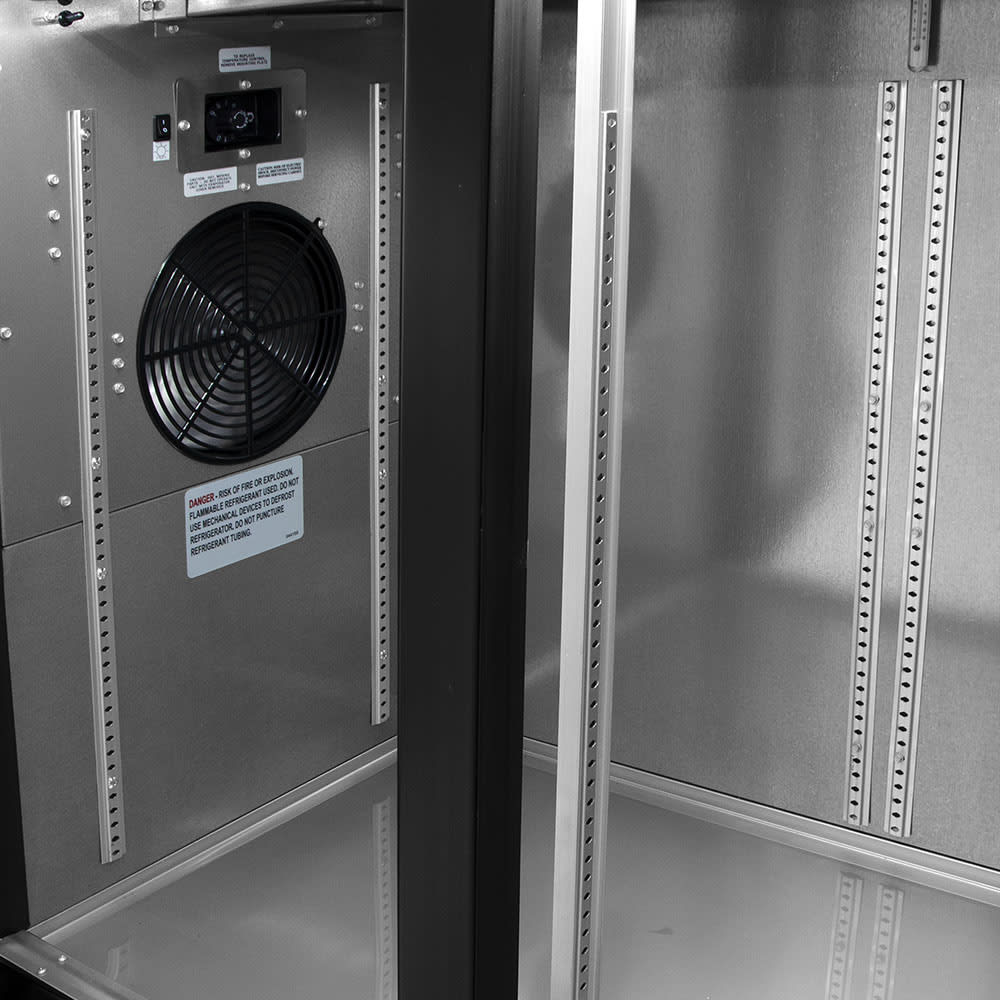

  • Shelves are 17-3/8 in. W x 16-1/4 in. D and include 4 chrome-plated shelf clips per shelf and aluminum shelf support pilasters
  • Uses 134A refrigerant in the self-contained capillary tube system

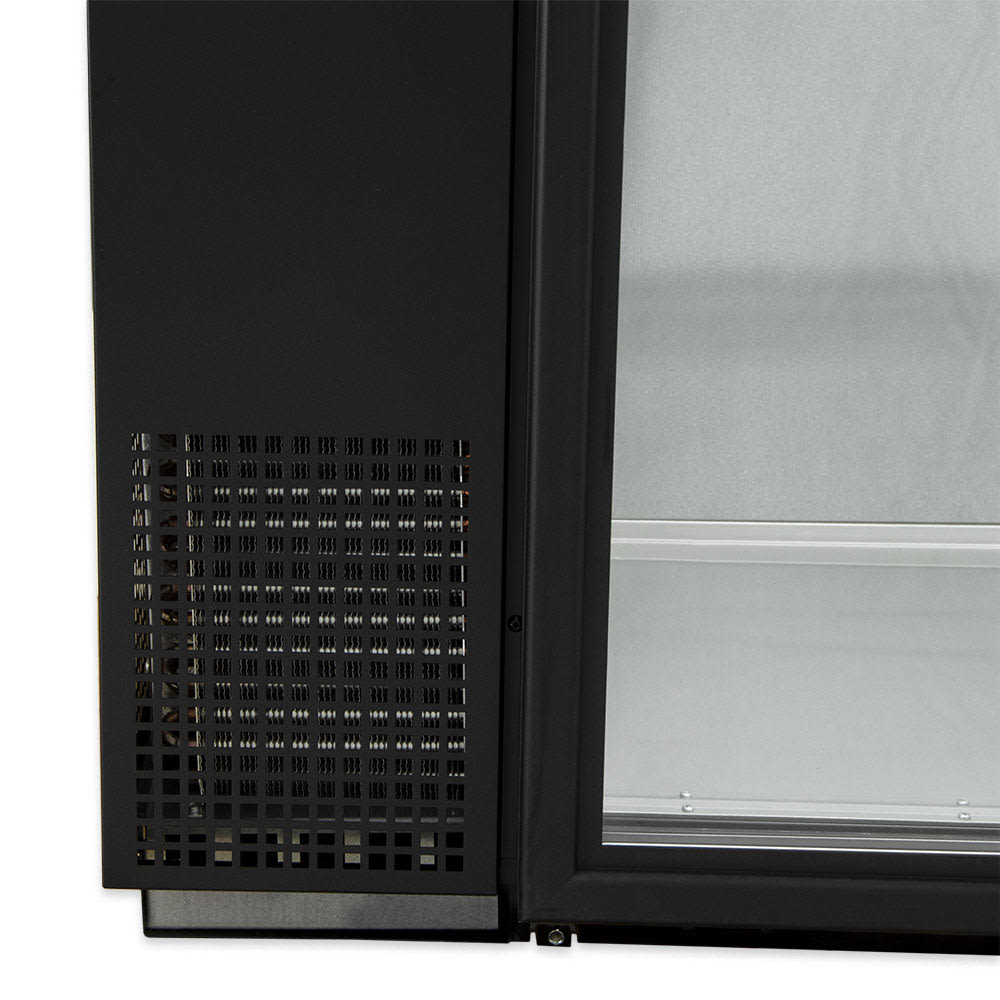

  • Condensing unit is placed behind the front grill and is easily accessed for cleaning and maintenance

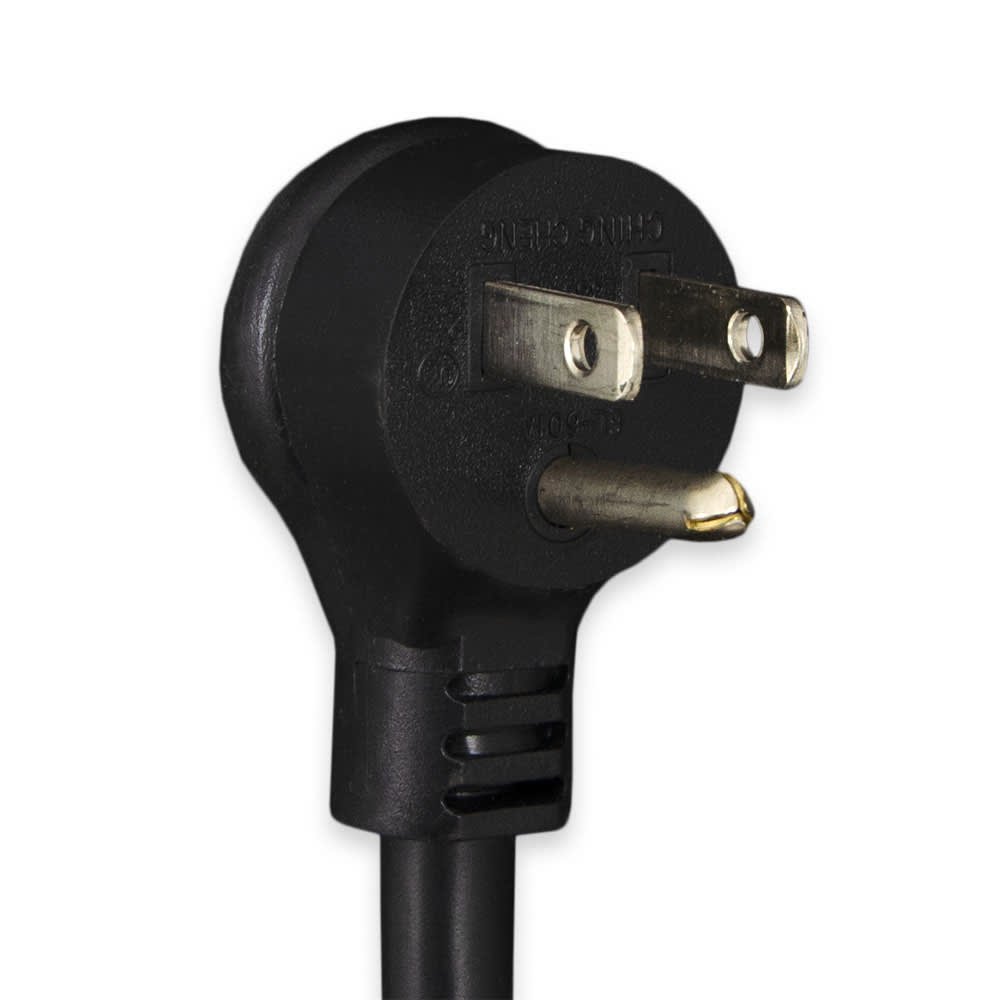

  • 115 V/60 Hz/1-ph; 7.6 A; NEMA 5-15P plug with cord included
  • Total Dimensions: 47-7/8 in. W x 23-in. D x 34-7/32 in. H
  • cULus and CE Listed; NSF Certified
  • Made in USA

Built To Last

  • Cast iron evaporator fan motors and large fan blades
  • Evaporator is epoxy-coated and prevents corrosion
  • Exterior is wear-resistant, laminated black vinyl on the front and sides with a galvanized stainless steel top
  • Interior has a stainless steel floor with heavy -gauge galvanized steel walls
  • Door threshold protector keeps the cabinet safe during product loading/unloading
  • Wire shelves are heavy duty, and coated with PVC along with being supported by 4 chrome-plated shelf clips per shelf
  • Aluminum shelf support pilasters

Environmentally Safe, Energy Saving

  • Self-contained capillary tube uses 134A refrigerant that is CFC-free
  • LED lights use less energy and last longer than traditional lighting
  • Large evaporator coil works with a high-horsepower compressor and large condenser to keep interior temperatures between 33 - 38 degrees F, saving energy costs
  • Cabinet is insulated with high density, Ecomate® polyurethane insulation, which has no ozone depletion potential (ODP) and no global warming potential (GWP)
  • "Low-E", double-pane, thermal glass door is filled with argon and has a metallic oxide film that is designed to reflect UV light
  • Positive seal doors also help keep the interior temperatures within

Back Bar Cooler, two-section, 24" deep, 34-1/4" high, (48) 6-packs or (2) 1/2 keg capacity, (4) wire shelves, condensing unit on left, galvanized sub top, galvanized interior with stainless steel floor, black vinyl exterior, (2) glass doors, LED interior light, 1/3 HP, 115v/60/1, 7.6 amps, 7' cord, NEMA 5-15P, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

True Refrigeration TBB-24GAL-48G-HC-LD Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Also Known As TBB24GAL48G, TBB-24GAL-48G, TRUTBB24GAL48G, TRUE TBB-24GAL-48G, 890TBB24GAL48G, 675-249, TBB-24GAL-48G-LD
Base Frame
Compressor Location Left
Door Design Swinging
Door Type Glass
Exterior Finish Black Laminate
Number of Levels 3
Sections 2
Specialty Options LED Lighting
Specialty Options Shallow Depth
Warranty 3 year parts & labor; 5 year compressor
Width (in) 48
Width (in) Range 40 - 49 in
Phase 1
Hertz 60
Voltage 115
Weight 315.00
True TBB-24GAL-48G-HC-LD Certifications
  • NSF
