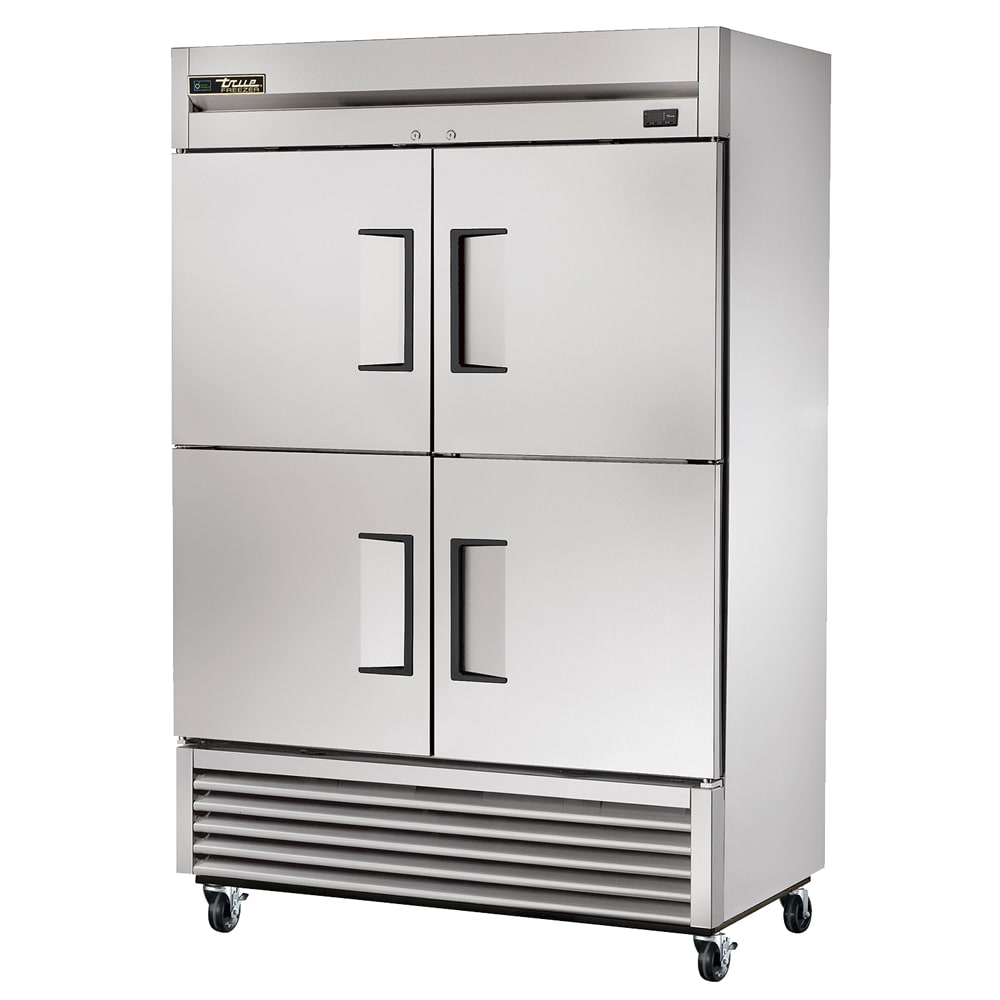

The True T-49F-4-HC is built with four solid half-swing doors. Each of those doors is finished with stainless steel on the exterior. The doors' interiors match the rest of the cabinet interior, which is finished with a clear-coated aluminum liner. The entire cabinet of the freezer is insulated with Ecomate polyurethane foam. That foam helps keep each door's 12-inch handle in place so it stays permanently attached. The four doors are mounted on self-closing hinges that prevent the T-49F-4-HC from accidentally being left open.
Product Details
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant, a substance that occurs naturally and provides energy-efficient performance
- Factory-balanced refrigeration system with large evaporator and condenser coils works to maintain a steady -10 degrees F temperature
- Powerful 1-HP compressor provides quick recovery and short run times
- Electronically-commutated evaporator and condenser fan motors move consistent volumes of air through the cabinet to create even temperatures throughout
- Condensing unit is located in the bottom of the cabinet so it operates in the coolest part of the kitchen for improved efficiency versus top-mounted equipment
- Automatic defrost system is time-initiated and terminates when system has arrived at the correct temperature
- Cabinet is built with a stainless steel front and an anodized aluminum back, top, and ends
- Interior is finished with a clear-coated aluminum liner
- Interior floor is lined with stainless steel with coved corners
- Cabinet structure is insulated with foamed-in-place Ecomate polyurethane
- Steel frame rail is welded and powder-coated black for resistance to corrosion
- 4-in.-dia. castors are fitted to frame rail, making unit mobile and easy to clean underneath
- Interior is illuminated with LED lighting that's activated by a rocker switch when a door is opened
- Exterior temperature dial displays internal temperature
- Epoxy-coated evaporator is made for a lifetime of rust resistance
- Airflow guard in rear of cabinet prevents held product from obstructing critical airflow
- Freezer is NSF standard 7 compliant to hold open food products
- 115 V/60 Hz/1 ph, 9.6 A, NEMA 5-15 plug and 9-ft. cord included

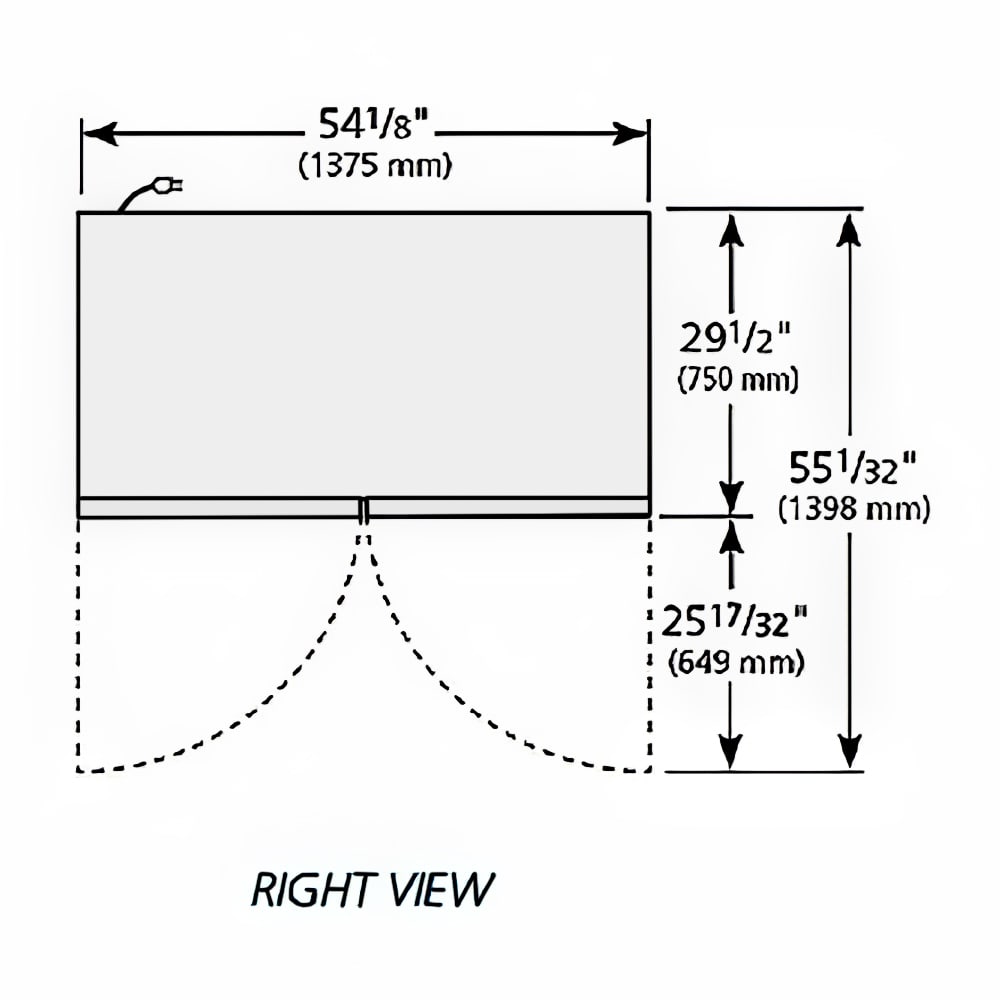

- Overall Dimensions: 541⁄8 in. W x 291⁄2 in. D x 783⁄8 in. H (height does not include 5-in. castors)
- cULus Listed and NSF Certified
- Made in the United States
Four Durable Half-Doors and Customizable Storage
- Doors are finished with stainless steel exteriors and clear-coated aluminum interiors
- Recessed door handles measure 12-in. and are foamed in place with sheet metal interlocks so they will not become loose over the life of the unit
- Doors are mounted on self-closing closure systems to prevent them from being inadvertently left open
- Door gaskets are made of one piece, snap into place on magnets, and remove without tools for easy cleaning
- Includes 6 PVC-coated wire shelves, each measuring 249⁄16 in. by 223⁄8 in.
- Shelves are mounted to support pilasters with 4 chrome-plated clips each
- Each shelf is adjustable on 1⁄2-in. increments
Freezer, Reach-in, -10° F, two-section, (4) stainless steel half doors, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, (6) adjustable PVC-coated wire shelves, interior lighting, 4" castors, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1, 9.6 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration T-49F-4-HC Specifications
PDF Spec SheetManufacturer | True Refrigeration |
Also Known As | T49F4, T-49F-4, TRUE T-49F-4, TRUT49F4, 890T49F4, 675-200 |
Cubic Feet | 49 |
Sections | 2 |
Compressor Location | Bottom Mount |
Voltage | 115/60/1 |
Door Design | Half |
Door Type | Solid |
Shelving Type | Wire |
Exterior Width | 54 |
Interior Material | Aluminum |
Supports | Casters |
Thermometer Type | Dial |
Warranty | 3 years parts & labor/5 year compressor |
Capacity Range | 42-57 cu ft |
Weight | 440.00 |
