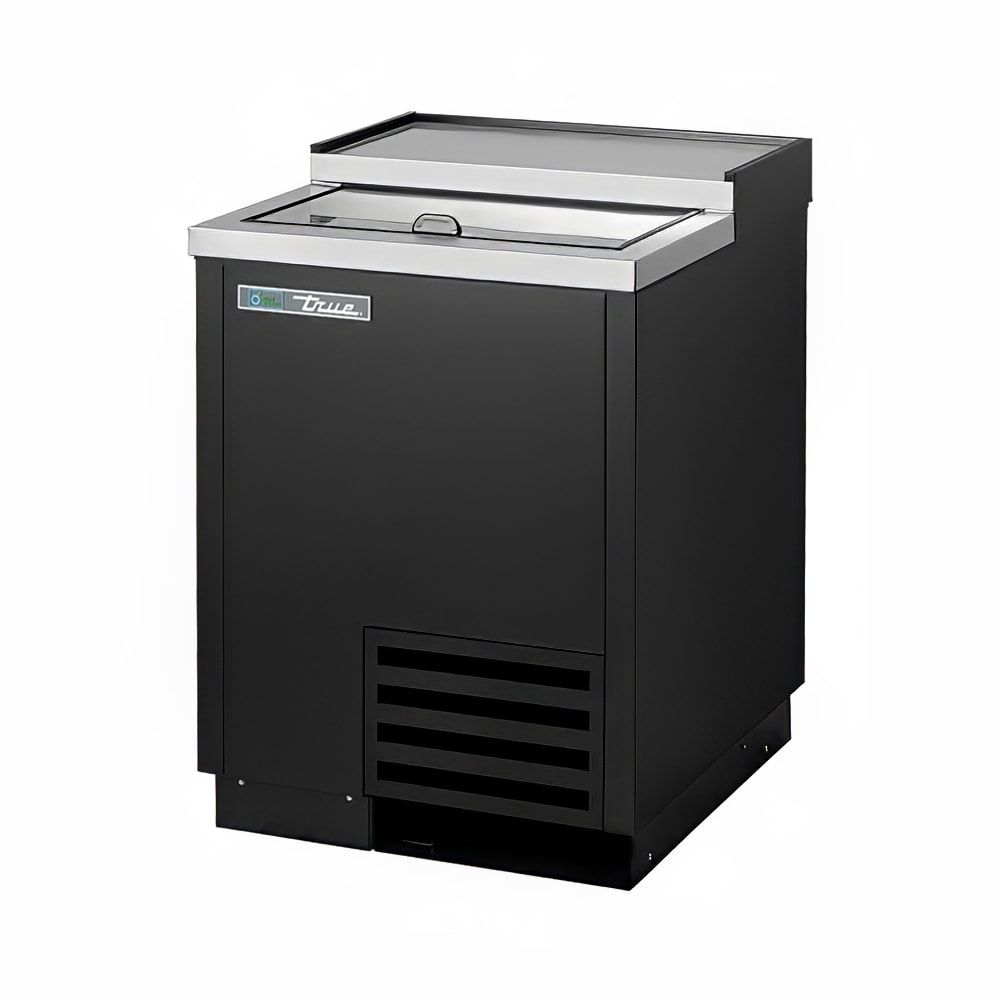

True T-24-GC-HC 1 Section Glass Chiller w/ 90 Mug Capacity, Black, 115v

The True T-24-GC-HC glass chiller can hold (85) 10-ounce steins or (90) 8-inch-diameter mugs at a time on three adjustable, PVC-coated wire shelves. While the cabinet interior is built with galvanized steel that simplifies cleaning, the exterior is finished with a black laminated vinyl that is durable and permanent. Cold air stays in the cabinet because of the polyurethane insulation that also creates structural strength.

The unit uses eco-friendly R290 hydrocarbon refrigerant to keep the temperature at 0 degrees Fahrenheit and lower, while ice buildup and excessive maintenance needs are prevented by the chiller's automatic defrost system. To simplify servicing the True T-24-GC-HC glass chiller, the refrigeration system is readily accessible. Glasses and plates are evenly cooled by the forced-air cooling system that pushes an even amount of air throughout the cabinet, and these plates and glasses are frosted quickly with evaporator fan motors and large blades to create a high volume of airflow.

The condenser fan motor regularly cleans the coil by blowing off excess dust, debris, and dirt. This self-cleaning is done by a reverse fan mode that is activated for 20 seconds every time the motor starts up. When the coil is clean, the system operates reliably and efficiently without using up a lot of energy. It also ensures the cabinet temperatures are consistent and prolongs the lifespan of the refrigeration system. The benefits that come from the reversing fan motor don’t negate recommended routine cleaning procedures for preventative maintenance.

Product Details

• Can hold (90) 8-in. mugs or (85) 10-oz. steins
• Variety of glasses and plates are accommodated by 3 adjustable, PVC-coated wire shelves
• Cabinet stability is provided by the black powder-coated steel frame rail
• Permanent black powder-coated exterior is durable
• Heavy-duty stainless steel countertop resists corrosion
• Galvanized steel interior eases cleaning
• Polyurethane insulation retains cold air

Refrigeration System

• Operating temperature: 0 degrees and below
• Uses R290 hydrocarbon refrigerant
• High-volume airflow is created by the evaporator fan motors and large blades to quickly frost glasses and plates
• Reversing fan motor for automatic coil cleaning
• Automatic defrost system reduces ice buildup
• Refrigeration system is accessible to simplify servicing
• Forced-air cooling system pushes an even amount of air throughout the cabinet to evenly cool products
• Epoxy-coated evaporator resists corrosion

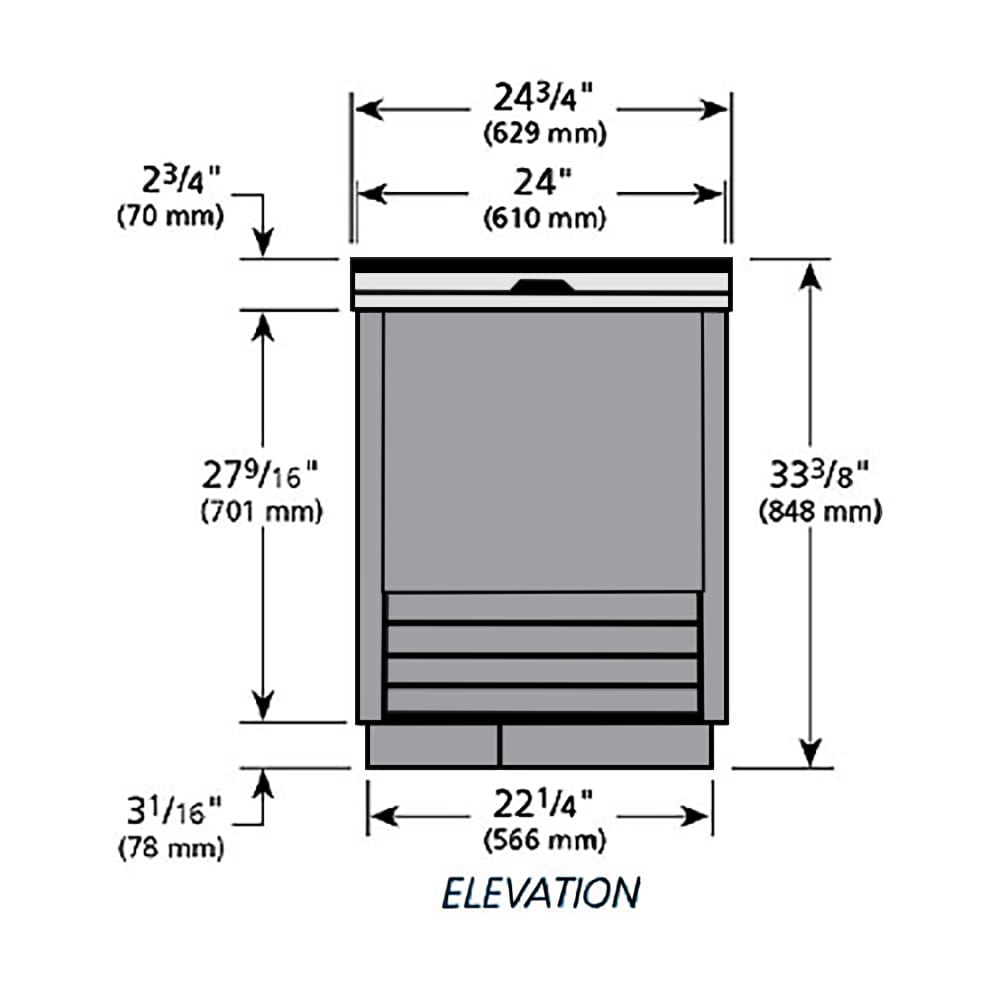

Dimensions & Utilities

• 2 top shelves: 17³⁄₁₆ in. W x 19⁵⁄₁₆ in. D
• Bottom shelf: 5¹⁄₂ in. W x 19⁵⁄₁₆ in. D
• Overall: 24¹⁄₂ in. W x 26⁷⁄₈ in. D x 33¹⁄₂ in. H
• 2.3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration T-24-GC-HC within the 48 contiguous states.

From The Manufacturer

Glass and Plate Chiller/Froster, 0°F & below, capacity: (90) 8" mugs or (85) 10 oz. steins, (3) adjustable PVC coated shelves, auto defrost, stainless steel counter top & lid, deep well design, galvanized interior, black powder coated exterior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration T-24-GC-HC Specifications
