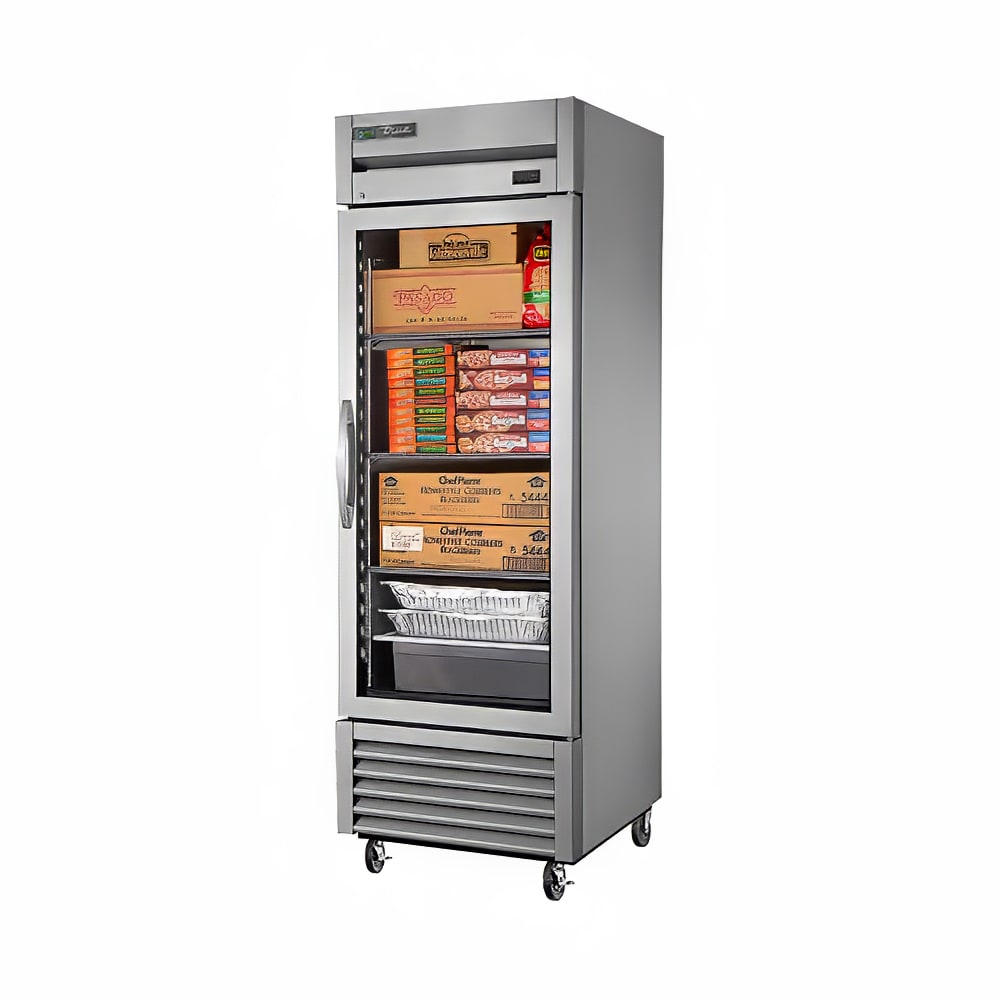

True T-23FG-HC~FGD01 27" One Section Reach In Freezer, (1) Right Hinge Glass Door, 115v

This True T-23FG-HC~FGD01 reach-in freezer maintains -10 degrees Fahrenheit with R290 hydrocarbon refrigerant, which is controlled by a capillary tube system. Large evaporator and condenser fans push high volumes of cold air through the cabinet for consistently cooled products, while rear guards keep product out of the way of airflow. An automatic defrost system turns on at a specific time and shuts off at a specific temperature.

When used in addition to recommended maintenance procedures, the reversing feature of the condenser fan motor lengthens the refrigeration system's lifespan. Every time the motor turns on, it reverses for the first 20 seconds to remove excess debris, dirt, and dust from the condensing coil. Because this component promotes efficient and reliable operation, keeping it clean is integral to overall system function. This self-cleaning feature also minimizes energy consumption and helps to maintain the coldest, most consistent storage temperatures.

This reach-in comes with three PVC-coated shelves that are adjustable in ¹⁄₂ increments along cabinet pilasters to accommodate various product sizes. To resist stains and scratches, the interior of the True T-23FG-HC~FGD01 one-section freezer is finished with a clear coat over aluminum. Stainless steel floors have coved corners to simplify cleanup since debris does not get trapped, and the glass door is right hinged to open on the left.

Product Details

• Right-hinged door opens on the left
• Triple-pane, thermal glass prevents interior heat absorption
• Included door lock protects valuable products
• 15-in. extruded aluminum handles provides interior access
• 1-piece door gasket snaps in magnetically and can be removed without tools
• Stainless steel front and aluminum top, back, and sides
• Cabinet interior is finished with NSF-approved, clear-coated aluminum
• Interior floor is made of stainless steel with coved corners
• Cabinet is insulated with foamed-in-place polyurethane for energy efficiency
• Black powder-coated frame rail is built for a long service life
• 4-in. castors are fitted to rail to mobilize the cabinet
• Includes 3 wear-resistant, PVC-coated shelves
• Shelves are adjustable on ¹⁄₂-in. increments to customize cabinet storage
• LED lights illuminate the interior
• Airflow guards prevent product from obstructing airflow

Refrigeration System

• Epoxy-coated evaporator resists corrosion
• Capillary tube system uses R290 hydrocarbon refrigerant for quick temperature recovery
• Large evaporator and condenser fan motors move a consistent volume of air around the cabinet
• Reversing fan motor blows dust off coil
• Operating temperature: -10 degrees F
• Exterior display shows interior temperature
• Bottom-mount condensing is located in the coolest part of the kitchen
• Defrost system initiates automatically on a timer and terminates when it detects proper temperatures

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₄ in. D x 83³⁄₈ in. H
• 6.2 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Freezer, reach-in, one-section, -10°F, framed glass door version 01, (1) glass door, (3) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 6.2 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration T-23FG-HC~FGD01 Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Compressor Location	Bottom
Cubic Feet	20.8
Depth (in)	31.25
Door Design	Full
Door Type	Glass
Height (in)	83.38
Hertz	60
Interior Material	Aluminum
Sections	1
Type	Reach In
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	27
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Better
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Right
Weight	330.00
