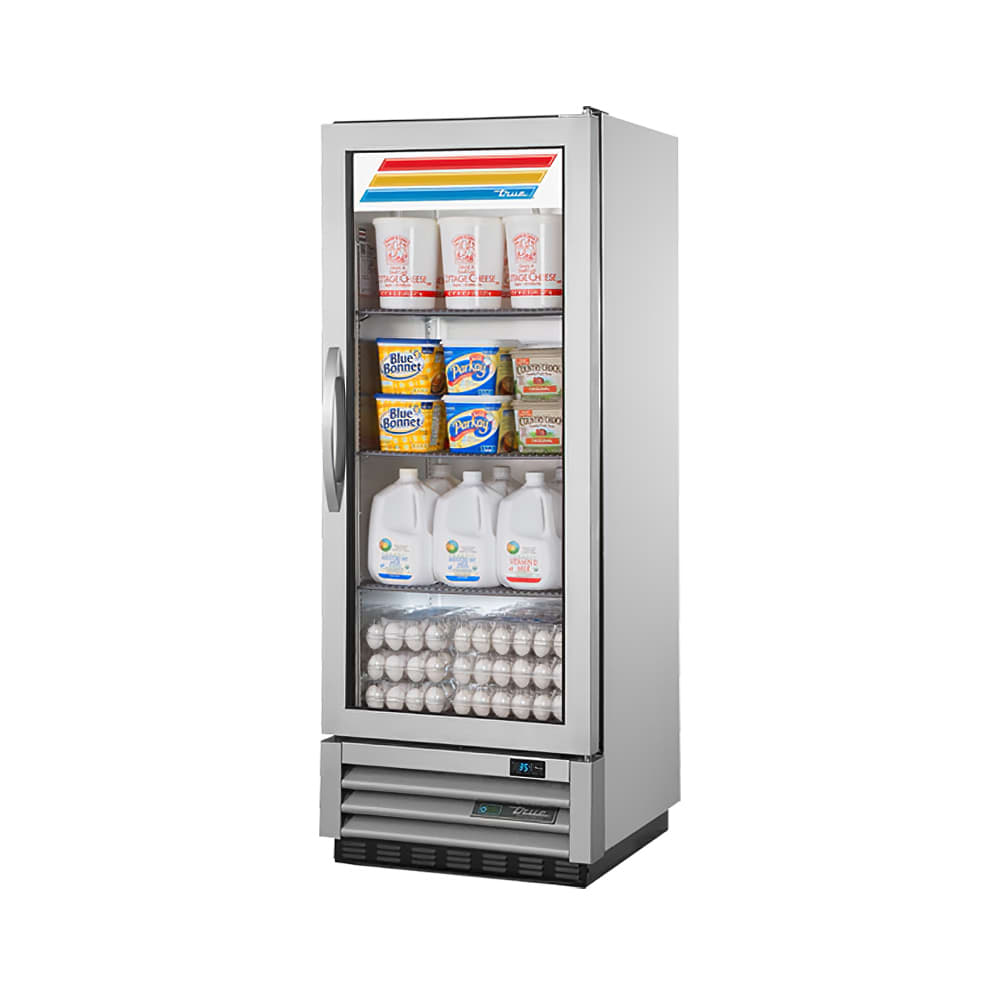

True T-12G-HC~FGD01 25" One Section Reach In Refrigerator, (1) Right Hinge Glass Door, 115v

The True T-12G-HC~FGD01 glass-door refrigerator has a stainless steel front and aluminum sides, back, and top that resist corrosion. The stainless steel floor has coved corners to simplify cleaning and the interior aluminum sides have an easy-to-clean clear coating. Product sits on three gray PVC-coated shelves, which are corrosion resistant. Users can easily find product through the glass door before they open it, reducing cold air loss. Leaks are prevented with magnetic gaskets around the door frame.

This glass-door refrigerator is designed to hold temperatures between 33 and 38 degrees Fahrenheit. These temperatures are maintained with R290 hydrocarbon refrigerant through a capillary tube system, and cold air is evenly circulated with condenser and evaporator fan motors. The True T-12G-HC~FGD01 reach-in refrigerator has an epoxy-coated evaporator that resists corrosion.

For improved, long-term operation, the unit's compressor fan motor helps keep the condensing coil clean. By blowing its fan in an opposite direction for 20 seconds upon start up, it helps remove dirt, dust, and debris buildup. When removed, the coil can better maintain product temperature. Preventative maintenance must still be carried out on the coil and compressor.

Product Details

• 3 gray, PVC-coated wire shelves are adjustable
• LED lights illuminate the cabinet
• Stainless steel front and door offer superior durability and easy cleaning
• Cabinet back, top, and sides are made of aluminum
• Clear-coated aluminum interior with stainless steel floor
• Polyurethane insulation retains cold air
• Heavy-duty steel frame rail is powder coated to resist rust
• Frame rail is fitted with leg levelers for level installation
• Double-pane glass doors resist heat transfer for energy efficiency
• Door is mounted on self-closing torsion hinges
• Door gaskets are magnetic and removable without tools
• Epoxy-coated evaporator will never rust

Self-contained Refrigeration System

• Temperature range: 33-38 degrees F
• Evaporator and condenser fan motors evenly distribute cold air
• Capillary tube system uses R290 hydrocarbon refrigerant
• Condensing coil buildup is removed with reverse compressor fan motor technology
• Condensing unit is located at the bottom of the equipment, so it operates in the coolest part of the kitchen and is easy to access for cleaning and service

Dimensions & Utilities

• Shelves: 20¹³⁄₁₆ in. W x 17 in. D

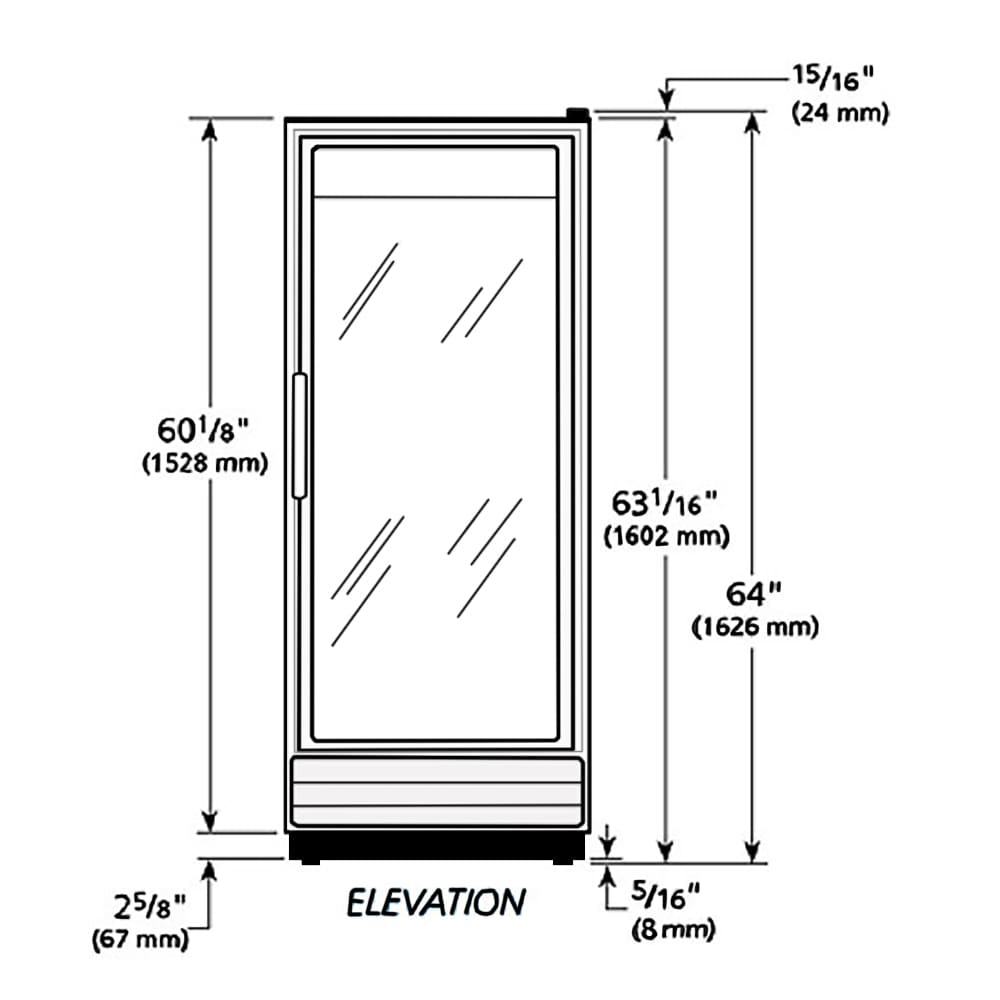

• Overall: 24⁷⁄₈ in. W x 24⁷⁄₈ in. D x 64 in. H
• 1.8 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration T-12G-HC~FGD01 within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, one-section, framed glass door version 01, (1) glass door, (3) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, leg levelers, R290 Hydrocarbon refrigerant, 1/6 HP, 115v/60/1-ph, 1.8 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
