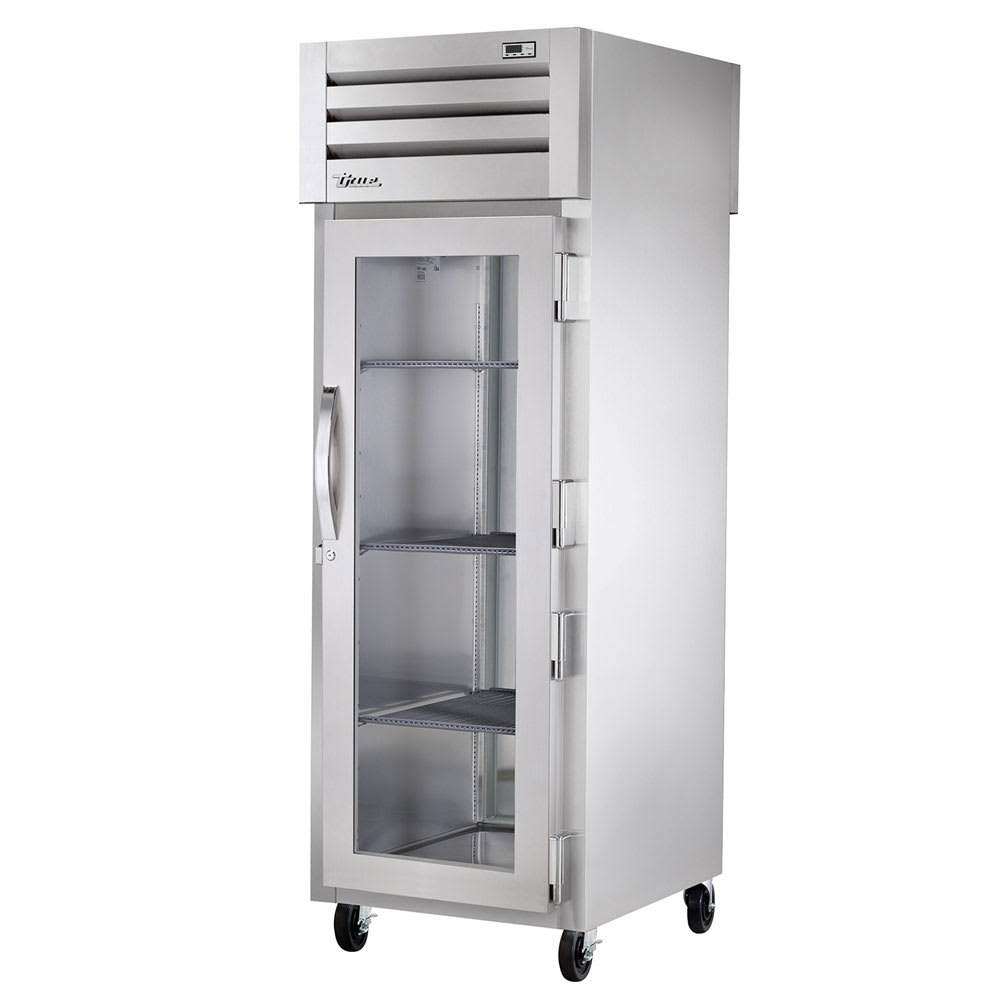

True STG1RPT-1G-1S-HC 27 1/2" One Section Pass Thru Refrigerator, 1 Glass Door, 1 Solid Door, Right Hinge, 115v
$8,018.27 /Each
True Refrigeration STG1RPT-1G-1S-HC Description
The exterior of the True STG1RPT-1G-1S-HC SPEC SERIES® pass-thru refrigerator has a durable stainless steel front with sides that have a matching corrosion-resistant aluminum finish. Since it has a pass-thru design, doors on the front and back are each equipped with metal handles and bolt-style door locks. Its front door features double-pane, thermal-insulated glass to prevent fogging and enable product visibility, while the rear door is constructed of solid stainless steel. This cabinet interior has a stainless steel floor and ceiling with aluminum side walls and back and is insulated with polyurethane that has been foamed in place. Three wire shelves are coated in PVC to hold product
The True STG1RPT-1G-1S-HC pass-thru refrigerator has a top-mount refrigeration system, which is difficult for unauthorized users to access, and a self-contained capillary tube system meters R290 hydrocarbon refrigerant. An external digital temperature display monitors temperatures that can be set between 33 and 38 degrees Fahrenheit, and the refrigeration system operates using a digital control.
Made with unique reversing technology, the compressor fan in this unit blows in reverse for 20 seconds when it starts up. This mechanism eliminates debris, dirt, and dust from the condenser coil to reduce energy consumption and maintain cold and consistent storage temperatures. This reversing technology also improves refrigeration system efficiency and lengthens the lifespan of the unit, but it doesn't eliminate requirements for routine preventative maintenance.
- Exterior is constructed of stainless steel front with matching aluminum sides
- Interior is constructed of aluminum side walls and back for corrosion resistance
- Strong stainless steel floor and ceiling
- Cabinet is insulated with foamed-in-place polyurethane
- 3 PVC-coated wire shelves
- Stainless steel back door
- Front door is made of thermal-insulated, double-pane glass
- Doors equipped with metal handles and bolt-style door locks
- Doors stay open at 120 degrees
- Magnetic door gaskets can be removed without tools
- Exterior digital temperature display reads in Fahrenheit or Celsius
- LED interior lighting is safety shielded
- Epoxy-coated evaporator resists corrosion
- Top-mounted refrigeration system with self-contained capillary system
- Uses R290 hydrocarbon refrigerant
- Electronically commutated evaporator and condenser fan motors reduce heat
- Fan motor operates in reverse for 20 seconds at start up, blowing dirt and dust off condenser coil
- Temperature holding range: 33-38 degrees F
- Refrigeration system operates with an electronic control
- 27 1⁄2 in. W x 39 1⁄8 in. D x 84 1⁄8 in. H
- 3.8 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration STG1RPT-1G-1S-HC within the 48 contiguous states.
From The Manufacturer
True Refrigeration STG1RPT-1G-1S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Compressor Location | Top |
| Cubic Feet | 24.5 |
| Depth (in) | 36.13 |
| Door Type | Glass/Solid |
| Doors | Full |
| Height (in) | 77.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Aluminum |
| Kitchen Innovations Awards | 2015 |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Spec |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Spec Series® |
| Special Features | Casters Included - Uninstalled |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.5 |
| Weight | 440.00 |
WARNING: Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It is a one-section pass-thru refrigerator with a glass door on the front and a solid door on the back.
The refrigerator provides about 25 cubic feet of refrigerated storage.
LED interior lighting improves visibility for easy product identification.
Both interior and exterior panels are made of stainless steel for strength and cleanliness.
Three heavy-duty, adjustable wire shelves are standard.
It operates between approximately 33 °F and 38 °F.
It allows access from both kitchen and service sides, reducing steps and improving efficiency.
The compressor is mounted at the top of the cabinet.
This unit measures 27 1⁄2 in. W x 36 1⁄8 in. D x 77 3⁄4 in. H.
Yes. The magnetic door gaskets are removable for cleaning or replacement.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
Yes. Casters are included for repositioning or cleaning access.
This model has one full-height glass door on the front and one full-height solid door on the rear.
This unit provides 25 cu. ft. of refrigerated storage in one section.
Yes. LED interior lighting improves product visibility.
It has a stainless steel interior and exterior for durability and simplified cleaning.
Yes. It comes with three heavy-duty adjustable wire shelves.
Yes. It allows access from both kitchen and service sides, reducing steps and improving efficiency.
It has one section and two doors.
It maintains a holding temperature range from 33-38° F.
