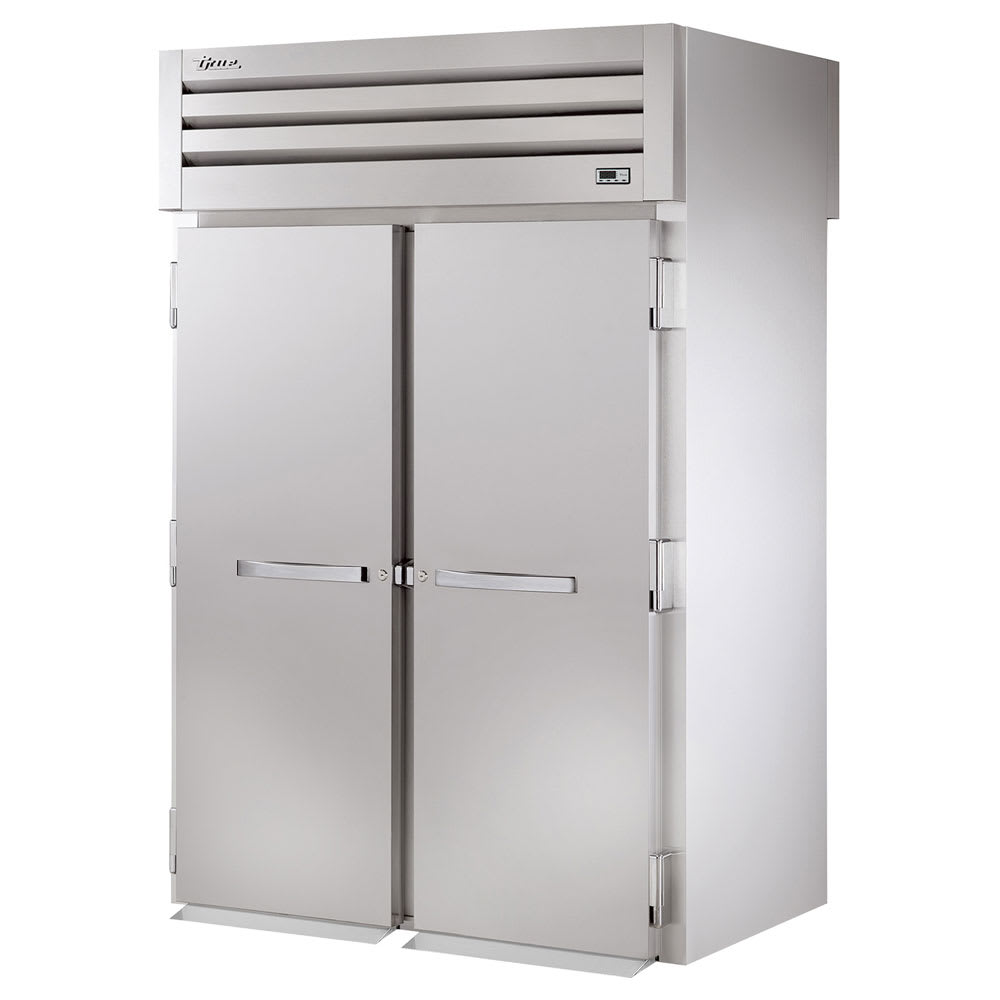

True’s SPEC SERIES STA2RRT-2S-2S is a roll-thru refrigerator with exterior stainless steel front, doors, and sides. The interior has a stainless steel floor and ceiling, and aluminum side and back walls. To keep the fridge insulated, the cabinet structure and solid door are foamed in place with Ecomate, a polyurethane, high density insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP). The doors on the STA2RRT-2S-2Shave three lifetime-guaranteed items: bolt style door locks standard; all metal, heavy duty, working door handle; and external cam lift door hinges, three per door section.
The refrigeration system itself is a factory engineered, self-contained, capillary tube system that uses environmentally friendly 134A refrigerant. The extra-large evaporator coil, balanced with a higher horsepower compressor and a large condenser, maintains temperatures of 33 to 38 degrees Fahrenheit for the best food preservation. The distinct design of a sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades ensures faster temperature recovery and shorter run times in the busiest food service environments. Those oversized fan blades also create efficient, low-velocity, high-volume airflow for consistent internal temperatures.
- Top-mounted refrigeration system with evaporator away from food to maximize capacity
- 4 stainless steel ramps, 1 per door
- Accepts roll-in racks with maximum dimensions of 27 in. L x 29 in. D x 66 in. H
- Positive seal self-closing door with 120 degrees F stay open feature
- Magnetic door gasket, removable without tools for easy cleaning
- Bright interior lighting with a safety shield
- Digital temperature display in F or C
- Evaporator epoxy coated to eliminate possible corrosion
- Interior bumpers protect walls from roll-in cart abuse
- NSF-7 compliant for open food products
- Pre-wired at factory
- Overall Dimensions: 68 in. L x 37 1⁄2 in. D x 833⁄4in H (Depth does NOT include 41⁄2 in. on each side for ramps. Height does NOT include 1 in for system mechanical components.)
- 1⁄2 HP
- 115 V/60 Hz/ 1 ph, 9.5 A, NEMA 5-15 plug, and 9 ft. cord included
SPEC SERIES® Roll-thru Refrigerator, stainless steel front & sides, (2) stainless steel doors front & rear, locks, cam-lift hinges, digital temperature control, aluminum interior, incandescent interior lighting, stainless steel ramps, 1/2 HP, 115v/60/1, 9.5 amps, 9' cord, NEMA 5-15P, [accommodates 27"Wx29"Dx66"H carts, NOT included], cULus, UL EPH Classified, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
True Refrigeration STA2RRT-2S-2S SpecificationsPDF Spec Sheet
|Compressor Location||Top Mount|
|Evaporator Type||Capillary Tube|
|Warranty||3 years parts & labor/5 years compressor|
|Width (in) Range||61 - 72|
|Product Type||Commercial Refrigeration|
