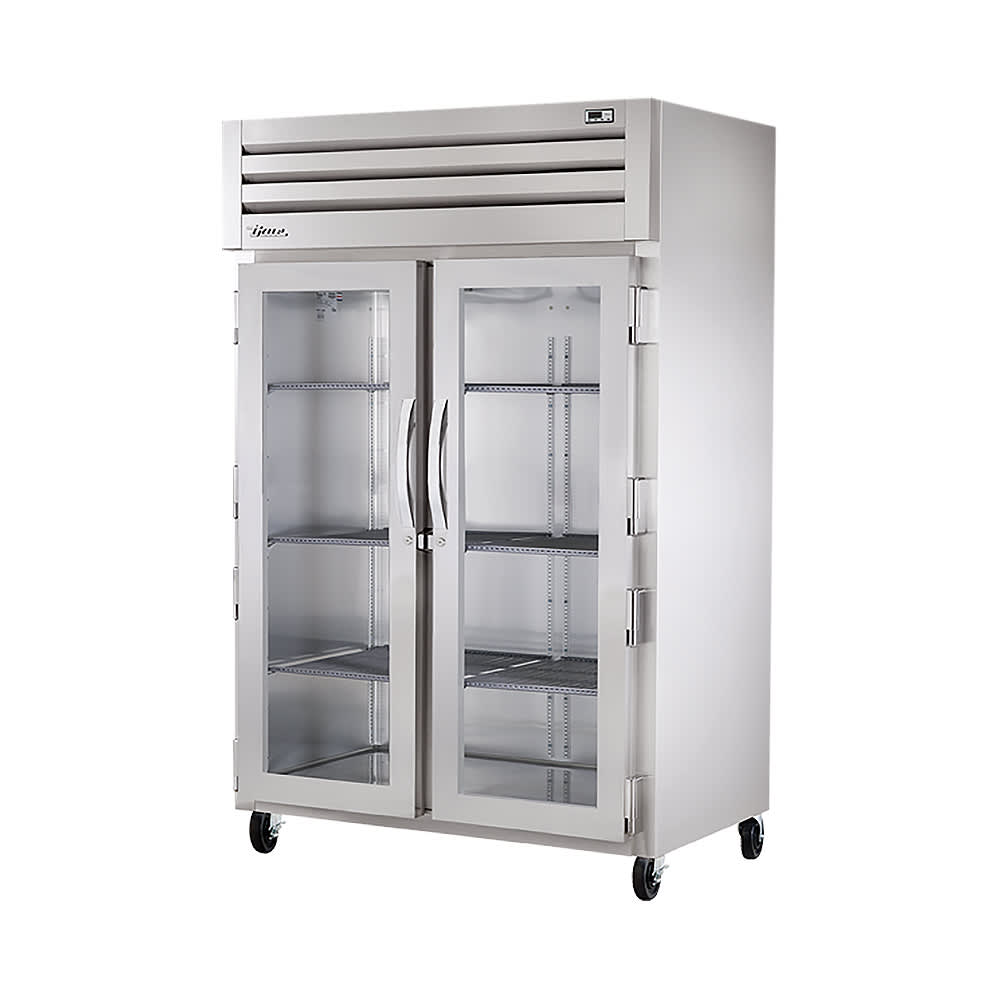

True STA2R-2G-HC 52 3/5" Two Section Reach In Refrigerator, (2) Left/Right Hinge Glass Doors, 115v

The True STA2R-2G-HC Spec Series® two-section refrigerator has see-through doors with double-pane, thermal-insulated glass. These doors have cam-lift hinges that automatically close, but their stay-open mechanism keeps them open when they are pulled past 120 degrees. For visibility, LED lights shine on the contents, which are supported by six durable, chrome-plated shelves. These shelves have an open-wire design that promotes cold-air circulation. To ensure properly cooled products, the efficient fan motors of the evaporator and condenser create consistent airflow.

Improving the unit's overall performance, the condensing fan motor blows dirt and debris away from the condensing coil. Upon compressor start up, the fan motor reverses direction for 20 seconds to clean the coil. For optimal results, employees should perform preventative maintenance regularly.

The refrigeration system for the True STA2R-2G-HC reach-in refrigerator has a top-mounted design to prevent the evaporator from taking up interior space that could store product. Its capillary tube system regulates R290 refrigerant flow to maintain temperatures ranging from 33 to 38 degrees Fahrenheit. Cold temperatures are kept inside by the thermal glass, polyurethane insulation, and door gaskets. For quick cleanup, the interior floor is stainless steel and can be wiped clean. Castors can move the unit for cleaning underneath, and the front two lock to hold the refrigerator still.

Product Details

• Part of the Spec Series
• Ding- and scrape-resistant stainless steel exterior
• Aluminum interior with a stainless steel floor and ceiling
• Polyurethane insulation creates stability and retains cold air
• 6 chrome-plated wire shelves promote airflow
• LED lights brighten the interior
• Digital display shows the internal temperature in Fahrenheit or Celsius
• 4 castors, 2 with brakes

See-through Double Doors

• Heavy-duty handles and a bolt-locking design
• Close automatically to prevent cold-air loss
• Stay open past 120 degrees for quick access
• Thermal-insulated, double-pane glass shows off the contents while keeping them cold
• Heavy-duty handles and magnetic gaskets
• 1-piece gaskets can be removed for cleaning without tools

Refrigeration System

• Cooled by environmentally friendly R290 refrigerant
• Refrigerant is controlled by a capillary tube system
• Operating temperature: 33-38 degrees F
• Evaporator and condenser have fan motors that move a consistent amount of air throughout the cabinet
• Condensing fan motor reverses to rid the coil of dust and debris
• Epoxy-coated evaporator lowers the risk of corrosion
• Ceiling-mounted design means the evaporator does not take up interior space
• Electronic controls

Dimensions & Utilities

• 52⁵⁄₈ in. W x 35⁷⁄₃₂ in. D x 84³⁄₈ in. H
• 5.9 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STA2R-2G-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator, reach-in, two-section, (2) glass doors with locks, cam-lift hinges, digital temperature control, (6) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior sides & walls, stainless floor & ceiling, 5" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 5.9 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration STA2R-2G-HC Specifications
